The Savox SV-1232MG is a micro digital high voltage servo designed for RC applications that need extremely fast response, compact size and strong metal gear durability. Producing up to 6.5kg-cm of torque at 8.4V with an ultra-fast 0.04 sec/60° transit speed, it is a strong choice for 250–450 size helicopters, small aircraft, compact cars and other high-performance micro servo applications.

Built with a coreless motor, heavy-duty metal gears, dual ball bearings and a full aluminium case, the SV-1232MG delivers excellent speed, smooth control and durability in a compact 23g package. Its high voltage capability allows faster and stronger performance from suitable 6.0V–8.4V receiver power systems, while the aluminium case helps improve strength and heat dissipation.

The SV-1232MG also features a 21T output spline, 12-bit PCB board, water-resistant protection and standard JR connector, making it a premium micro HV servo for demanding RC setups where speed and precision are critical. Team Savox lists the current SV-1232MG with 6.5kg-cm torque at 8.4V, 0.04 sec speed at 8.4V, coreless motor, aluminium case and water-resistant protection.

Features

• Micro digital high voltage servo
• Up to 6.5kg-cm torque at 8.4V
• Ultra-fast 0.04 sec/60° speed at 8.4V
• Coreless motor for smooth, responsive performance
• Heavy-duty metal gears for strength and durability
• Full aluminium case for strength and cooling
• Dual ball bearing design
• 21T output spline
• 12-bit PCB board
• Water-resistant protection
• Suitable for helicopters, small aircraft, compact cars and high-performance micro servo applications

Specifications

Model: SV-1232MG
Servo Type: Micro digital high voltage servo
Application: Car / Heli / Airplane
Motor Type: Coreless
Torque @ 6.0V: 4.0kg-cm
Torque @ 7.4V: 5.0kg-cm
Torque @ 8.4V: 6.5kg-cm
Speed @ 6.0V: 0.06 sec/60°
Speed @ 7.4V: 0.05 sec/60°
Speed @ 8.4V: 0.04 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 21T / 4.8mm
Case Type: Aluminium

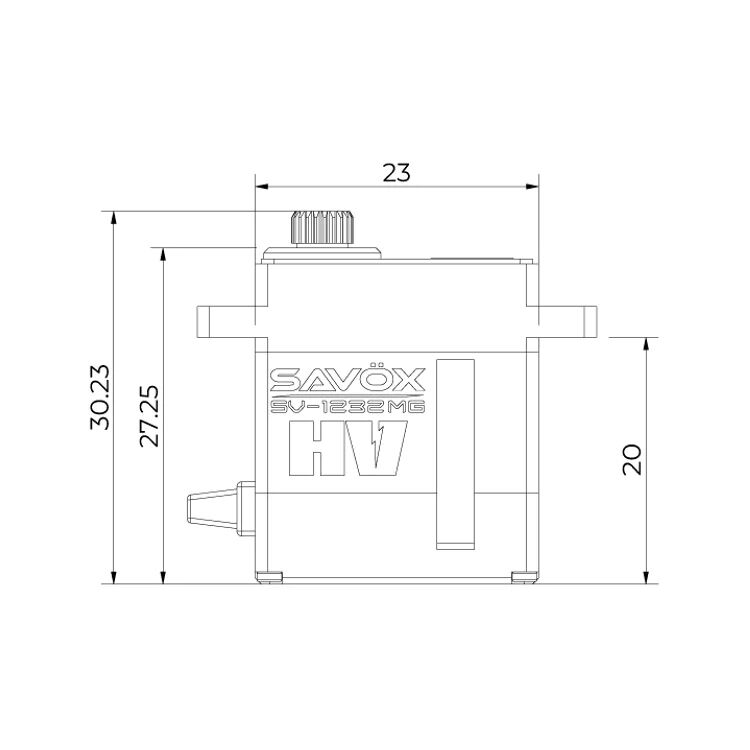

Dimensions: 23 x 12 x 27.25mm
Weight: 23g
Operating Voltage: 6.0V–8.4V
Protection: Water Resistant
Compatibility: Normal
PCB Board: 12-bit
Connector: JR connector
Cable Length: 250 ±5mm
