The Savox B-08KG is a budget-friendly standard-size analogue servo designed for general RC applications that need reliable control and stronger metal gears. Producing up to 8.0kg-cm of torque at 6.0V, it is a practical choice for RC cars and other hobby models where a dependable standard servo is required without moving into higher-priced digital servo options.

Built with a DC motor, heavy-duty metal gears and dual ball bearings, the B-08KG offers improved durability compared with plastic gear servos while still keeping the price affordable. The metal gear train makes it a good upgrade for basic RTR servos, light-duty steering setups and general replacement servo use.

The B-08KG also features a 25T output spline, JR connector, dust-resistant protection and a standard-size case, making it a simple and versatile servo option for many RC applications.

Features

• Budget standard-size analogue servo
• Up to 8.0kg-cm torque at 6.0V
• 0.15 sec/60° speed at 6.0V
• DC motor / brushed motor design

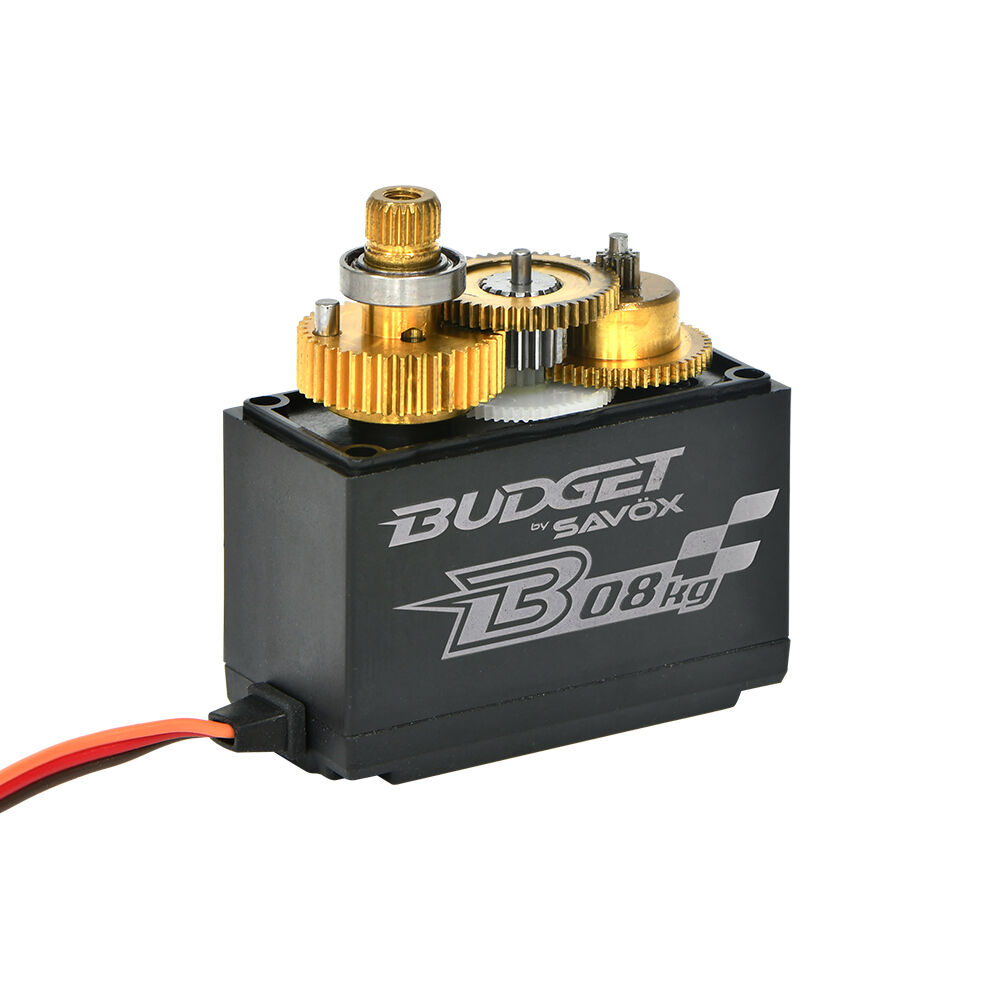

• Heavy-duty metal gears for improved durability
• Dual ball bearing support
• 25T output spline
• JR connector
• Dust-resistant protection
• Suitable for RC cars and general hobby servo applications
• Good upgrade over many standard plastic gear RTR servos

Specifications

Model: B-08KG
Servo Type: Standard analog servo
Torque @ 4.8V: 6.0kg-cm / 83.3oz-in
Torque @ 6.0V: 8.0kg-cm / 111.1oz-in
Speed @ 4.8V: 0.19 sec/60°
Speed @ 6.0V: 0.15 sec/60°
Output Spline: 25T / 6mm
Gear Type: Heavy-duty metal gears

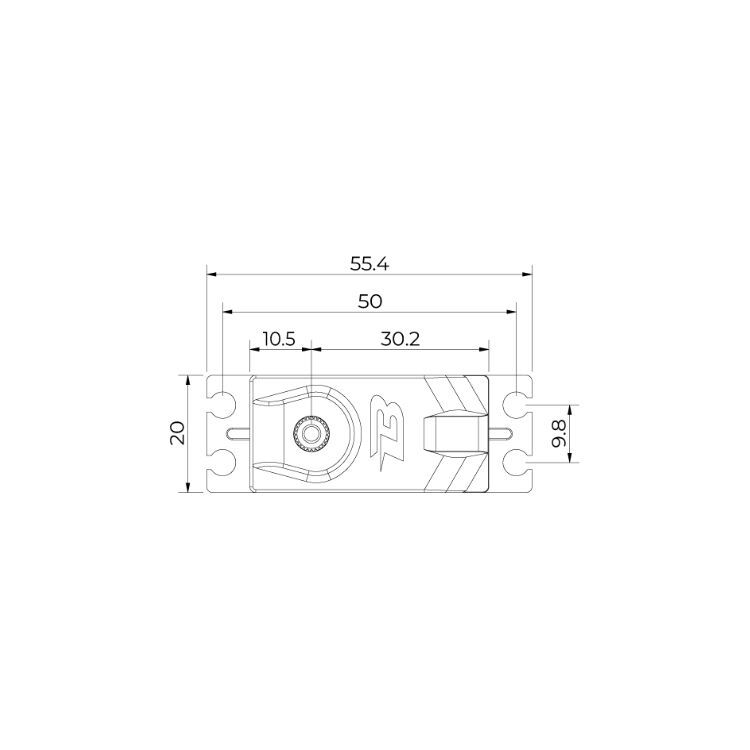

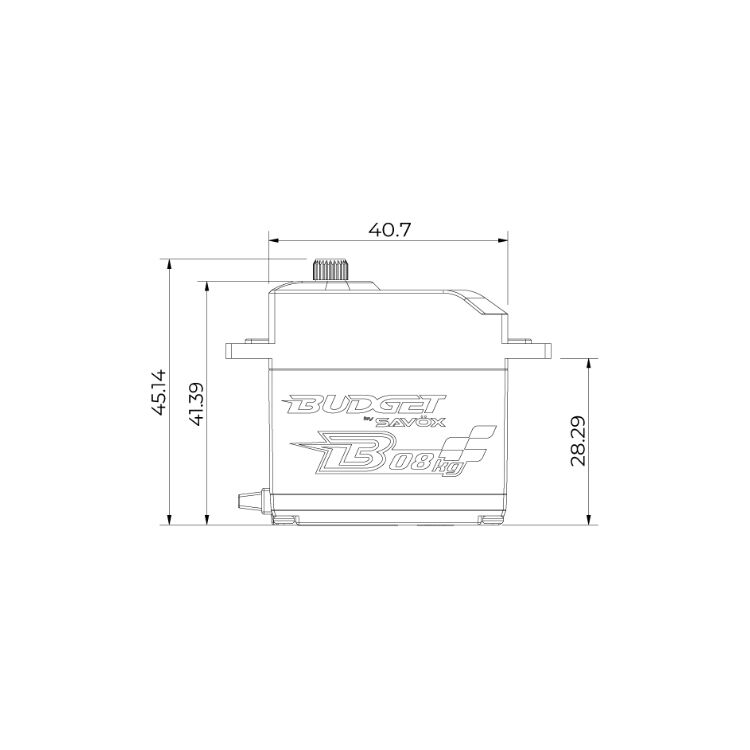

Dimensions: 40.7 x 20 x 41.39mm
Weight: 52g
Waterproof: No / not waterproof-rated
