The Savox SB-2274SG Plus is a standard-size high voltage brushless digital servo from Savox's Original Line, built for speed. Producing up to 30kg-cm of torque at 8.4V with an exceptionally fast 0.07 sec/60° transit speed, this servo is one of Savox's most popular competition buggy servos — ideal for steering in 1/10 and 1/8 buggies and trucks, and equally at home in large scale aircraft where fast, precise response matters.

Built with Savox's Original Brushless motor for smooth, efficient operation and long service life, the SB-2274SG Plus runs a unique steel gear train with a super high 12-bit PCB for outstanding precision and centring. The common 25T output spline gives broad servo horn compatibility, and the compact 69g standard case keeps installed weight low.

As part of the updated Plus range, this servo includes Soft Start and Sanwa SSR compatibility. With a full 6.0–8.4V operating range, it runs directly from 2S LiPo and delivers its quickest response in HV-ready installations. Also available in Black Edition trim for stealth builds.

Features

• Standard-size digital high voltage high speed brushless servo
• Up to 30kg-cm torque at 8.4V
• 25kg-cm torque at 7.4V, 20kg-cm at 6.0V
• Very fast 0.07 sec/60° at 8.4V
• Original Brushless motor for smooth operation and efficiency

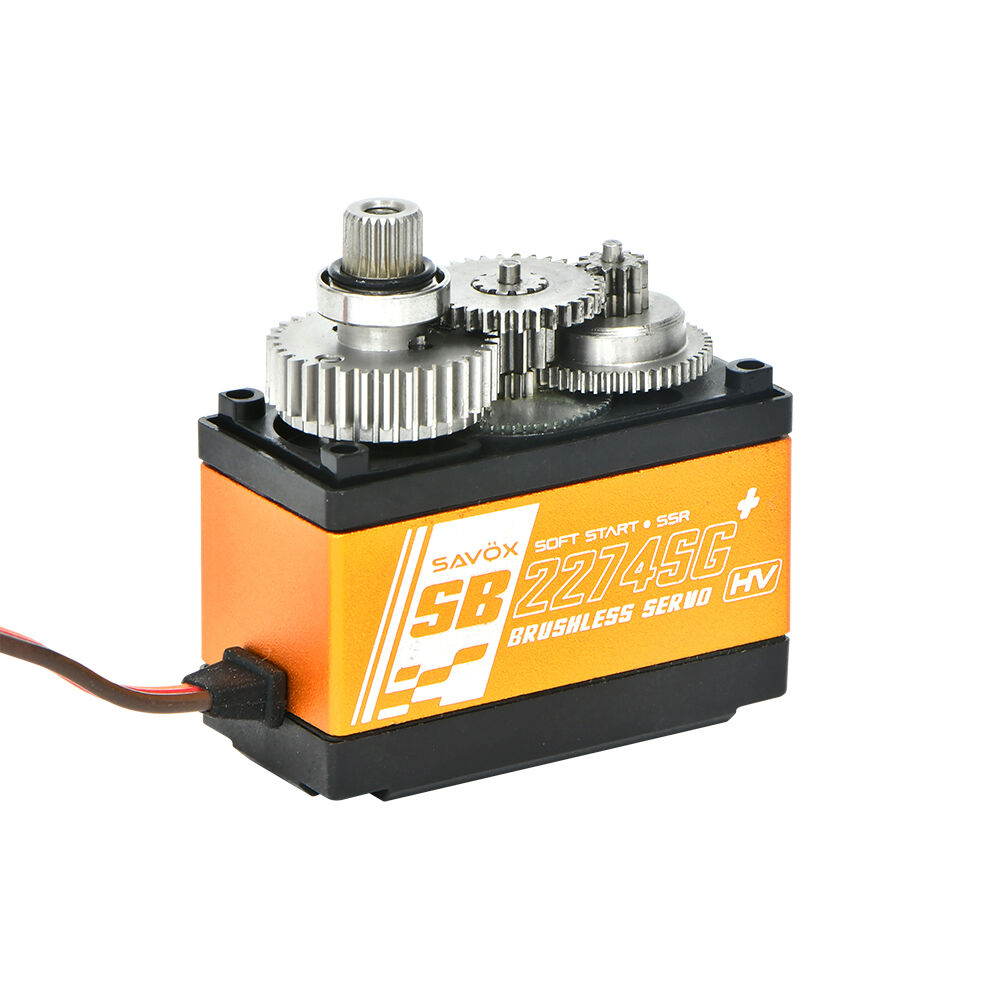

• Unique steel gear train
• Super high 12-bit resolution
• 25T output spline
• Soft Start function
• Sanwa SSR compatible
• Suitable for 1/10 and 1/8 buggies, trucks and large scale aircraft

Specifications

Model: SB-2274SG Plus
Servo Type: Standard digital HV brushless servo
Motor Type: Original Brushless
Operating Voltage: 6.0V–8.4V
Torque @ 6.0V: 20kg-cm
Torque @ 7.4V: 25kg-cm
Torque @ 8.4V: 30kg-cm
Speed @ 6.0V: 0.105 sec/60°
Speed @ 7.4V: 0.08 sec/60°
Speed @ 8.4V: 0.07 sec/60°
Gear Type: Steel gears
Output Spline: 25T
Bearings: 2x ball bearings

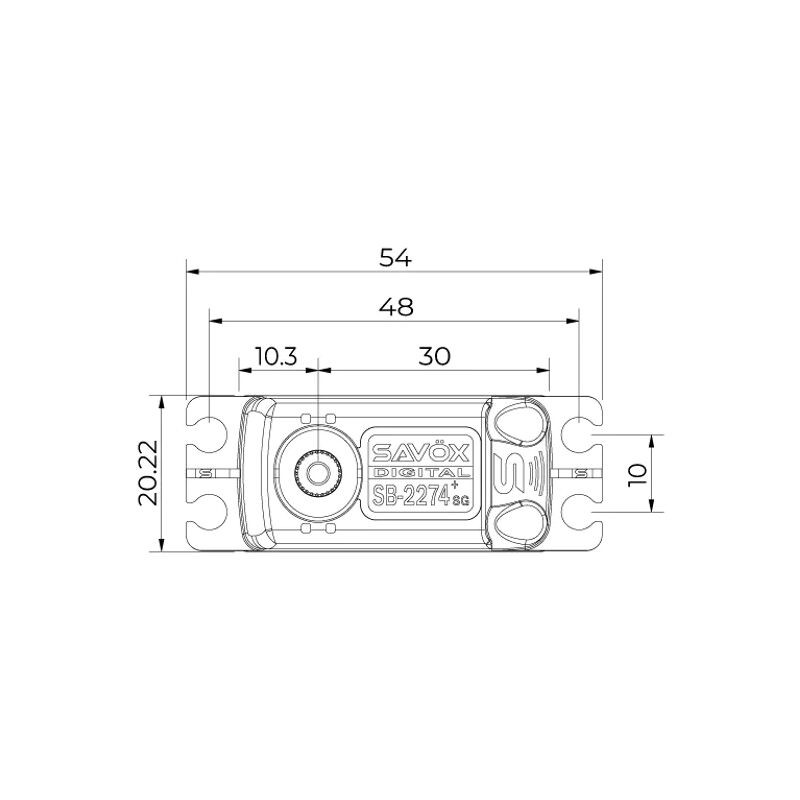

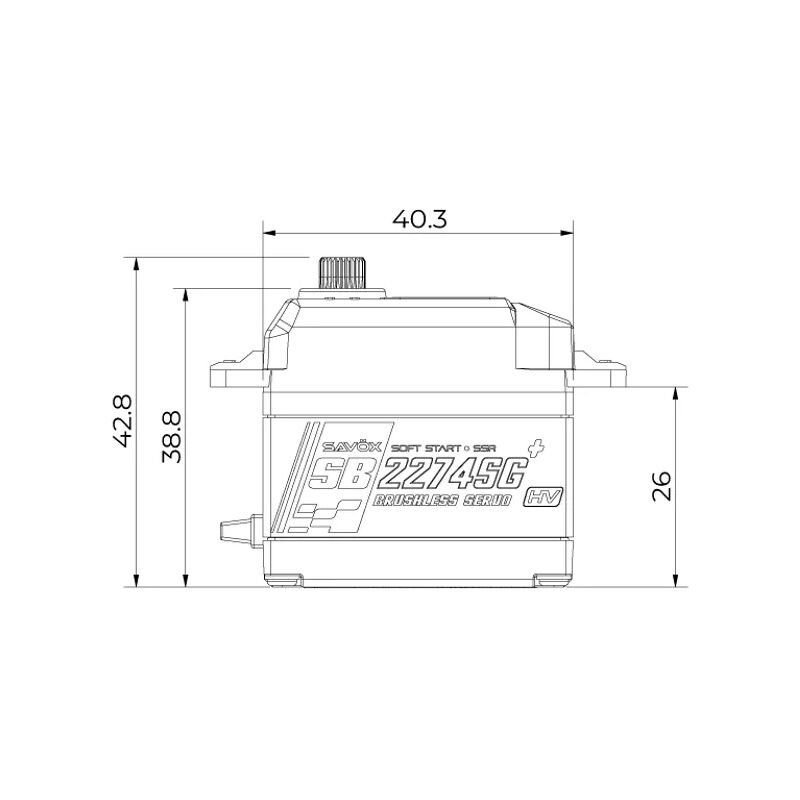

Dimensions: 40.3 x 20.2 x 38.7mm
Weight: 69g
Plus Features: Soft Start, Sanwa SSR compatibility
