The Savox SV-1273TG Plus is a standard-size digital high voltage super speed servo designed for RC applications that need fast response, precise control and durable titanium gears. Producing up to 25.0kg-cm of torque at 8.4V with an ultra-fast 0.055 sec/60° transit speed, it is a strong choice for high-performance RC cars, touring cars, drift cars, buggies, aircraft and other models where servo speed and accuracy are important.

Built with a coreless motor, titanium gears, dual ball bearings and a hybrid aluminium/composite case, the SV-1273TG Plus delivers smooth, responsive performance with excellent durability. Its high voltage capability allows increased speed and torque from compatible 6.0V–8.4V receiver power systems, while the titanium gear train provides strength with reduced weight compared with many steel gear servos.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, water-resistant protection and standard JR connector, the SV-1273TG Plus is a premium choice for customers wanting a fast, accurate and reliable HV servo.

Features

• Standard-size digital high voltage super speed servo
• Up to 25.0kg-cm torque at 8.4V
• Ultra-fast 0.055 sec/60° speed at 8.4V
• Soft Start function
• Coreless motor for smooth and responsive performance
• Titanium gears for strength and reduced weight
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Water-resistant protection
• Suitable for high-performance RC cars, touring cars, drift cars, buggies, aircraft and fast-response applications

Specifications

Model: SV-1273TG Plus
Servo Type: Standard digital high voltage super speed servo
Application: Car / Airplane
Motor Type: Coreless
Torque @ 6.0V: 14.0kg-cm
Torque @ 7.4V: 20.0kg-cm
Torque @ 8.4V: 25.0kg-cm
Speed @ 6.0V: 0.08 sec/60°
Speed @ 7.4V: 0.065 sec/60°
Speed @ 8.4V: 0.055 sec/60°
Gear Type: Titanium gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Hybrid aluminium/composite

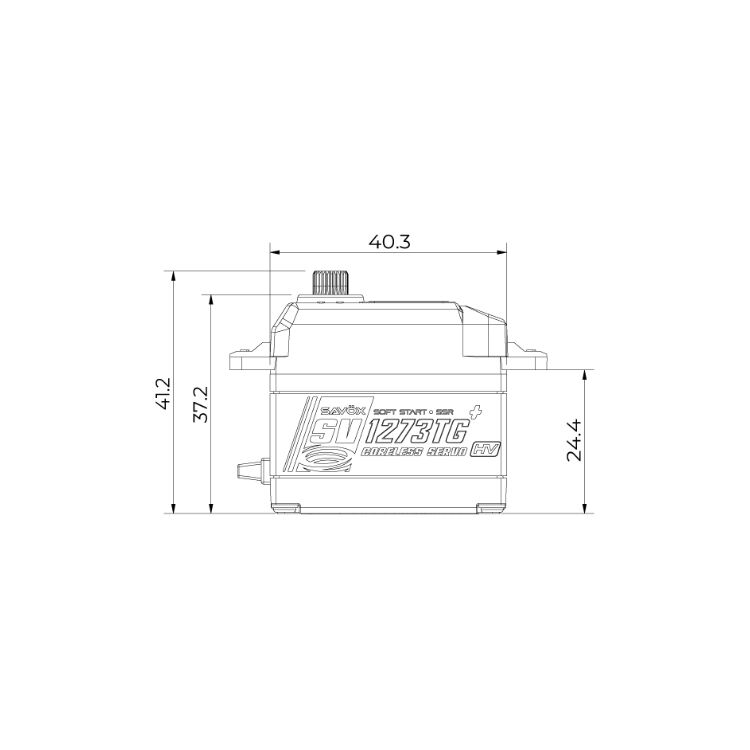

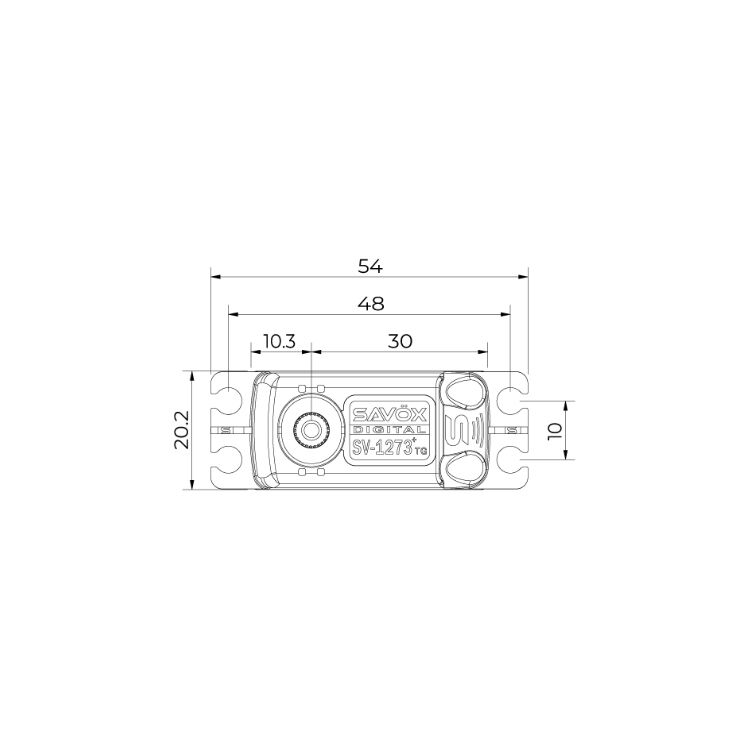

Dimensions: 40.3 x 20.2 x 37.2mm
Weight: 64g
Operating Voltage: 6.0V–8.4V
Protection: Water Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 300 ±5mm
