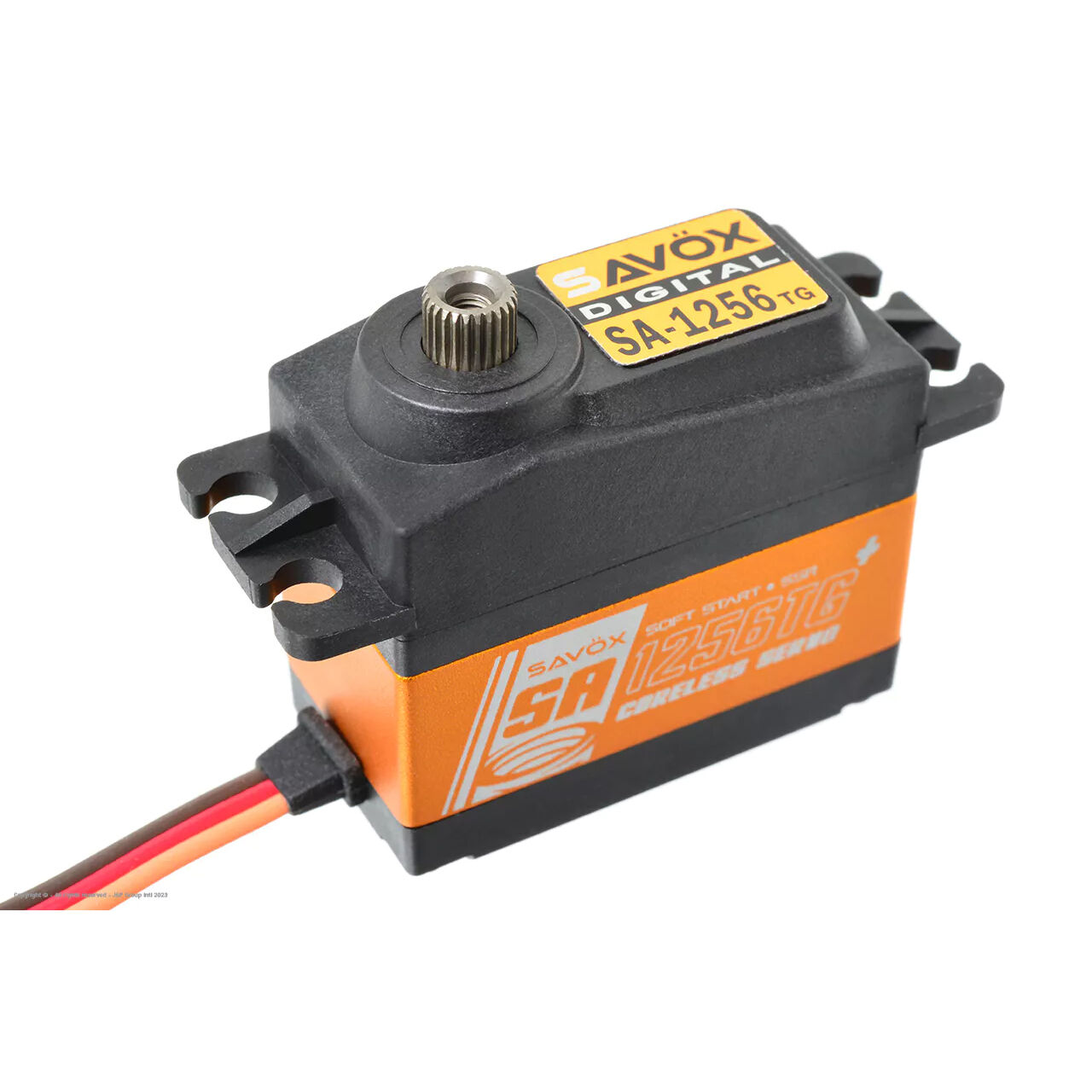

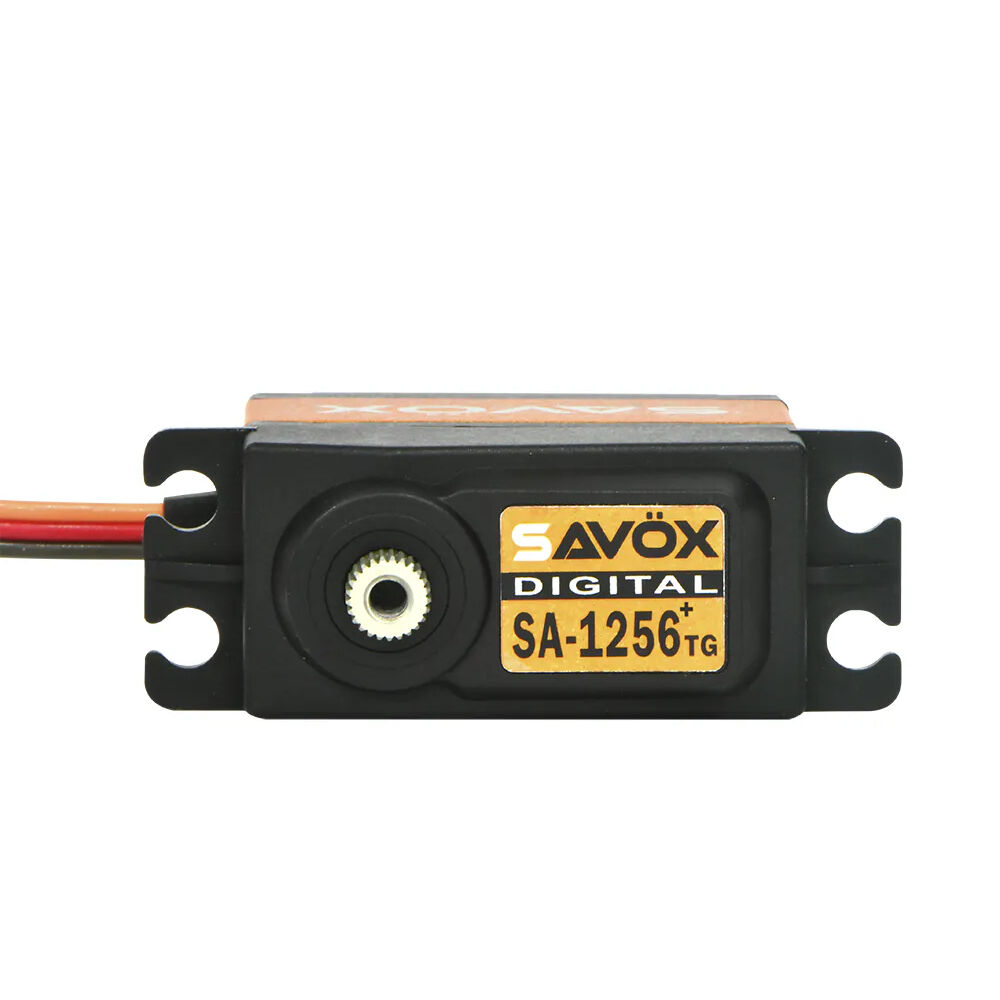

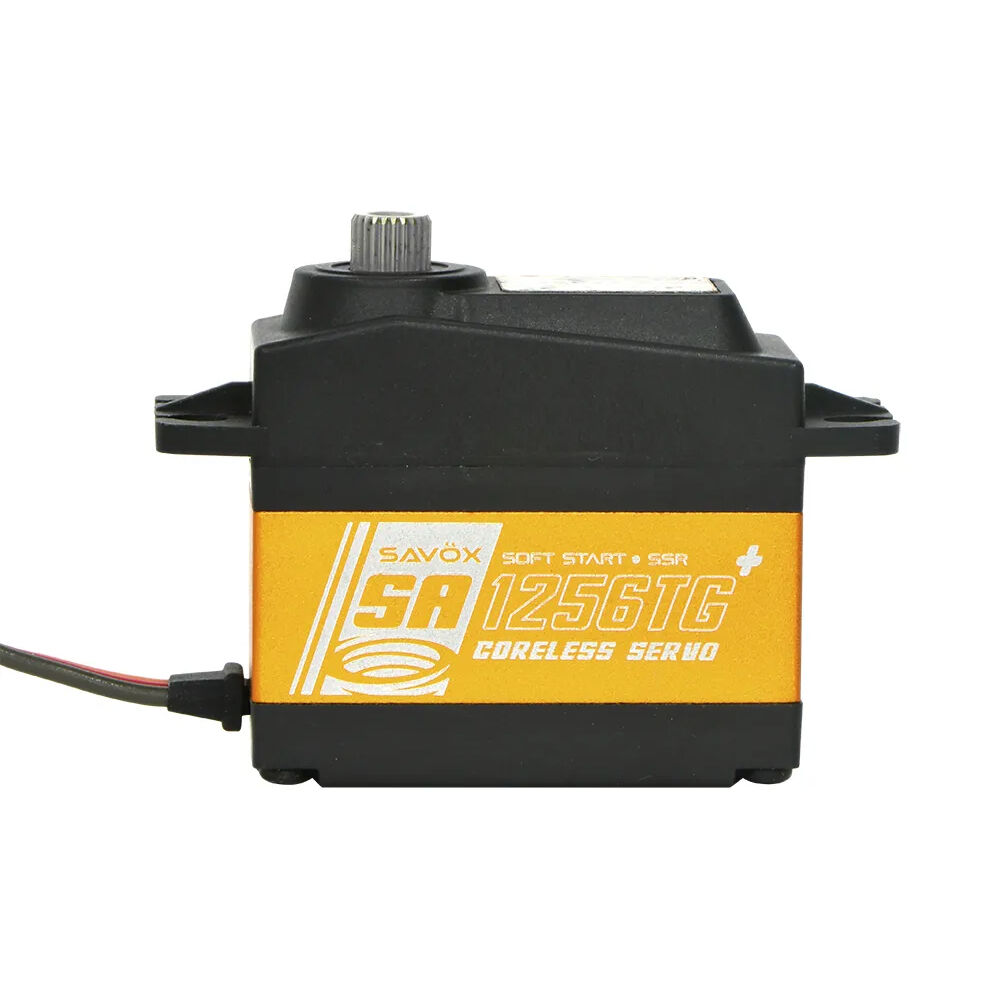

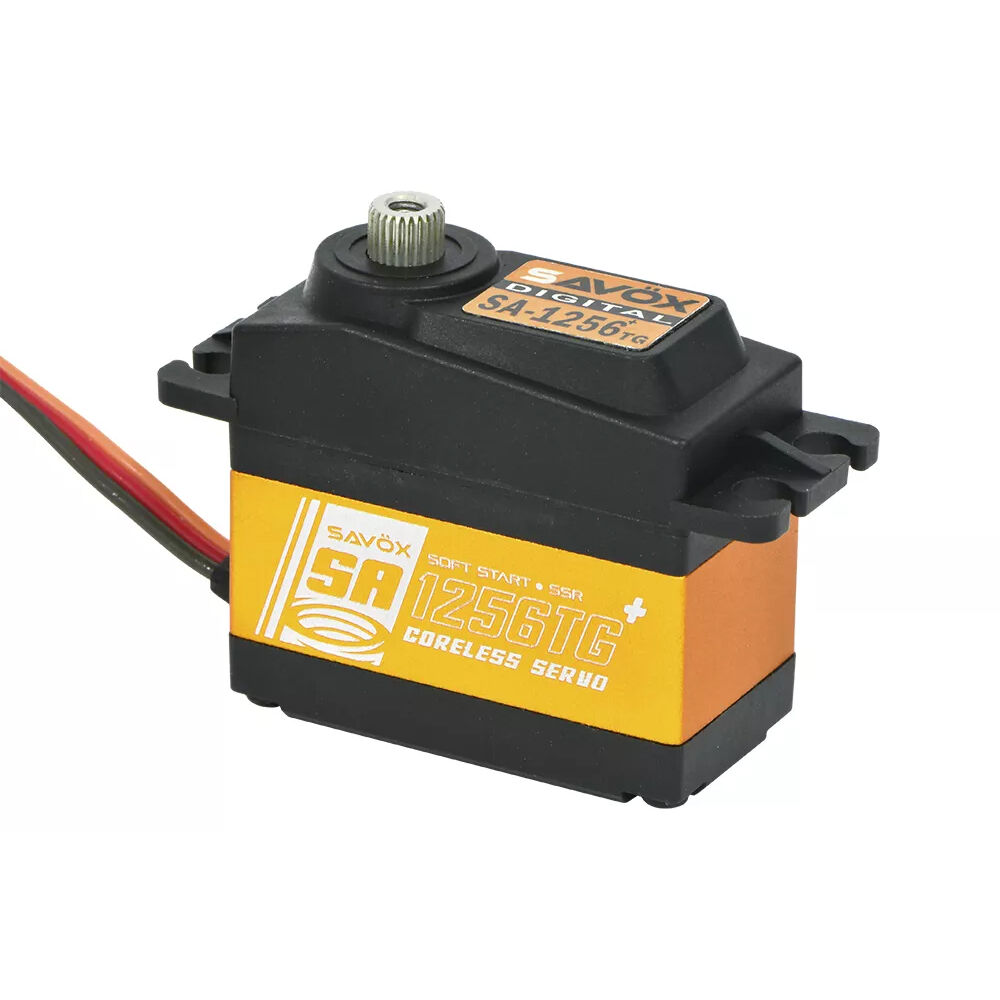

The Savox SA-1256TG Plus is a standard-size high torque digital servo designed for RC applications that need strong, precise and reliable control. With up to 20kg-cm of torque at 6.0V and a 0.15 sec/60° transit speed, it is a popular upgrade option for customers looking to replace weaker RTR servos or fit a dependable high-torque servo into aircraft, cars, trucks and other RC models.

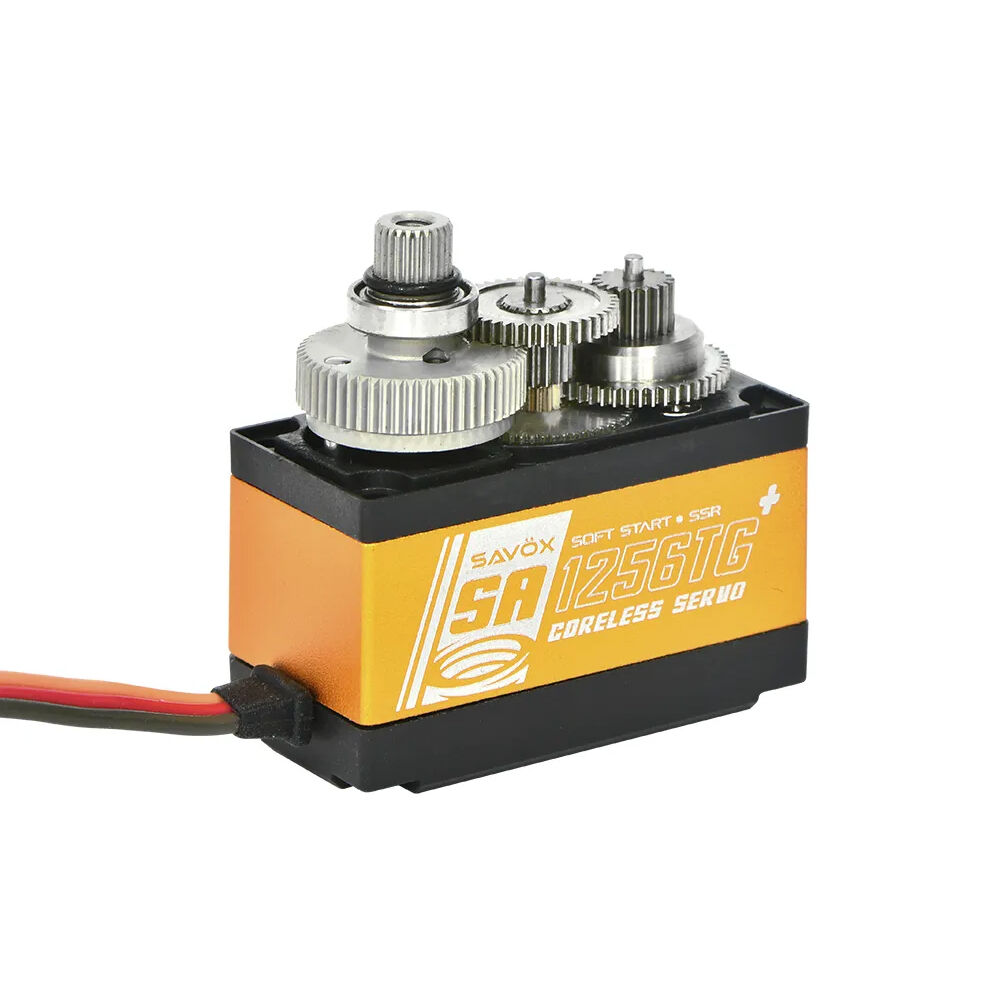

Built with a coreless motor, titanium gears and an aluminium centre case, the SA-1256TG Plus offers a strong balance of torque, speed and durability. The titanium gear set helps provide long service life while keeping weight down, and the aluminium centre case assists with heat dissipation during demanding use.

As part of the updated Plus range, this version includes Soft Start and Sanwa SSR compatibility. The SA series also features minimised backlash, making it well suited to precise control applications such as RC aircraft flying surfaces, as well as other standard servo installations where accuracy and holding power are important.

Features

• Standard-size high torque digital servo
• Up to 20kg-cm torque at 6.0V
• 0.15 sec/60° speed at 6.0V
• Coreless motor for smooth and responsive performance
• Titanium gears for strength, durability and reduced weight
• Aluminium centre case for improved cooling
• Minimized backlash for precise control
• Soft Start function
• Sanwa SSR compatible
• Suitable upgrade for many RTR servos and standard RC applications

Specifications

Model: SA-1256TG Plus
Servo Type: Standard digital servo
Motor Type: Coreless
Torque @ 4.8V: 16.0kg-cm
Torque @ 6.0V: 20.0kg-cm
Speed @ 4.8V: 0.18 sec/60°
Speed @ 6.0V: 0.15 sec/60°
Gear Type: Titanium
Case: Aluminium centre case
Voltage Range: 4.8V–6.0V

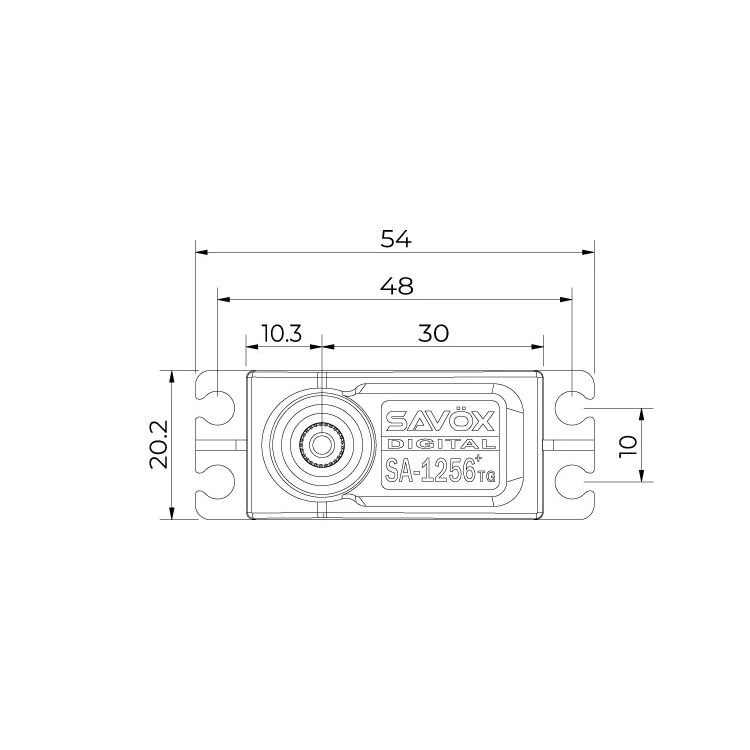

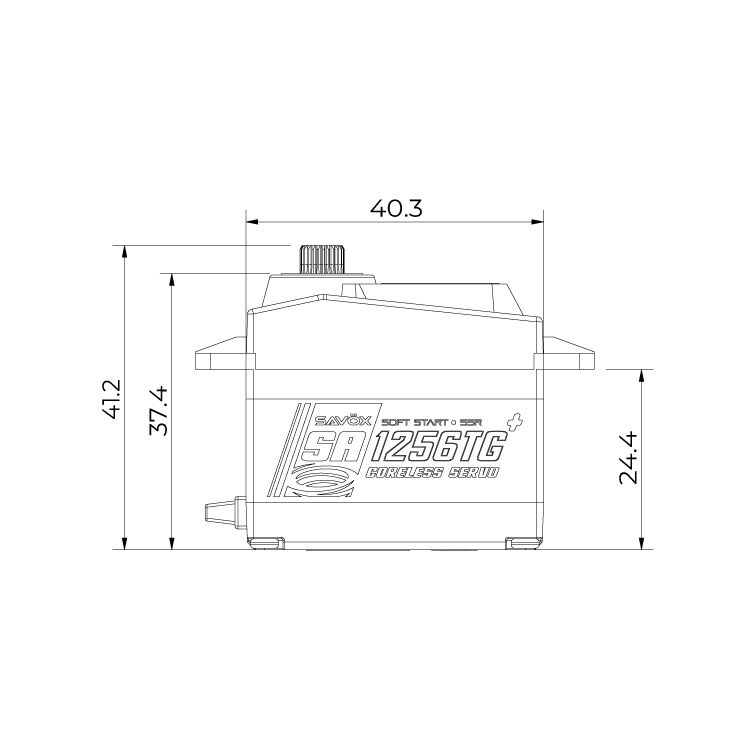

Dimensions: 40.3 x 20.2 x 37.4mm
Weight: 64g
Waterproof: No / not waterproof-rated
