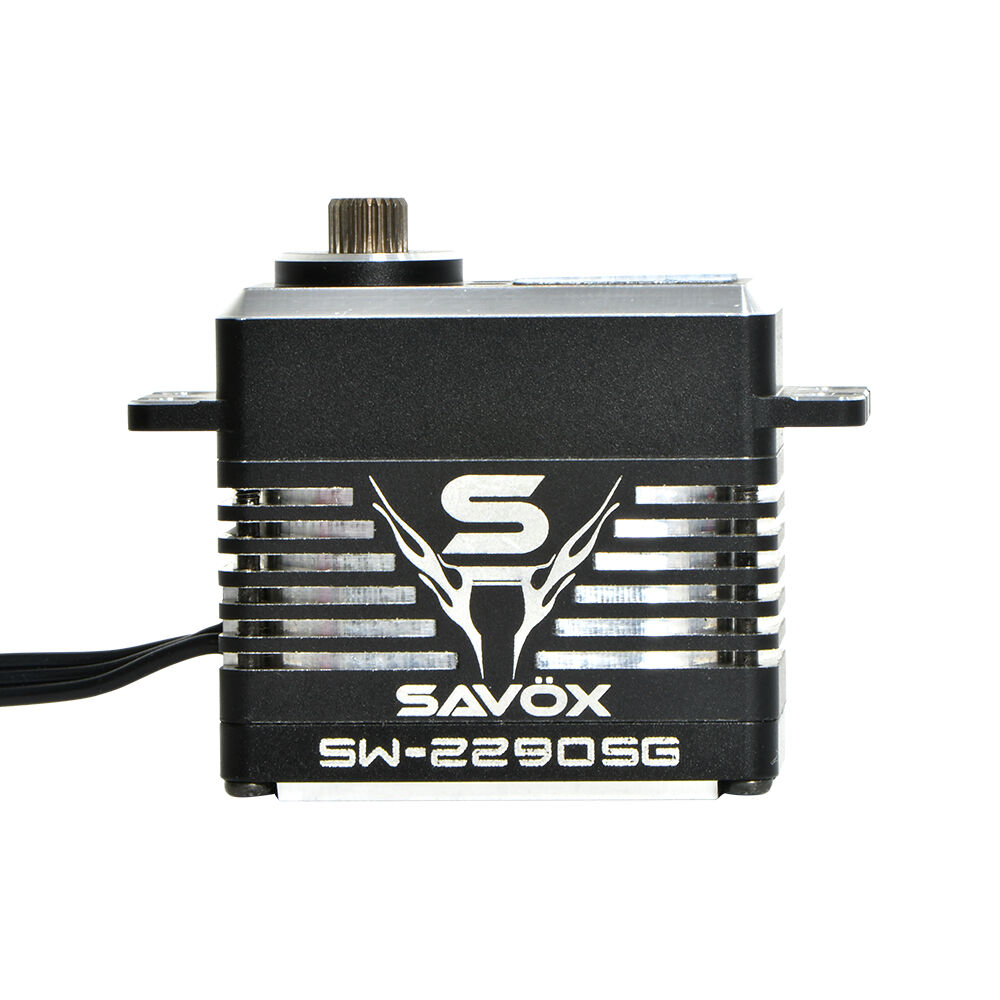

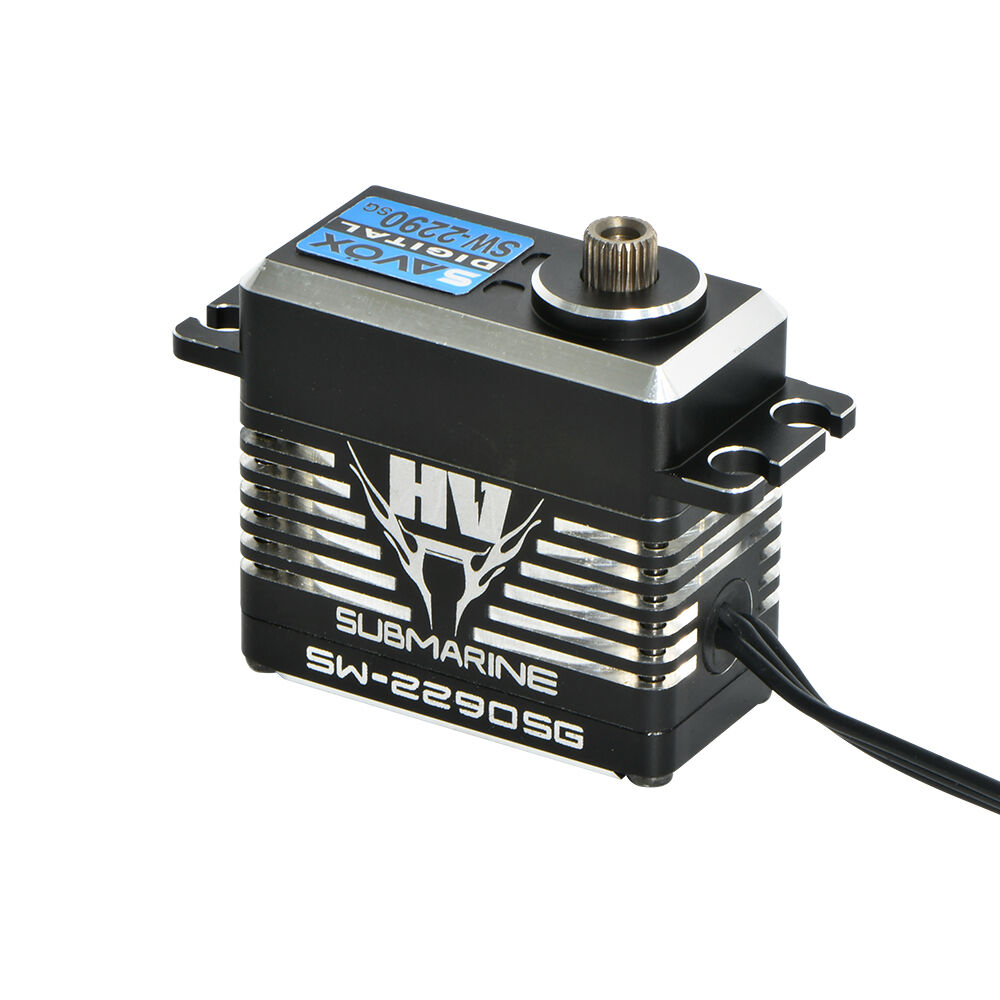

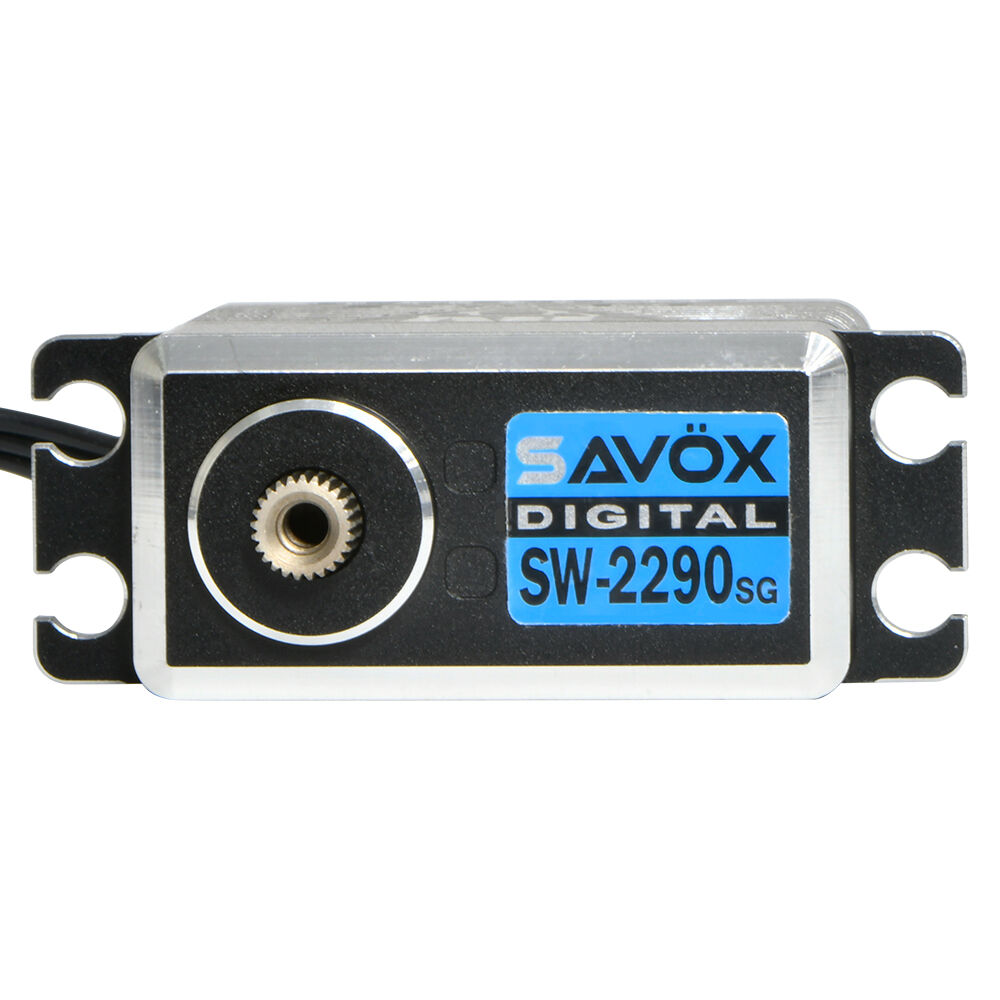

The Savox SW-2290SG BE Black Edition is a high-performance standard-size digital high voltage servo built for extreme torque, durability and waterproof protection. Producing up to 70.0kg-cm of torque at 8.4V, it is an excellent choice for demanding RC applications such as crawlers, monster trucks, large-scale RC cars, boats and other high-load models that need serious steering power and holding strength.

Built with a patented lightweight brushless motor, specialised steel gears, 3 ball bearings and a full aluminium case, the SW-2290SG BE delivers strong, efficient and reliable performance under heavy load. The aluminium case helps improve strength and heat dissipation, while the steel gear train provides the durability needed for extreme torque applications.

As part of Savox’s Black Edition waterproof range, this servo features IP67 waterproof protection, making it suitable for wet, muddy and demanding outdoor RC use. With a 25T output spline, 8-bit PCB board, standard JR connector and long 450mm lead, the SW-2290SG BE is a premium choice for customers wanting maximum torque, waterproof protection and Black Edition styling.

Features

• Black Edition standard-size digital high voltage servo
• Up to 70.0kg-cm torque at 8.4V
• 0.11 sec/60° speed at 8.4V
• Patented lightweight brushless motor
• Specialised steel gears for extreme strength and durability
• Full aluminium case for strength and heat dissipation
• 3x ball bearing design
• 25T output spline
• 8-bit PCB board
• Waterproof IP67 protection
• Long 450mm JR lead
• Suitable for crawlers, monster trucks, large RC cars, boats and high-load waterproof servo applications

Specifications

Model: SW-2290SG BE Black Edition
Servo Type: Standard digital high voltage waterproof servo
Application: Car / Boat
Motor Type: Patented lightweight brushless
Torque @ 6.0V: 45.0kg-cm
Torque @ 7.4V: 55.0kg-cm
Torque @ 8.4V: 70.0kg-cm
Speed @ 6.0V: 0.16 sec/60°
Speed @ 7.4V: 0.13 sec/60°
Speed @ 8.4V: 0.11 sec/60°
Gear Type: Specialised steel gears
Bearings: 3x ball bearings
Output Spline: 25T / 6mm
Case Type: Aluminium

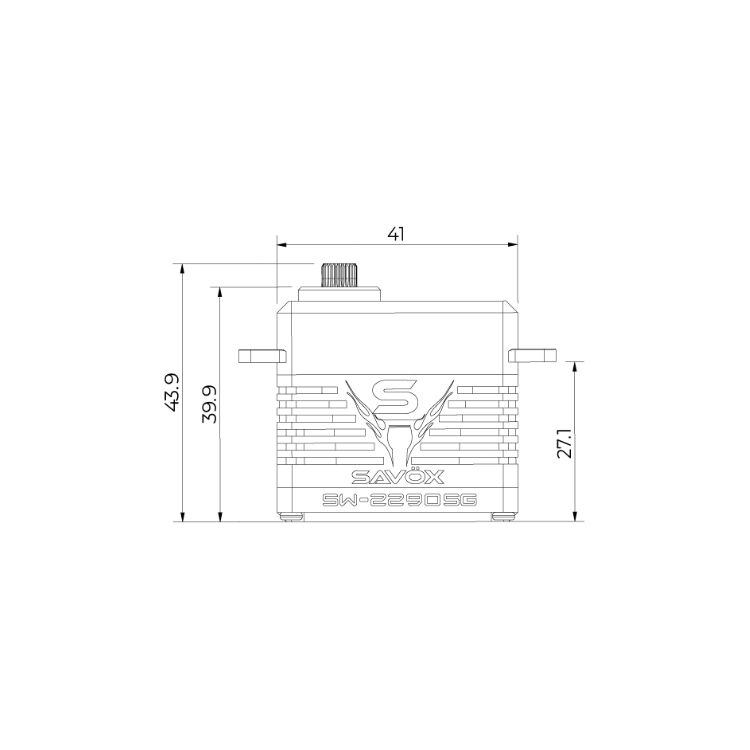

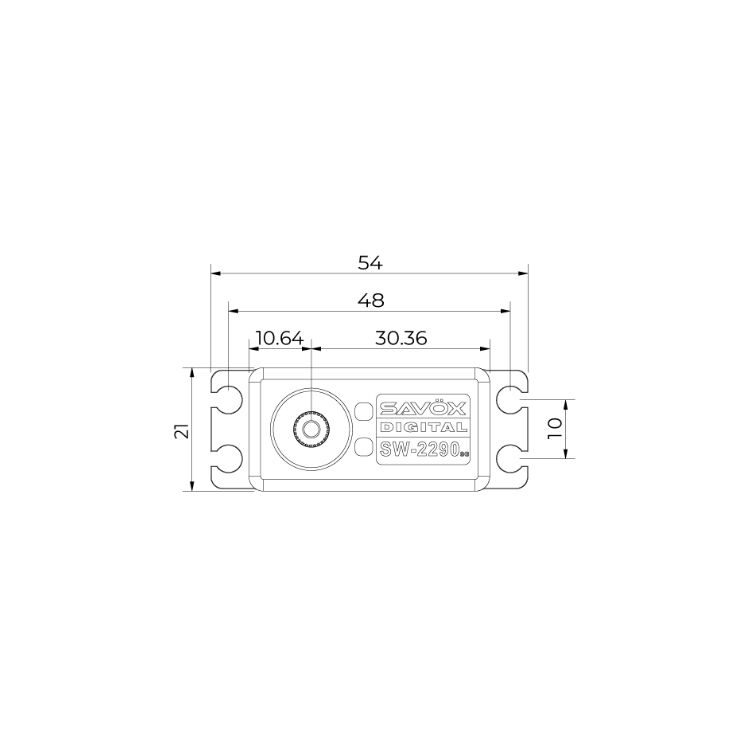

Dimensions: 41 x 21 x 39.9mm
Weight: 88g
Operating Voltage: 6.0V–8.4V
Protection: Waterproof IP67
Compatibility: Normal
PCB Board: 8-bit
Connector: JR connector
Cable Length: 450 ±5mm
