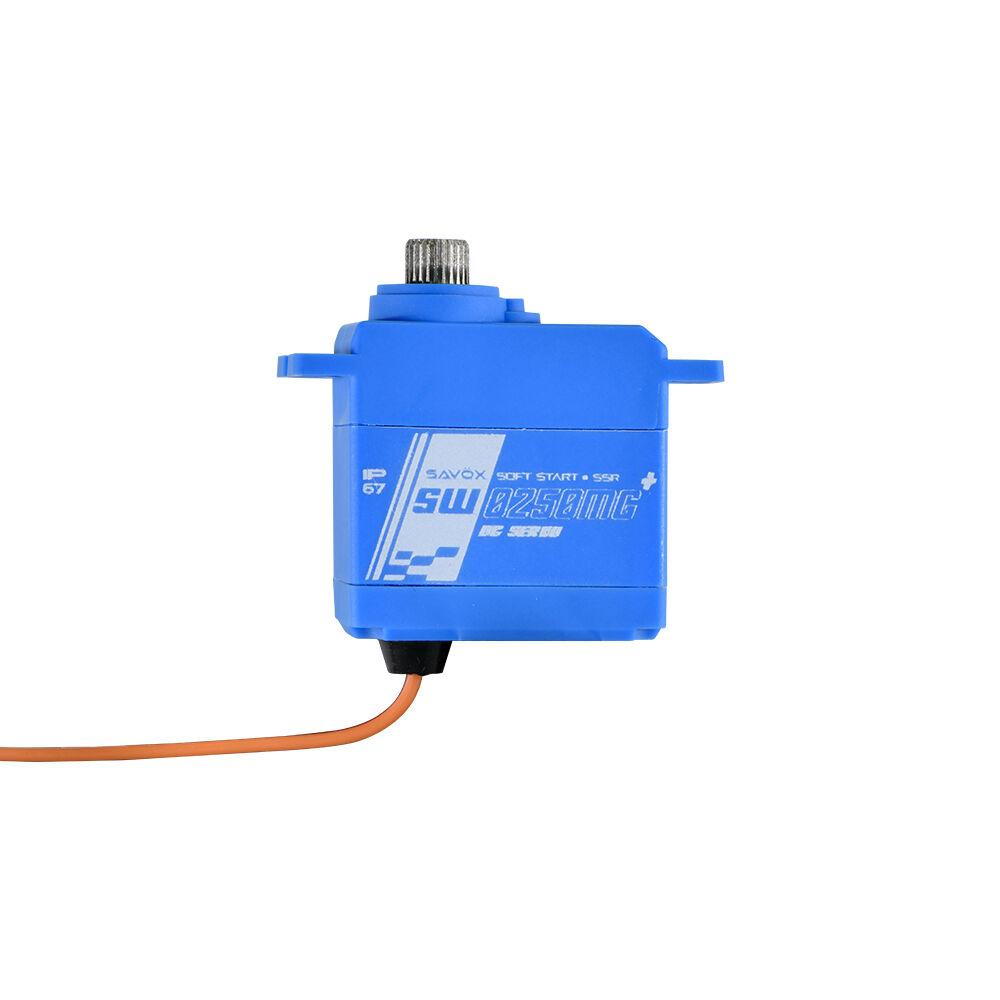

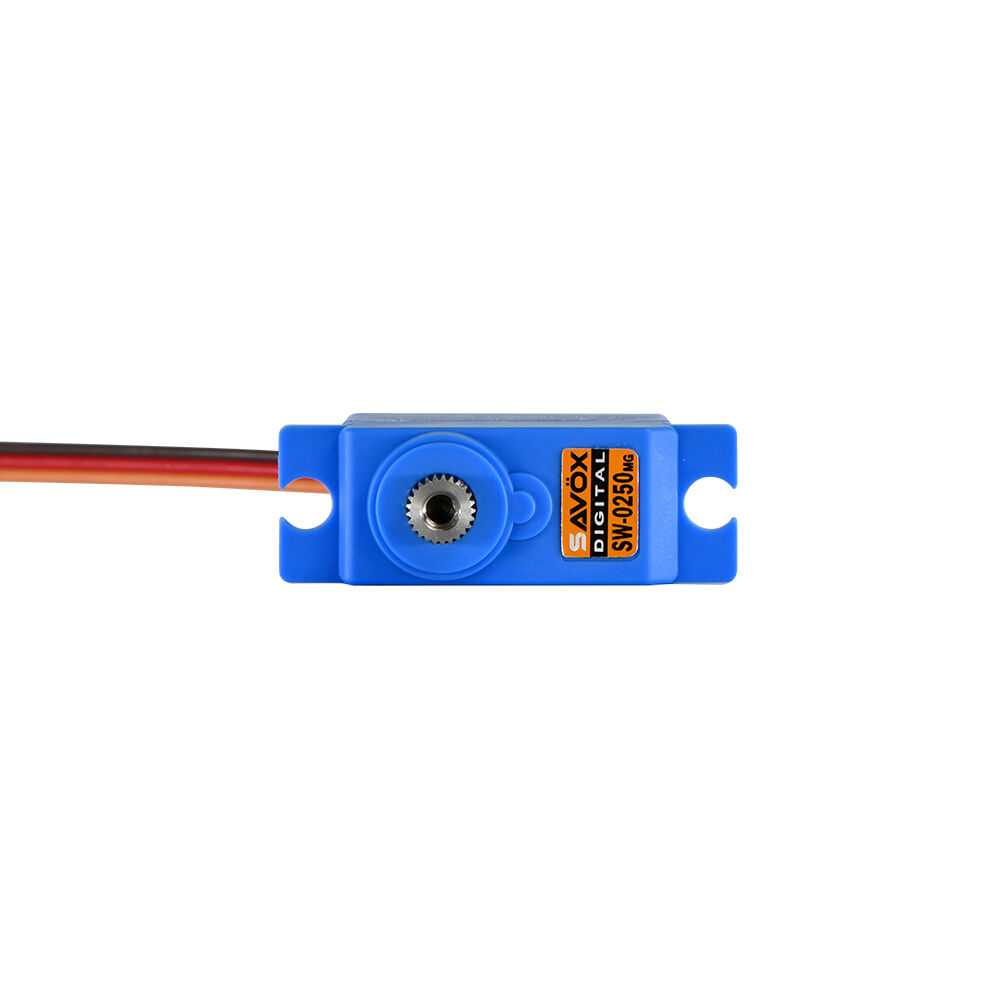

The Savox SW-0250MG Plus is a micro digital waterproof servo designed for compact RC models that need durable metal gears, reliable control and protection from wet or dirty conditions. Producing up to 5.0kg-cm of torque at 6.0V, it is a great choice for small RC cars, boats and other compact models where a waterproof micro servo is required.

Built with a DC motor, heavy-duty metal gears, ball bearing support and a durable composite case, the SW-0250MG Plus offers dependable performance in a lightweight 28g package. Its IP67 waterproof protection makes it well suited to outdoor RC use where moisture, mud or splashes may be present.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 10-bit PCB board, 25T output spline, waterproof case design and a long 450mm JR lead, the SW-0250MG Plus is a practical upgrade for customers needing a strong and compact waterproof servo.

Features

• Micro digital waterproof servo
• Up to 5.0kg-cm torque at 6.0V
• 0.14 sec/60° speed at 6.0V
• Soft Start function
• DC motor design
• Heavy-duty metal gears for improved durability
• Composite case
• Ball bearing support
• 25T output spline
• 10-bit PCB board
• Sanwa SSR compatible
• Waterproof IP67 protection
• Long 450mm JR lead
• Suitable for small RC cars, boats and compact wet-condition RC applications

Specifications

Model: SW-0250MG Plus
Servo Type: Micro digital waterproof servo
Application: Car / Boat
Motor Type: DC motor
Torque @ 4.8V: 3.5kg-cm
Torque @ 6.0V: 5.0kg-cm
Speed @ 4.8V: 0.17 sec/60°
Speed @ 6.0V: 0.14 sec/60°
Gear Type: Heavy-duty metal gears
Bearing: 1x ball bearing
Output Spline: 25T / 6mm
Case Type: Composite

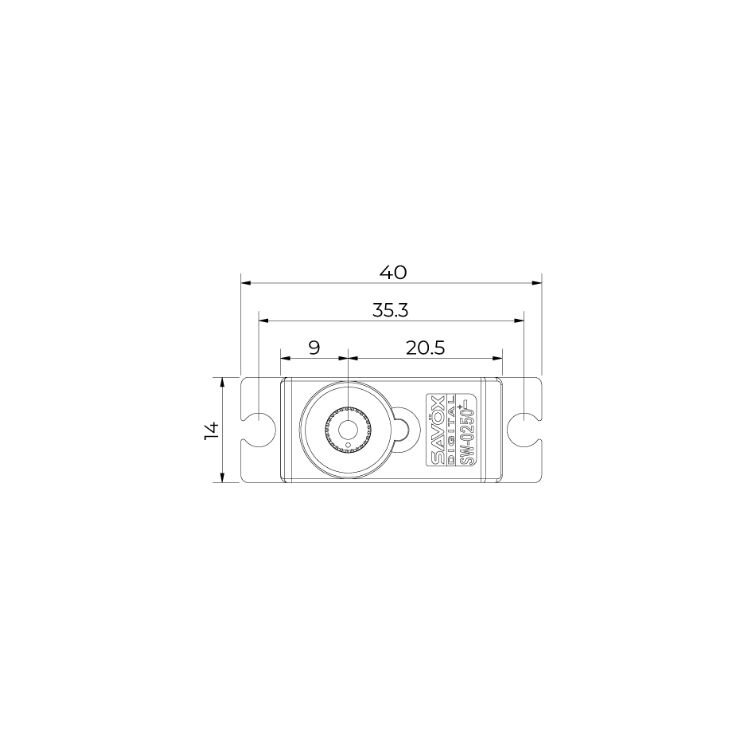

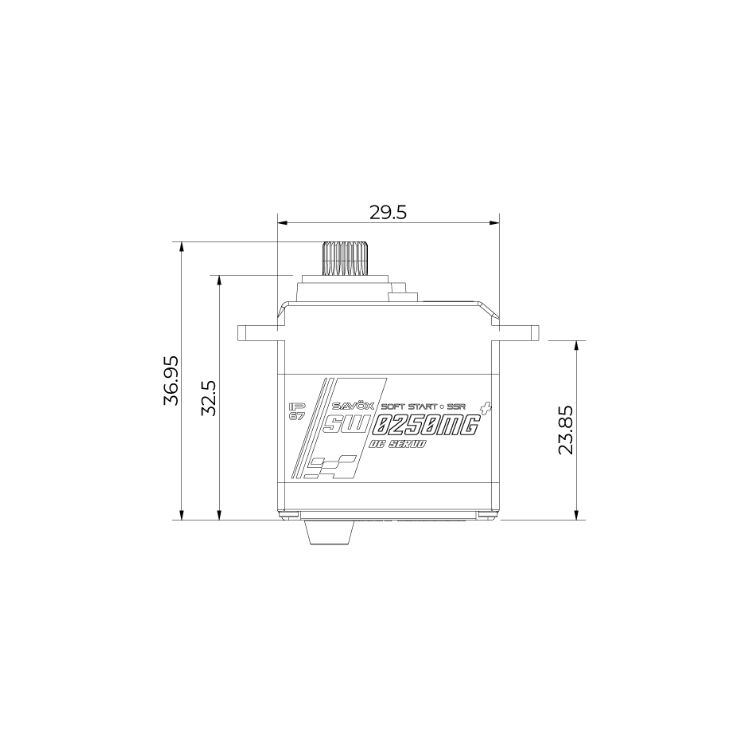

Dimensions: 29.5 x 14 x 32.5mm
Weight: 28g
Operating Voltage: 4.8V–6.0V
Protection: Waterproof IP67
Compatibility: Sanwa SSR
PCB Board: 10-bit
Connector: JR connector
Cable Length: 450 ±5mm
