SKU code: SAV-SC1258TG
Make 4 interest-free payments of $28.25 fortnightly and receive your order now.

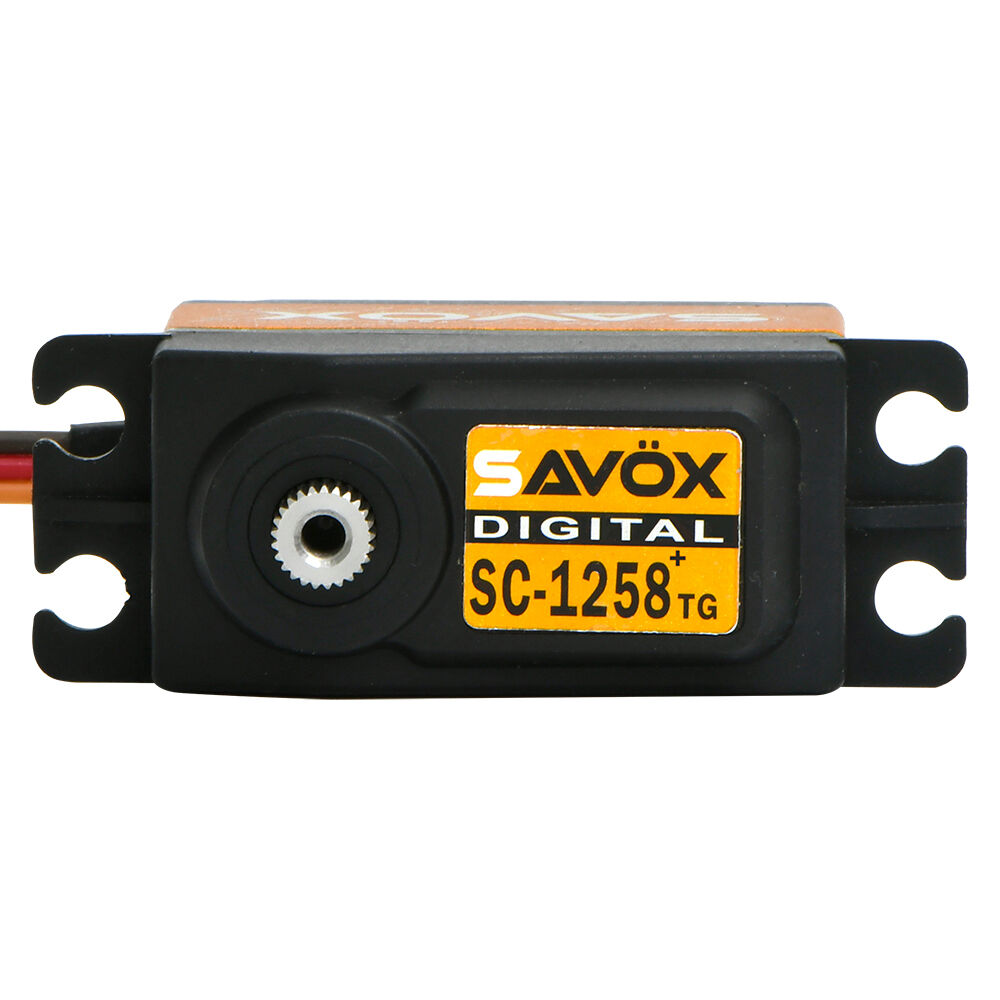

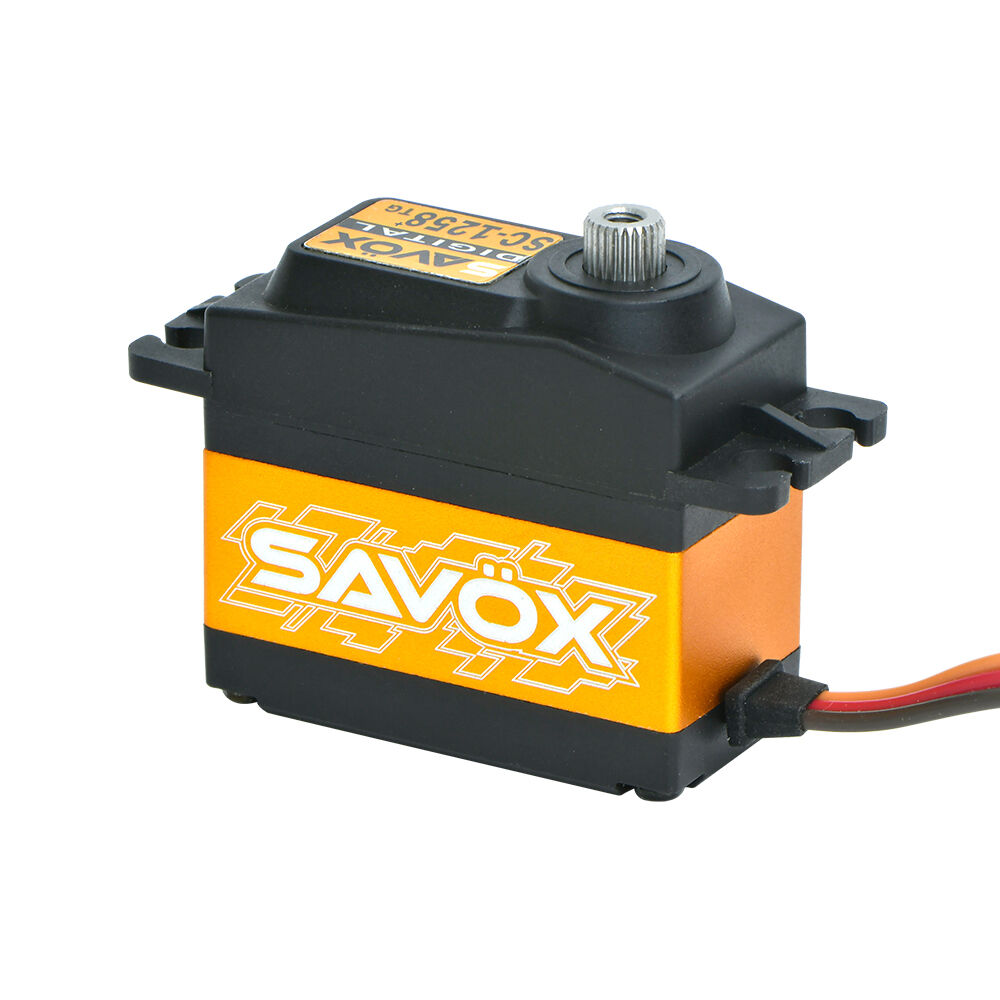

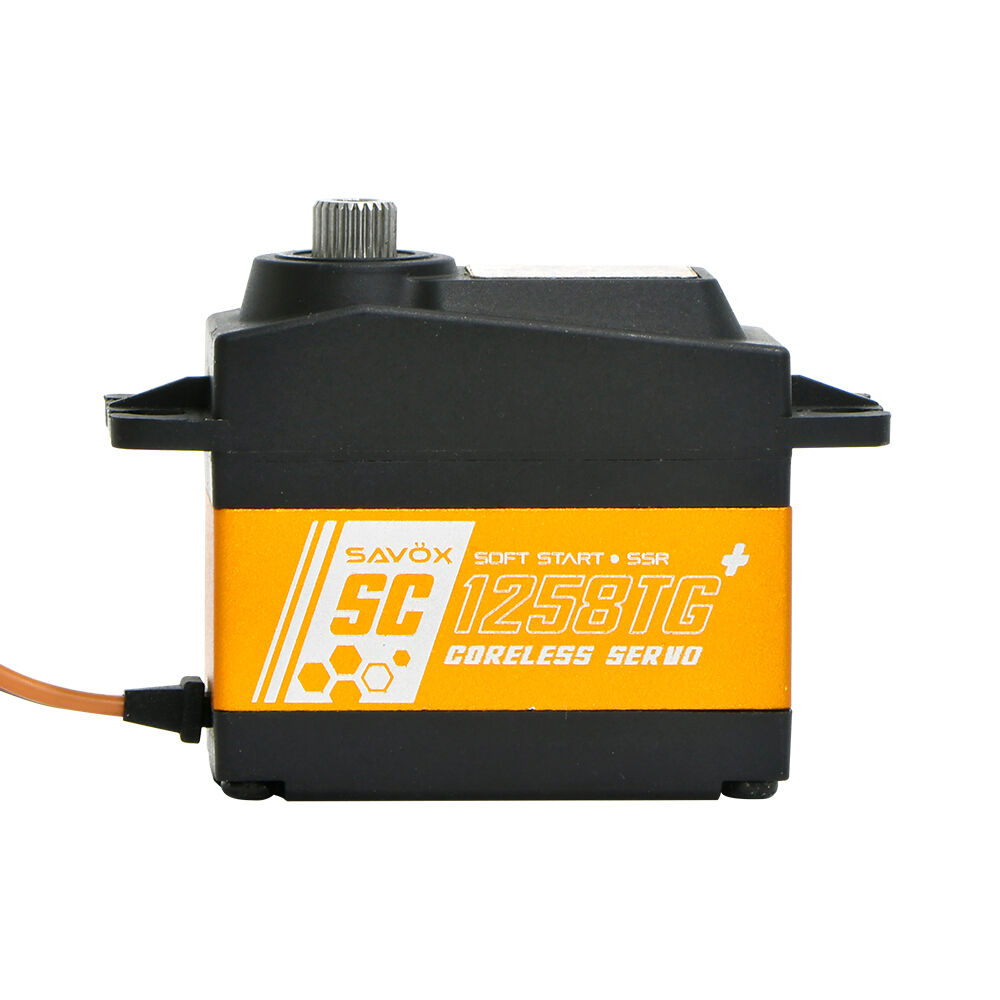

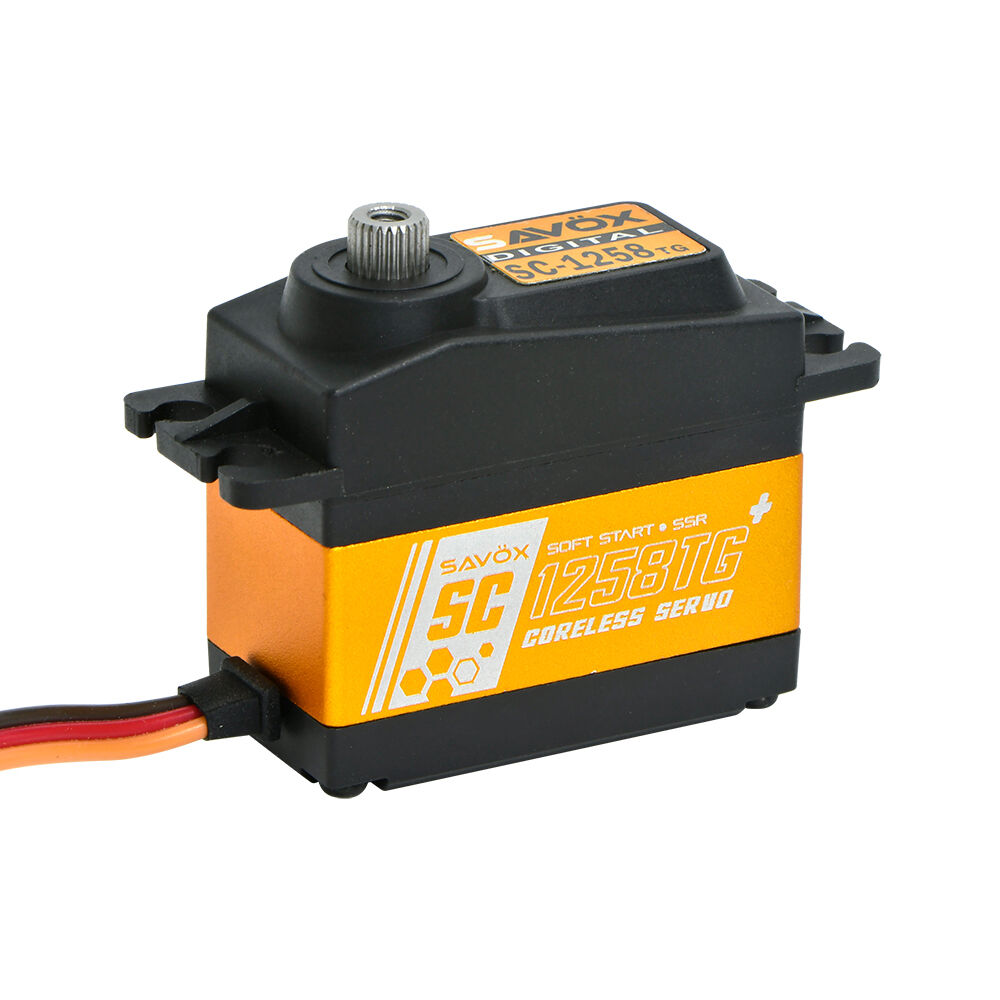

The Savox SC-1258TG Plus is a standard-size high speed digital servo designed for RC applications where fast response, precision and durability are important. Producing up to 12.0kg-cm of torque at 6.0V with a quick 0.08 sec/60° transit speed, it is a great choice for 1/10 scale touring cars, buggies, drift cars, on-road cars and other performance RC setups that need sharp, accurate steering control.

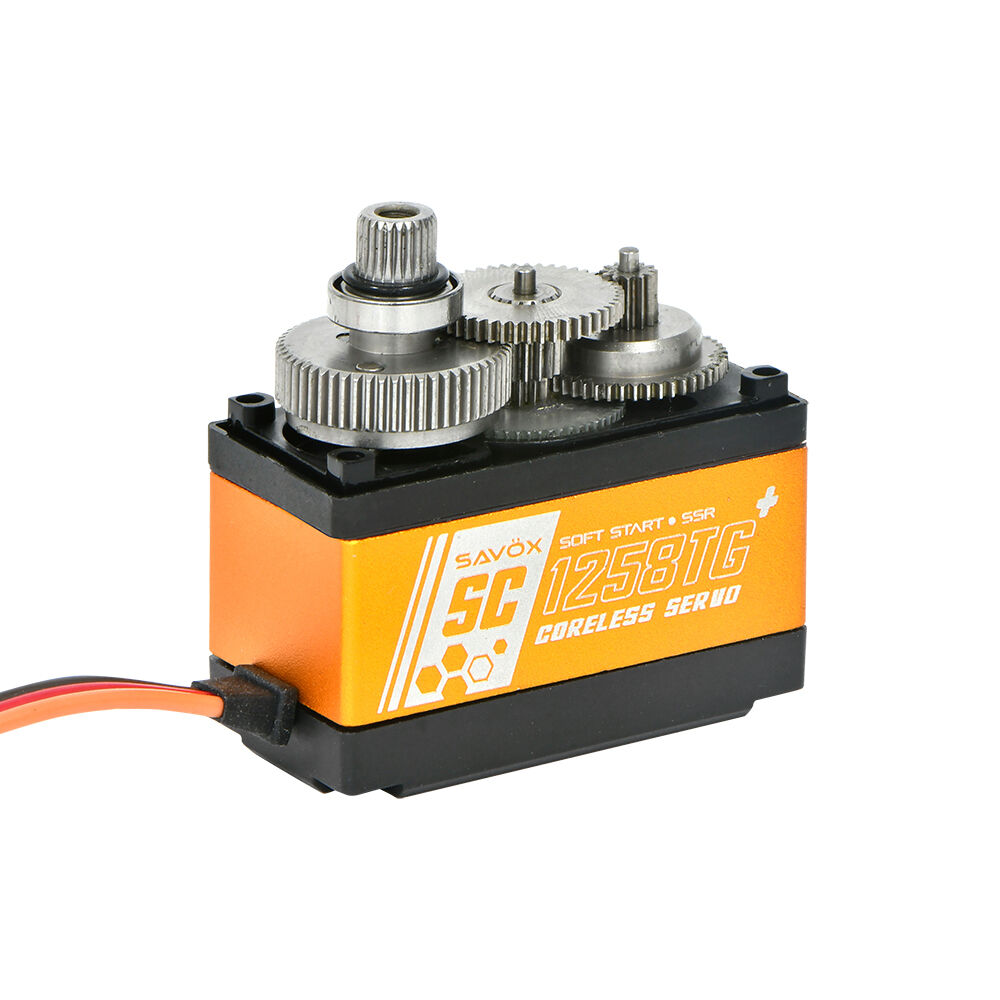

Built with a coreless motor, titanium gears, dual ball bearings and a hybrid aluminium/composite case, the SC-1258TG Plus delivers a strong balance of speed, strength and reliability. The titanium gear train provides excellent durability while keeping weight down, and the aluminium centre section assists with heat dissipation during demanding use.
As part of the updated Plus range, this servo includes Soft Start and Sanwa SSR compatibility. It also features a 25T output spline, 8-bit PCB board, dust-resistant protection and a standard JR connector, making it a dependable upgrade for high-performance RC vehicles and other standard servo applications.
Model: SC-1258TG Plus
Servo Type: Standard digital high speed servo
Application: Car
Motor Type: Coreless
Torque @ 4.8V: 9.6kg-cm
Torque @ 6.0V: 12.0kg-cm
Speed @ 4.8V: 0.10 sec/60°
Speed @ 6.0V: 0.08 sec/60°
Gear Type: Titanium
Bearings: 2x ball bearings
Output Spline: 25T
Case Type: Hybrid aluminium/composite

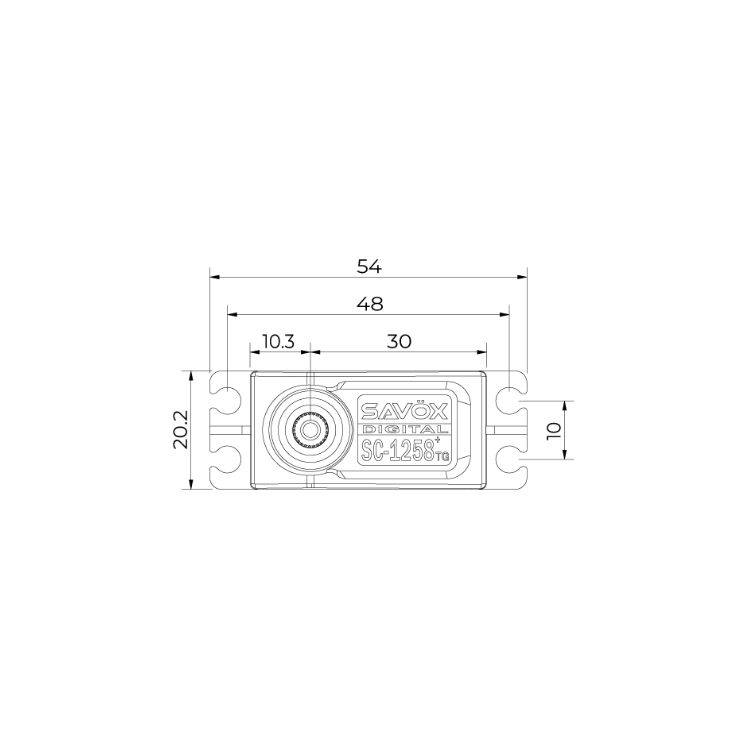

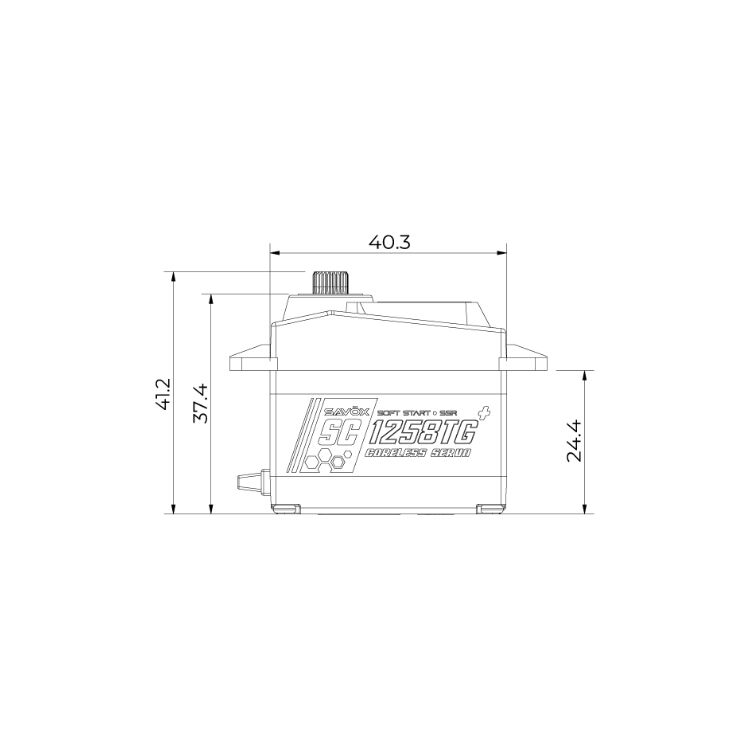

Dimensions: 40.3 x 20.2 x 37.4mm
Weight: 64g
Operating Voltage: 4.8V–6.0V
Protection: Dust Resistant
Compatibility: Sanwa SSR
PCB Board: 8-bit
Connector: JR connector
Cable Length: 300 ±5mm
| SKU | SAV-SC1258TG |
| Barcode # | 4710006994185 |
| Brand | Savox |
| Shipping Weight | 0.1400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000700000m3 |
