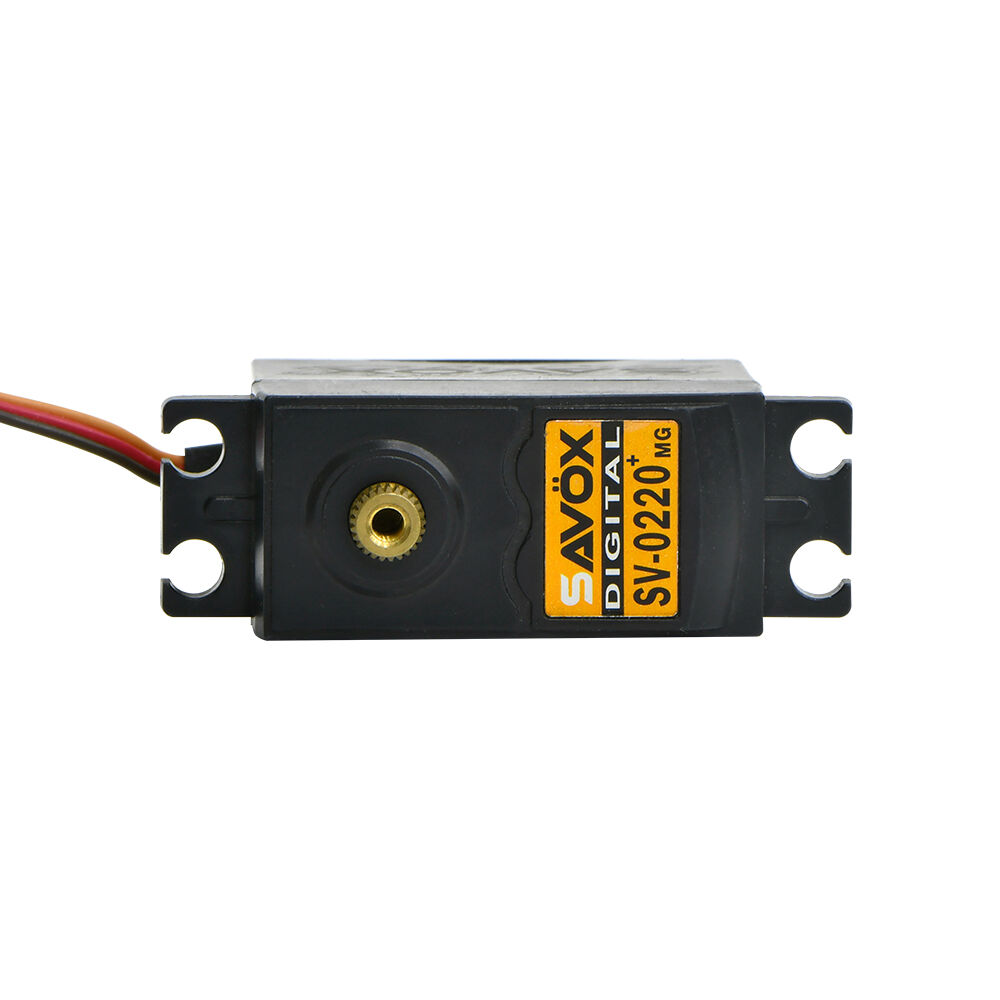

The Savox SV-0220MG Plus is a standard-size digital high voltage servo designed for RC models that need reliable torque, durable metal gears and water-resistant protection. Producing up to 8.0kg-cm of torque at 7.4V with a 0.13 sec/60° transit speed, it is a practical upgrade for RC cars, aircraft and other standard servo applications.

Built with a DC motor, heavy-duty metal gears, a composite case and ball bearing support, the SV-0220MG Plus offers dependable performance for everyday RC use. Its high voltage capability allows stronger and faster performance compared with many standard 4.8V–6.0V servos, while the metal gear train provides improved durability over plastic gear servos.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, water-resistant protection and standard JR connector, the SV-0220MG Plus is a reliable choice for customers needing a tough and affordable standard-size HV servo.

Features

• Standard-size digital high voltage servo
• Up to 8.0kg-cm torque at 7.4V
• 0.13 sec/60° speed at 7.4V
• Soft Start function
• DC motor design
• Heavy-duty metal gears for improved durability
• Composite case
• Ball bearing support
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Water-resistant protection
• Suitable for RC cars, aircraft and standard servo applications

Specifications

Model: SV-0220MG Plus
Servo Type: Standard digital high voltage servo
Application: Car / Airplane
Motor Type: DC motor
Torque @ 6.0V: 6.5kg-cm
Torque @ 7.4V: 8.0kg-cm
Speed @ 6.0V: 0.16 sec/60°
Speed @ 7.4V: 0.13 sec/60°
Gear Type: Heavy-duty metal gears
Bearing: 1x ball bearing
Output Spline: 25T / 6mm
Case Type: Composite

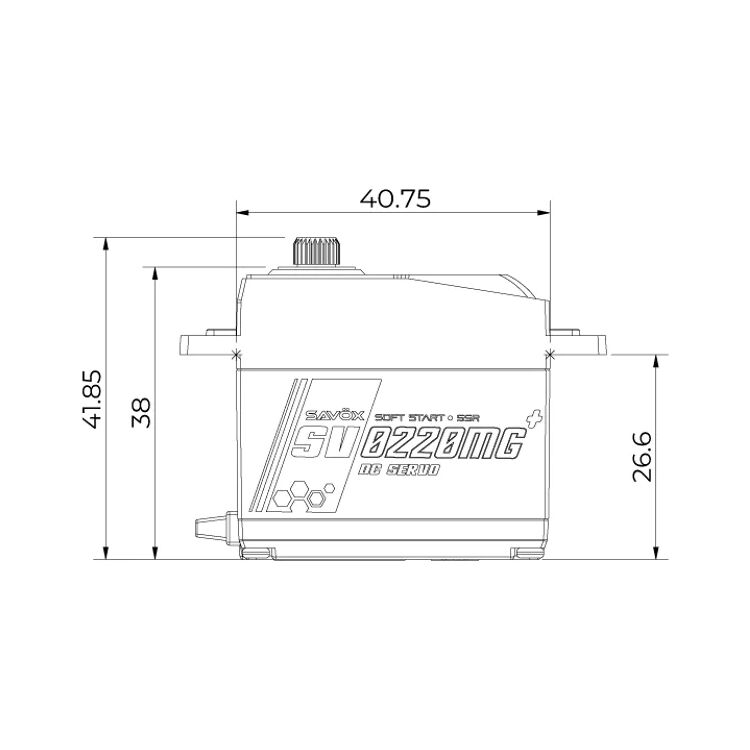

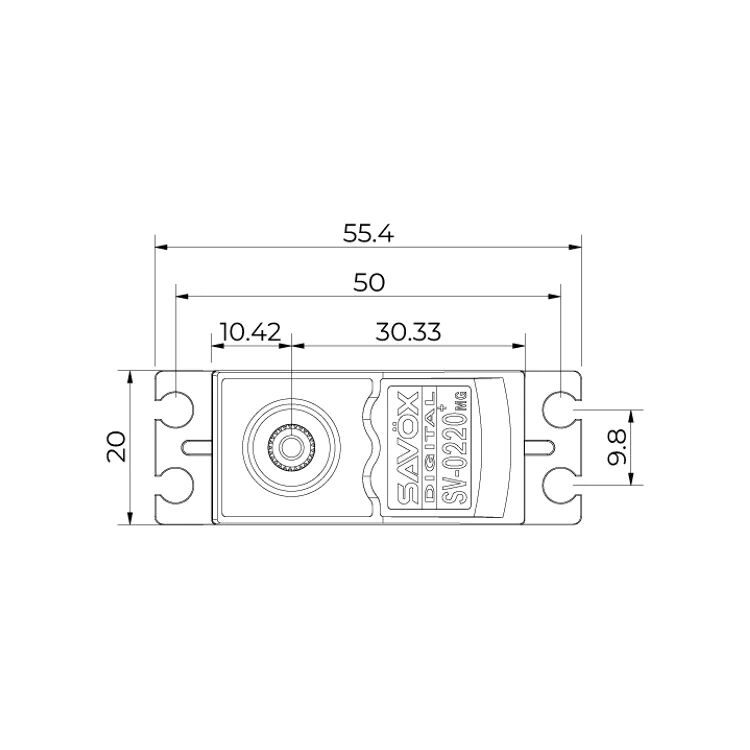

Dimensions: 40.75 x 20 x 38mm
Weight: 59g
Operating Voltage: 6.0V–7.4V
Protection: Water Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 250 ±5mm
