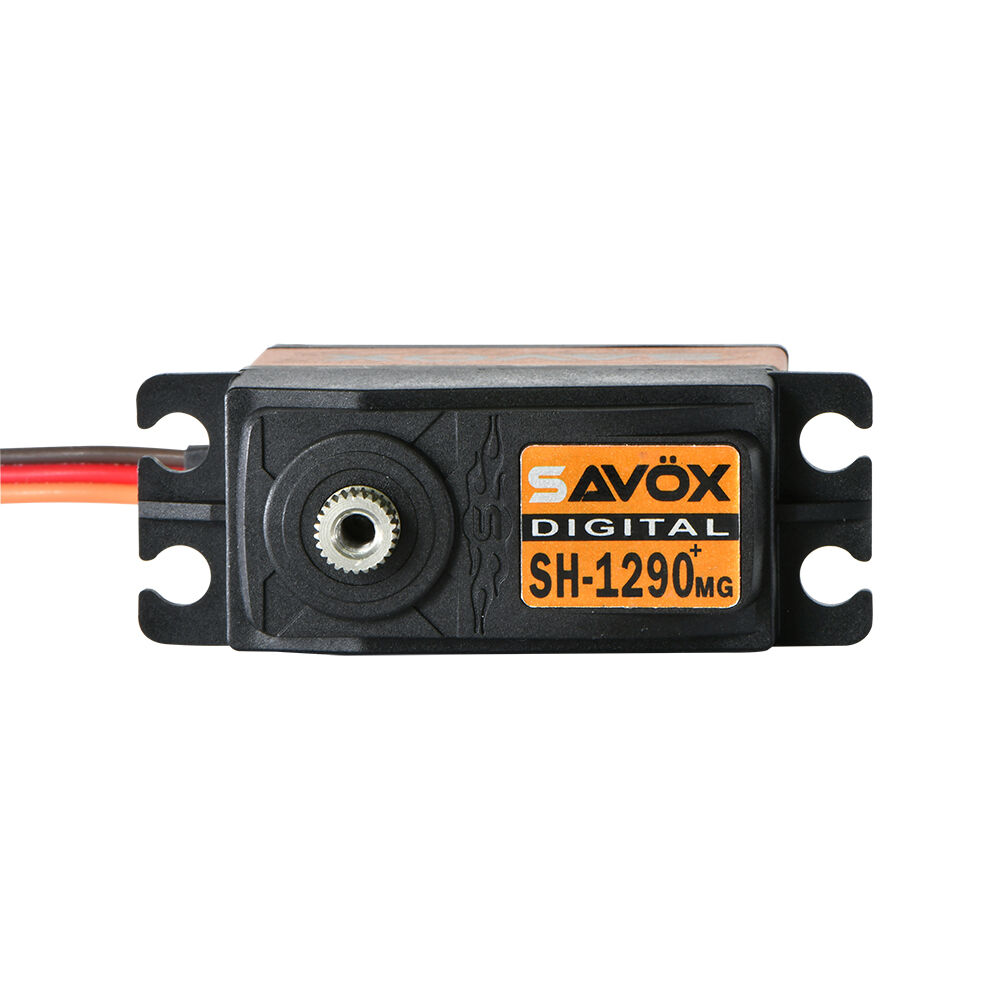

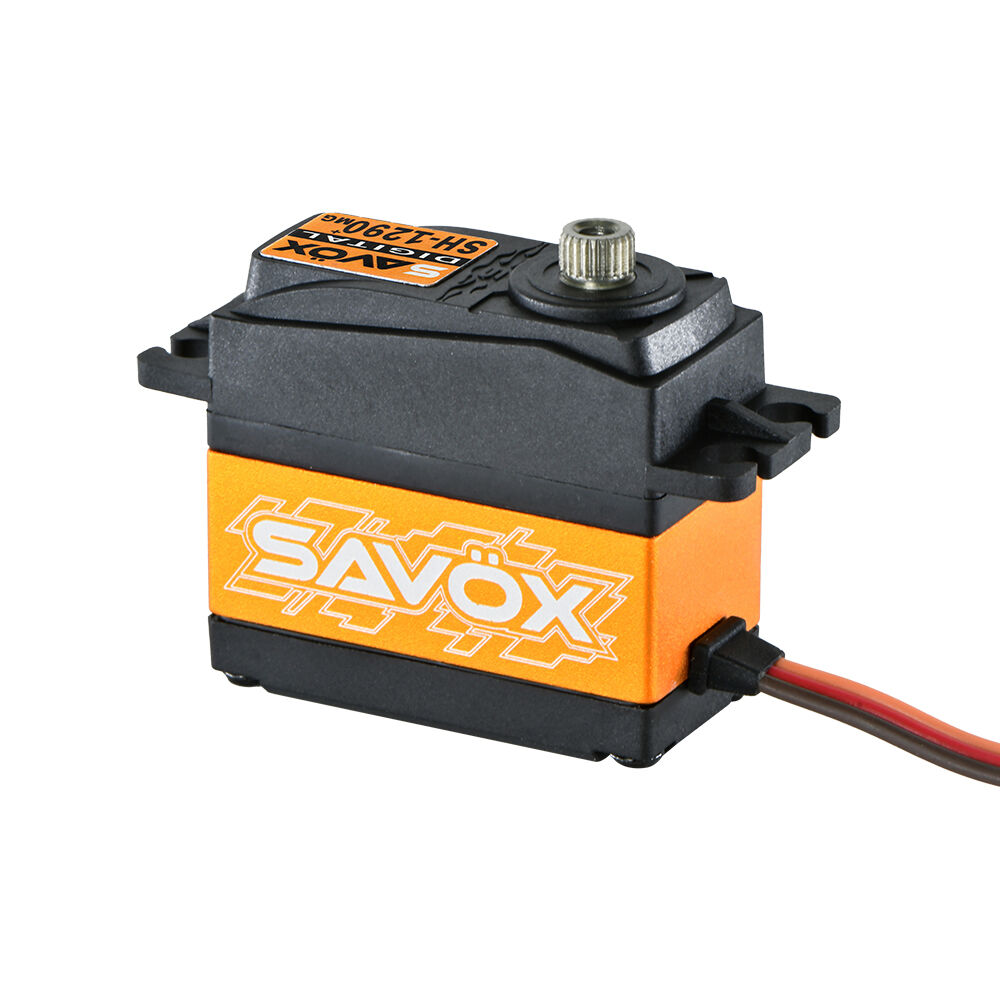

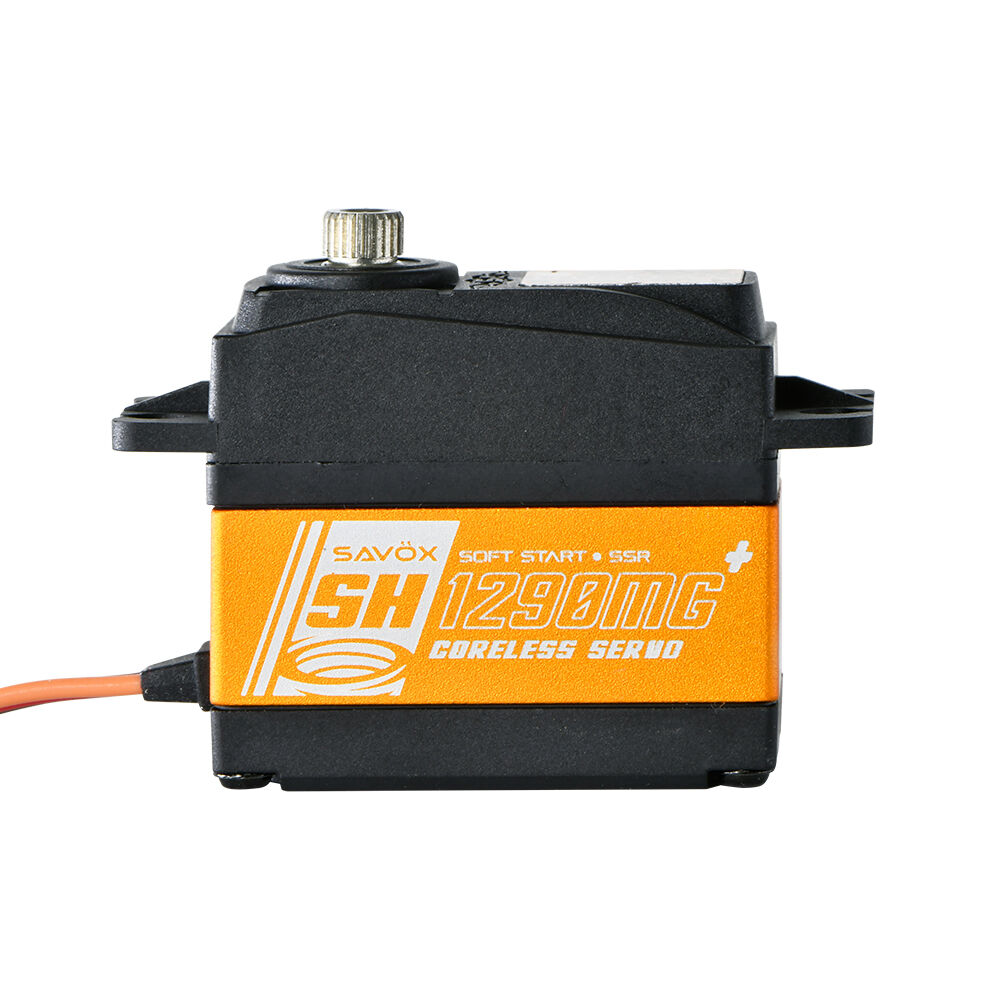

The Savox SH-1290MG Plus is a standard-size super speed digital servo designed for RC applications where extremely fast response and precise control are the priority. Producing up to 5.0kg-cm of torque at 6.0V with an ultra-fast 0.05 sec/60° transit speed, it is a strong choice for RC cars, helicopters, aircraft and other models that need rapid servo movement with smooth digital control.

Built with a coreless motor, heavy-duty metal gears, dual ball bearings and a hybrid aluminium/composite case, the SH-1290MG Plus delivers fast, efficient and reliable performance while keeping weight to just 56.4g. Its high-speed response makes it especially suitable for applications where steering or control surface speed is more important than maximum torque.

This Plus version also features Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, dust-resistant protection and a standard JR connector. It is a dependable option for customers wanting a fast, accurate standard-size servo for performance RC setups.

Features

• Standard-size super speed digital servo
• Up to 5.0kg-cm torque at 6.0V
• Ultra-fast 0.05 sec/60° speed at 6.0V
• Coreless motor for smooth and responsive performance
• Heavy-duty metal gears for improved strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Dust-resistant protection
• Suitable for RC cars, helicopters, aircraft and fast-response control applications

Specifications

Model: SH-1290MG Plus
Servo Type: Standard digital super speed servo
Application: Car / Heli / Airplane
Motor Type: Coreless
Torque @ 4.8V: 4.0kg-cm
Torque @ 6.0V: 5.0kg-cm
Speed @ 4.8V: 0.06 sec/60°
Speed @ 6.0V: 0.05 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Hybrid aluminium/composite

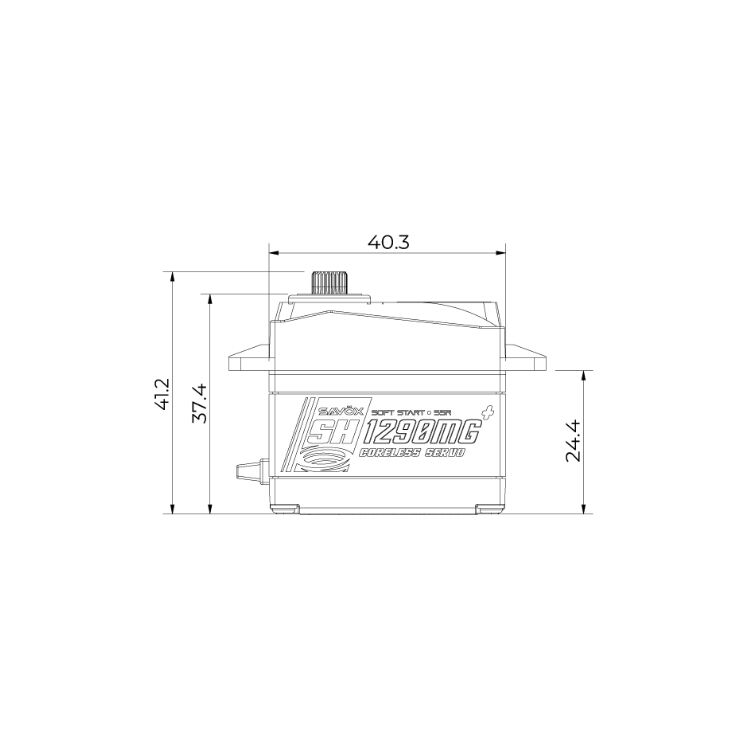

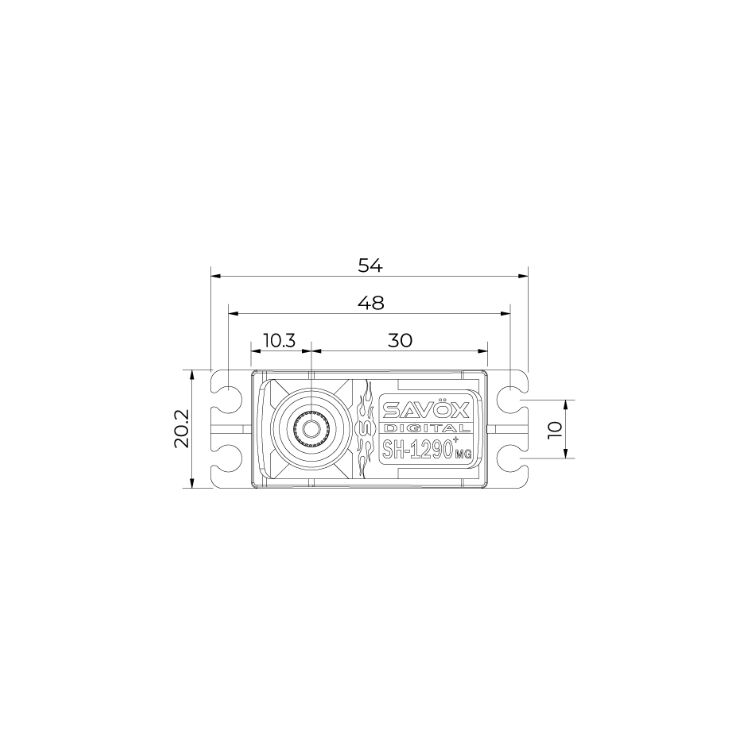

Dimensions: 40.3 x 20.2 x 37.4mm
Weight: 56.4g
Operating Voltage: 4.8V–6.0V
Protection: Dust Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 300 ±5mm
