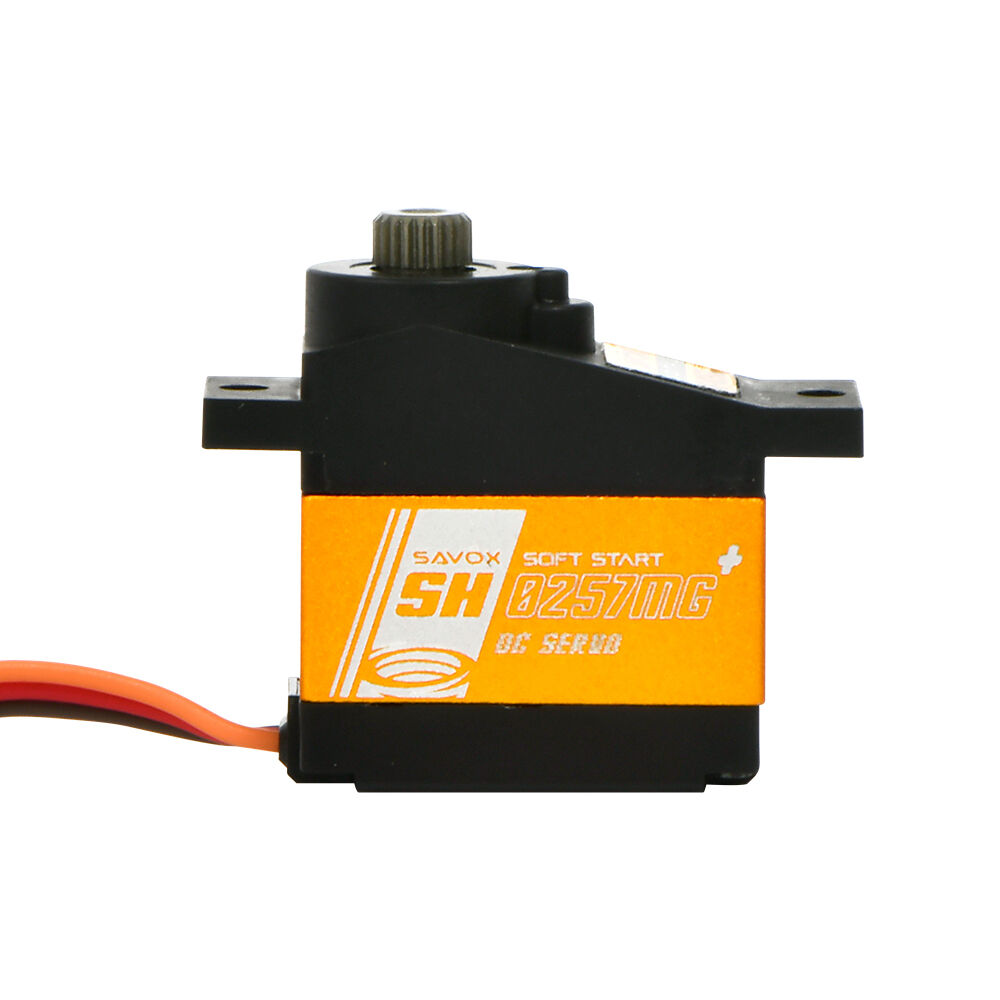

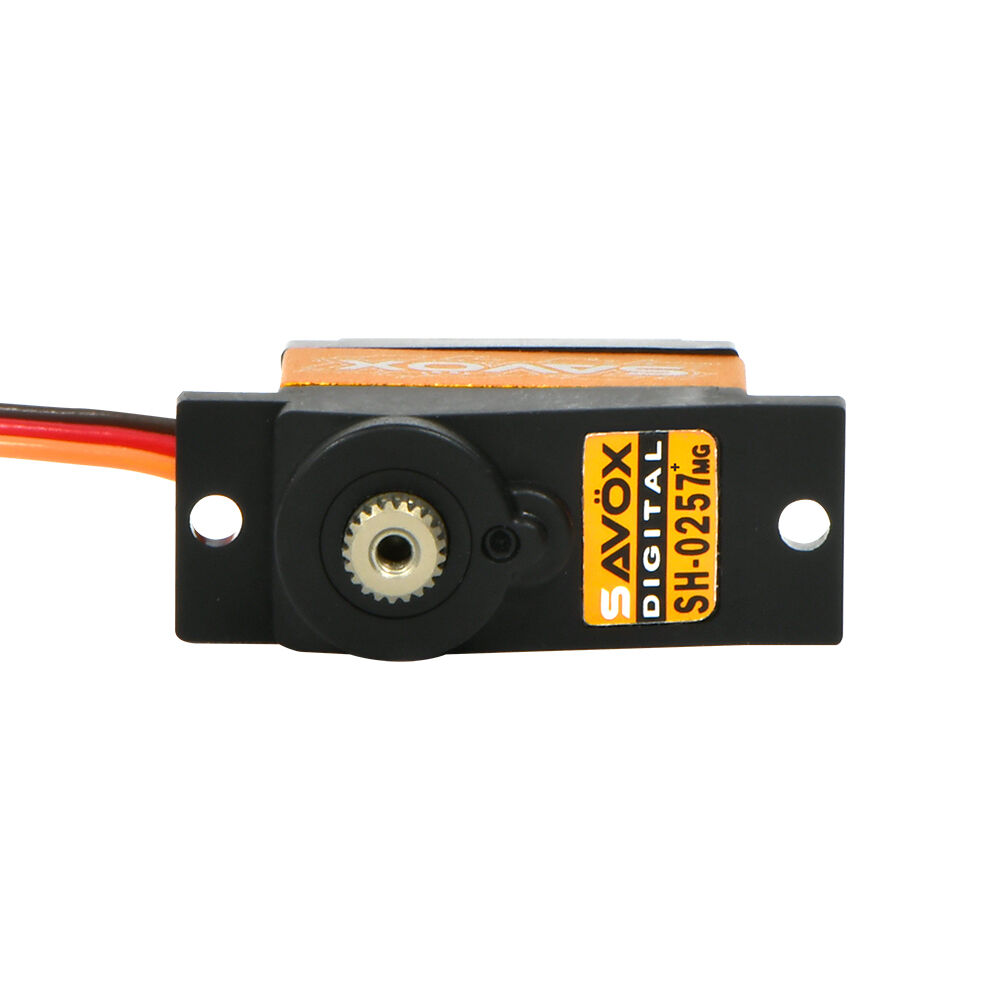

The Savox SH-0257MG Plus is a lightweight micro digital servo designed for compact RC models that need quick response, reliable control and strong metal gears. Producing up to 2.2kg-cm of torque at 6.0V with a fast 0.09 sec/60° transit speed, it is a great choice for small aircraft, helicopters, cars and other compact RC applications where low weight and precise movement are important.

Built with a DC motor, heavy-duty metal gears and a hybrid aluminium/composite case, the SH-0257MG Plus offers improved durability over plastic gear micro servos while keeping weight down to just 14g. Its shorter case height makes it ideal for tighter installations where a larger micro servo may not fit.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With a 21T output spline, 10-bit PCB board, dust-resistant protection and standard JR connector, the SH-0257MG Plus is a practical and dependable servo for smaller RC models.

Features

• Micro digital servo
• Up to 2.2kg-cm torque at 6.0V
• Fast 0.09 sec/60° speed at 6.0V
• Soft Start function
• DC motor design
• Heavy-duty metal gears for improved durability
• Hybrid aluminium/composite case
• 21T output spline
• 10-bit PCB board
• Dust-resistant protection
• Lightweight 14g design
• Suitable for small RC cars, aircraft, helicopters and compact RC models

Specifications

Model: SH-0257MG Plus
Servo Type: Micro digital servo
Application: Car / Heli / Airplane
Motor Type: DC motor
Torque @ 4.8V: 1.8kg-cm
Torque @ 6.0V: 2.2kg-cm
Speed @ 4.8V: 0.13 sec/60°
Speed @ 6.0V: 0.09 sec/60°
Gear Type: Heavy-duty metal gears
Output Spline: 21T / 4.8mm
Case Type: Hybrid aluminium/composite

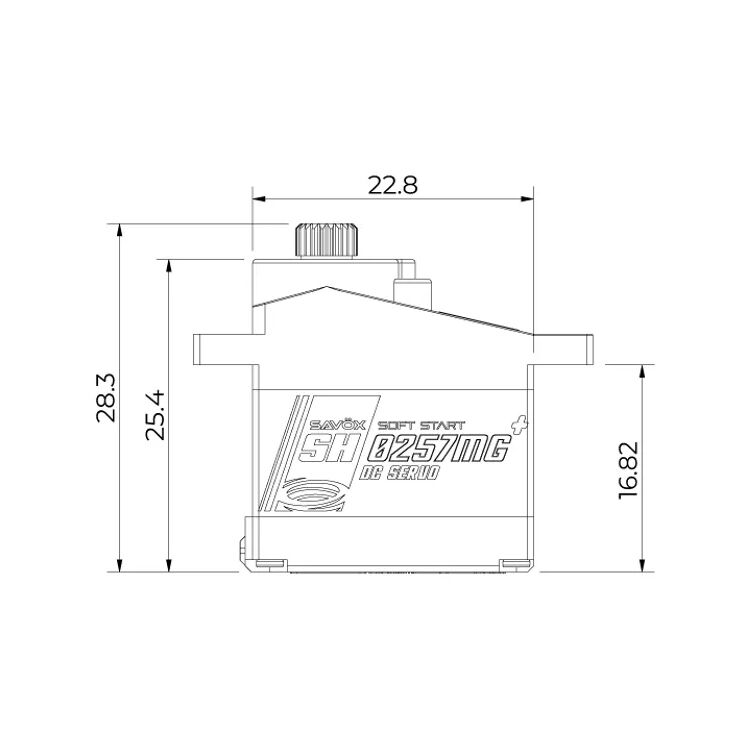

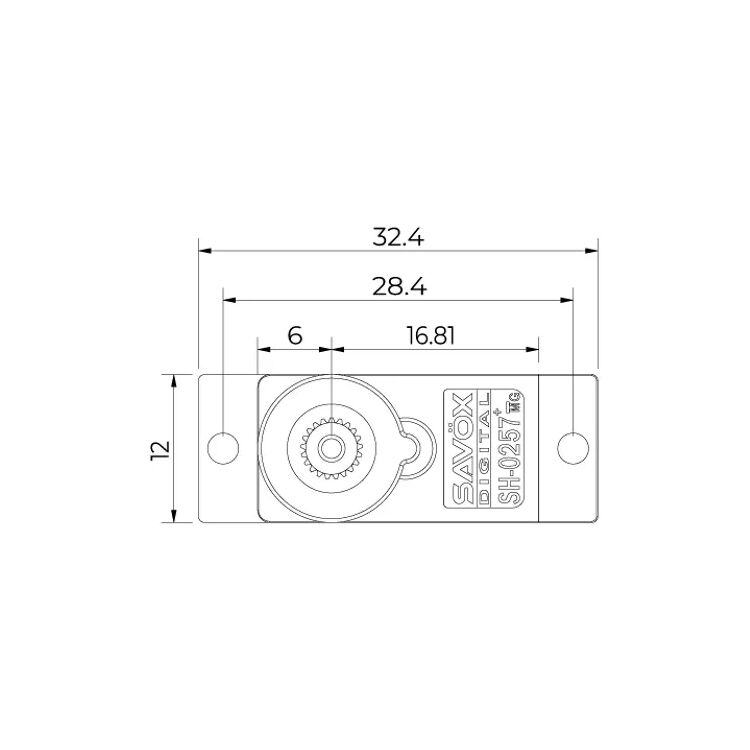

Dimensions: 22.8 x 12.0 x 25.4mm
Weight: 14g
Operating Voltage: 4.8V–6.0V
Protection: Dust Resistant
PCB Board: 10-bit
Connector: JR connector
Cable Length: 250 ±5mm
