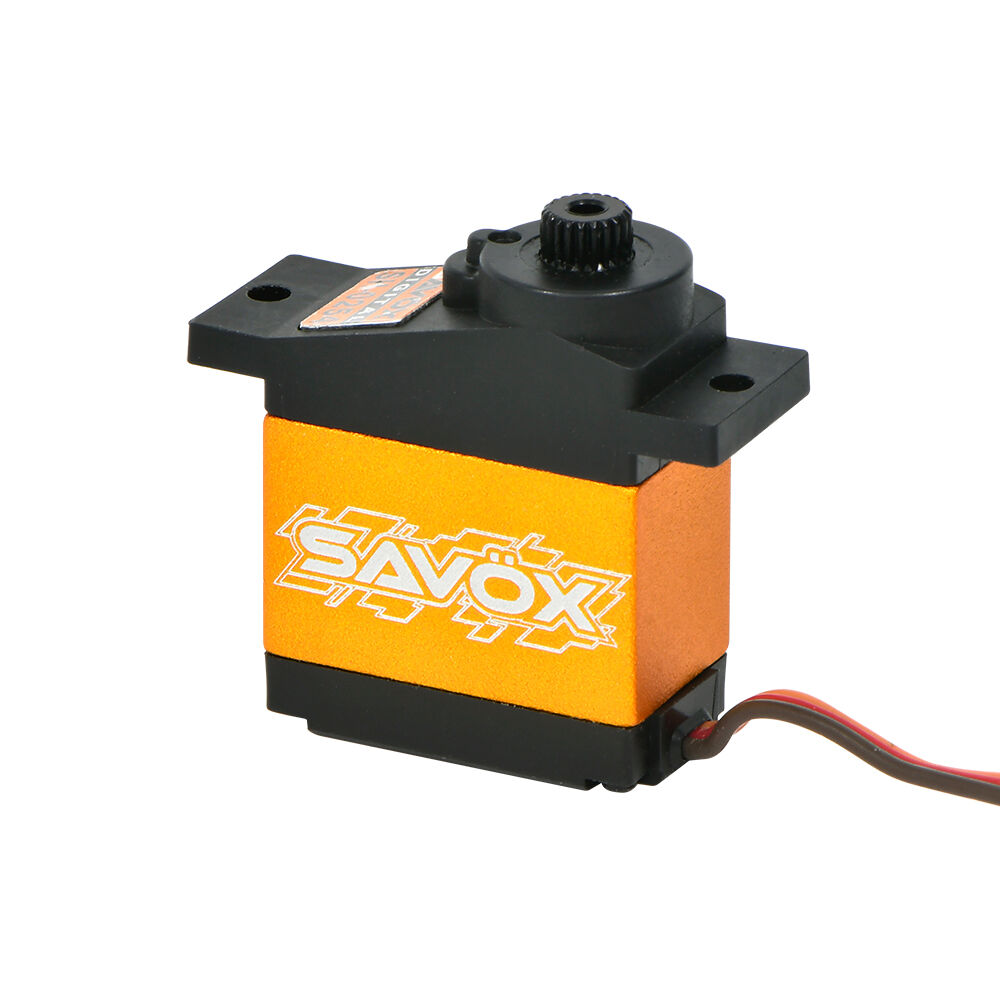

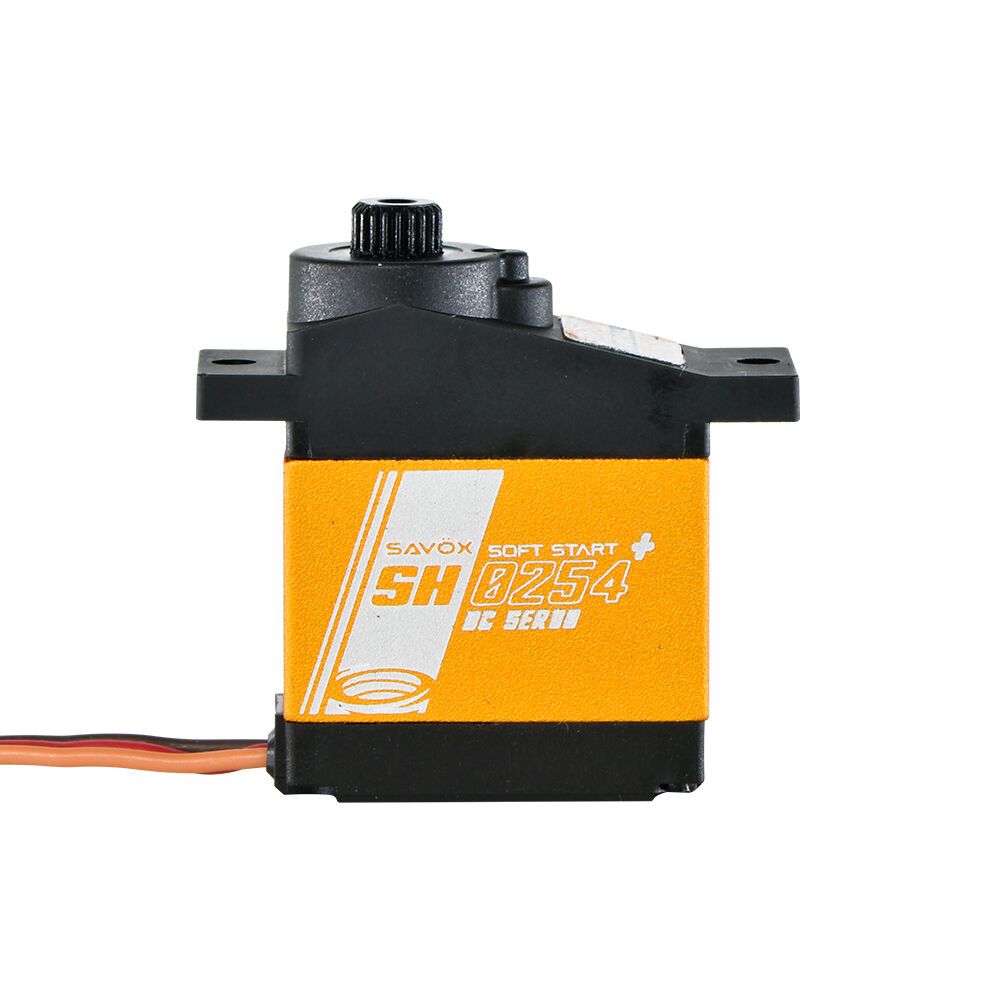

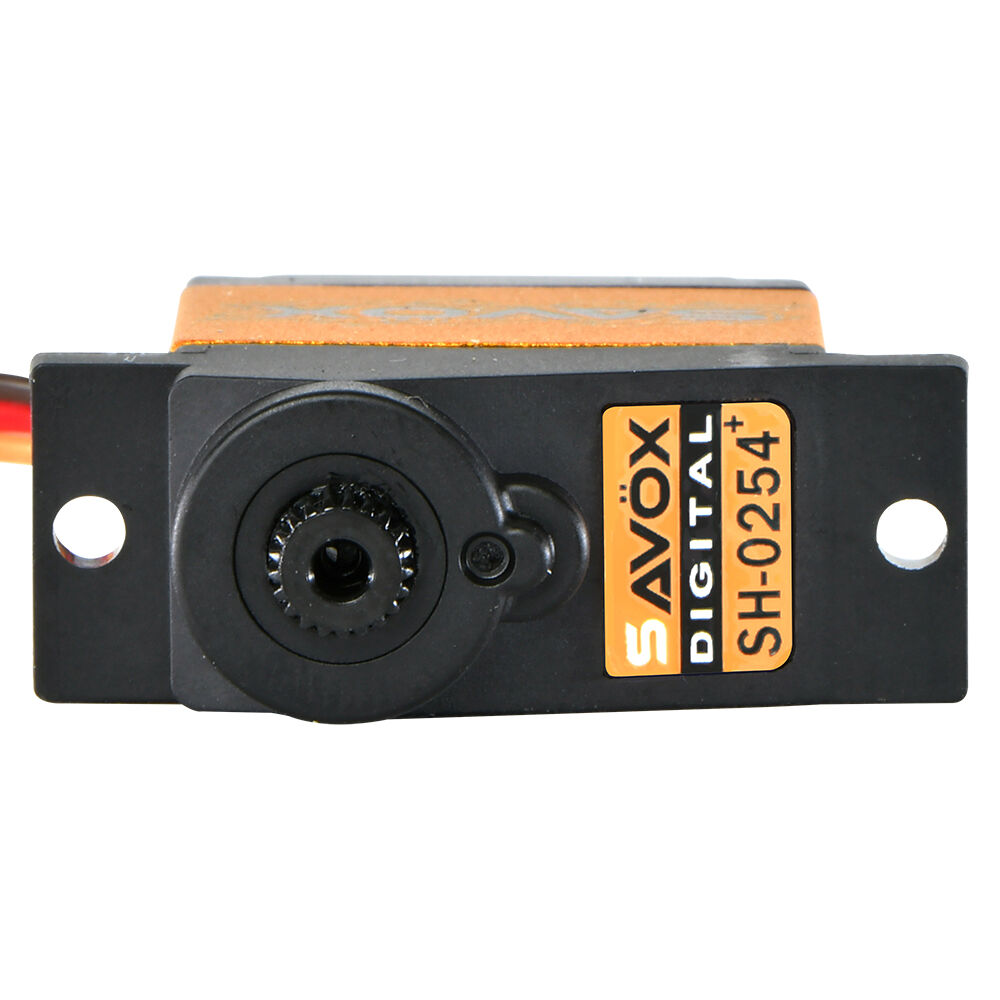

The Savox SH-0254 Plus is a compact micro digital servo designed for RC models that need reliable control in a lightweight, space-saving package. Producing up to 3.9kg-cm of torque at 6.0V with a 0.13 sec/60° transit speed, it is a great choice for small aircraft, helicopters, cars and other compact RC applications where size and weight matter.

Built with a DC motor, hybrid metal/composite gears, dual ball bearings and a hybrid aluminium/composite case, the SH-0254 Plus offers a strong balance of smooth operation, durability and low weight. The metal/composite gear design provides improved strength over basic plastic gear servos while helping keep the servo light for smaller models.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With a 21T output spline, 10-bit PCB board, dust-resistant protection and standard JR connector, the SH-0254 Plus is a dependable option for a wide range of smaller RC setups.

Features

• Micro digital servo
• Up to 3.9kg-cm torque at 6.0V
• 0.13 sec/60° speed at 6.0V
• Soft Start function
• DC motor design
• Hybrid metal/composite gears
• Hybrid aluminium/composite case
• Dual ball bearing design
• 21T output spline
• 10-bit PCB board
• Dust-resistant protection
• Suitable for small RC cars, aircraft, helicopters and compact RC models

Specifications

Model: SH-0254 Plus
Servo Type: Micro digital servo
Application: Car / Heli / Airplane
Motor Type: DC motor
Torque @ 4.8V: 3.1kg-cm
Torque @ 6.0V: 3.9kg-cm
Speed @ 4.8V: 0.16 sec/60°
Speed @ 6.0V: 0.13 sec/60°
Gear Type: Hybrid metal/composite
Bearings: 2x ball bearings
Output Spline: 21T / 4.8mm
Case Type: Hybrid aluminium/composite

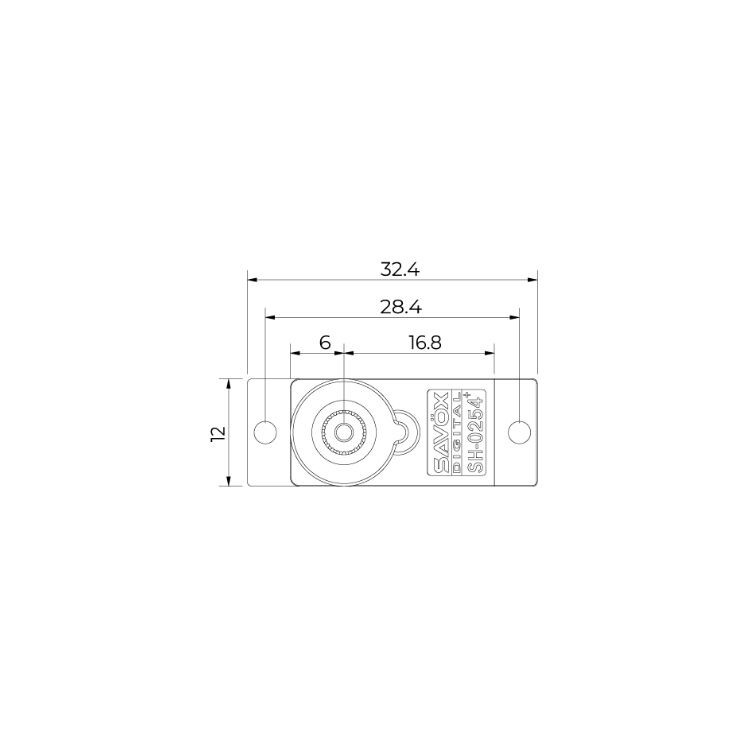

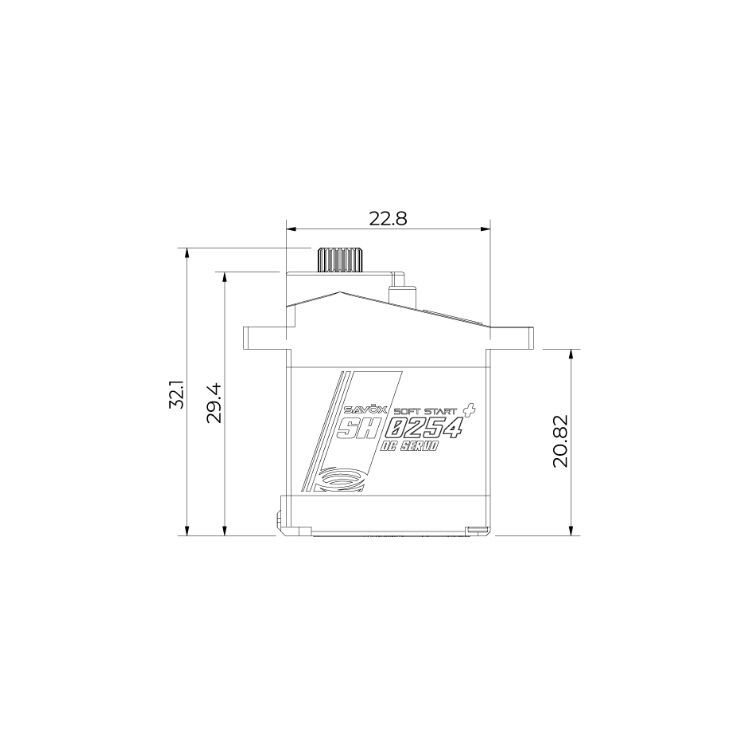

Dimensions: 22.8 x 12.0 x 29.4mm
Weight: 15.8g
Operating Voltage: 4.8V–6.0V
Protection: Dust Resistant
PCB Board: 10-bit
Connector: JR connector
Cable Length: 250 ±5mm
