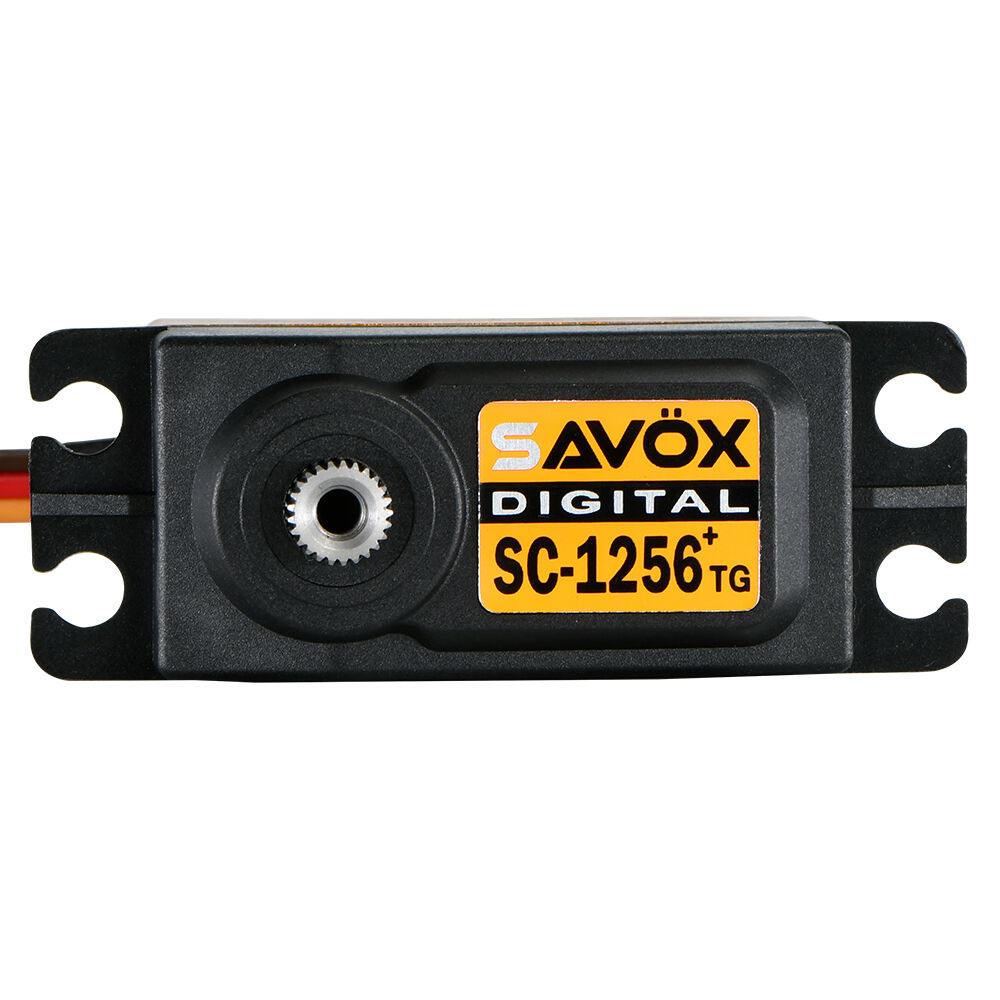

The Savox SC-1256TG Plus is a standard-size digital high torque servo designed for RC applications that need strong, precise and reliable control. Producing up to 20kg-cm of torque at 6.0V with a 0.15 sec/60° transit speed, it is a great upgrade for customers replacing weaker RTR servos or fitting a stronger steering servo into 1/10 RC cars, trucks, crawlers and off-road vehicles.

Built with a coreless motor, titanium gears, dual ball bearings and a hybrid aluminium/composite case, the SC-1256TG Plus delivers a strong balance of torque, speed and durability. The titanium gear train provides long-lasting strength while helping keep weight down, and the aluminium centre section assists with heat dissipation during demanding use.

As part of the updated Plus range, this servo includes Soft Start and Sanwa SSR compatibility. It also features a 25T output spline, 12-bit PCB board and dust-resistant protection, making it a dependable option for performance RC setups where accuracy and holding power matter.

Features

• Standard-size digital high torque servo
• Up to 20kg-cm torque at 6.0V
• 0.15 sec/60° speed at 6.0V
• Coreless motor for smooth and responsive performance
• Titanium gears for strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Soft Start function
• Sanwa SSR compatible
• Dust-resistant protection
• Great upgrade for 1/10 RC cars, trucks, crawlers and off-road vehicles

Specifications

Model: SC-1256TG Plus
Servo Type: Standard digital servo
Motor Type: Coreless
Torque @ 4.8V: 16.0kg-cm
Torque @ 6.0V: 20.0kg-cm
Speed @ 4.8V: 0.18 sec/60°
Speed @ 6.0V: 0.15 sec/60°
Gear Type: Titanium
Bearings: 2x ball bearings
Output Spline: 25T
Case Type: Hybrid aluminium/composite

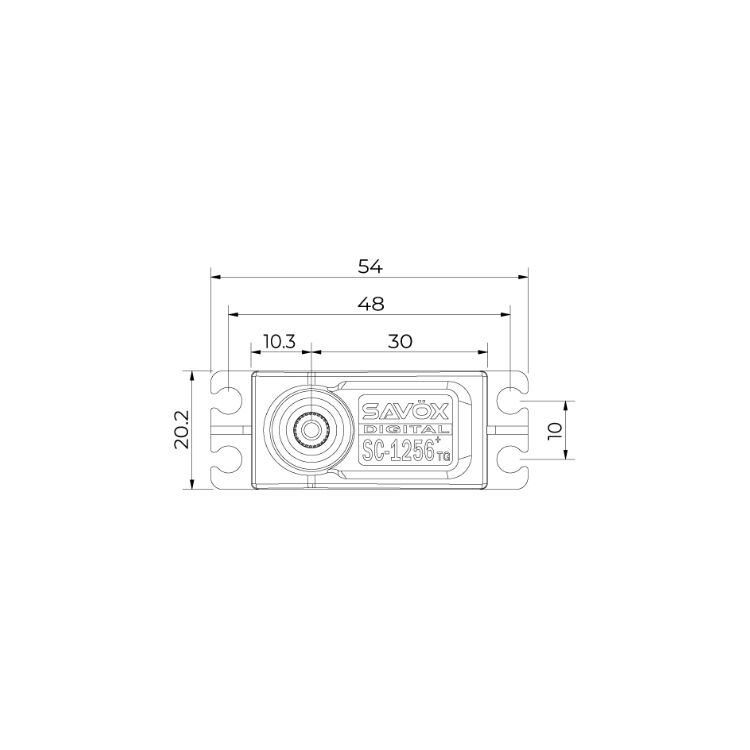

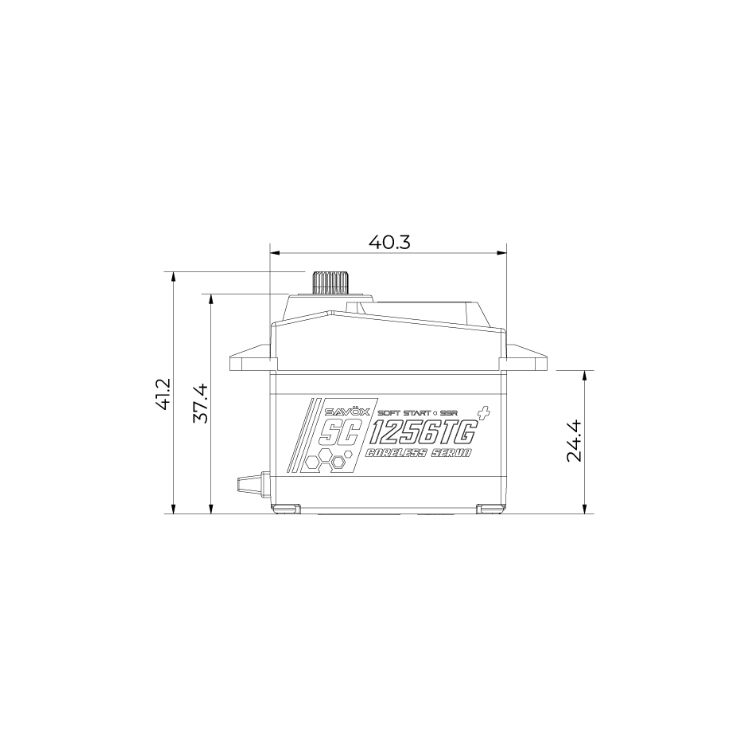

Dimensions: 40.3 x 20.2 x 37.4mm
Weight: 64g
Operating Voltage: 4.8V–6.0V
Protection: Dust resistant
Compatibility: Sanwa SSR
Connector: JR connector
Cable Length: 300 ±5mm
Waterproof: No / not waterproof-rated
