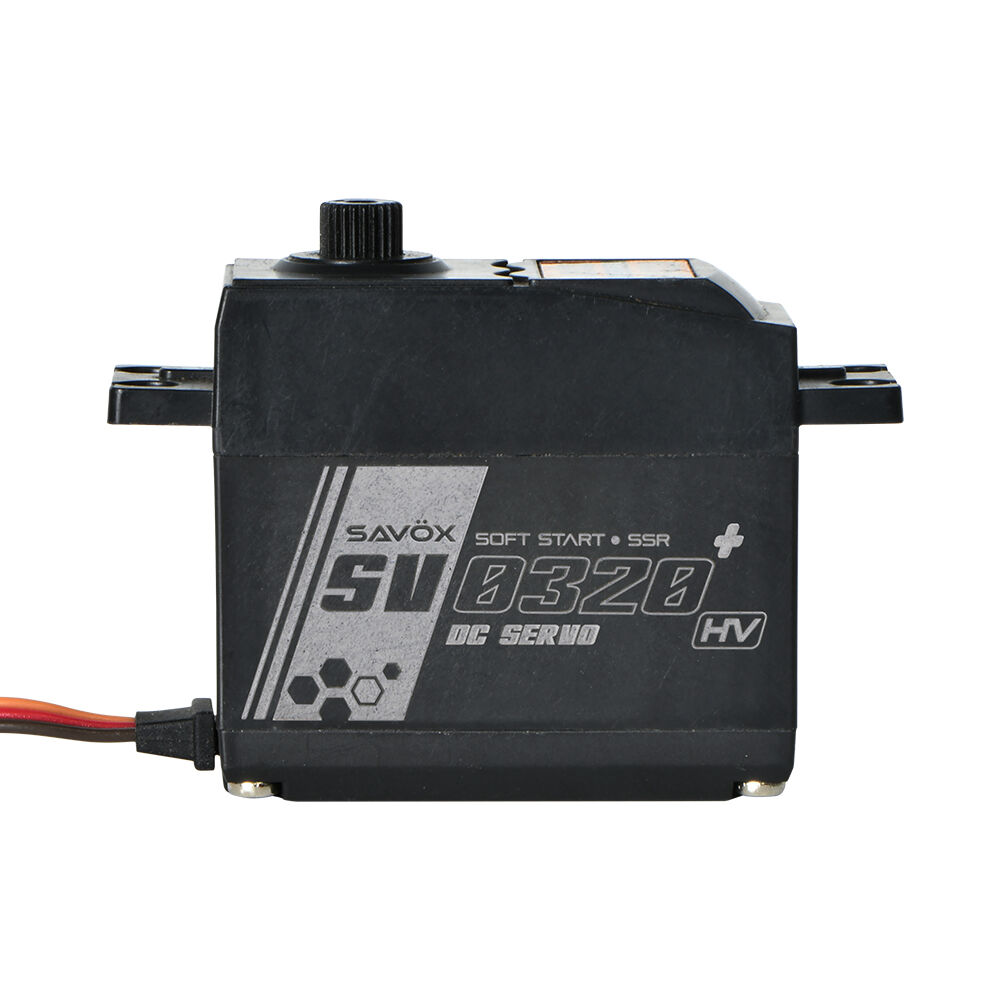

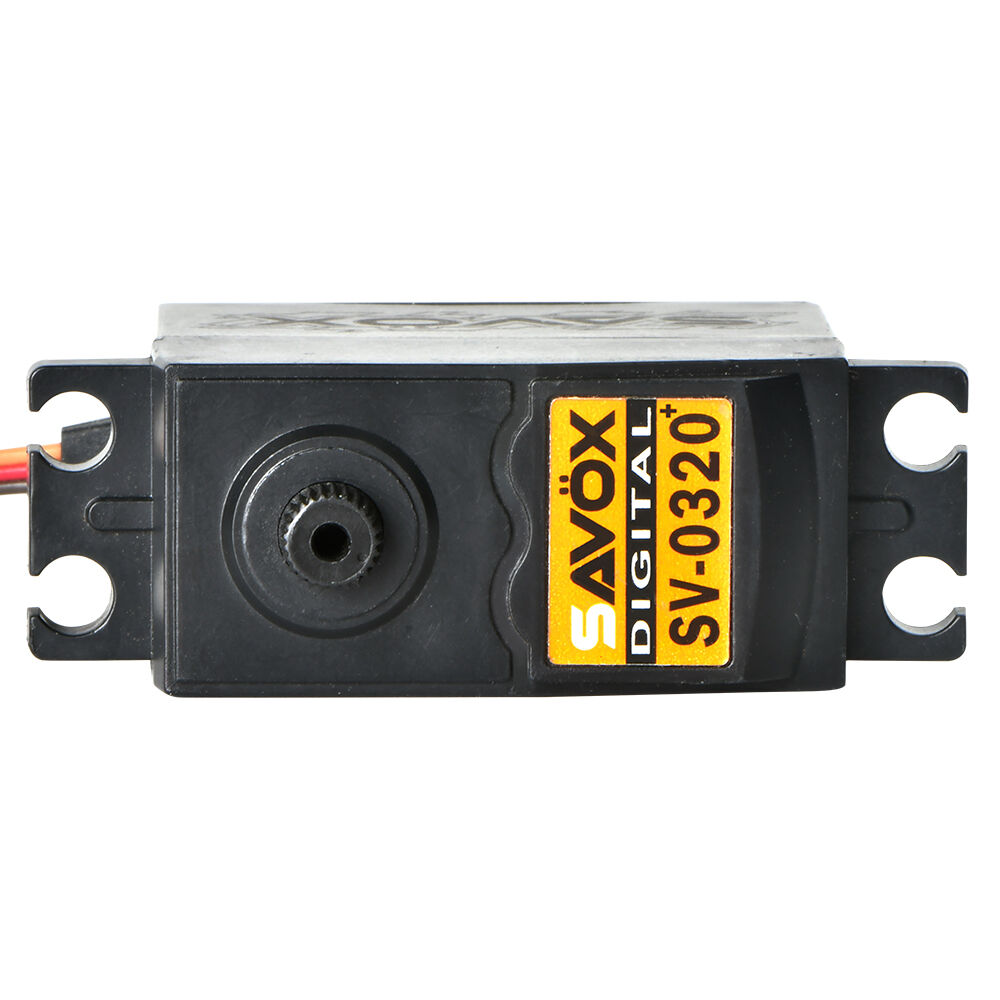

The Savox SV-0320 Plus is a standard-size digital high voltage servo designed for RC models that need reliable control, smooth operation and water-resistant protection. Producing up to 6.0kg-cm of torque at 7.4V with a 0.13 sec/60° transit speed, it is a practical choice for RC cars, aircraft and other standard servo applications where a lightweight composite gear servo is suitable.

Built with a DC motor, high-strength composite gears and a durable composite case, the SV-0320 Plus offers dependable performance while keeping weight down to just 46g. Its high voltage capability allows stronger and faster performance compared with many traditional 4.8V–6.0V servos, making it a good option for compatible 6.0V–7.4V receiver power setups.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline and water-resistant protection, the SV-0320 Plus is a reliable and affordable option for general RC use.

Features

• Standard-size digital high voltage servo
• Up to 6.0kg-cm torque at 7.4V
• 0.13 sec/60° speed at 7.4V
• Soft Start function
• DC motor design
• High-strength composite gears
• Lightweight composite case
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Water-resistant protection
• Suitable for RC cars, aircraft and standard servo applications

Specifications

Model: SV-0320 Plus
Servo Type: Standard digital high voltage servo
Application: Car / Airplane
Motor Type: DC motor
Torque @ 6.0V: 4.5kg-cm
Torque @ 7.4V: 6.0kg-cm
Speed @ 6.0V: 0.16 sec/60°
Speed @ 7.4V: 0.13 sec/60°
Gear Type: High-strength composite gears
Output Spline: 25T / 6mm
Case Type: Composite

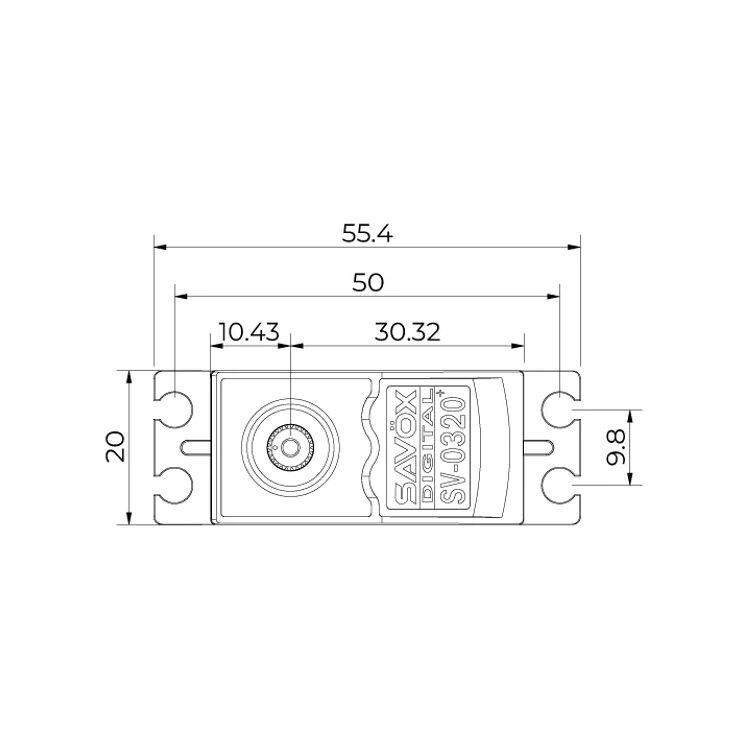

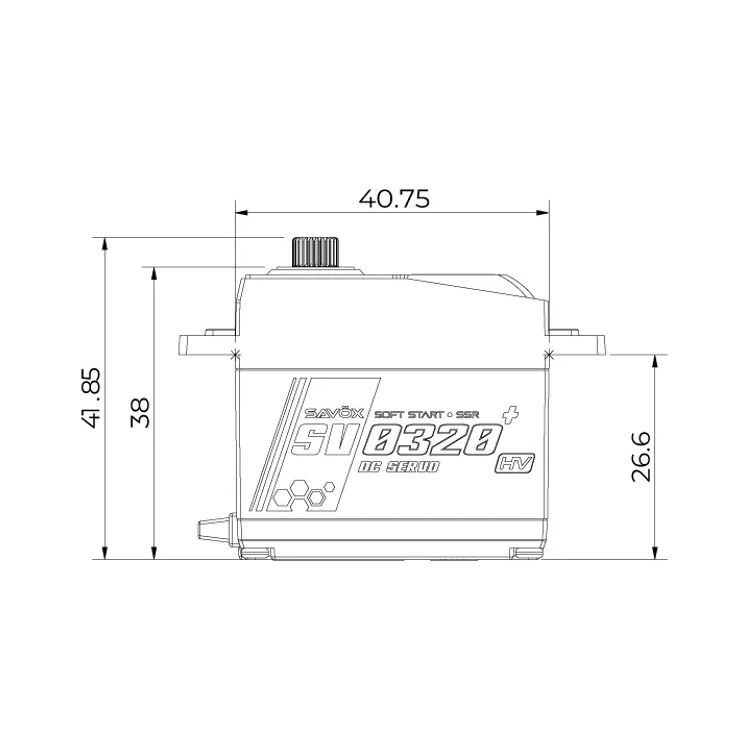

Dimensions: 40.75 x 20 x 38mm
Weight: 46g
Operating Voltage: 6.0V–7.4V
Protection: Water Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
