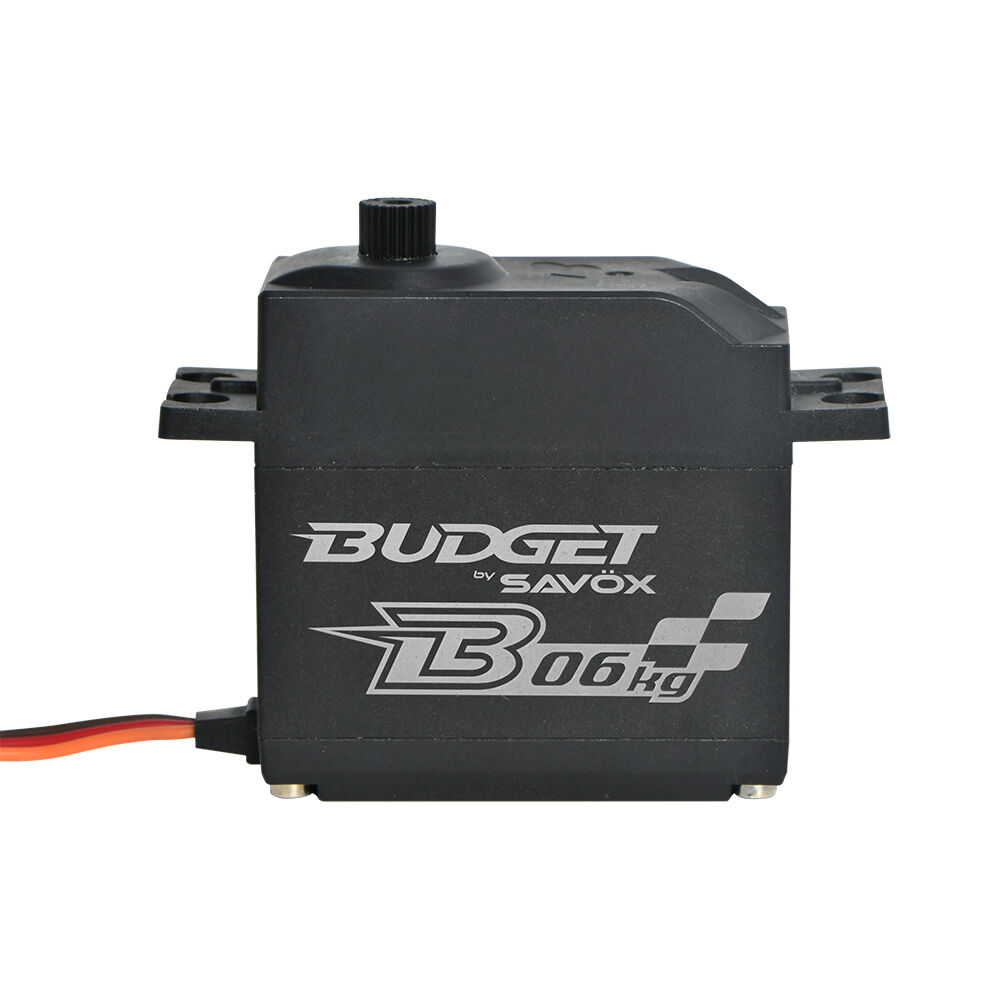

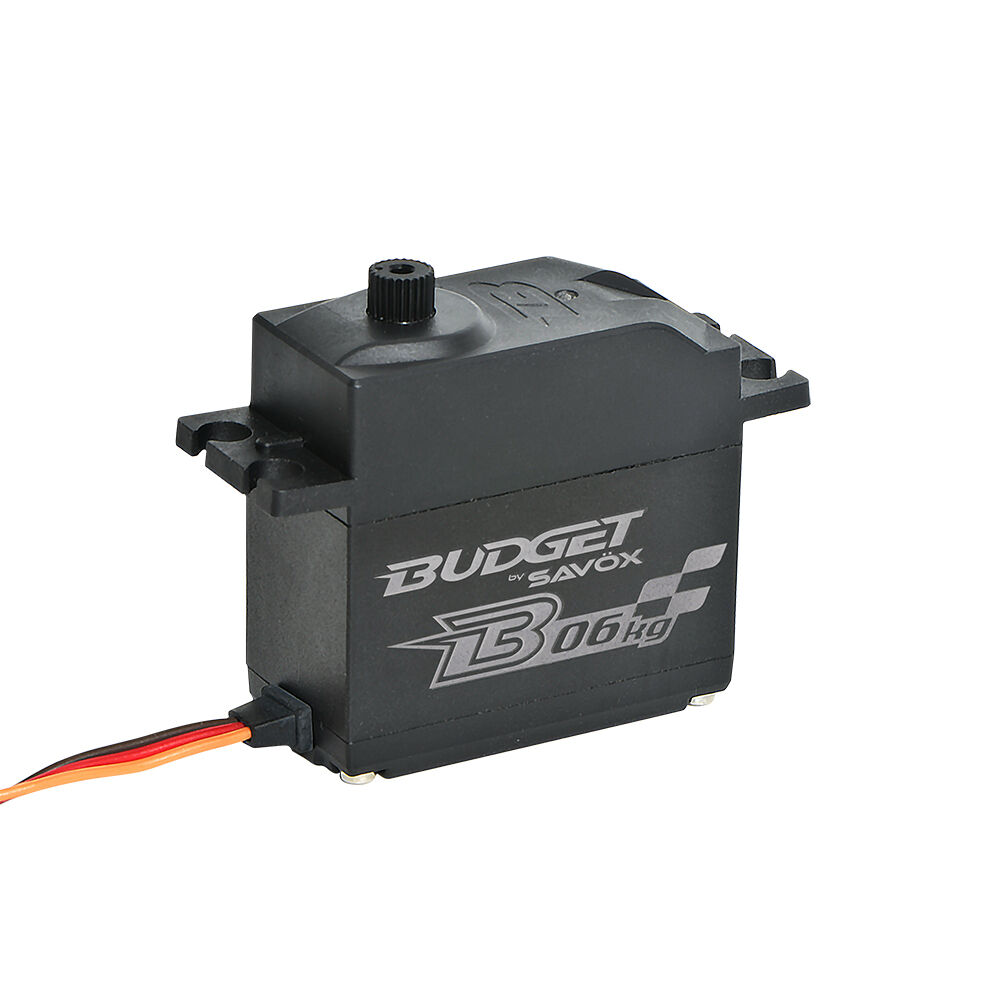

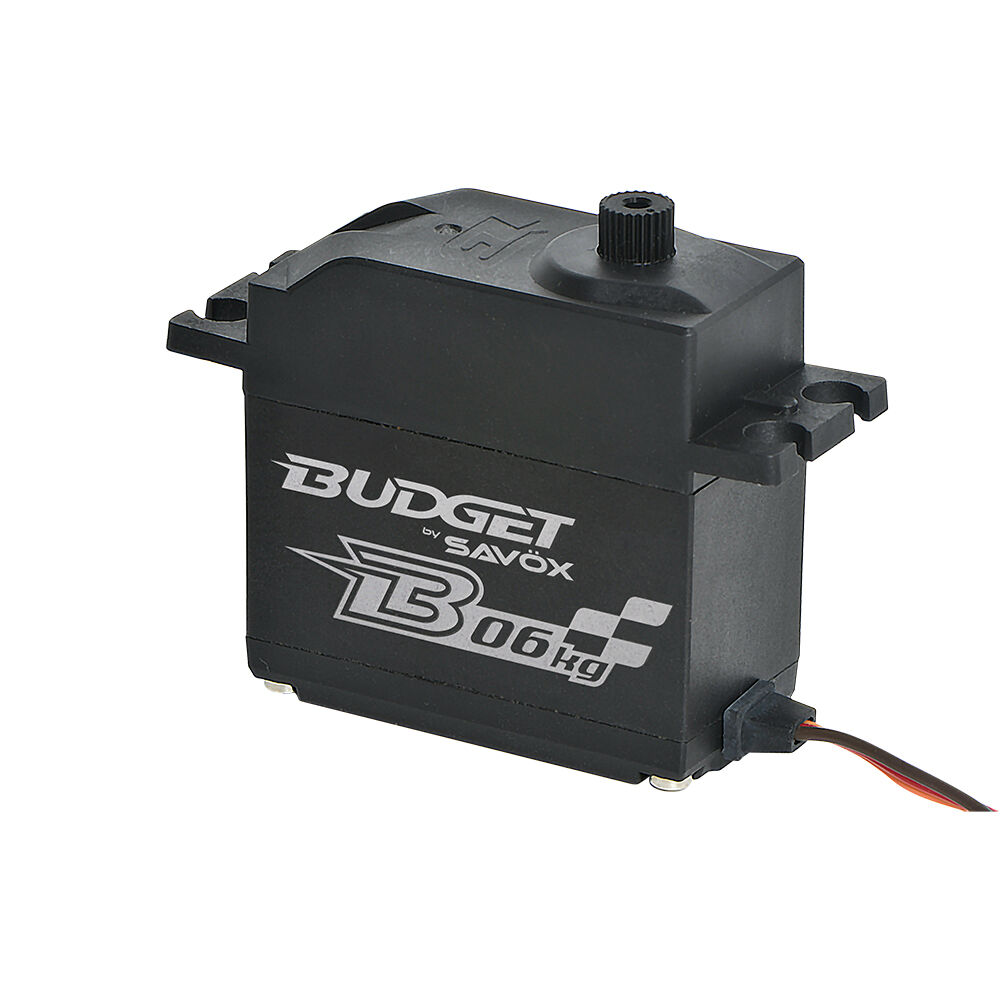

The Savox B-06KG is a budget-friendly standard-size analog servo designed for general RC applications where reliable basic control is required. Producing up to 6.5kg-cm of torque at 6.0V with a fast 0.11 sec/60° transit speed, it is a practical option for sport aircraft, RC cars, boats and other hobby models that do not require a high-performance digital or metal gear servo.

Built with a standard analog control system and lightweight plastic gears, the B-06KG offers good everyday performance at an affordable price point. It is well suited to lighter-duty applications, throttle use, basic steering setups and general replacement servo duties where extreme torque, waterproofing or heavy-duty gear strength are not required.

This servo is a good choice for customers wanting a simple, cost-effective Savox servo for general RC use.

Features

• Budget standard-size analog servo
• Up to 6.5kg-cm torque at 6.0V
• Fast 0.11 sec/60° speed at 6.0V
• Lightweight plastic gear design
• Suitable for general RC use
• Good option for sport aircraft, RC cars, boats and hobby models
• Affordable replacement or upgrade from basic servos

Specifications

Model: B-06KG
Servo Type: Standard analog servo
Torque @ 4.8V: 4.2kg-cm / 58.3oz-in
Torque @ 6.0V: 6.5kg-cm / 90.3oz-in
Speed @ 4.8V: 0.14 sec/60°
Speed @ 6.0V: 0.11 sec/60°
Output Spline: 25T / 6mm
Gear Type: Plastic gears

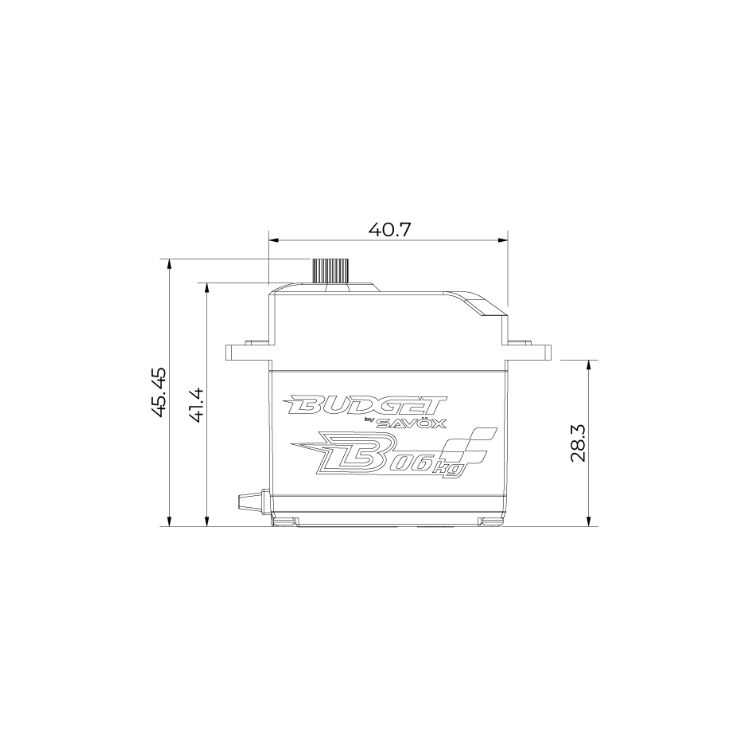

Dimensions: 40.7 x 20 x 45.2mm
Weight: 42g
Waterproof: No / not waterproof-rated
