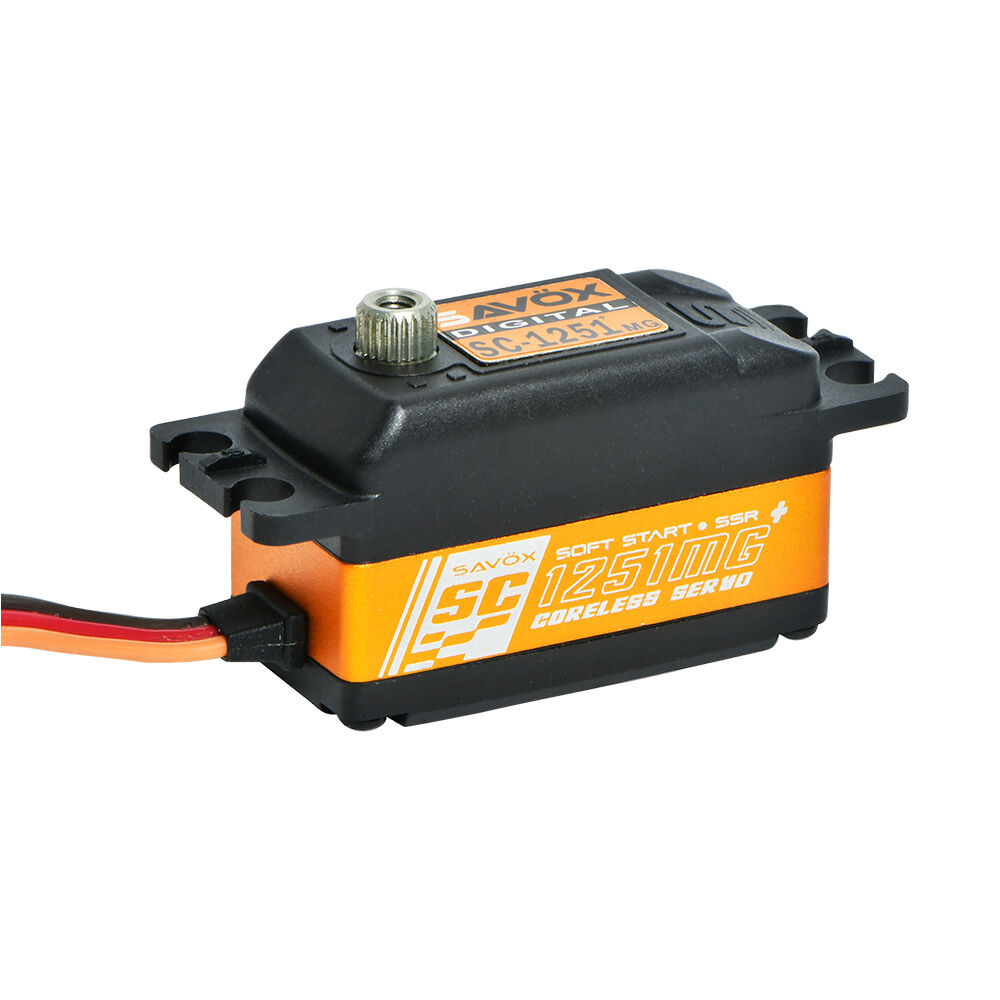

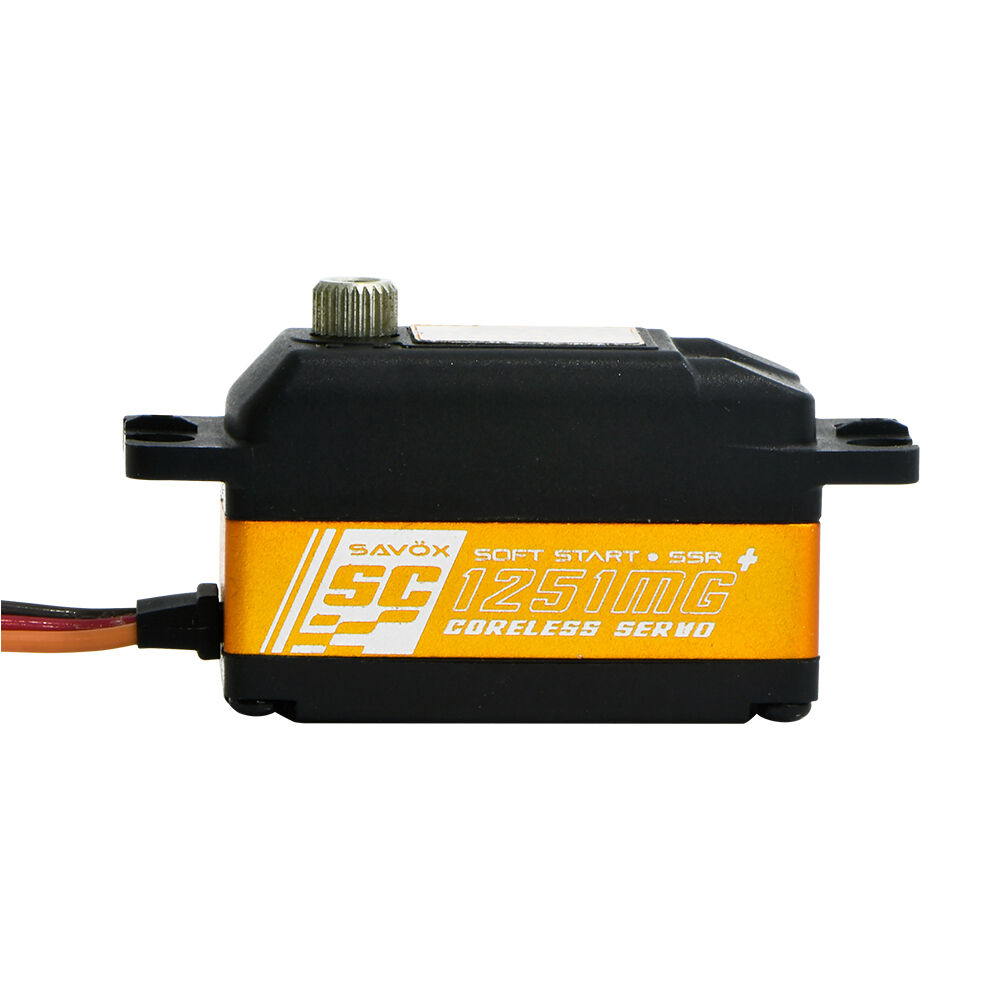

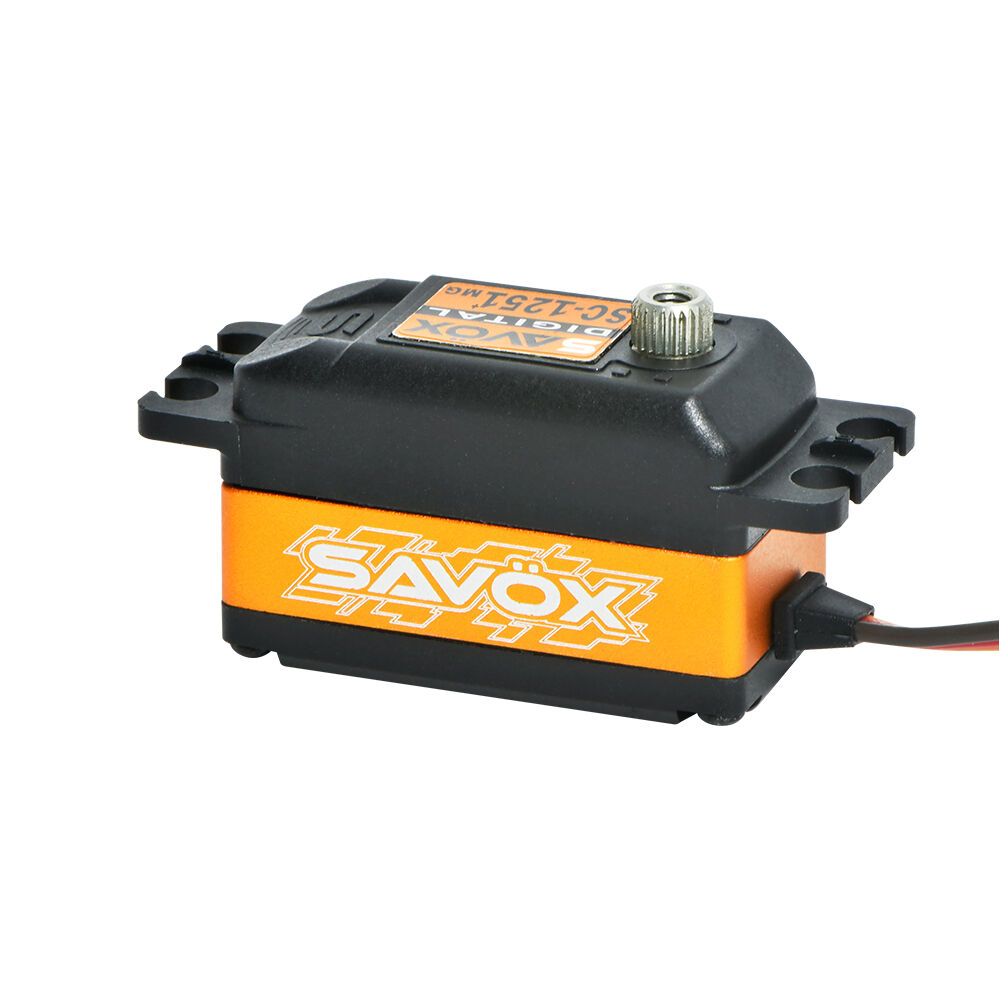

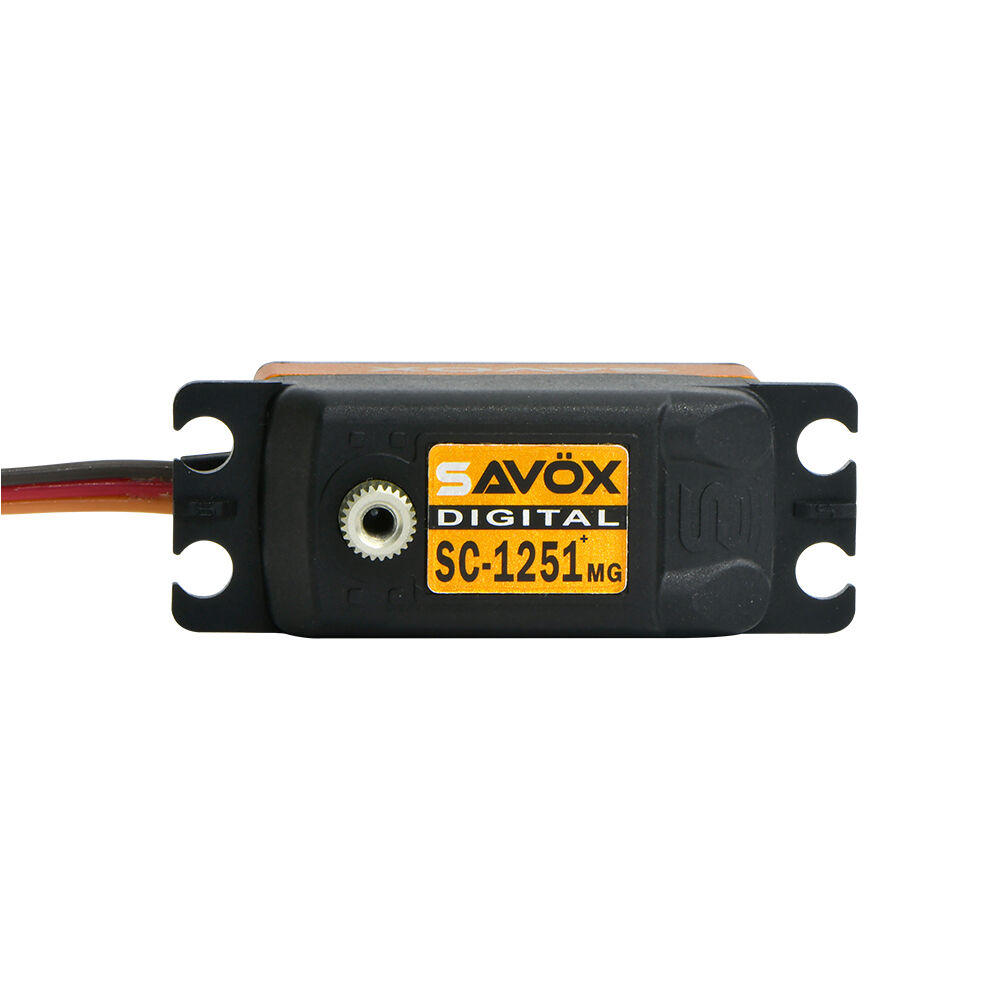

The Savox SC-1251MG Plus is a low-profile digital servo designed for RC applications where space is limited but fast, precise response is still required. Producing up to 9.0kg-cm of torque at 6.0V with a quick 0.09 sec/60° transit speed, it is a great option for touring cars, on-road cars, drift cars, buggies and other models that require a low-profile servo fitment.

Built with a coreless motor, metal gears and an aluminium/composite case design, the SC-1251MG Plus delivers smooth, responsive control with improved durability over plastic gear servos. The low-profile case makes it ideal for compact chassis layouts, while the 25T output spline gives broad compatibility with common servo horns.

As part of the updated Plus range, this servo includes Soft Start and Sanwa SSR compatibility. It is also water/dust resistant, making it a practical choice for RC vehicles that may be exposed to tougher running conditions.

Features

• Low-profile digital high speed servo
• Up to 9.0kg-cm torque at 6.0V
• Fast 0.09 sec/60° speed at 6.0V
• Coreless motor for smooth, responsive performance
• Metal gears for improved strength and durability
• Aluminium and composite case design

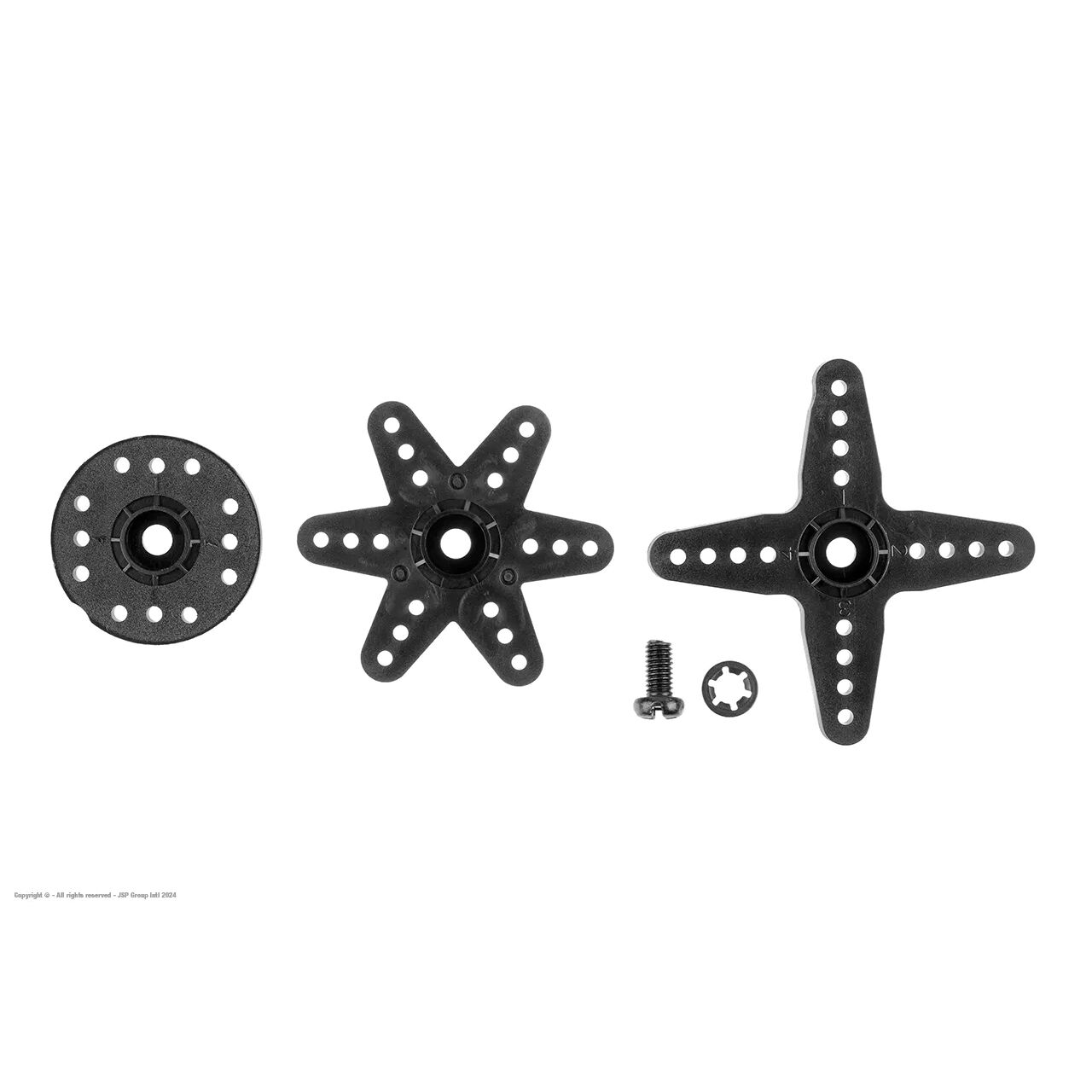

• 25T output spline
• Soft Start function
• Sanwa SSR compatible
• Water/dust resistant protection
• Suitable for touring cars, drift cars, buggies, on-road cars and compact RC chassis layouts

Specifications

Model: SC-1251MG Plus
Servo Type: Low-profile digital servo
Motor Type: Coreless
Torque @ 4.8V: 7.0kg-cm / 97.2oz-in
Torque @ 6.0V: 9.0kg-cm / 125.0oz-in
Speed @ 4.8V: 0.10 sec/60°
Speed @ 6.0V: 0.09 sec/60°

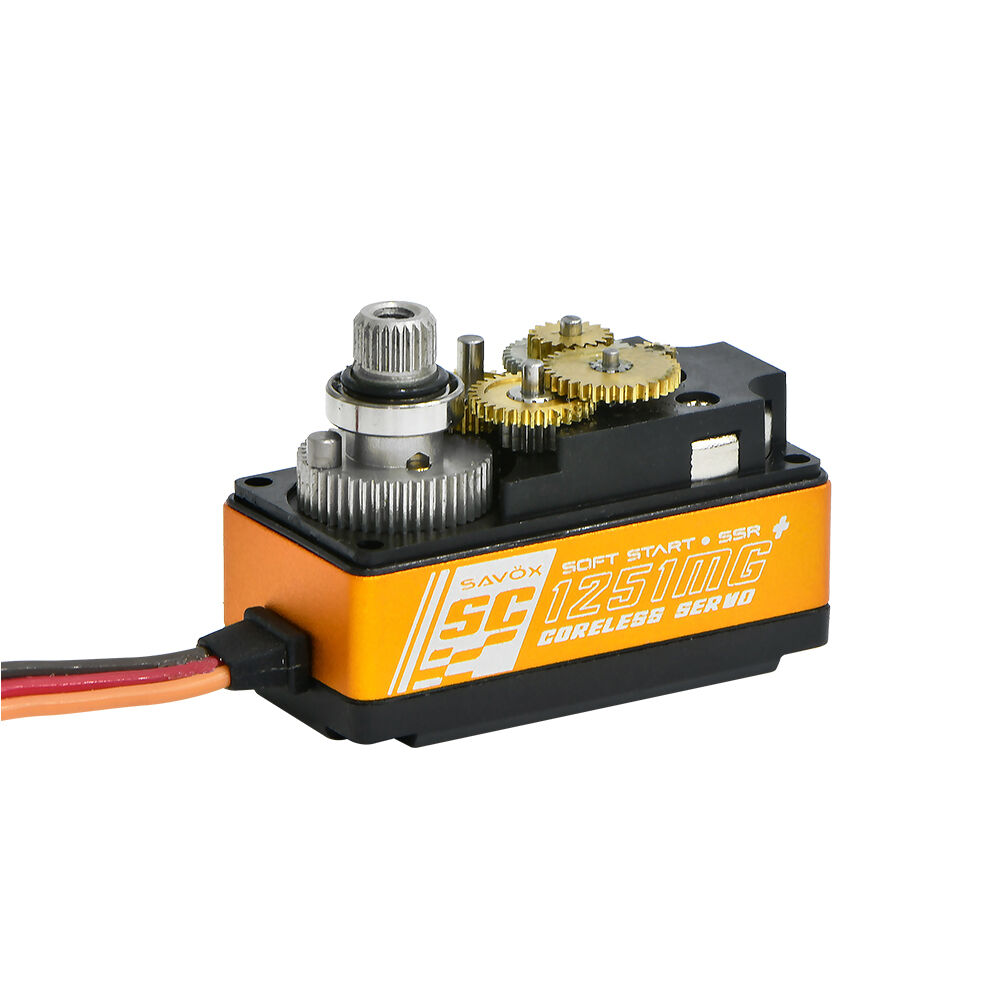

Gear Type: Heavy-duty metal gears
Output Spline: 25T
Case: Aluminium / composite case

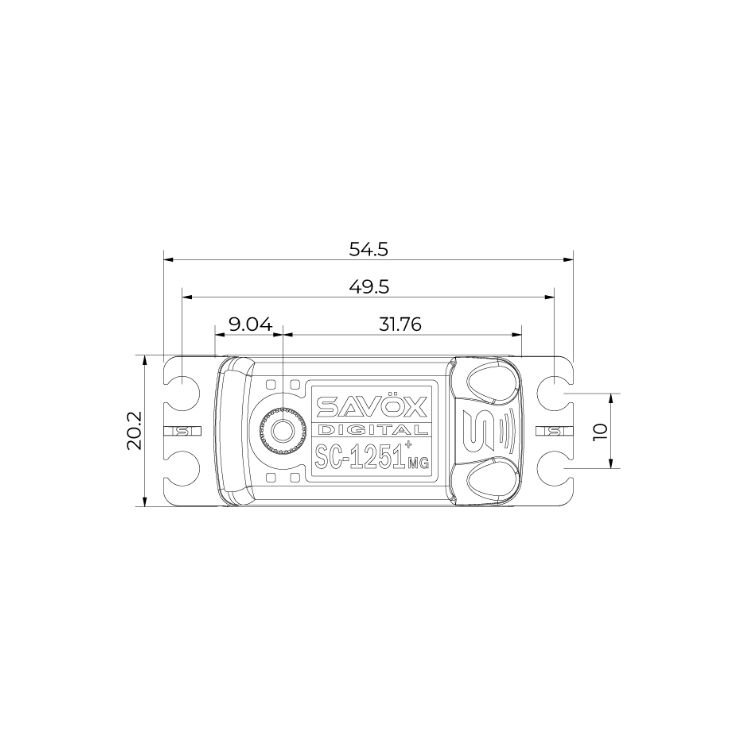

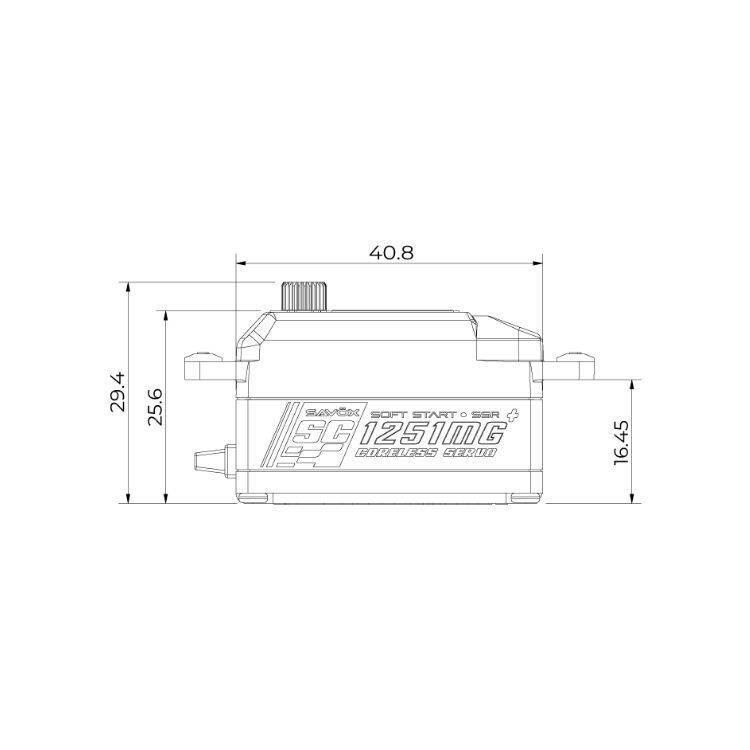

Dimensions: 40.8 x 20.2 x 25.6mm
Weight: 44.5g
Operating Voltage: 4.8V–6.0V
Protection: Water/dust resistant
Plus Features: Soft Start, Sanwa SSR compatibility
