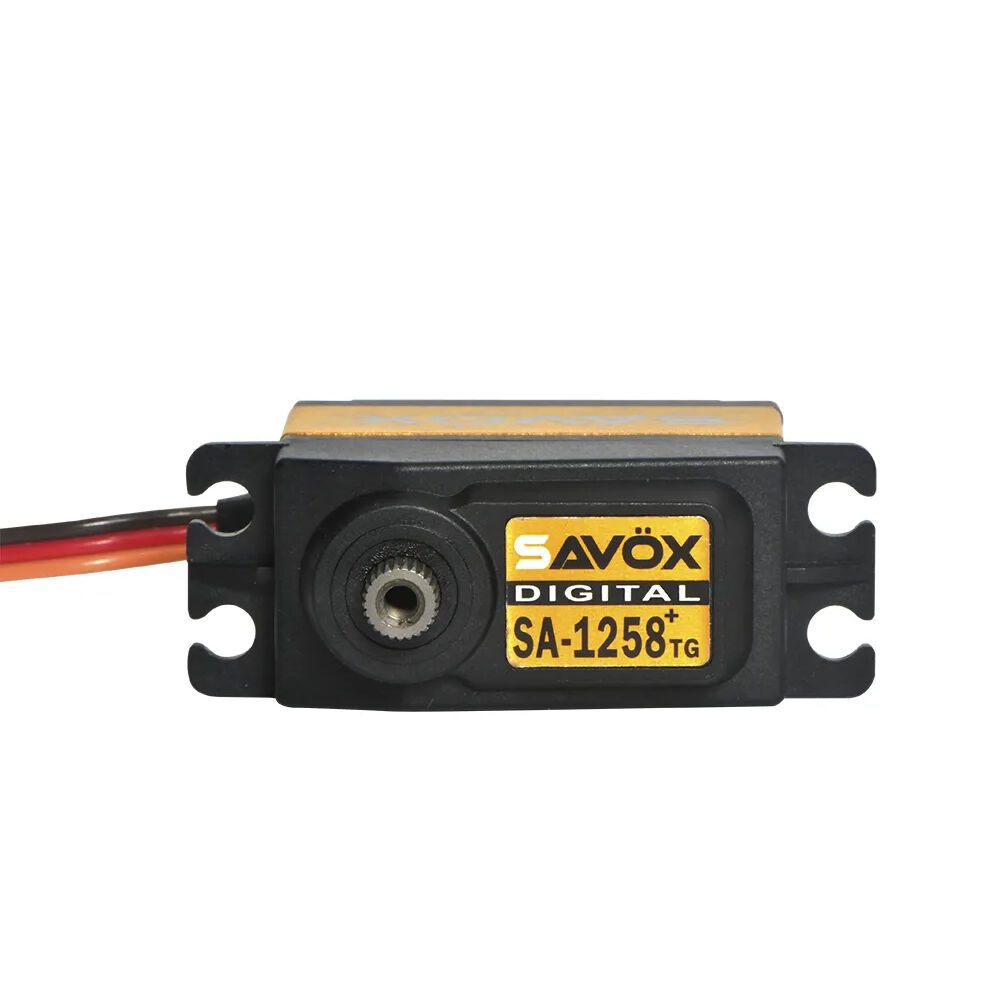

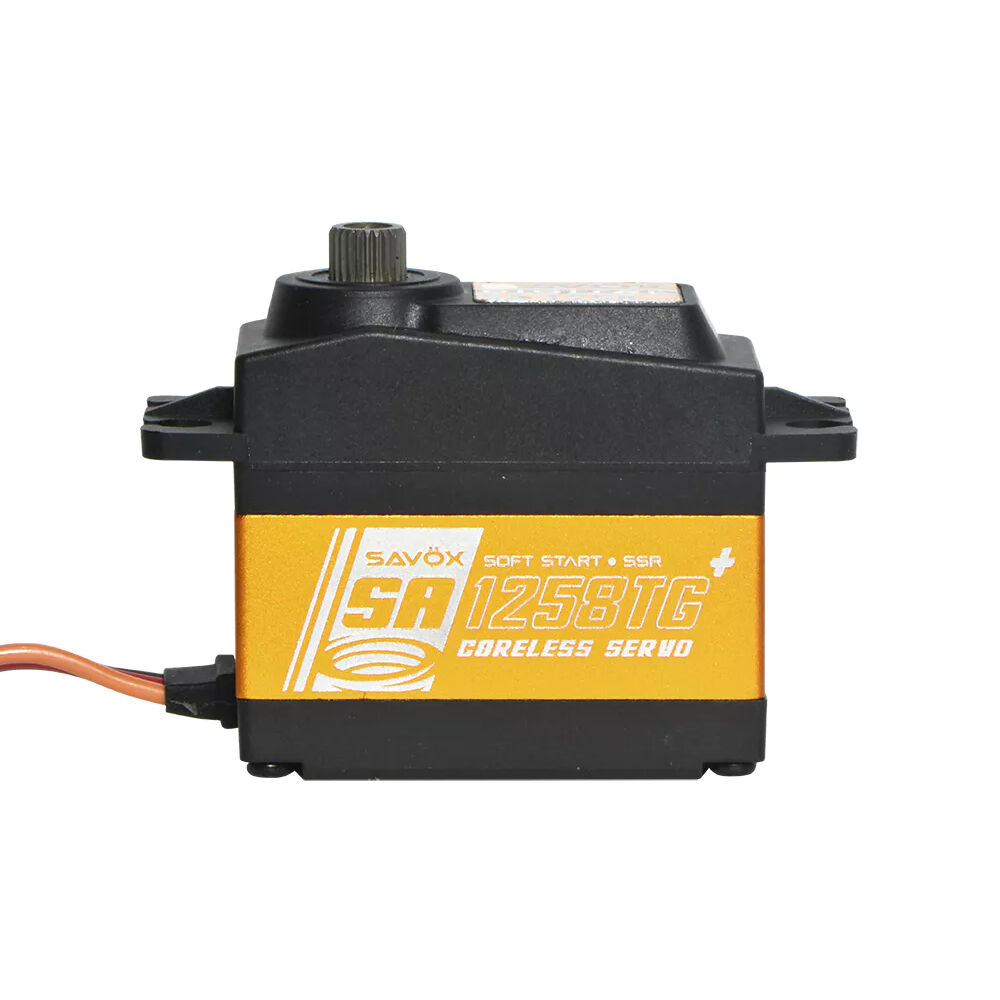

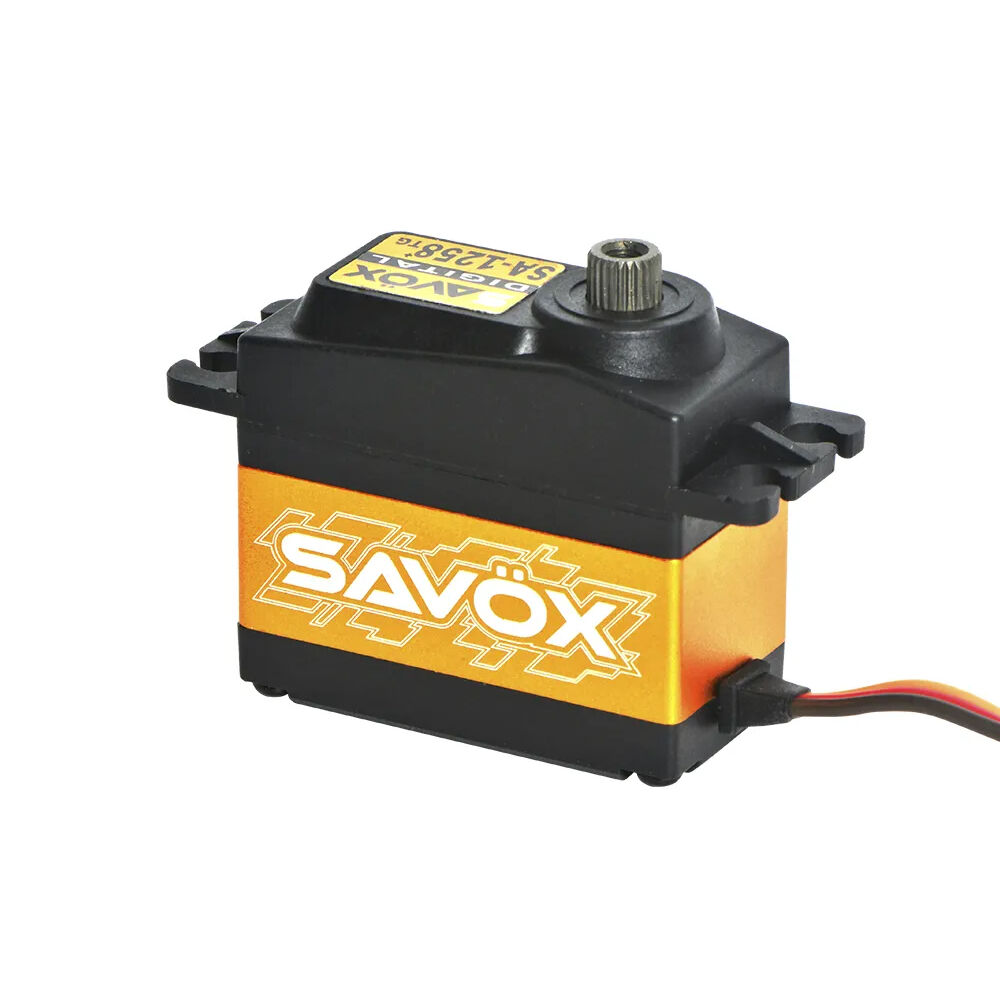

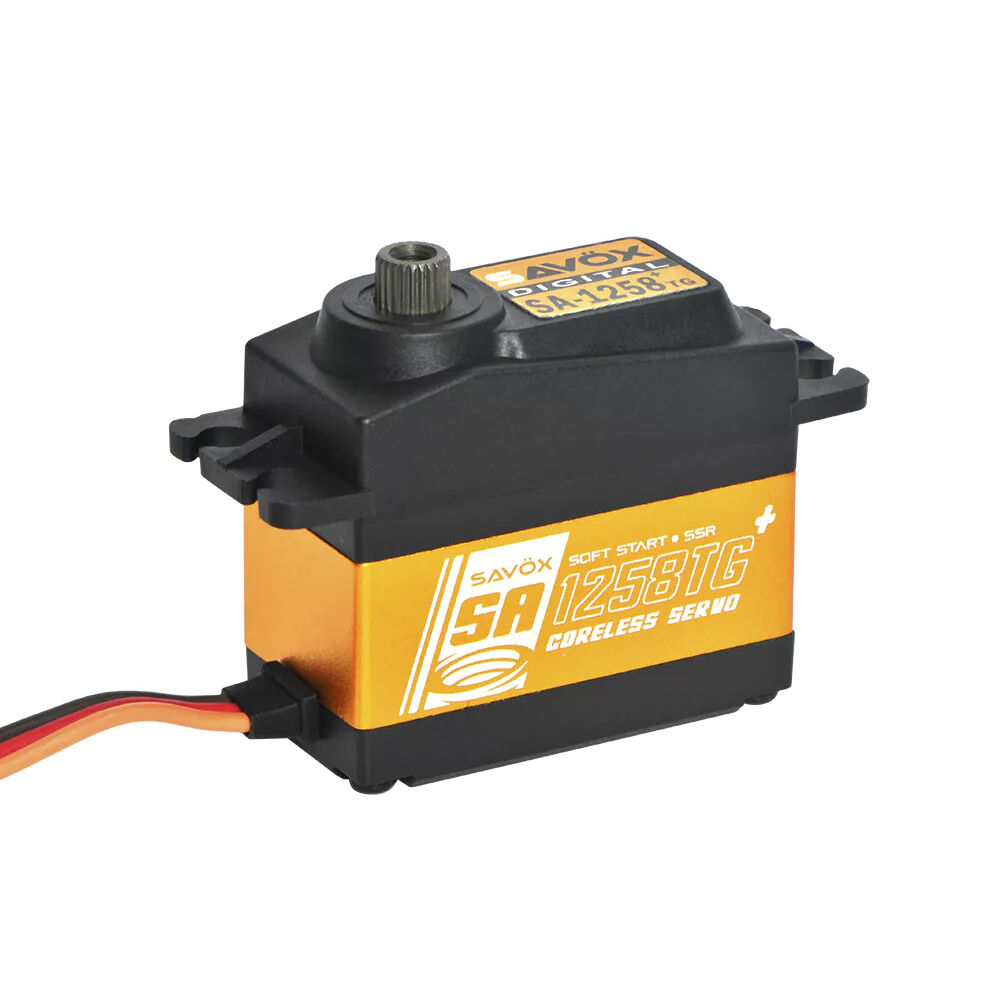

The Savox SA-1258TG Plus is a standard-size high speed digital servo designed for RC applications where fast response, precision and durability are important. With up to 12kg-cm of torque at 6.0V and a quick 0.08 sec/60° transit speed, it is well suited to RC aircraft, 1/10 scale cars, touring cars, buggies and other models that benefit from sharp, accurate servo movement.

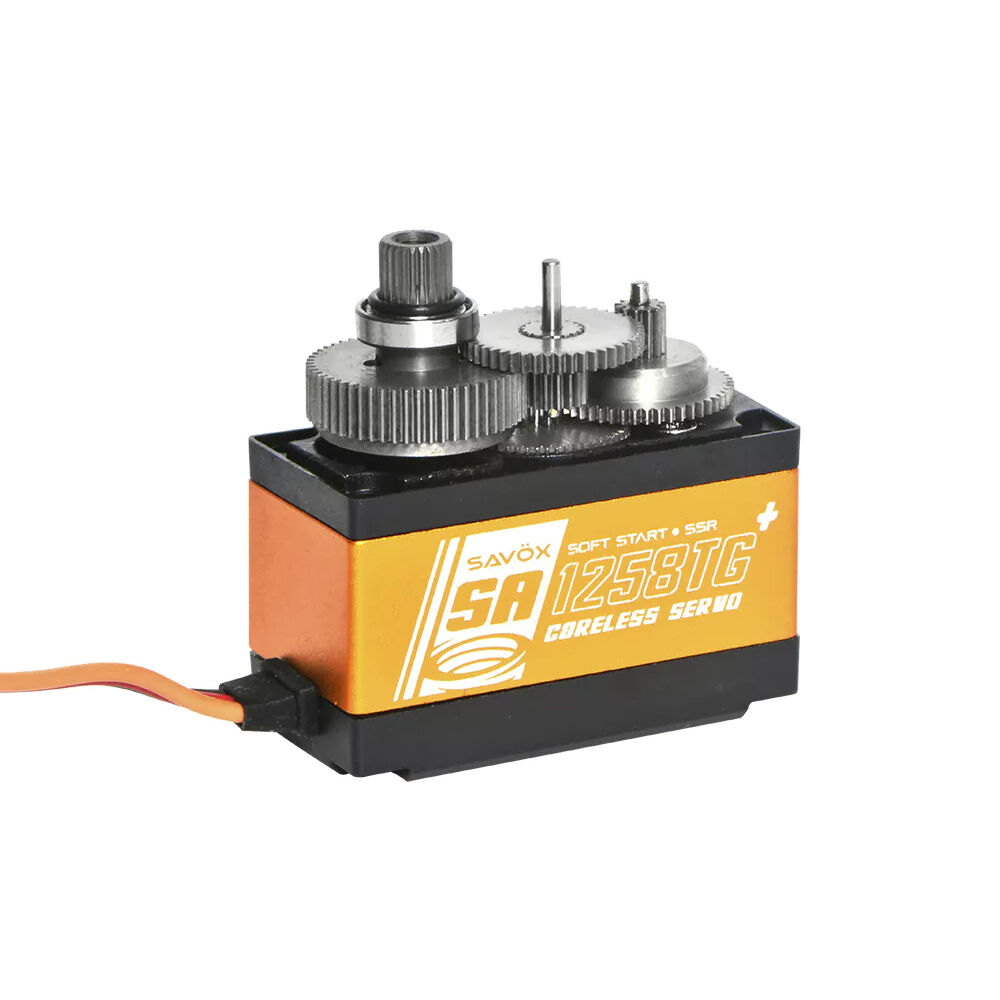

Built with a coreless motor, titanium gears and an aluminium centre case, the SA-1258TG Plus offers a strong balance of speed, strength and reliability. The titanium gear set provides excellent durability while keeping the servo lightweight, and the aluminium centre case helps with heat dissipation during demanding use.

As part of the updated Plus range, this servo includes Soft Start and Sanwa SSR compatibility. The SA series is also designed with minimised backlash, making it a great choice for precise control applications such as aircraft control surfaces, steering systems and other standard servo installations where accuracy and fast response matter.

Features

• Standard-size high speed digital servo
• Up to 12kg-cm torque at 6.0V
• Fast 0.08 sec/60° speed at 6.0V
• Coreless motor for smooth and responsive performance
• Titanium gears for strength and reduced weight
• Aluminium centre case for improved cooling
• Minimized backlash for precise control
• Soft Start function
• Sanwa SSR compatible
• Suitable for RC aircraft, cars, buggies, touring cars and other standard servo applications

Specifications

Model: SA-1258TG Plus
Servo Type: Standard digital servo
Motor Type: Coreless
Torque @ 4.8V: 9.6kg-cm
Torque @ 6.0V: 12.0kg-cm
Speed @ 4.8V: 0.10 sec/60°
Speed @ 6.0V: 0.08 sec/60°
Gear Type: Titanium
Case: Aluminium centre case
Voltage Range: 4.8V–6.0V

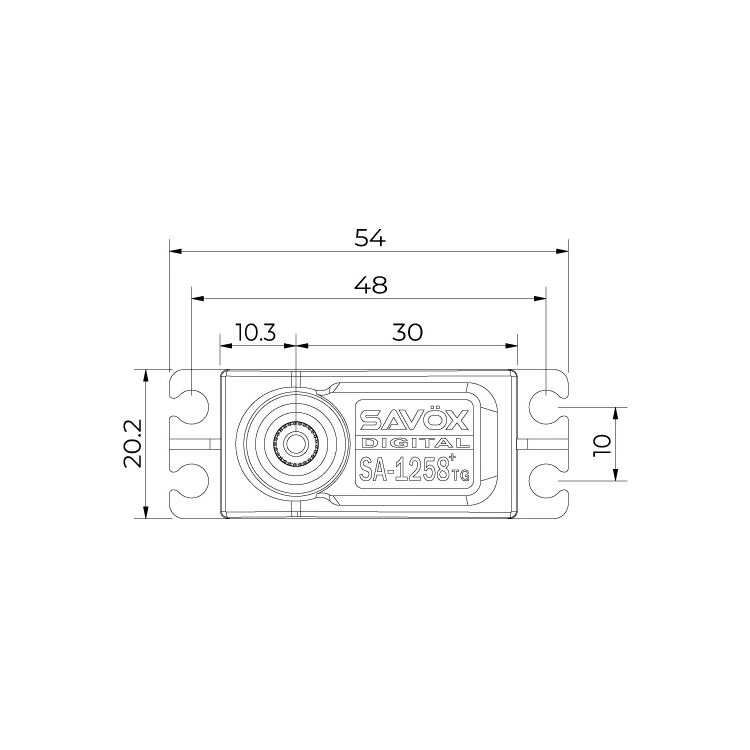

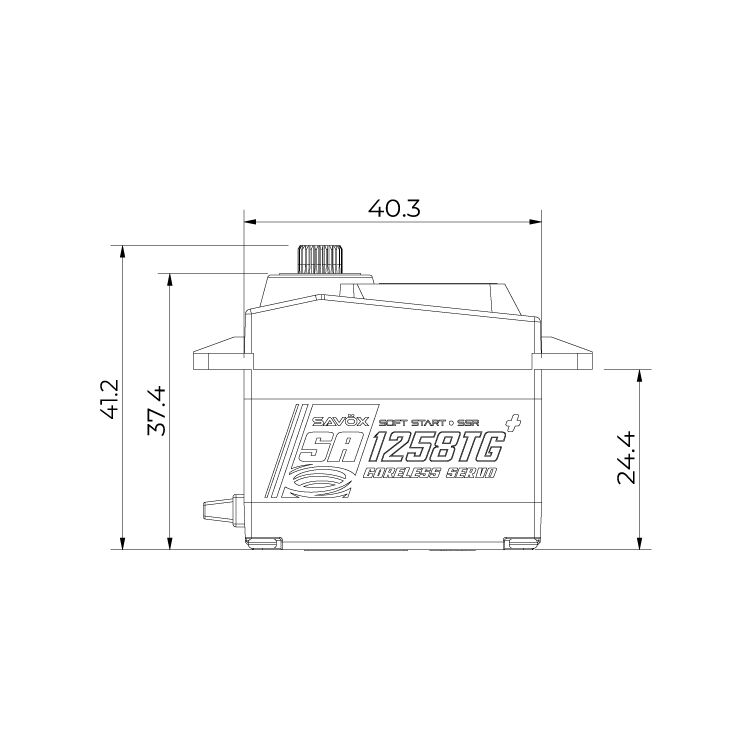

Dimensions: 40.3 x 20.2 x 37.4mm
Weight: 64g
Waterproof: No / not waterproof-rated
