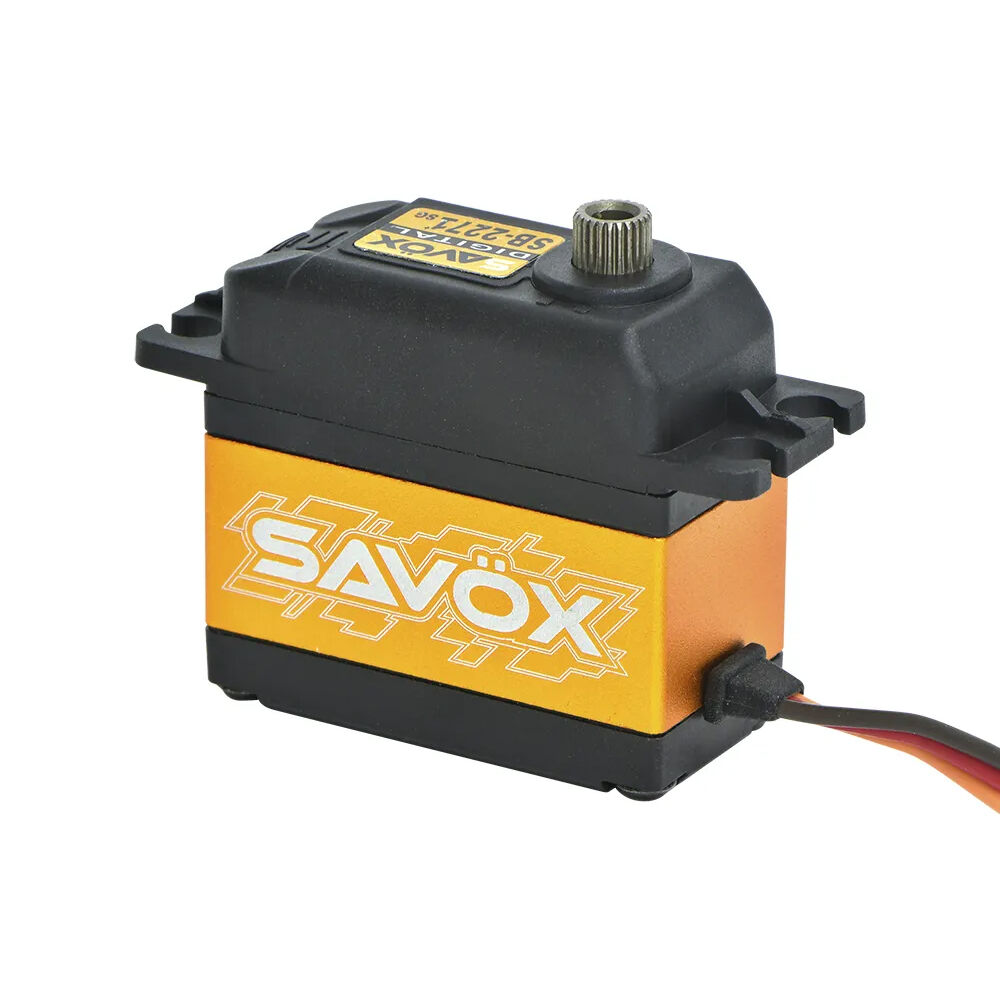

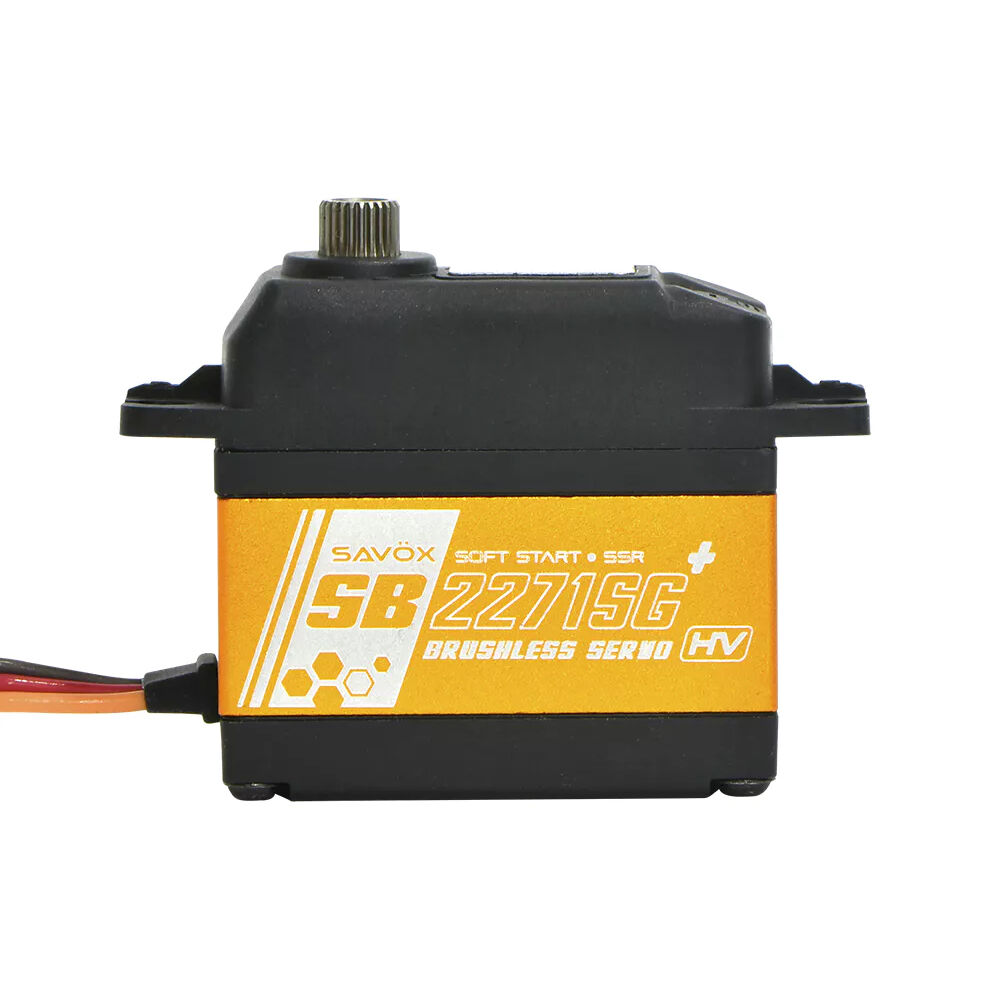

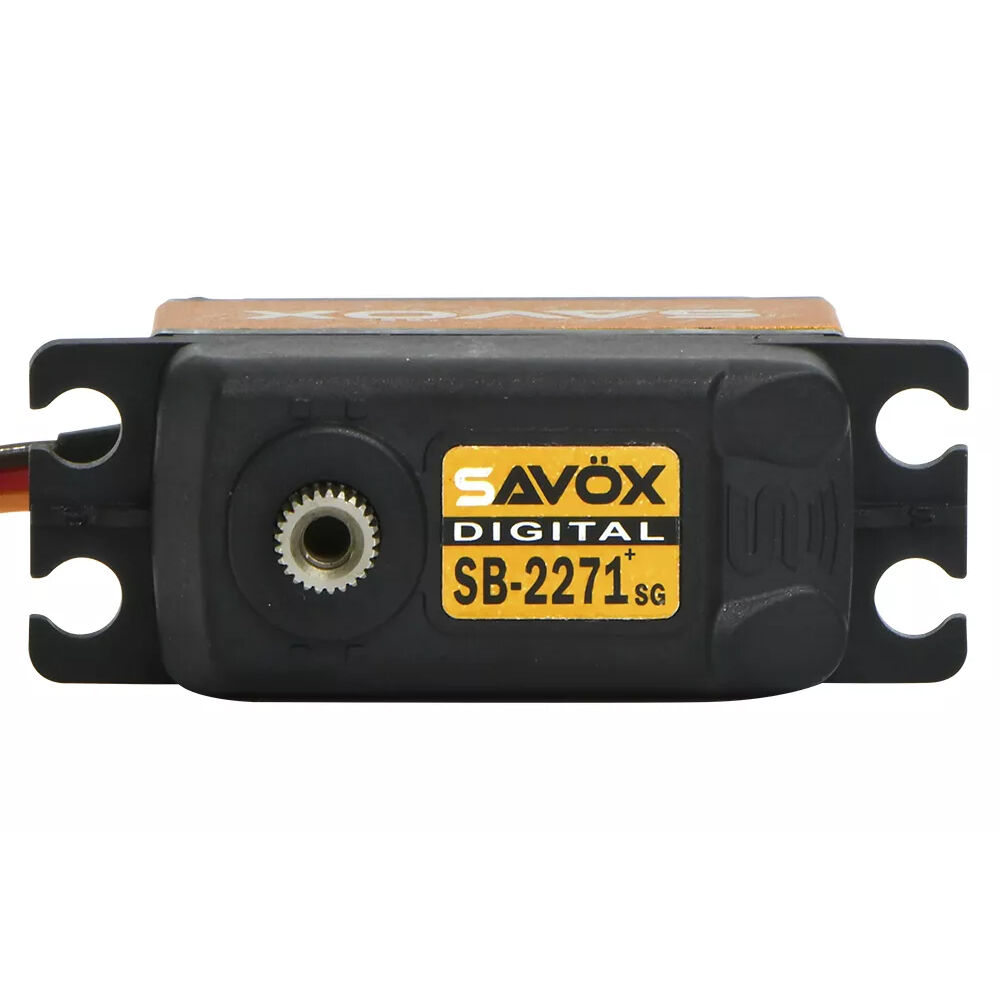

The Savox SB-2271SG Plus is a powerful standard-size high voltage digital servo designed for RC applications that need serious torque, fast response and long-lasting durability. With up to 25kg-cm of torque at 8.4V and a rapid 0.055 sec/60° transit speed, it is well suited to demanding setups such as rock crawlers, monster trucks, 1/8 and 1/10 performance vehicles, and giant scale aircraft control surfaces.

Built with a brushless motor and strong specialized steel gears, the SB-2271SG Plus delivers smooth operation, excellent efficiency and high holding power under load. The specialized steel gear train is designed for durability in heavy-duty applications, while the high voltage capability allows the servo to deliver stronger and faster performance when paired with a suitable HV receiver power setup.

As part of the updated Plus range, this servo includes Soft Start and Sanwa SSR compatibility. Soft Start helps reduce sudden servo movement when the system is powered on, while Sanwa SSR compatibility makes it suitable for high-speed radio setups where supported.

Features

• Standard-size high voltage digital servo
• Up to 25kg-cm torque at 8.4V
• Ultra-fast 0.055 sec/60° speed at 8.4V
• Brushless motor for smooth, efficient performance

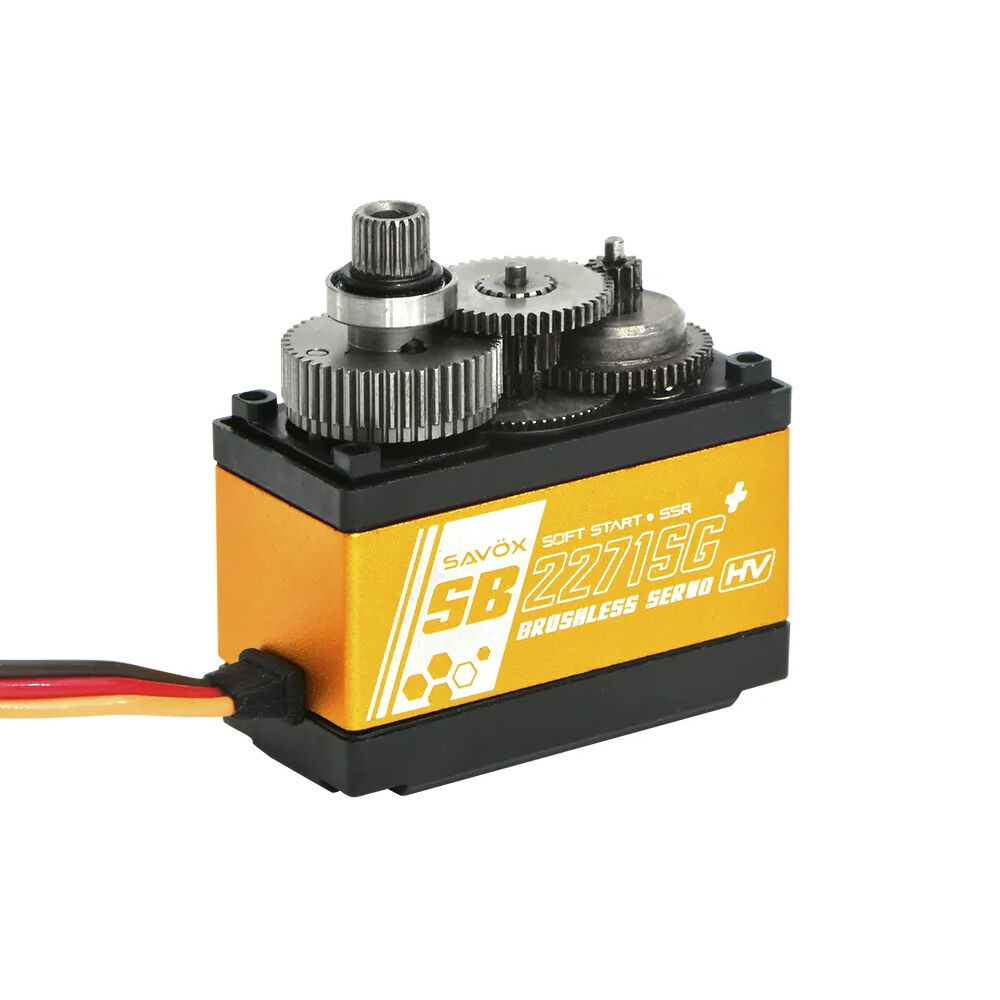

• Specialized steel gears for strength and durability
• High torque output for demanding RC applications
• Soft Start function
• Sanwa SSR compatible
• 25T output spline
• Suitable for crawlers, monster trucks, performance RC vehicles and giant scale aircraft control surfaces

Specifications

Model: SB-2271SG Plus
Servo Type: Standard digital high voltage servo
Motor Type: Brushless
Torque @ 6.0V: 15kg-cm
Torque @ 7.4V: 20kg-cm
Torque @ 8.4V: 25kg-cm
Speed @ 6.0V: 0.085 sec/60°
Speed @ 7.4V: 0.065 sec/60°
Speed @ 8.4V: 0.055 sec/60°
Gear Type: Specialized steel gears
Output Spline: 25T

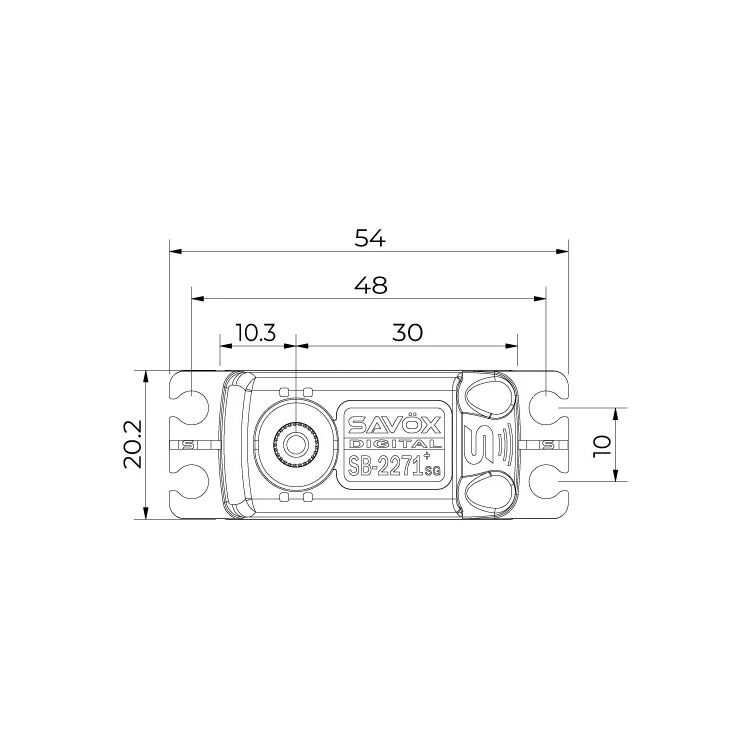

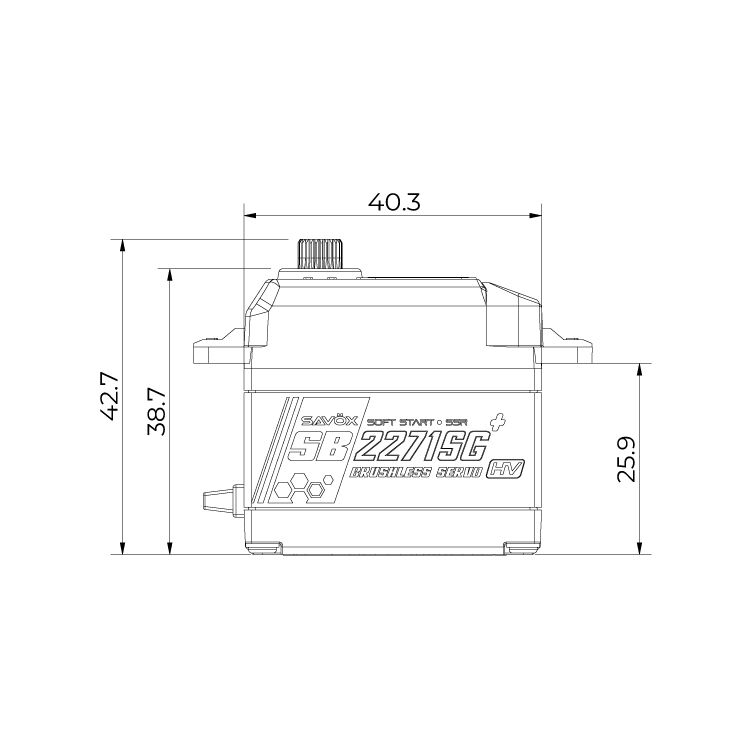

Dimensions: 40.3 x 20.2 x 38.7mm
Weight: 69g
Plus Features: Soft Start, Sanwa SSR compatibility
Waterproof: Water resistant
