The Savox SB-2264MG is a low-profile, high-voltage digital servo designed for RC applications that need fast response, strong torque and a compact servo height. With up to 19kg-cm of torque at 8.4V and a quick 0.08 sec/60° transit speed, it is well suited to 1/10 scale touring cars, on-road cars, off-road vehicles, helicopters and other models where a low-profile servo is required.

Built with a high-efficiency brushless motor, precision metal gears and a full aluminium case, the SB-2264MG offers excellent durability, smooth operation and improved heat dissipation under load. Its low-profile design makes it ideal for compact installations where a standard-height servo may not fit, while still delivering strong holding power and fast steering response.

The SB-2264MG is a great upgrade for performance RC setups that need a reliable low-profile HV servo with a strong balance of speed, torque and strength.

Features

• Low-profile digital high-voltage servo
• Up to 19kg-cm torque at 8.4V
• Fast 0.08 sec/60° speed at 8.4V
• High-efficiency brushless motor
• Precision metal gears
• Full aluminium case for improved strength and cooling
• Ball bearing supported design
• Accurate and fast response
• Compact low-profile size
• Suitable for 1/10 on-road, off-road, touring car and helicopter applications

Specifications

Model: SB-2264MG
Servo Type: Low-profile digital HV servo
Motor Type: Brushless
Torque @ 7.4V: 15.0kg-cm
Torque @ 8.4V: 19.0kg-cm
Speed @ 7.4V: 0.09 sec/60°
Speed @ 8.4V: 0.08 sec/60°

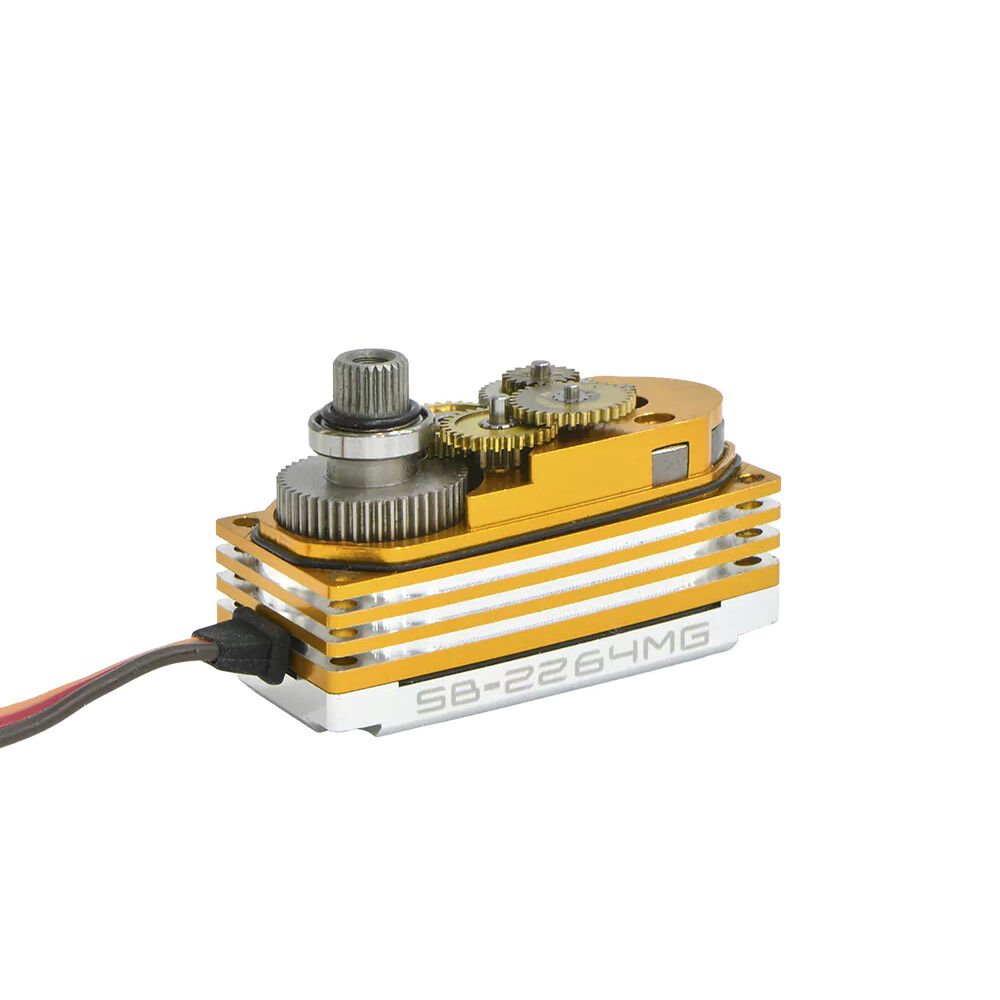

Gear Type: Metal gears
Case: Full aluminium case

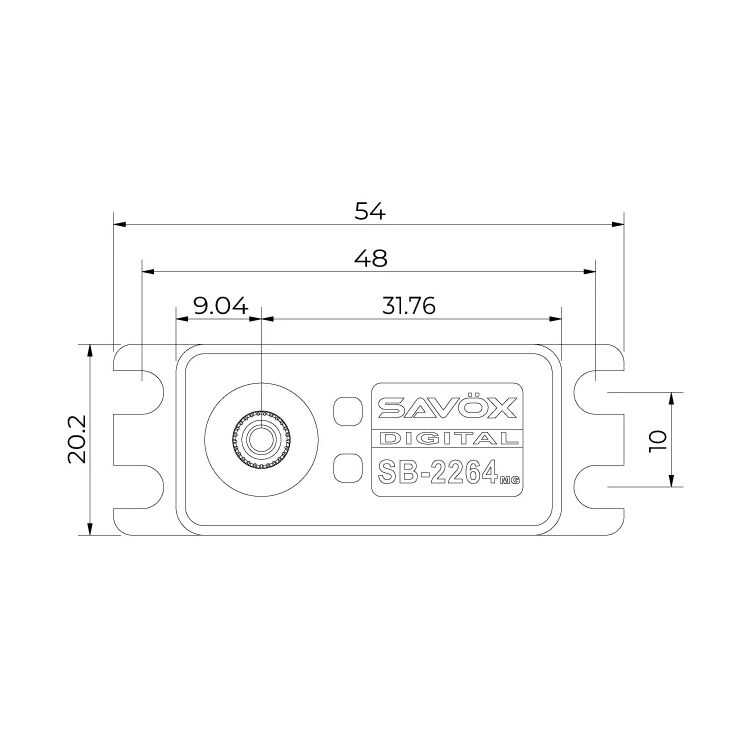

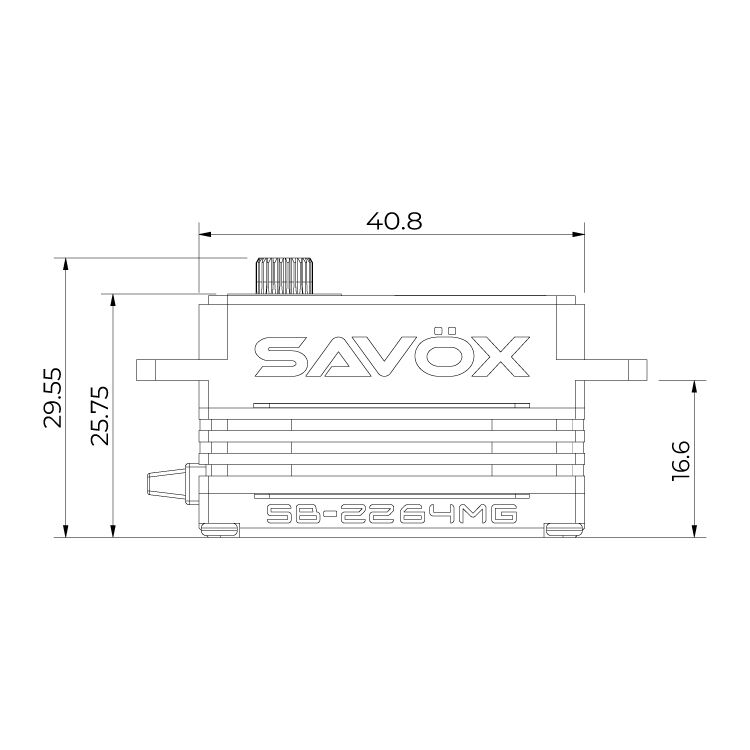

Dimensions: 40.8 x 20.2 x 25.7mm
Weight: 57g
Waterproof: No / not waterproof-rated
