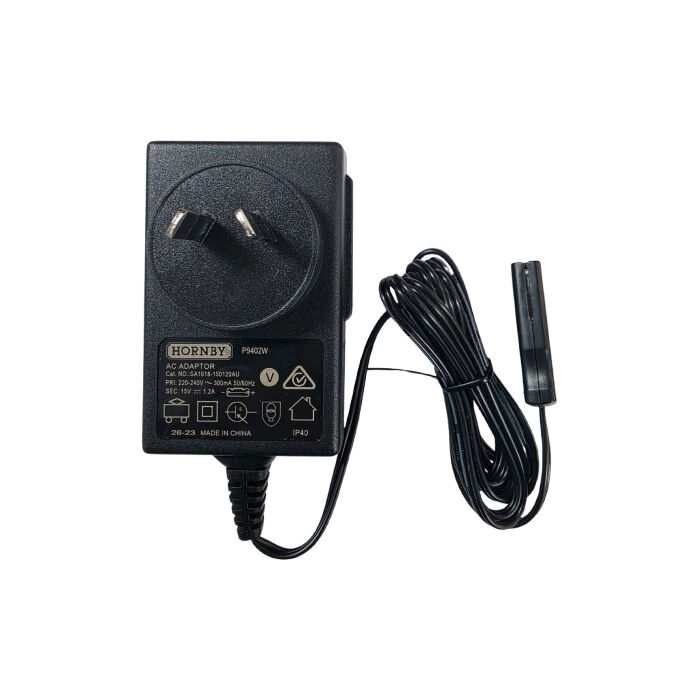

The P9402W is the Australian-plug power supply for analogue Scalextric Sport, feeding the C8530 Power and Control Base and other analogue track power connections. It's a wall-plug unit with fixed AU pins and a fitted spade connector on the output lead.

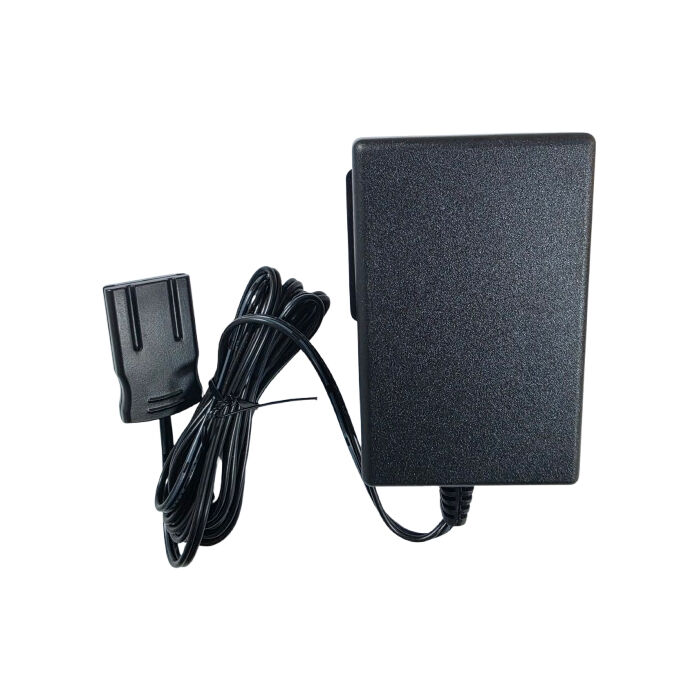

The spade connector is the important detail. It's the flat twin-blade terminal used by Scalextric Sport track power bases, not the barrel plug found on Hornby's DCC and digital transformers. That means this supply won't connect to a Hornby controller or a digital powerbase, and equally, a barrel-plug transformer won't run your Scalextric Sport track. The connector is polarised and fits one way only.

Fitment

Suits analogue Scalextric Sport systems including the C8530 Power and Control Base.

Not to be confused with

• P9602W — also 15V 1.2A, but with a barrel connector for Hornby HM7000 applications. Identical electrical specification, different connector, not interchangeable.
• P9302W — 15V DC 4A with a 6.5/3.0mm barrel plug, for Scalextric digital powerbases and Hornby DCC controllers.
• P9102W — 15V DC 1A, 6.5/3.0mm barrel, for app-based control.
• P9002W — 19V DC 0.5A, 5.5/2.5mm barrel, for analogue train controllers.

Specifications

Input: 220-240V AC, 300mA, 50/60Hz
Output: 15V DC, 1.2A
Connector: Scalextric spade, polarised
Output lead: approx [confirm]
Catalogue number: SA1618-150120AU
Construction: double insulated (Class II)
Ingress rating: IP40, indoor use only
Plug: fixed two-pin Australian
Contents: 1 power supply
