Overview

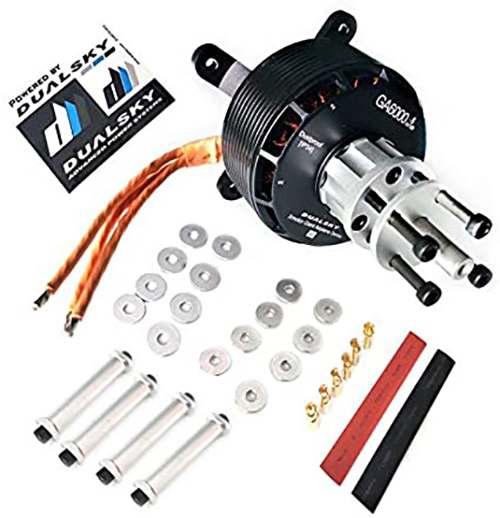

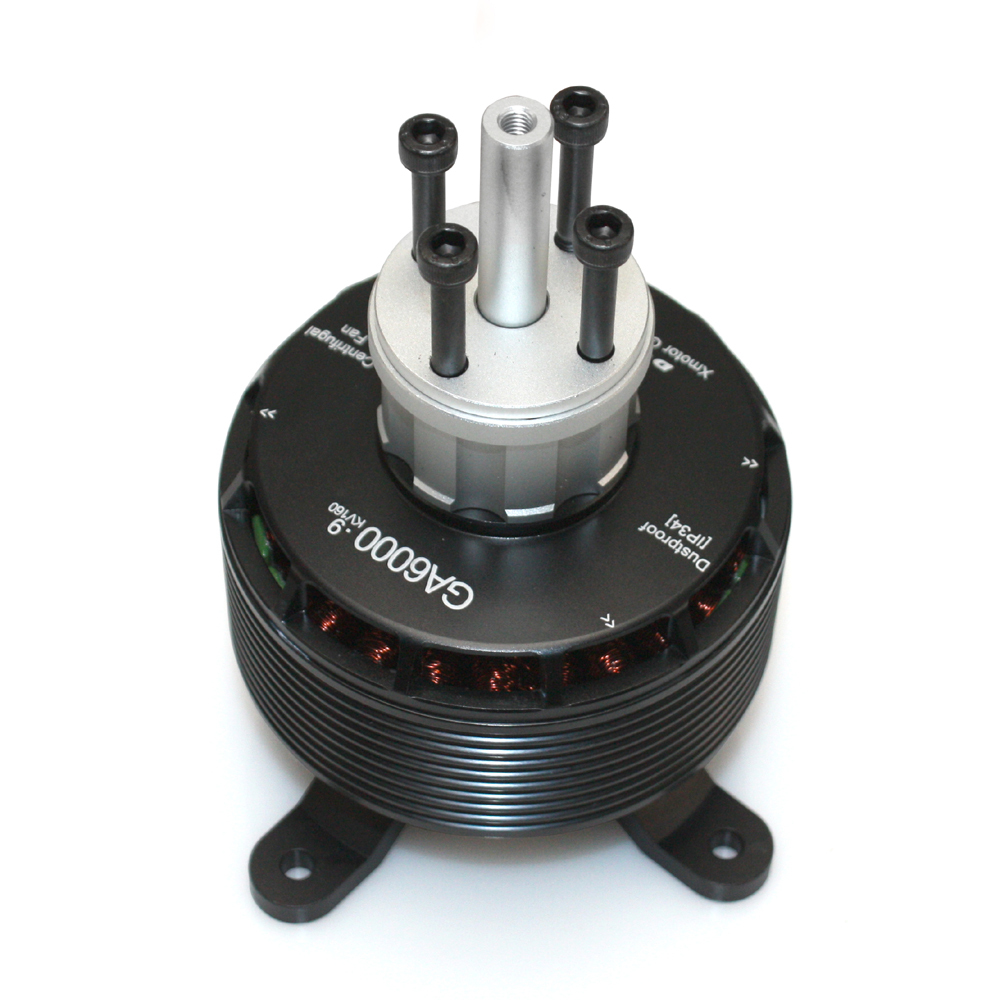

GA motor - For giant RC airplane series

  • High torque design, diameter 90mm outrunner
  • Using 12S and 10S Lipo battery
  • Replacing 60cc gasoline engine
  • Applied up to 10kg 3D model
  • Environmental friendly product

Key features:

  • Dualsky biggest RC motor we have ever produced.
  • New modular light weight structure
  • Dualsky 28 poles efficient structure
  • Driven directly by 90 mm diameter rotor without gearing box
  • Working quietly, no CO2 emission and a wonderful alternative to 50-60cc petrol engine
  • Suitable for less than 10kg 3D/aerobatic models and less than 17kg sport models



RPM/V   160 RPM/V
Weight w/o accessories   1020 g
Outer diameter   90.2 mm
Length w/ mounts   101 mm
Diameter of shaft   12 mm (internal)
10 mm (output)
Mounting holes pitch   100 mm
Slots, Poles   24, 28
Idle Current (Io) @ 10V   1.8 A
Resistance (Ri)   17.1 mOhm
Nominal voltage   30 - 51 V, 10 - 12S LiPo
Bursts current [15s]   130 A
Recommended ESC   130A - 160A HV Series
Propeller   24x10, 24x12, 25x10, 26x10 (No electric propeller allowed)
Weight of sports plane   Up to 17 kg
Weight of 3D planes   Up to 10 kg



SKU DSXM51554
Barcode # 6941047115545
Brand Dualsky
Shipping Weight 1.2000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.002000000m3
