Overview

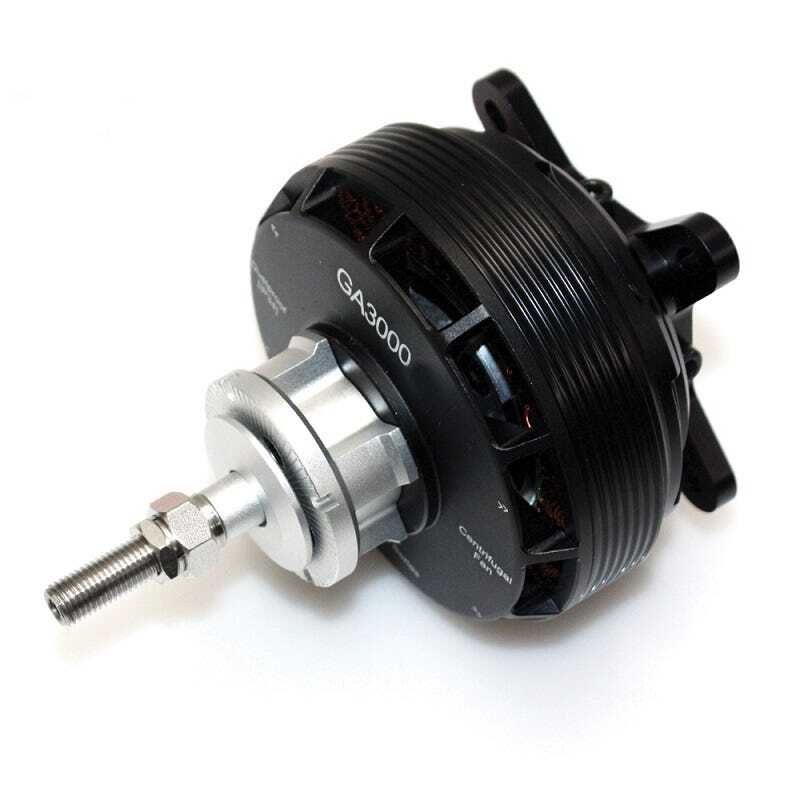

DUALSKY BL motors are precision mechanical masterpieces, are precisely manufactured and have an excellent efficiency. A wide range of motor types offers a drive for almost every application. Series "GA" is specifically designed for large-scale models and offers outstanding performance and a robust stainless steel motor shaft.

Features

  • Designed for 120E to 140E Class 3D airplanes
  • High strength stainless steel shaft
  • Brushless
  • 30cc - 35cc class

Specs



RPM/KV   270 RPM/V
Weight w/o accessories   585g
Outer diameter   89mm
Length w/ mounts   75.2mm
Length (Overall)   118mm
Diameter of shaft   12mm (internal) 8mm (output)
Mounting holes pitch   71 - 75mm
Idle current @ 10V   1.8A
Nominal Voltage   19.6V, 8S LiPo
Peak Power (15s)   3000W (5.5HP)
Bursts current (15s)   100A
Recommended ESC   1600W (2.75HP)
Propeller   18x10, 19x10, 20x10
Weight of sports airplane   Up to 7.5kg
Weight of 3D airplane   Up to 5.0kg
Slots, Poles   24, 28



SKU DSXM51551
Barcode # 6941047115514
Brand Dualsky
Shipping Weight 0.7000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.002000000m3
