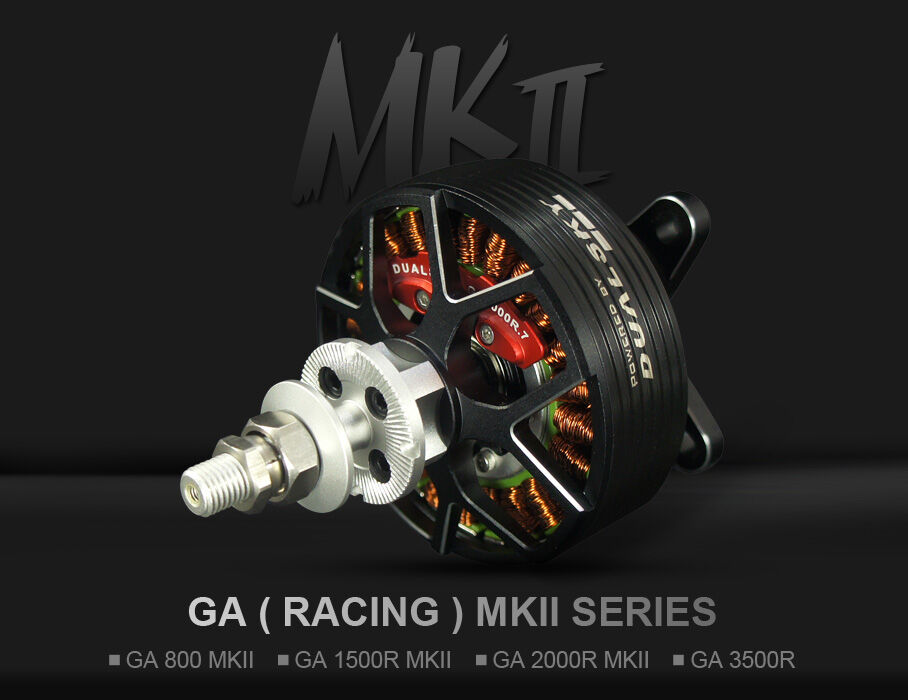

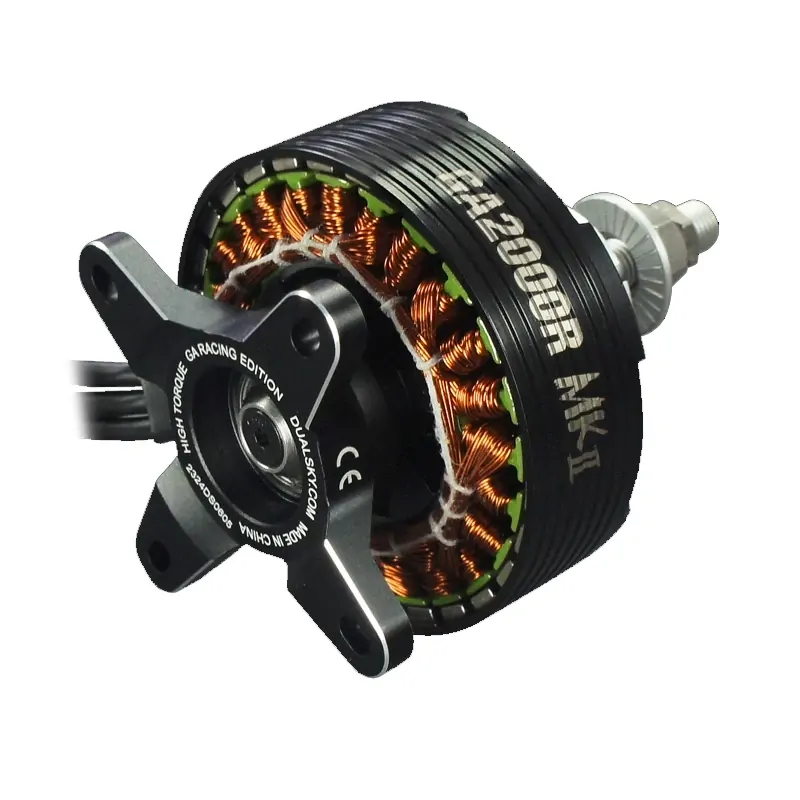

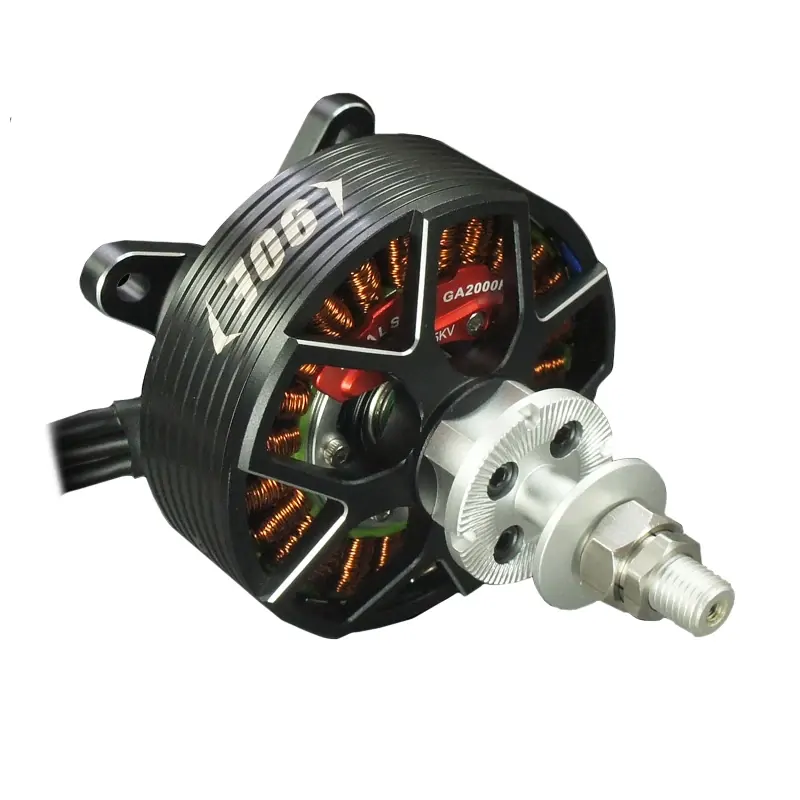

The Dualsky GA2000R.14 V2 230kv 20cc Brushless Motor is part of the Dualsky Giant Airplane series and is suited for 20- 25cc class aircraft. Features - Suitable for 20 - 25cc class (equivalent to .125E) 3D airplane up to 67"-69" wingspan - Integrated motor mount - Four sets of locking bolts included for forward mounting

Specifications

KV 230
Weight 365g
Dimensions 69 x 63mm
Length 95mm
Diameter of Shaft 8mm (internal), 8mm (output)
Spec of Mounting Holes 55 - 58
Slots & Poles 24,28
Io@10V 0.95 A
Ri (mOhm) 43.6
No. of Cells 22.2V, 6S LiPo
Peak Power (15S) 3264 W
Burst Current (15S) & Peak Torque 68A, 3.53N*M
Recommended ESC Summit 100L / Summit 120
Application for 25cc class (equivalent to .125E) 3D plane (up to 67" - 69" wingspan)
SKU DSXM52251
Barcode # 6941047122512
Brand Dualsky
Shipping Weight 0.6000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.150m
Shipping Cubic 0.001200000m3
