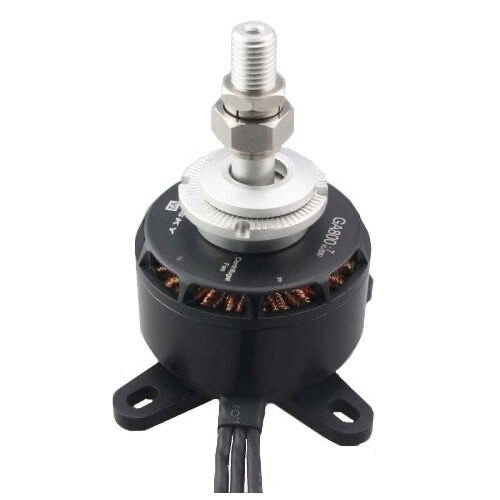

Dualsky GA800.7 850KV Brushless Motor, 800 watt max power, suitable for 30E 3D and aerobatic aircraft or 40 size sport models. Designed for operation with a 4S LiPO with max current draw around 50A. Compact, light weight and very efficient.

Features:

  • Brushless Motor
  • New modular light weight structure
  • Dualsky 28 poles efficient structure
  • Directly driven by 46mm diameter rotor without gearing box
  • Suitable for less than 1.6kg 3D/aerobatic models and less than 2.0kg sport models

Specifications:

RPM/V: 850 RPM/V
Weight w/o accessories: 160g

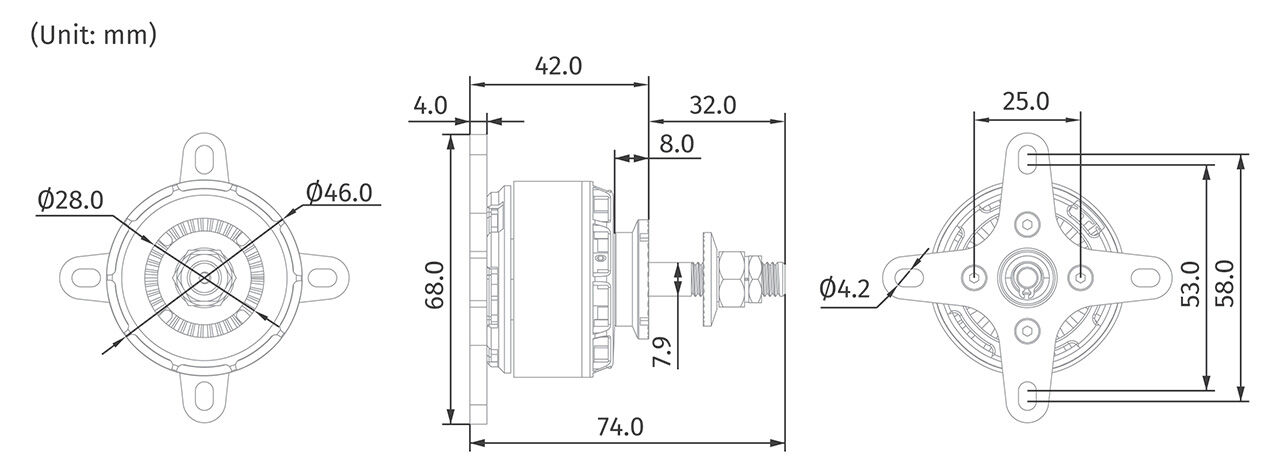

Outer Diameter: 46mm
Length w/mounts: 42mm
Length (Overall): 74mm
Diameter of Shaft: 5mm (Internal), 8mm (Output)
Mounting Holes Pitch: 53mm to 58mm (D4.2)
Slots, Poles: 24, 28
Idle Current (Io) @10V: 2.5A
Resistane (Ri): 18.3 mOhm
Nominal Voltage: 14.8V, 4S Lipo
Peak Power (15s): 800W
Bursts Current (15s): 50A
Crusing Power (8 mins): 400W
Recommended ESC: 45 - 60a
Propeller: 12 x 6 for best efficiency
13 x 6.5 for performance pilots
14 x 7 for extreme thrust
Weight of Sport Airplane: Up to 2.0kg
Weight of 3D Airplane: 1.4kg to 1.6kg
Applications: For 30E Class
3D Airplane (upto 48in ~ 52in wingspan)



Download GA800 Series Specification Sheet
