The Dualsky XM3542EA-11 V3 delivers lightweight, efficient brushless power for RC aircraft. Third-generation refinements across the EA series — higher-grade curved magnets, high-efficiency silicon steel and tighter tolerances for a smaller air gap between stator and rotor — squeeze more performance from less weight, while quality bearings give these motors a service life of hundreds of flying hours.

At 147g with 608W of peak power on tap, the 880KV XM3542EA-11 is an ideal match for 25E-class sport and scale models (or airframes designed for up to .25 two-stroke glow power), swinging a 14x7E prop on 3S or an 11x6E–12x6E on 4S. Both front and rear mounting options are included, along with an M8 propeller mount, for a straightforward installation in most airframes.

Specifications

KV: 880
Weight: 147g

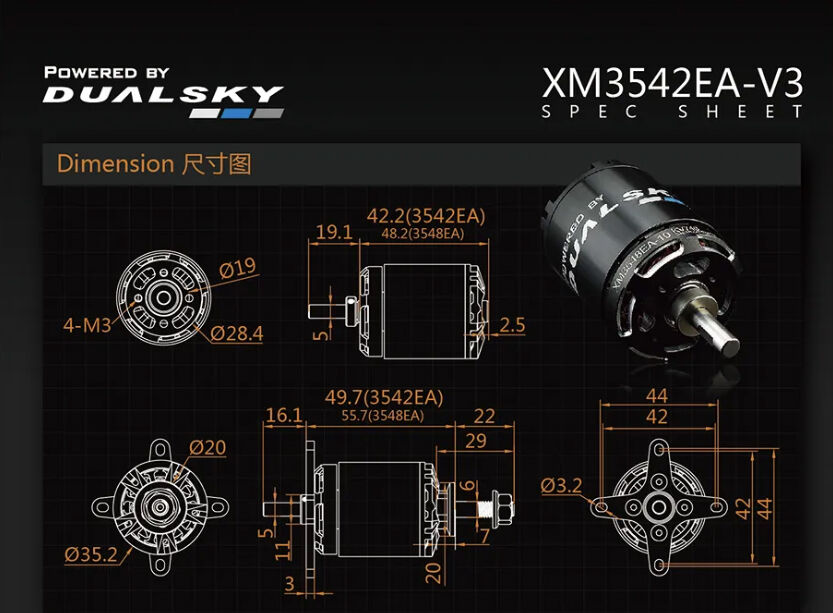

Dimensions (D x L): 35.2 x 42.2mm
Shaft diameter: 5mm
Mounting holes: 4-M3, 19/19mm
Input connectors: DB3
Stator dimensions: 2820
Slots & poles: 12N14P
Ri (mOhm): 25.1
Io @ 10V (A): 1.5
LiPo cells: 3–4S
Efficiency current: 19.0A
Burst current (15s): 38A
Peak power (15s): 608W
Peak torque: 0.52Nm
Recommended ESC: 40A (Dualsky XC4018BA)
Recommended propeller: 3S: 14x7E; 4S: 11x6E, 12x6E
Application: 25E class / up to .25 two-stroke

Includes: Motor with front and rear mounting options and M8 propeller mount.
