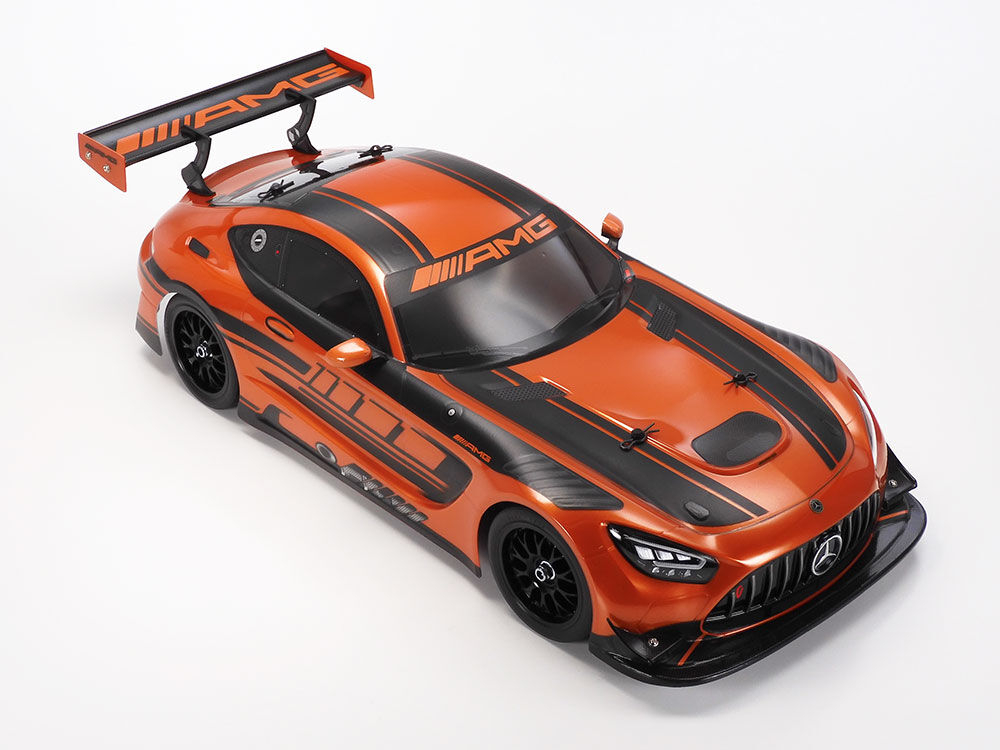

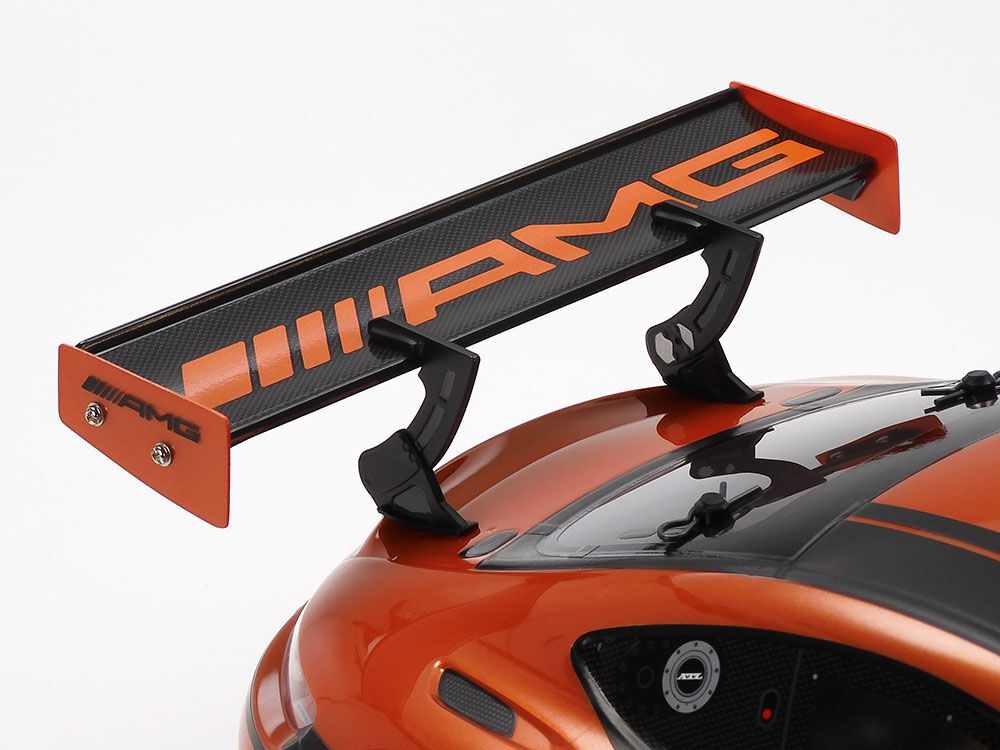

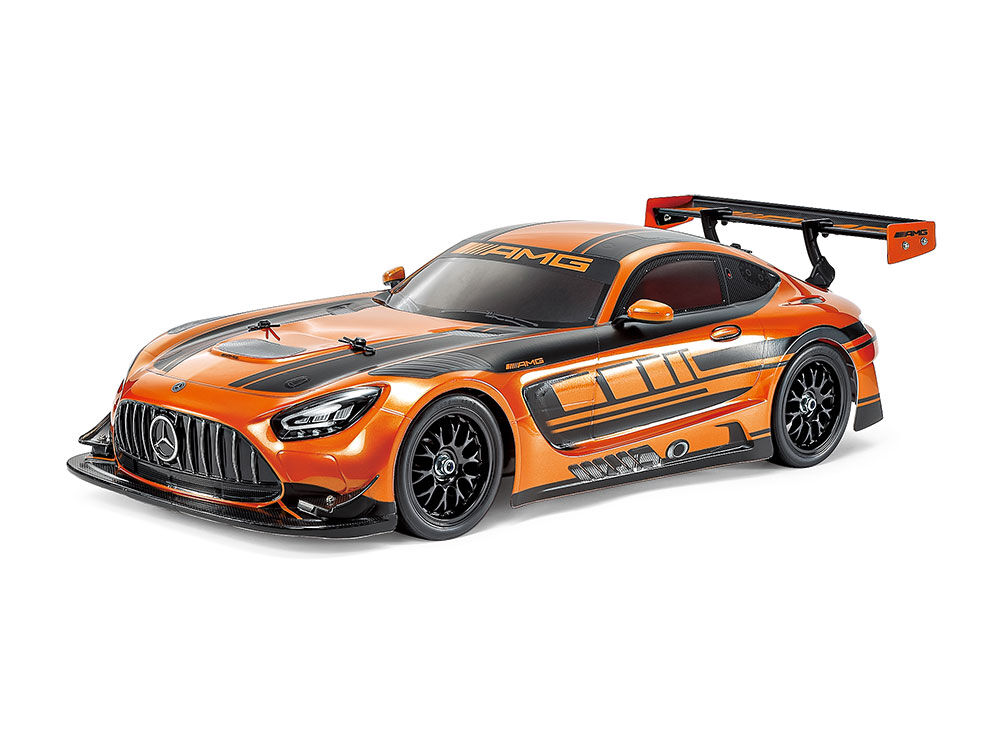

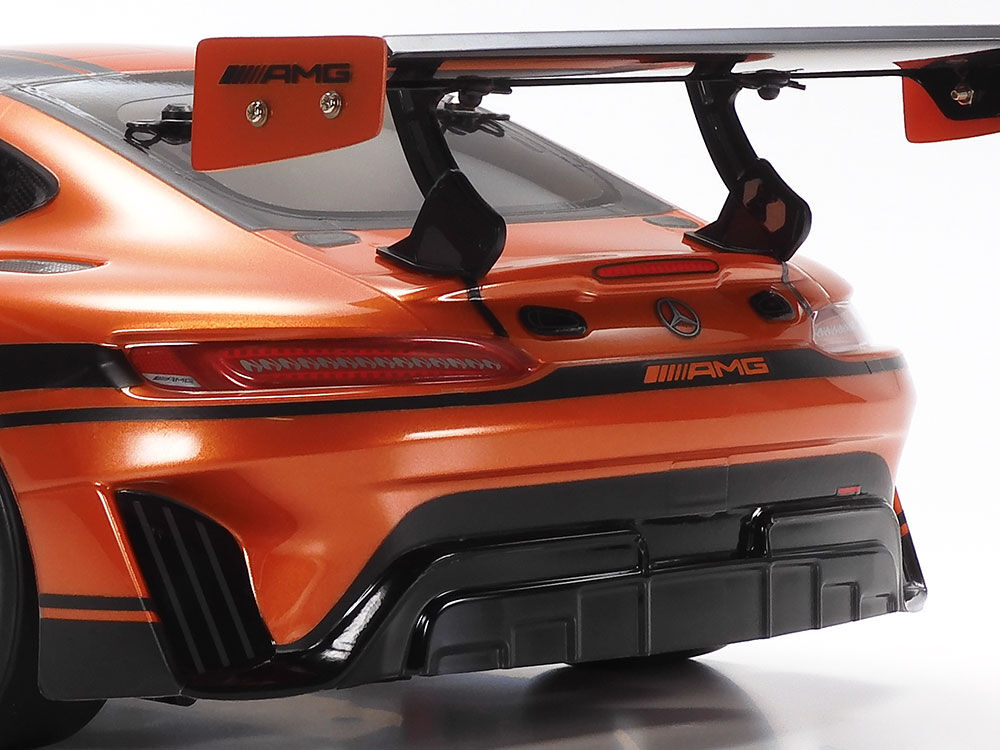

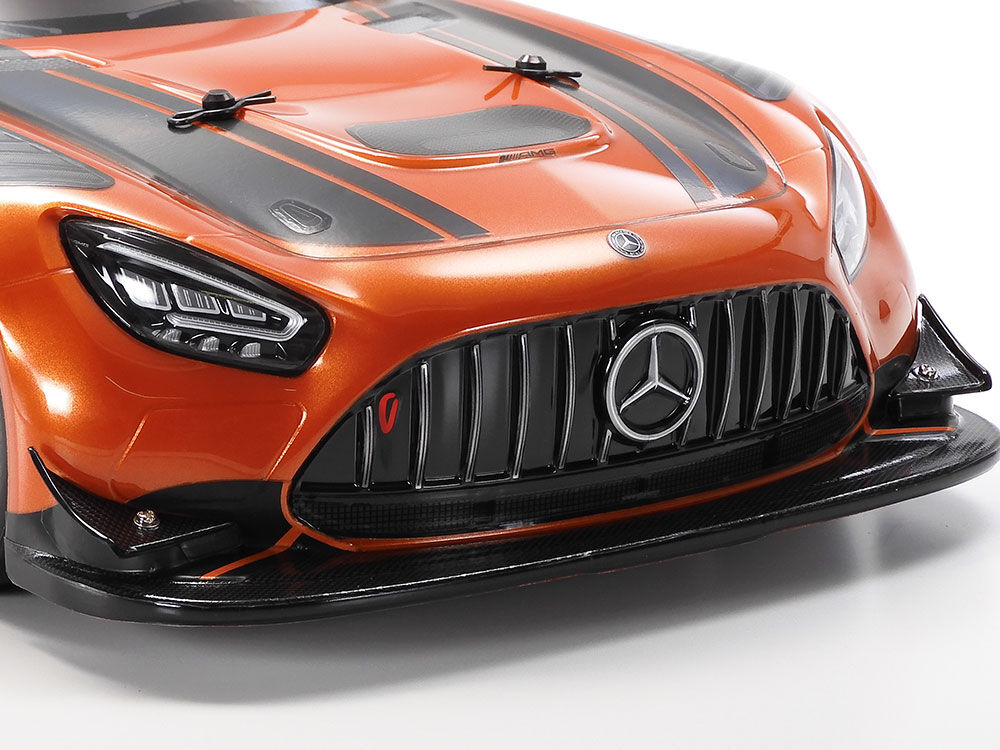

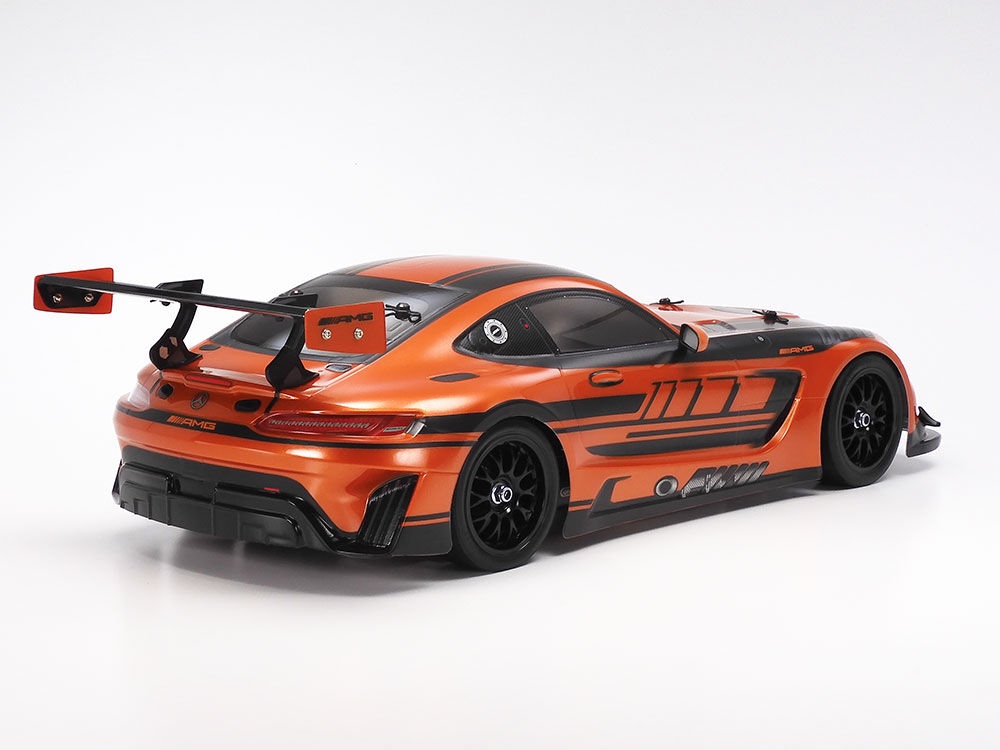

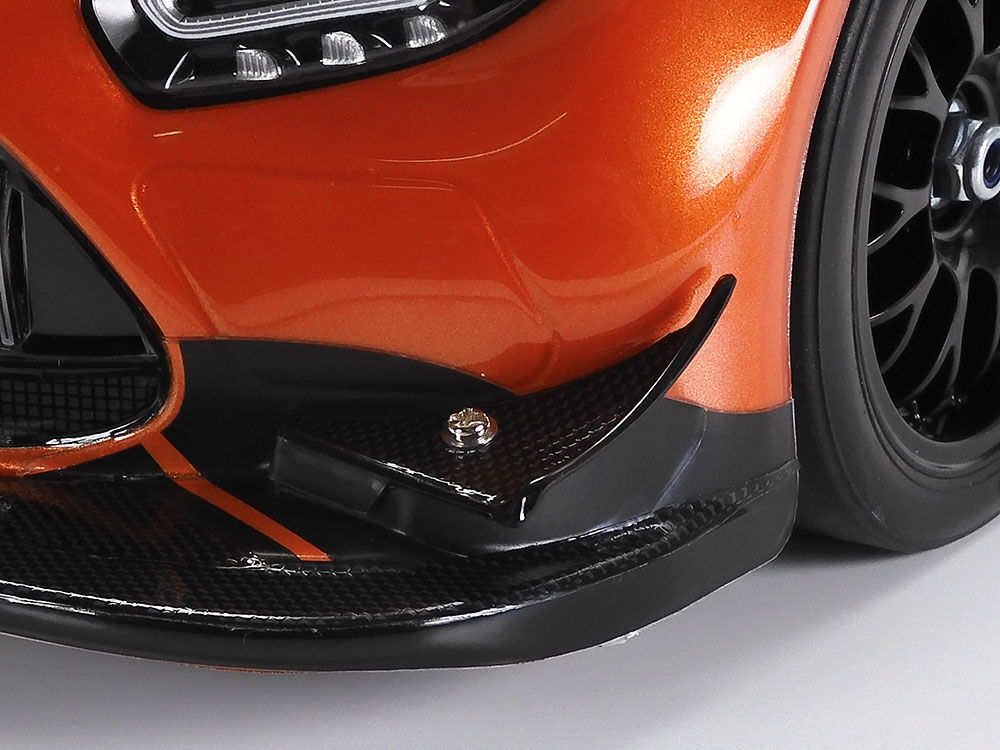

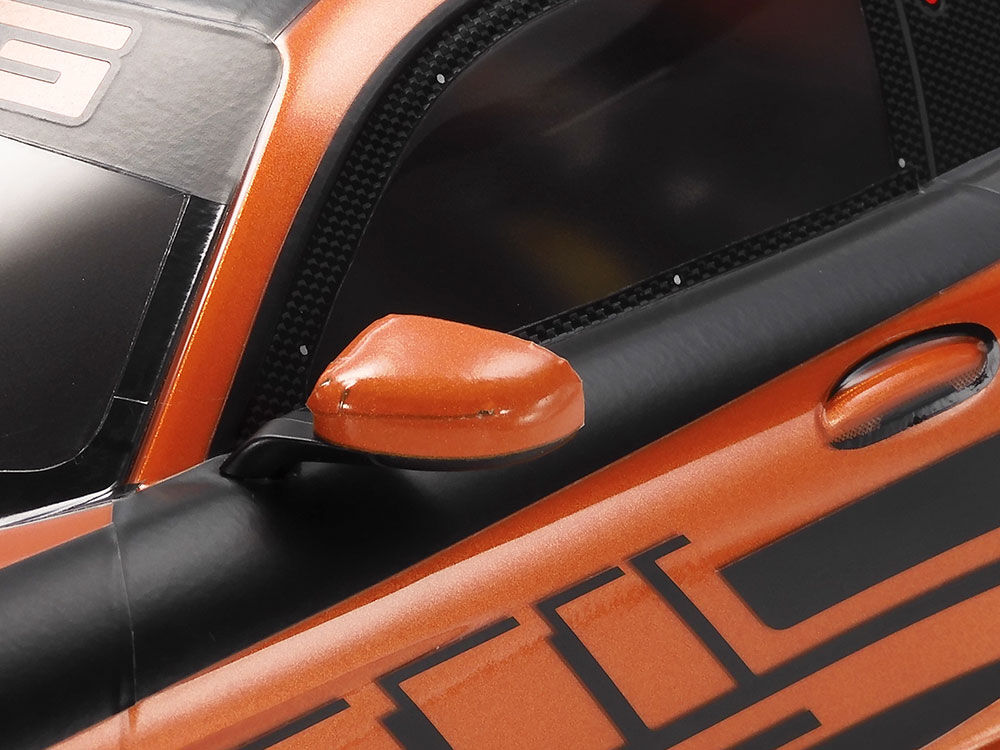

The Mercedes-AMG GT3 is one of the world's most popular Customer Racing cars. Equipped with innovative motorsport technologies such as the optional drop-start function or state-of-the-art aerodynamics, it delivers tremendous reliability and high-level performance. It is characterised by excellent drivability and pioneering safety standards. Powered by an AMG 6.3-liter naturally aspirated V8 engine, the Mercedes-AMG GT3 generates a maximum torque of 650 Nm and an output of 550 hp (404 kW). Now, it is recreated by this assembly kit radio control car model, with a detailed polycarbonate body and wing, plus stickers to decorate it. The 251mm short wheelbase version of the TT-02 chassis is paired with black type wheels and racing slick tires.

TT-02: Adaptable, balanced shaft driven 4WD

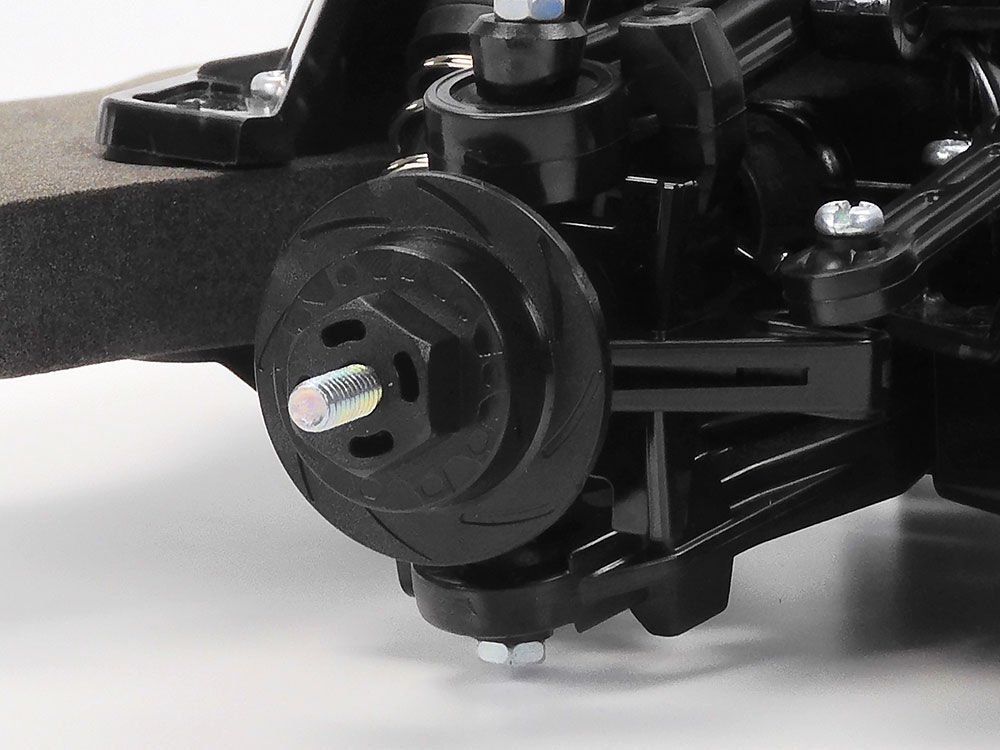

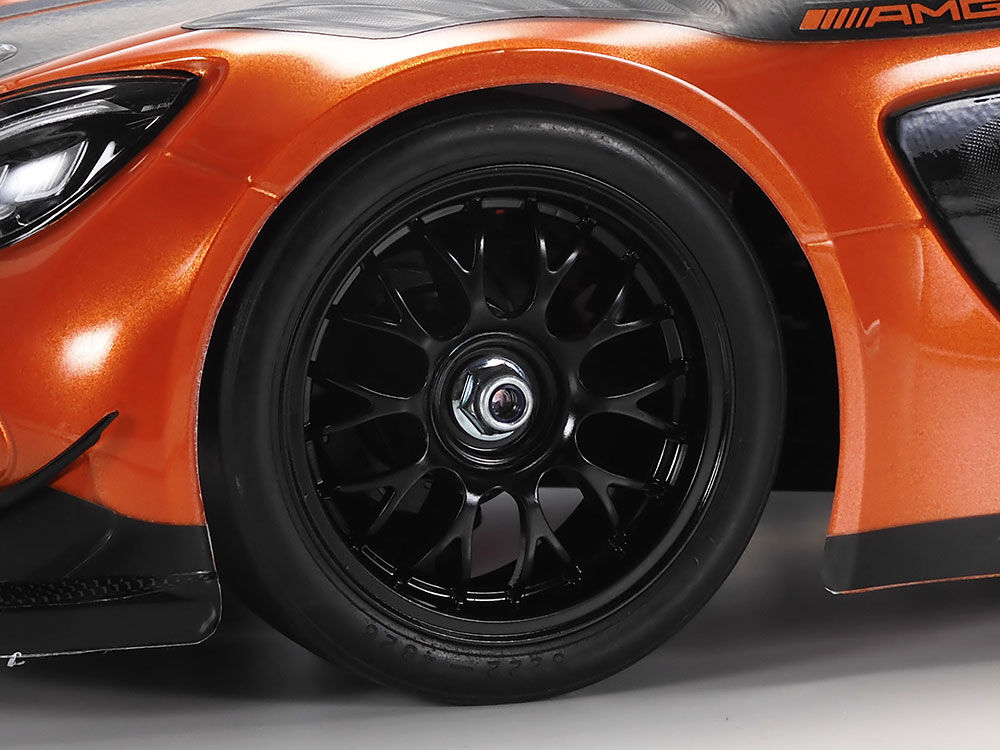

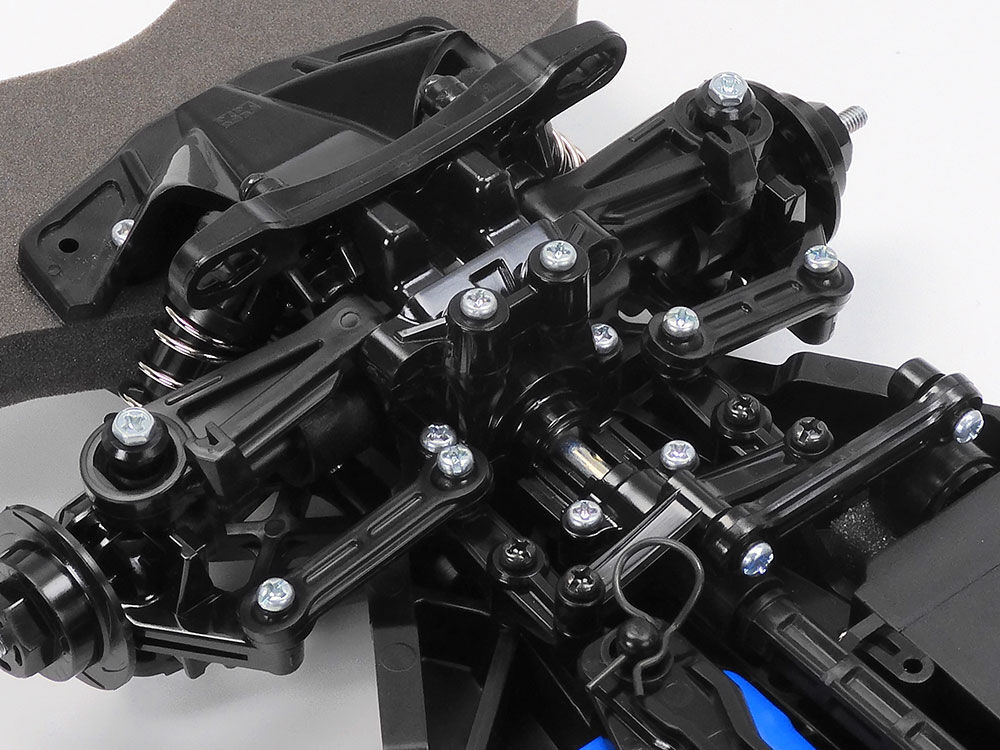

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black mesh design wheels use semi-pneumatic slick tires.

Tamiya Mercedes AMG GT3 Evo (TT-02 Chassis) 1/10 Scale RC Car Kit Manual

Included

• 1/10 scale R/C model assembly kit
• Torque-tuned Motor & ESC
• Decals and masking stickers included

Separately Required Items

• 2-channel radio
• Steering servo
• 7.2-7.4v battery with compatible charger
• Tamiya PS paints (use the paint finder)

Specifications

Length: 454mm, width: 189mm, height: 120mm
Wheelbase: 251mm
Tire width/diameter: 26/66mm (front & rear)
Bathtub-type frame
Shaft-driven 4WD
Front/rear 4-bevel plastic differentials
3-piece steering tie-rod
4-wheel double wishbone suspension

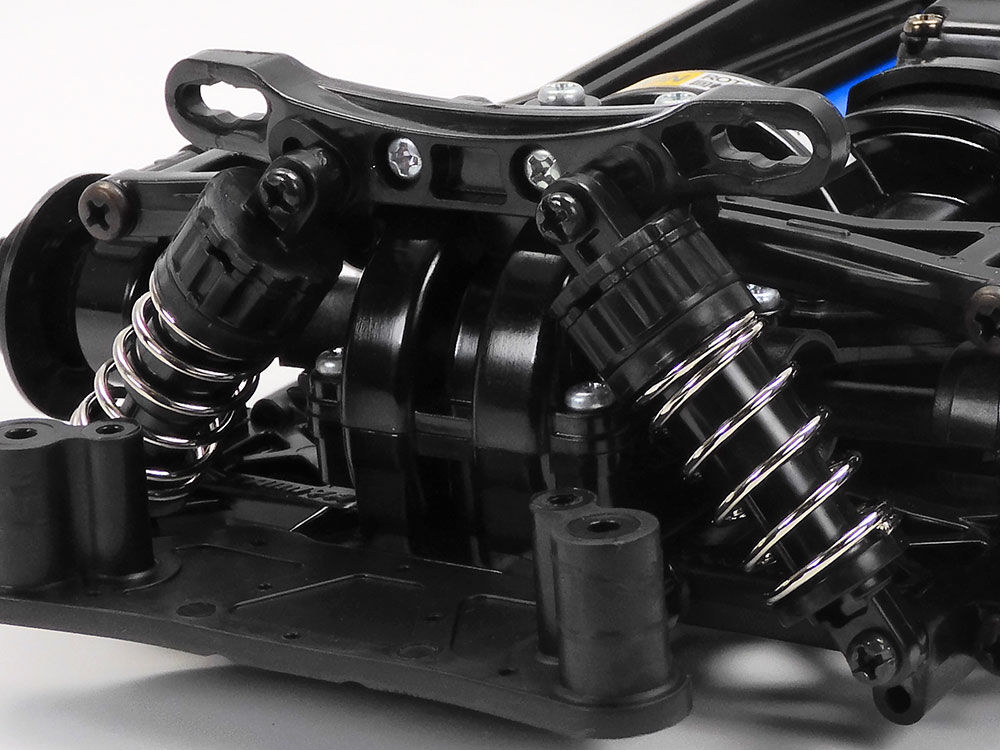

Front/rear friction dampers
Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
