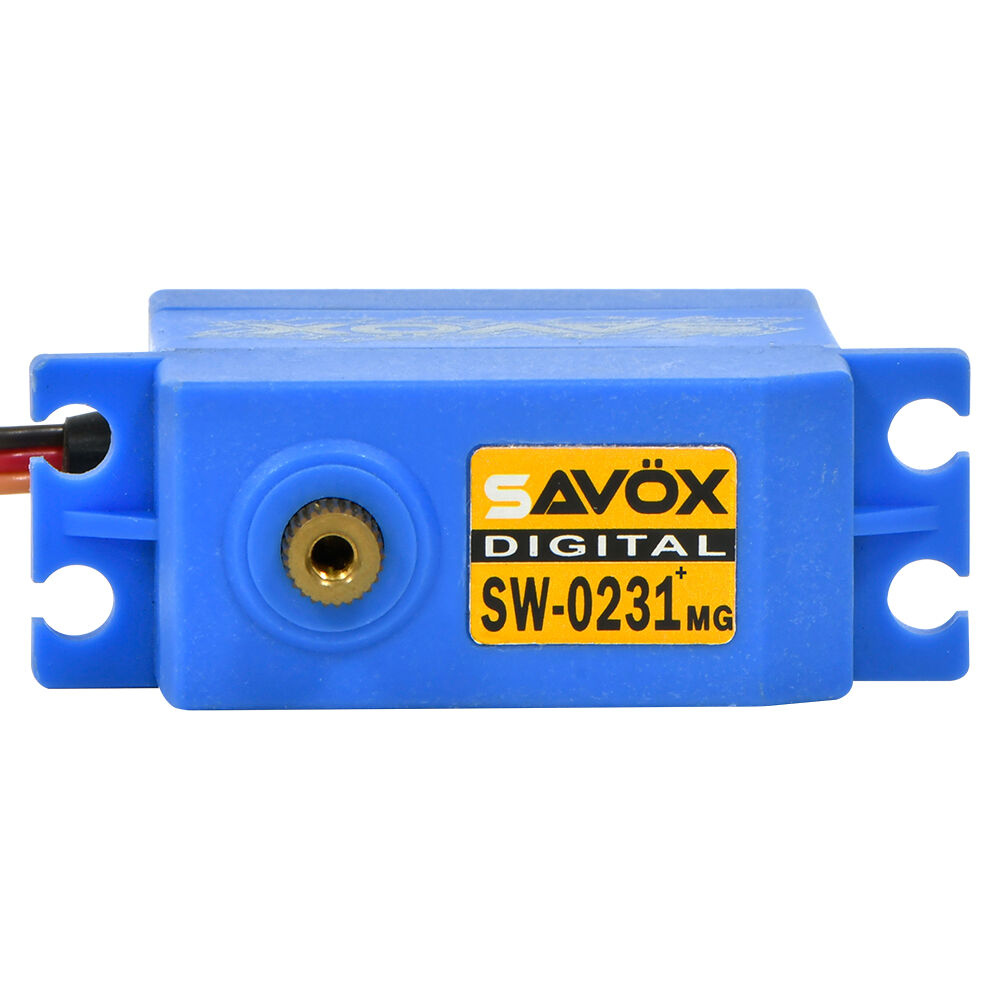

The Savox SW-0231MG Plus is a standard-size digital high voltage waterproof servo designed for RC applications that need strong torque, durable metal gears and reliable protection from wet or dirty conditions. Producing up to 25.0kg-cm of torque at 7.4V with a 0.15 sec/60° transit speed, it is a great choice for RC cars, trucks, crawlers, boats and other models that require a tough, waterproof steering or control servo.

Built with a DC motor, heavy-duty metal gears, dual ball bearings and a durable composite case, the SW-0231MG Plus provides dependable performance for high-load applications. Its high voltage capability allows strong output from compatible 6.0V–7.4V receiver power systems, while the IP67 waterproof protection makes it suitable for outdoor RC use where moisture, mud or splashes may be present.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 10-bit PCB board, 25T output spline, waterproof case design and a long 450mm JR lead, the SW-0231MG Plus is a strong and practical upgrade for customers needing a powerful waterproof servo.

Features

• Standard-size digital high voltage servo
• Up to 25.0kg-cm torque at 7.4V
• 0.15 sec/60° speed at 7.4V
• Soft Start function
• DC motor design
• Heavy-duty metal gears for strength and durability
• Composite case
• Dual ball bearing design
• 25T output spline
• 10-bit PCB board
• Sanwa SSR compatible
• Waterproof IP67 protection
• Suitable for RC cars, trucks, crawlers, boats and wet-condition RC use

Specifications

Model: SW-0231MG Plus
Servo Type: Standard digital high voltage waterproof servo
Application: Car / Boat
Motor Type: DC motor
Torque @ 6.0V: 20.0kg-cm
Torque @ 7.4V: 25.0kg-cm
Speed @ 6.0V: 0.17 sec/60°
Speed @ 7.4V: 0.15 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Composite

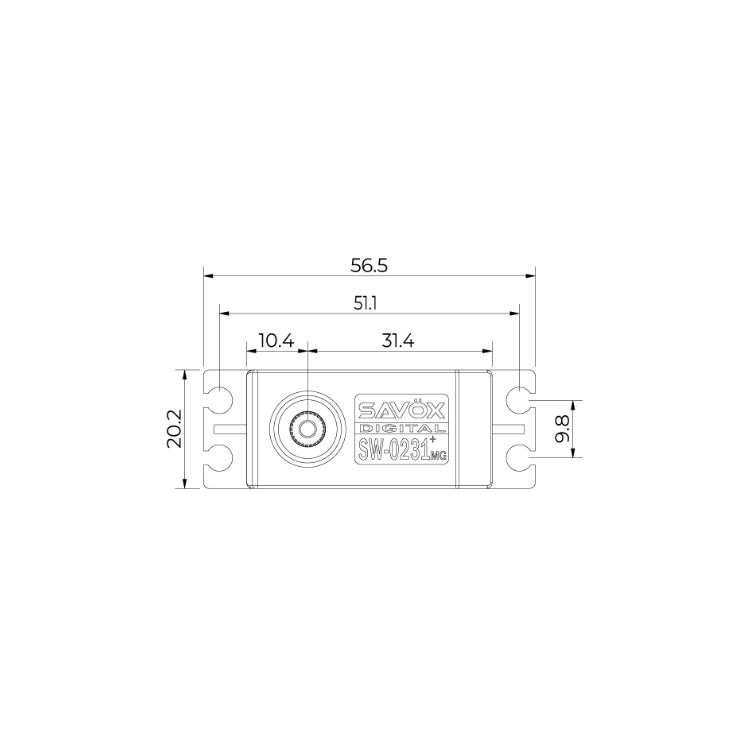

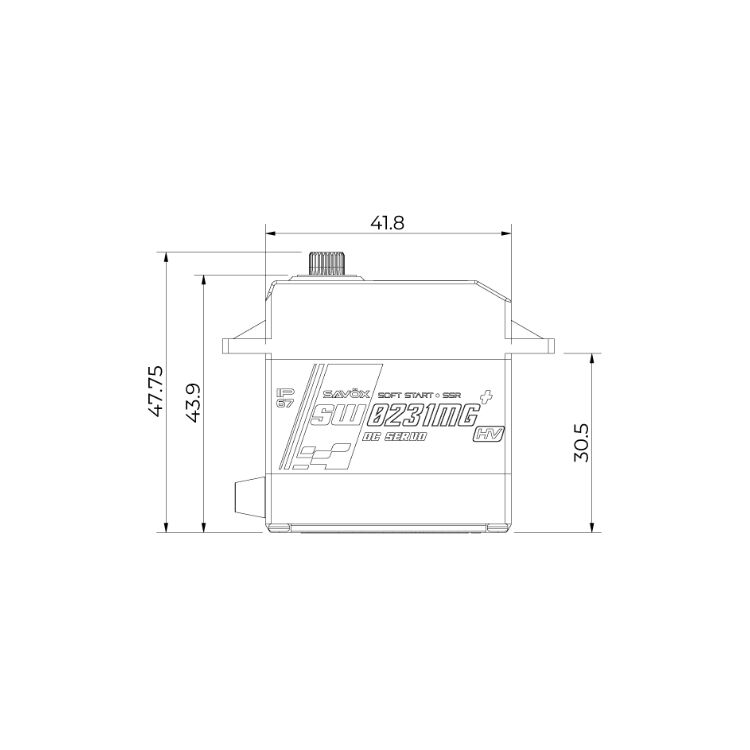

Dimensions: 41.8 x 20.2 x 43.9mm
Weight: 68g
Operating Voltage: 6.0V–7.4V
Protection: Waterproof IP67
Compatibility: Sanwa SSR
PCB Board: 10-bit
Connector: JR connector
Cable Length: 450 ±5mm
