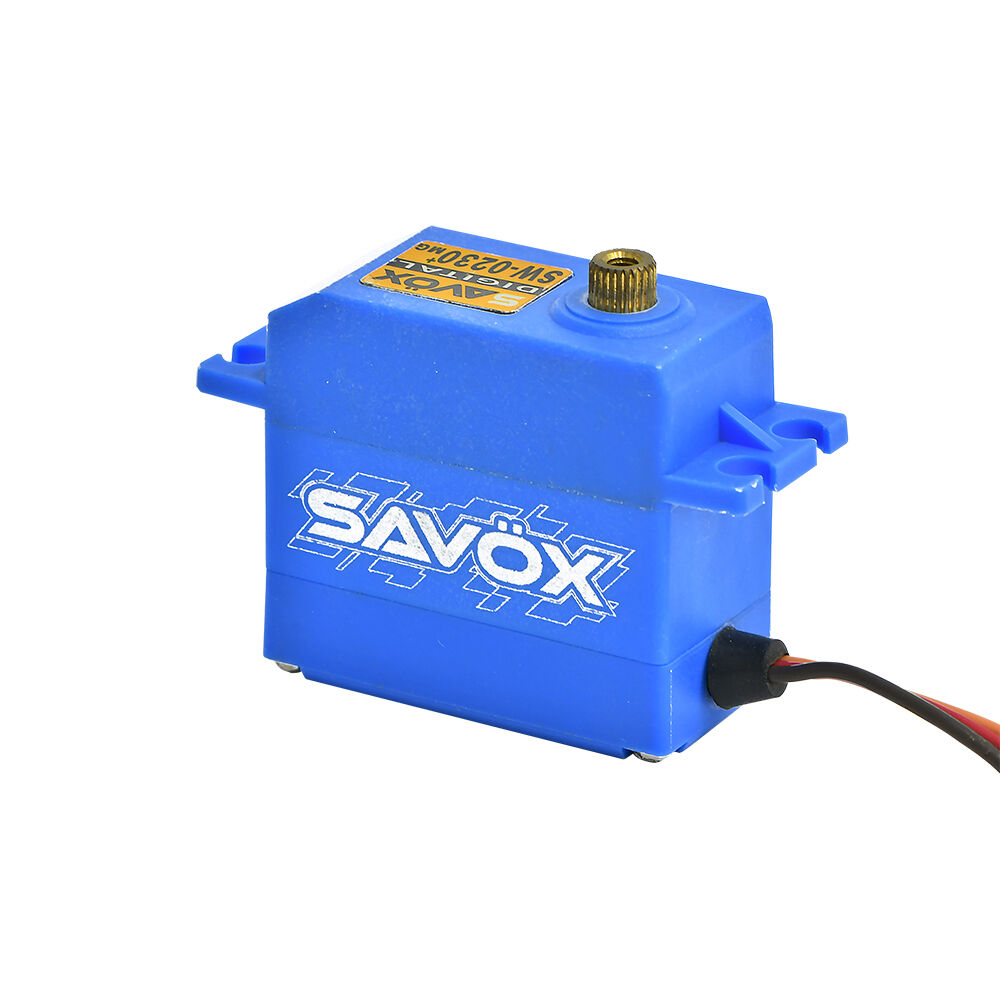

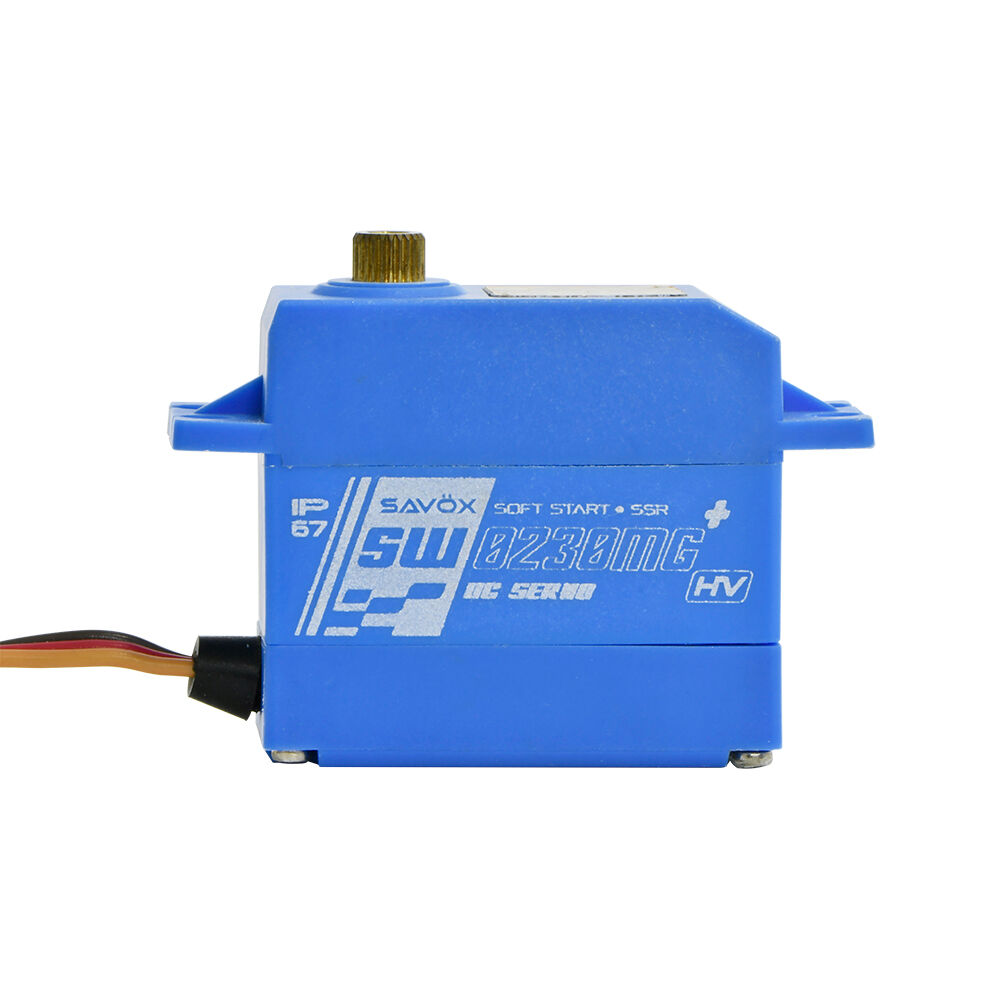

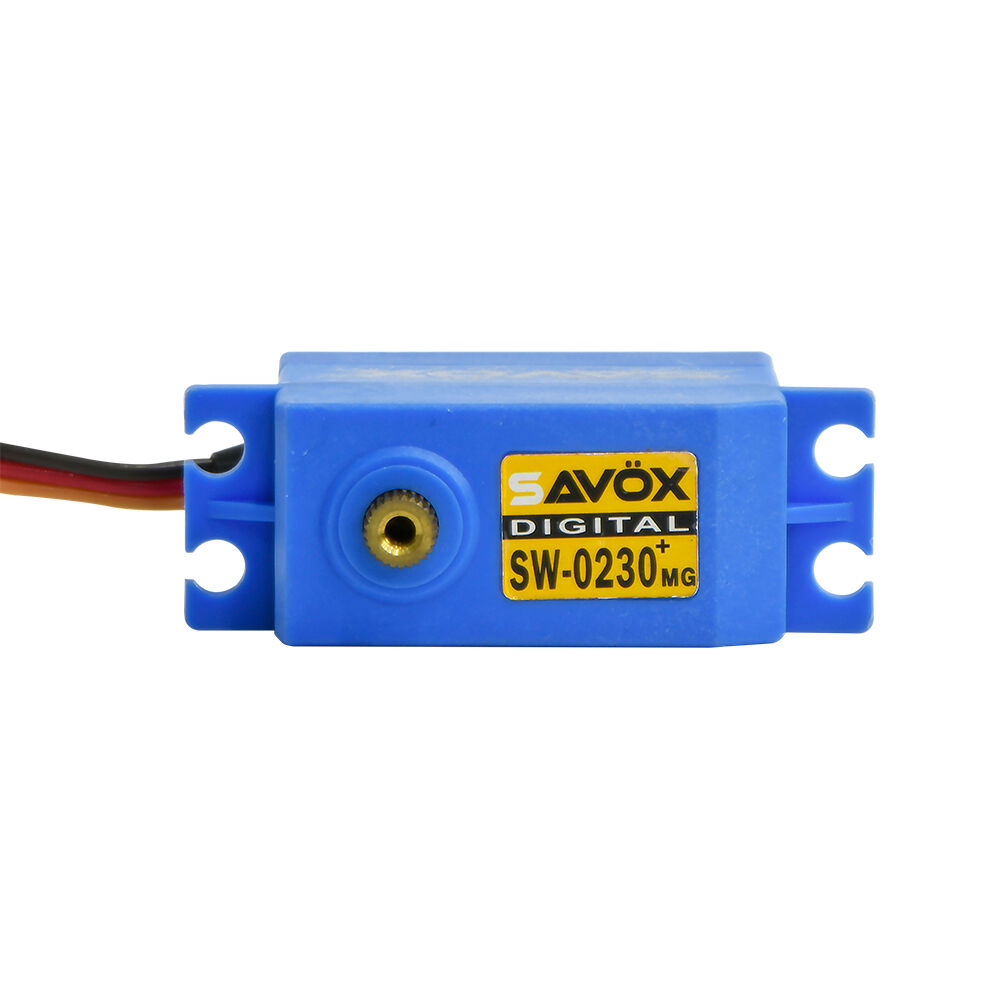

The Savox SW-0230MG Plus is a standard-size digital high voltage servo designed for RC models that need reliable performance, durable metal gears and waterproof protection. Producing up to 8.0kg-cm of torque at 7.4V with a 0.13 sec/60° transit speed, it is a great upgrade for RC cars, trucks, buggies, boats and other models that may be exposed to wet or dirty conditions.

Built with a DC motor, metal gears, dual ball bearings and a waterproof case design, the SW-0230MG Plus provides dependable control for everyday RC use. Its high voltage capability allows stronger and faster performance compared with many standard 4.8V–6.0V servos, while the waterproof casing makes it a practical choice for outdoor driving and wet-weather applications.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline and standard JR connector, the SW-0230MG Plus is a reliable waterproof servo option for customers wanting a strong, affordable and versatile upgrade.

Features

• Standard-size digital high voltage servo
• Up to 8.0kg-cm torque at 7.4V
• 0.13 sec/60° speed at 7.4V
• Soft Start function
• DC motor design
• Metal gears for improved durability
• Waterproof case design
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Suitable for RC cars, trucks, buggies, boats and wet-condition RC use

Specifications

Model: SW-0230MG Plus
Servo Type: Standard digital high voltage servo
Motor Type: DC motor
Torque @ 6.0V: 6.5kg-cm / 90.3oz-in
Torque @ 7.4V: 8.0kg-cm / 111.1oz-in
Speed @ 6.0V: 0.16 sec/60°
Speed @ 7.4V: 0.13 sec/60°
Gear Type: Metal gears
Bearings: 2x ball bearings
Output Spline: 25T
Case Type: Plastic / waterproof case

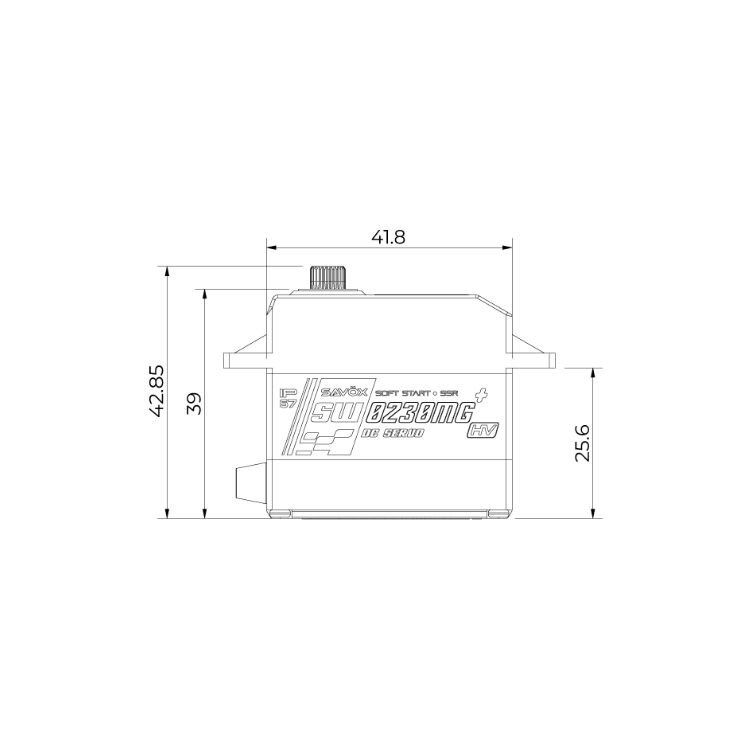

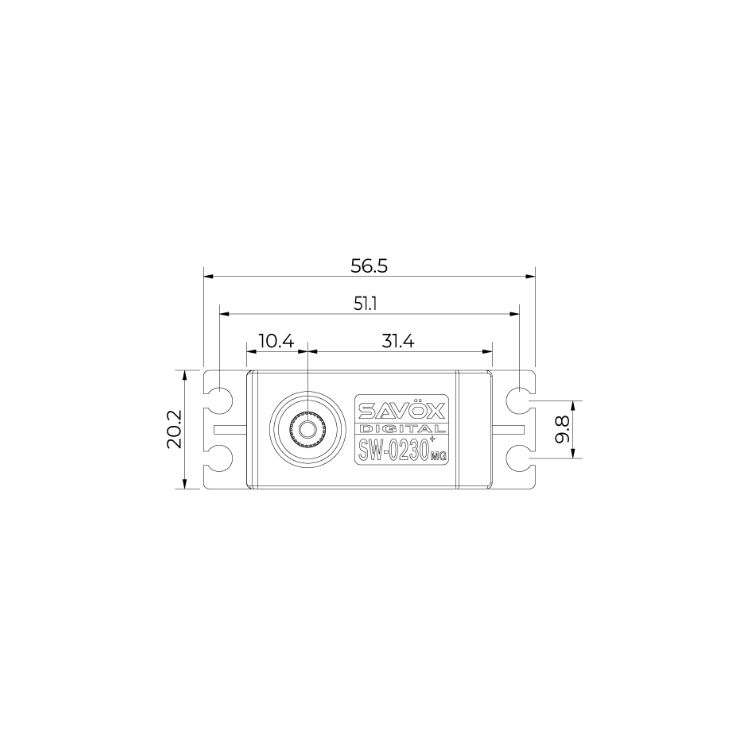

Dimensions: 41.8 x 20.2 x 38.0mm
Weight: 59–60g
Operating Voltage: 6.0V–7.4V
Protection: Waterproof
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
