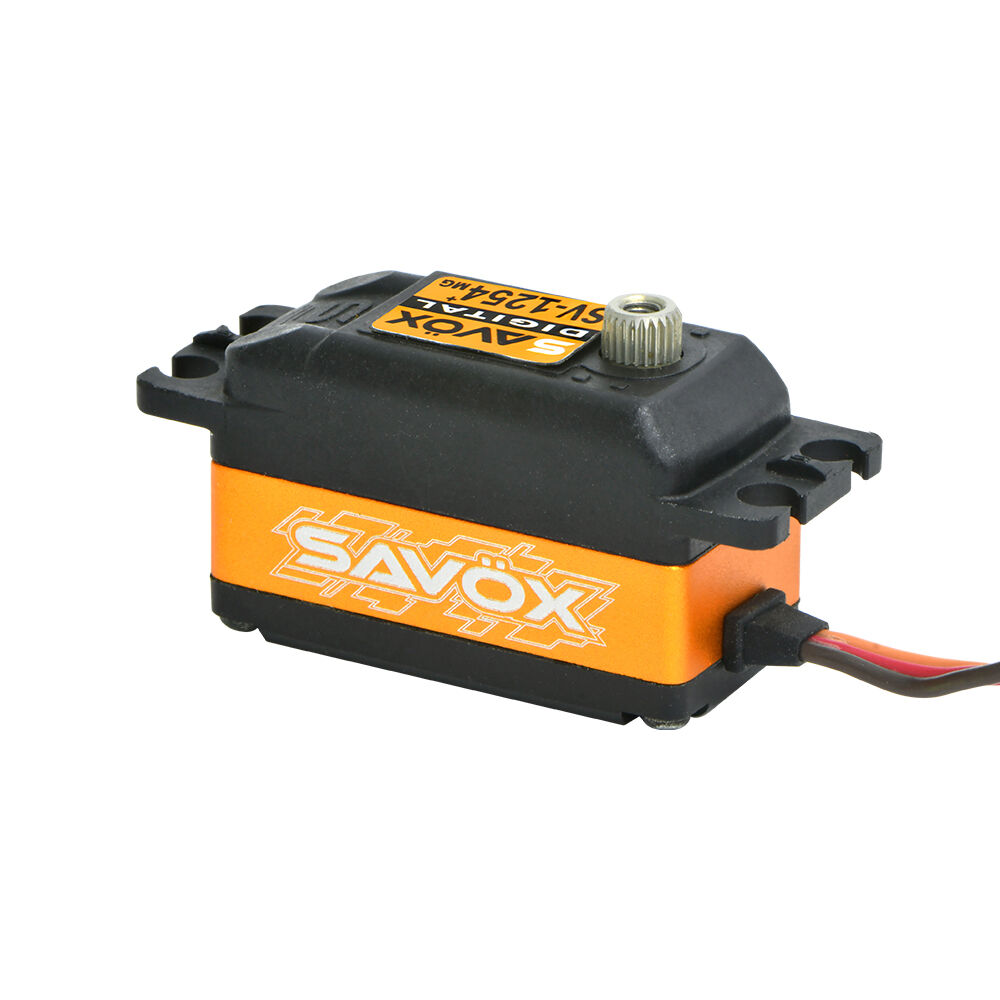

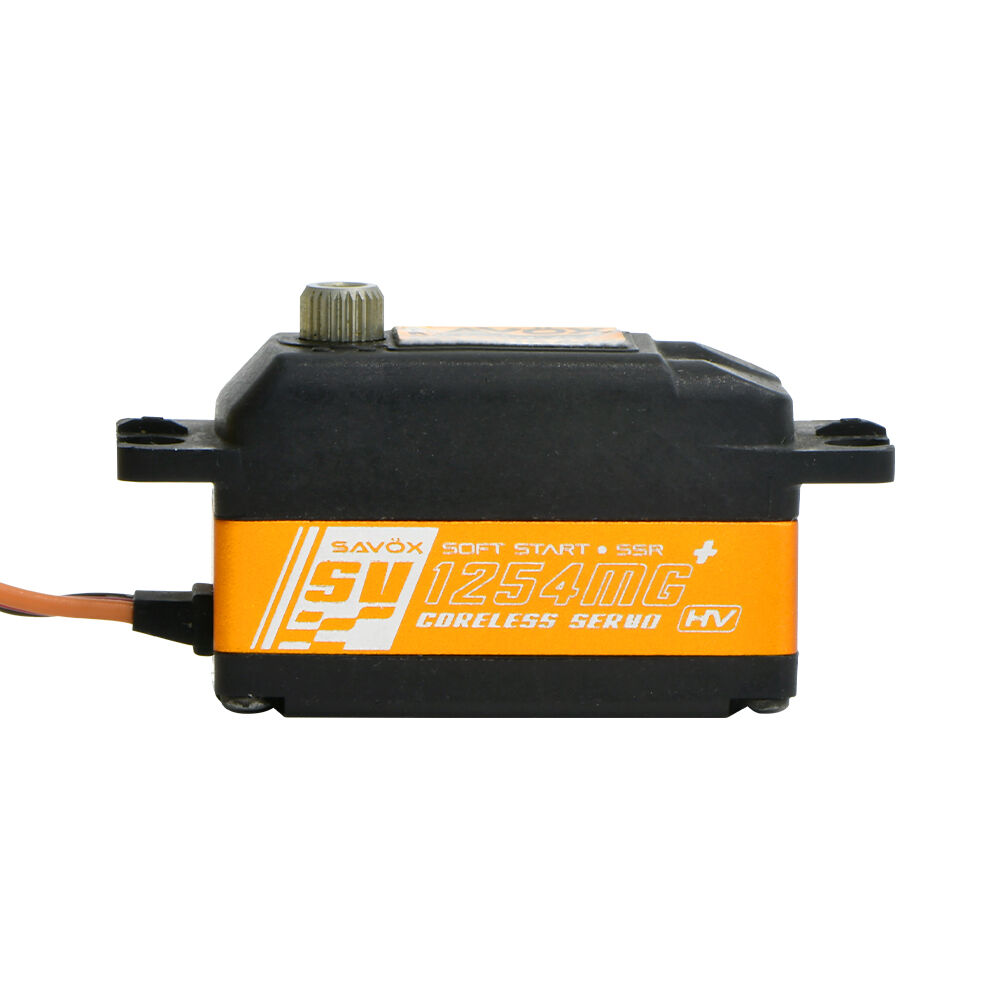

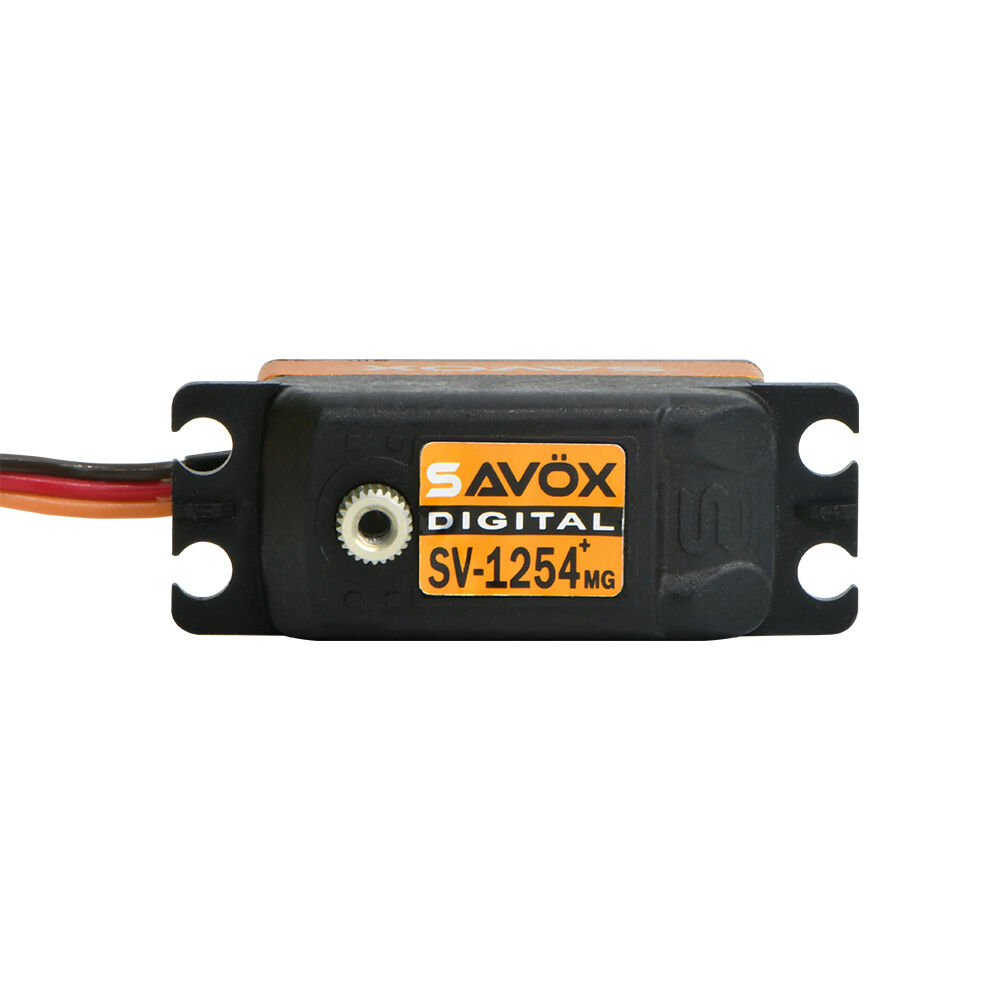

The Savox SV-1254MG Plus is a low-profile digital high voltage servo designed for RC applications that need strong torque, fast response and compact fitment. Producing up to 18.0kg-cm of torque at 8.4V with a quick 0.075 sec/60° transit speed, it is a great choice for touring cars, drift cars, on-road vehicles, buggies and other RC models that require a low-profile servo layout.

Built with a coreless motor, heavy-duty metal gears, dual ball bearings and a hybrid aluminium/composite case, the SV-1254MG Plus delivers smooth, responsive and reliable control under load. Its high voltage capability allows increased torque and speed from compatible 6.0V–8.4V receiver power systems, while the low-profile case makes it ideal for compact chassis designs where a standard-height servo may not fit.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, water-resistant protection and standard JR connector, the SV-1254MG Plus is a dependable upgrade for performance RC setups that need speed, strength and precision.

Features

• Low-profile digital high voltage servo
• Up to 18.0kg-cm torque at 8.4V
• Fast 0.075 sec/60° speed at 8.4V
• Soft Start function
• Coreless motor for smooth and responsive performance
• Heavy-duty metal gears for strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Water-resistant protection
• Suitable for touring cars, drift cars, buggies, on-road vehicles and compact RC chassis layouts

Specifications

Model: SV-1254MG Plus
Servo Type: Low-profile digital high voltage servo
Application: Car / Airplane
Motor Type: Coreless
Torque @ 6.0V: 12.0kg-cm
Torque @ 7.4V: 15.0kg-cm
Torque @ 8.4V: 18.0kg-cm
Speed @ 6.0V: 0.10 sec/60°
Speed @ 7.4V:0.085 sec/60°
Speed @ 8.4V: 0.075 sec/60°
Gear Type: Heavy-duty metal gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Hybrid aluminium/composite

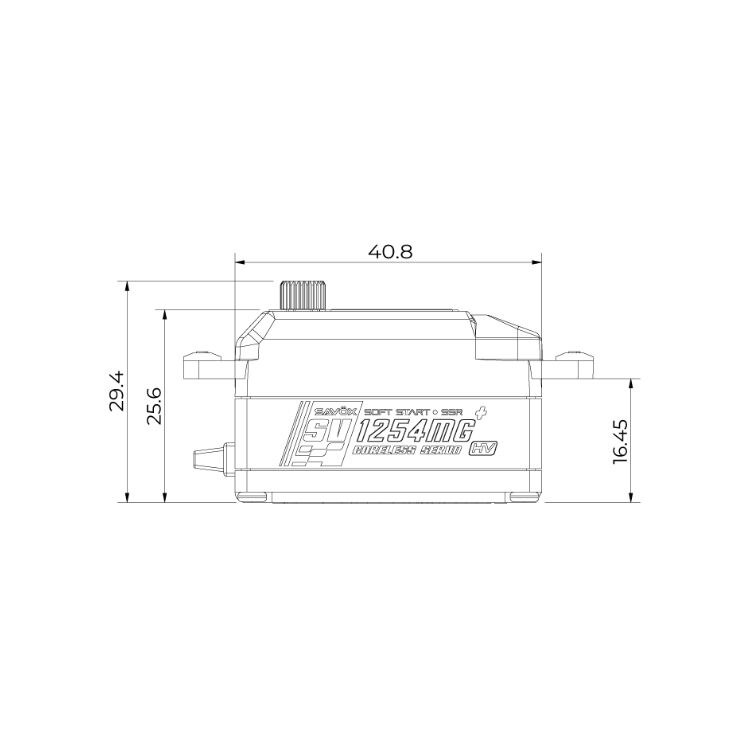

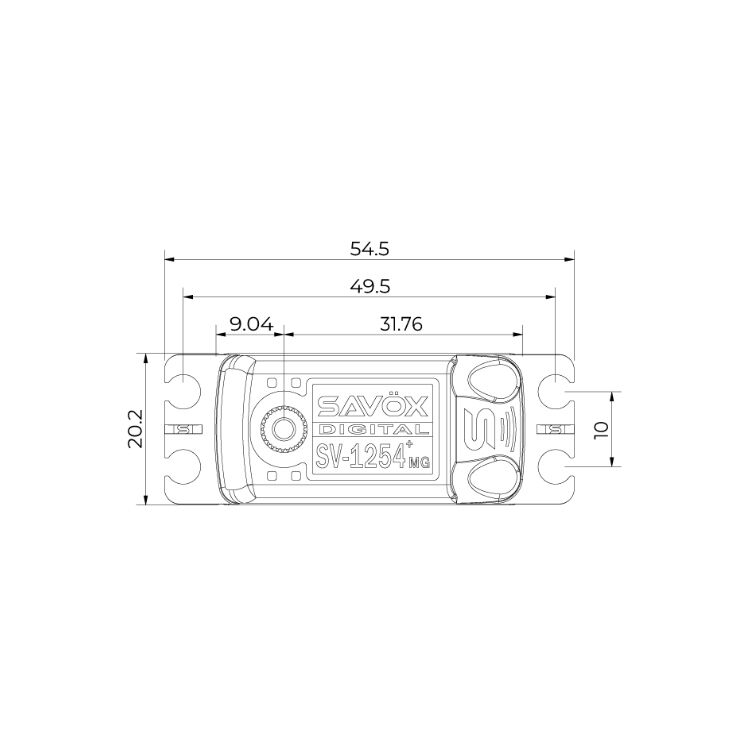

Dimensions: 40.8 x 20.2 x 25.6mm
Weight: 46g
Operating Voltage: 6.0V–8.4V
Protection: Water Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 300 ±5mm
