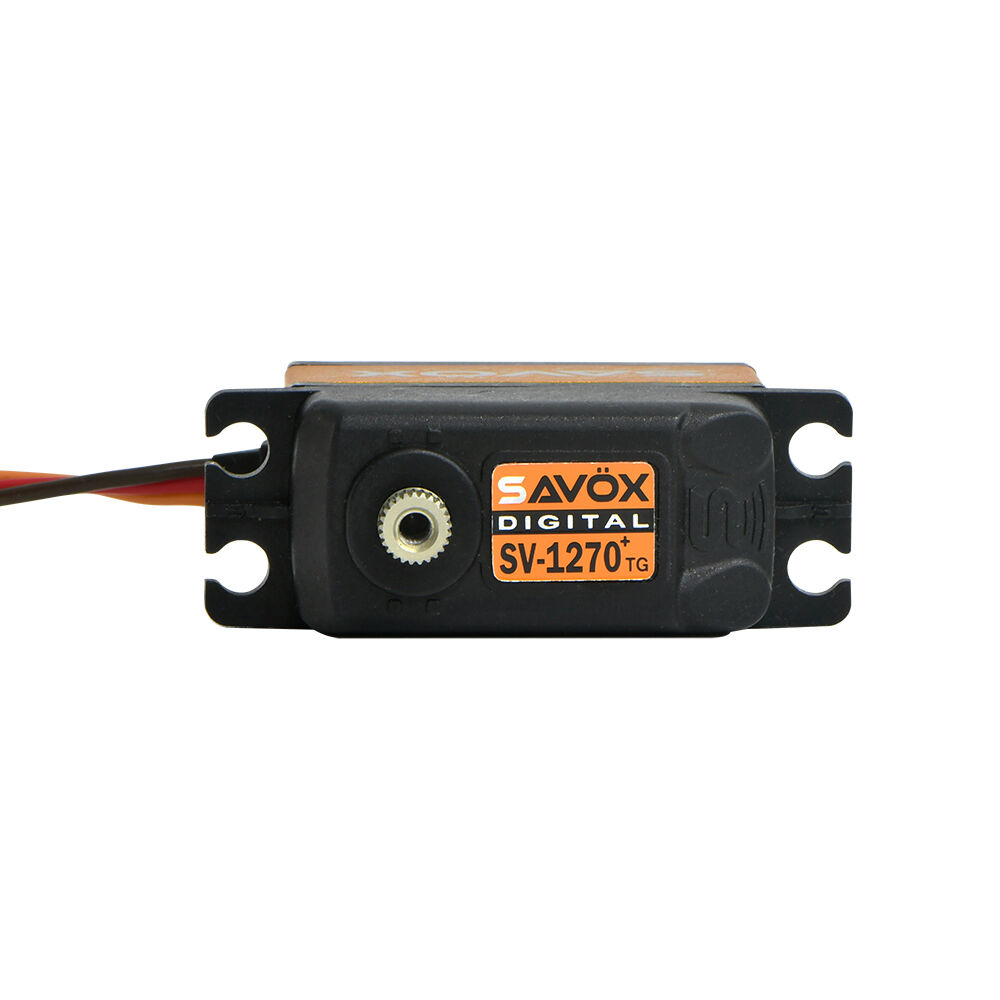

The Savox SV-1270TG Plus is a standard-size digital high voltage servo designed for demanding RC applications that need serious torque, precise control and durable titanium gears. Producing up to 45.0kg-cm of torque at 8.4V, it is a strong choice for RC crawlers, monster trucks, large aircraft, high-performance cars and other models that require high holding power from a standard-size servo.

Built with a coreless motor, titanium gears, dual ball bearings and a hybrid aluminium/composite case, the SV-1270TG Plus delivers a strong balance of torque, speed and durability. Its high voltage capability allows increased performance from compatible 6.0V–8.4V receiver power systems, while the titanium gear train provides excellent strength with reduced weight compared with many steel gear servos.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, water-resistant protection and standard JR connector, the SV-1270TG Plus is a dependable high-torque servo upgrade for serious RC applications.

Features

• Standard-size digital high voltage servo
• Up to 45.0kg-cm torque at 8.4V
• 0.10 sec/60° speed at 8.4V
• Soft Start function
• Coreless motor for smooth and responsive performance
• Titanium gears for strength and reduced weight
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Water-resistant protection
• Suitable for crawlers, monster trucks, large aircraft, high-performance cars and high-load RC applications

Specifications

Model: SV-1270TG Plus
Servo Type: Standard digital high voltage servo
Application: Car / Airplane
Motor Type: Coreless
Torque @ 6.0V: 30.0kg-cm
Torque @ 7.4V: 40.0kg-cm
Torque @ 8.4V: 45.0kg-cm
Speed @ 6.0V: 0.14 sec/60°
Speed @ 7.4V: 0.11 sec/60°
Speed @ 8.4V: 0.10 sec/60°
Gear Type: Titanium gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Hybrid aluminium/composite

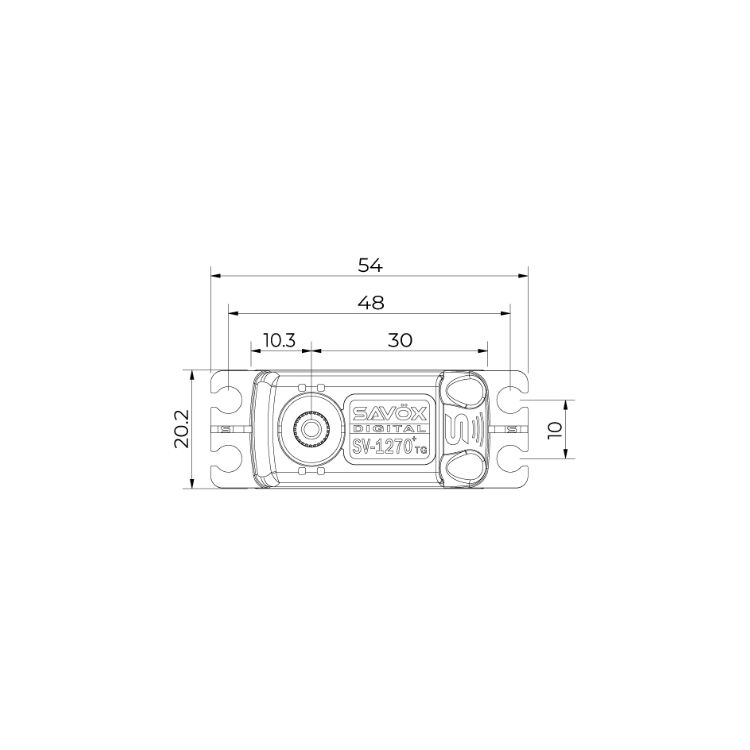

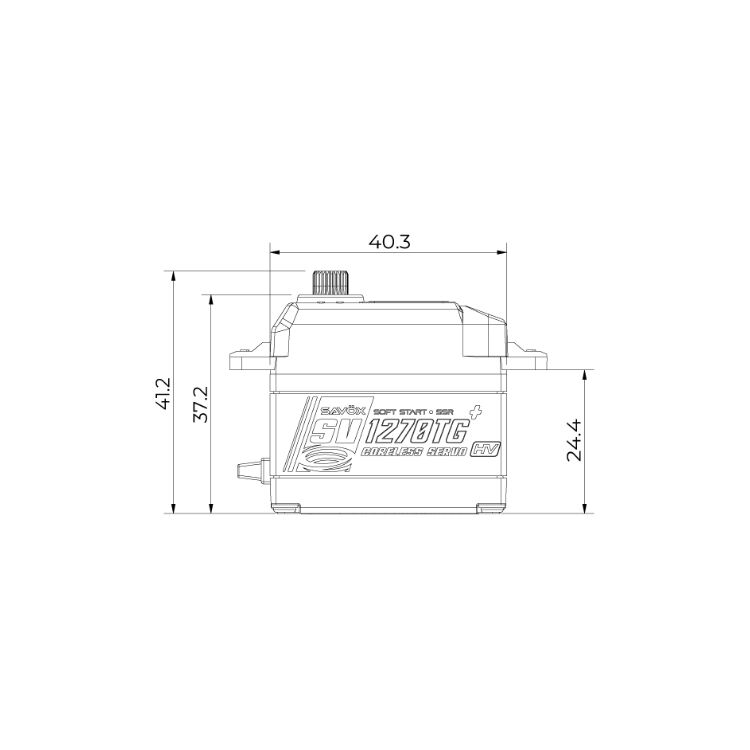

Dimensions: 40.3 x 20.2 x 37.2mm
Weight: 64g
Operating Voltage: 6.0V–8.4V
Protection: Water Resistant
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 300 ±5mm
