Length: 438 mm. Image shows painted and assembled kit.

Hahn-tastic!!!

This is an exciting R/C model assembly kit recreating the Team Hahn Racing MAN TGS truck which stars on the truck racing circuit in Europe. The realistic body is a 4-piece set made from lightweight and durable polycarbonate, with separately molded plastic side mirrors, coupler and rear bumper parts. The TT-01 Type-E chassis is a proven performer, and here is fitted with dedicated new wheels and tires for the model.

Evolved Chassis

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing a smoother steering action. The low center of gravity, great balanced design, 4 wheel double wishbone suspension system, and front and rear differential gears all come together to produce excellent operating ability. 70mm-diameter radial tires are paired with metal plated wheels developed just for this model; the high sidewalls make for forgiving turns.

Download Tamiya 58632 Team Reinert Racing MAN TGS Manual

Separately Required Items

• 2-channel R/C system with ESC
• Battery pack and charger
• Batteries for transmitter

Specifications

Length:438mm, Width: 190mm, Height: 207mm
Wheelbase: 257mm
Tire Width/Diameter: 28/70mm
Bathtub Type Chassis Frame
Longitudinally-Mounted Motor Shaft-Driven Full-Time 4WD
F/R 3-Bevel Differentials
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
F/R Friction Dampers
Gear Ratio=8.35:1
Type 540 Motor
Requires an Electronic Speed Controller (sold separately)

Tamiya 58632 Team Hahn Racing MAN TGS Video

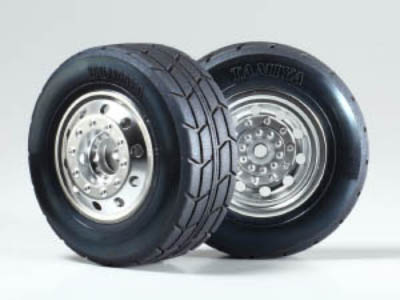

Beatifully detailed plated wheels and 70mm-diameter tires were designed just for racing truck models.

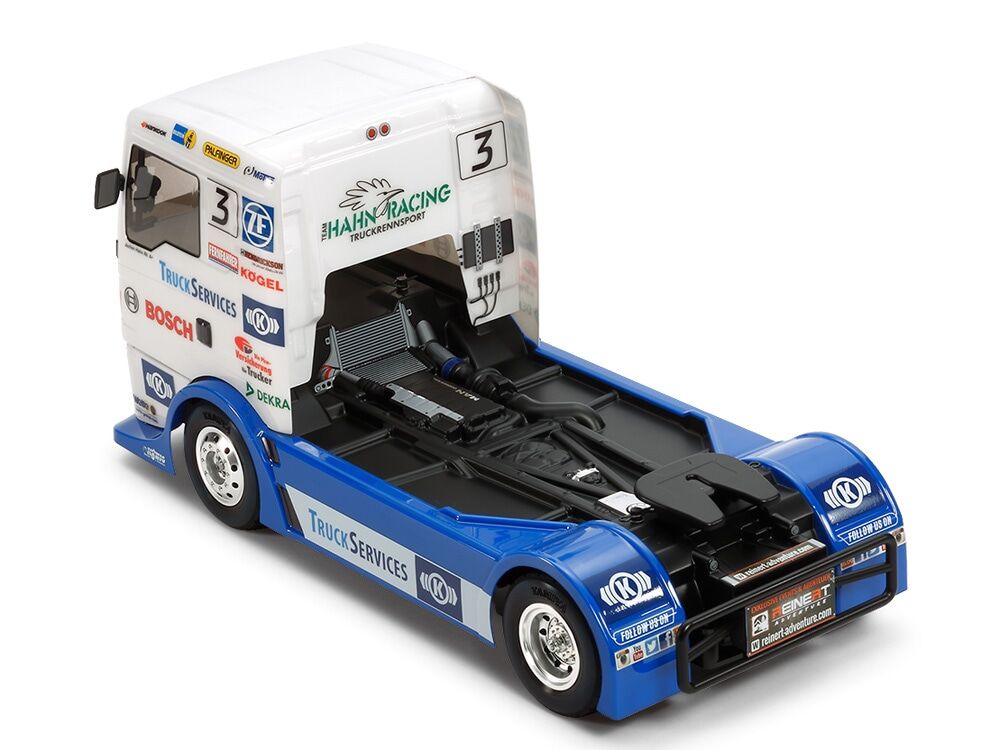

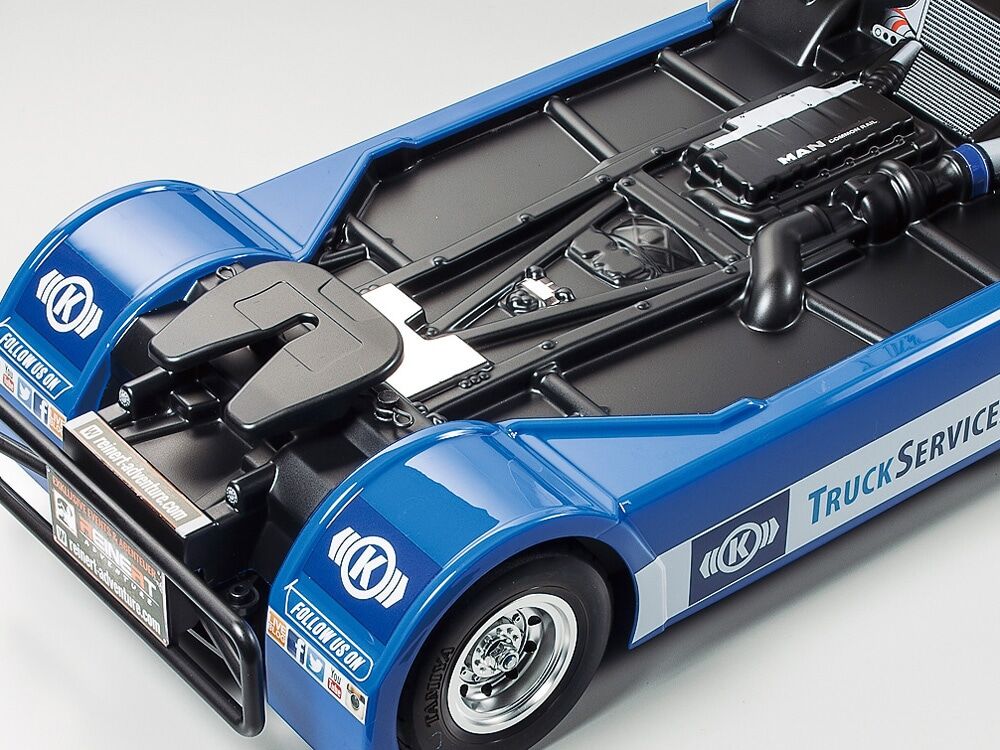

Engine, turbocharger and frame are succinctly depicted. Side mirrors, coupler, etc. are separately molded.

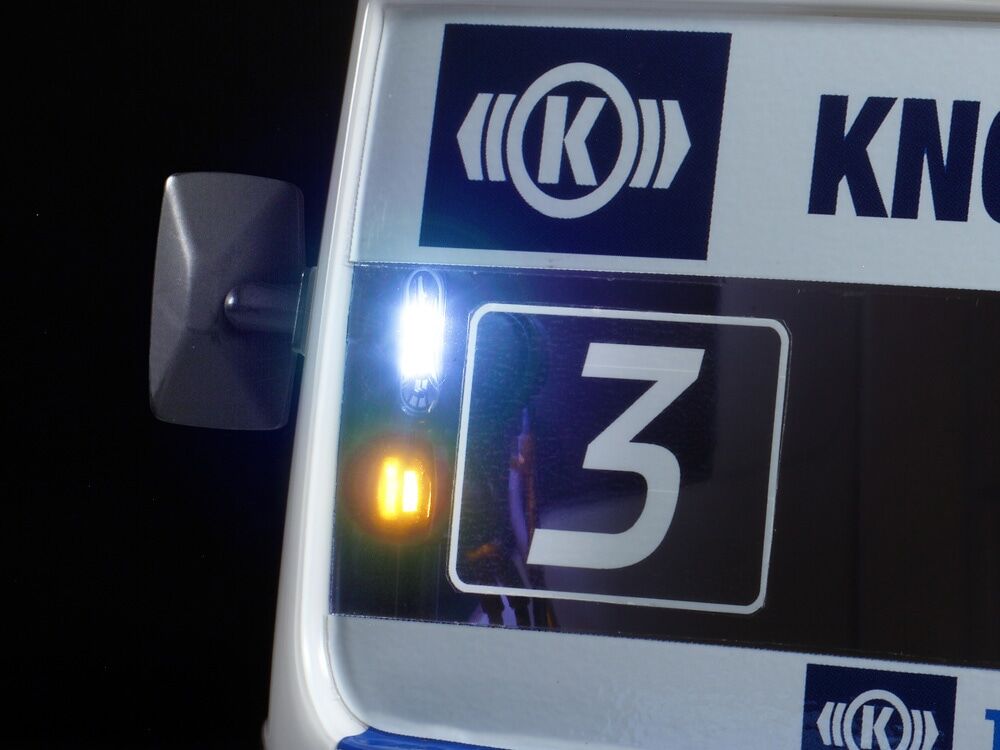

Light cases for headlights are provided, and can be lit up with the aid of separately sold LEDs.

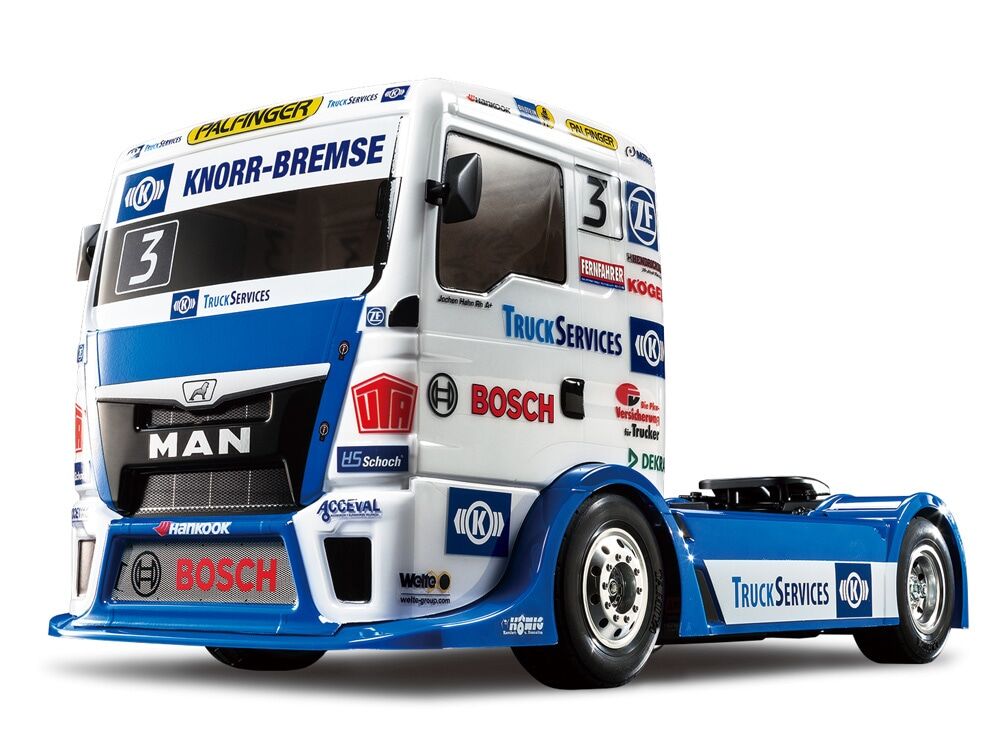

The form of the tractor head is artfully depicted using a 4-piece polycarbonate body. Multiple stickers are included to recreate markings.

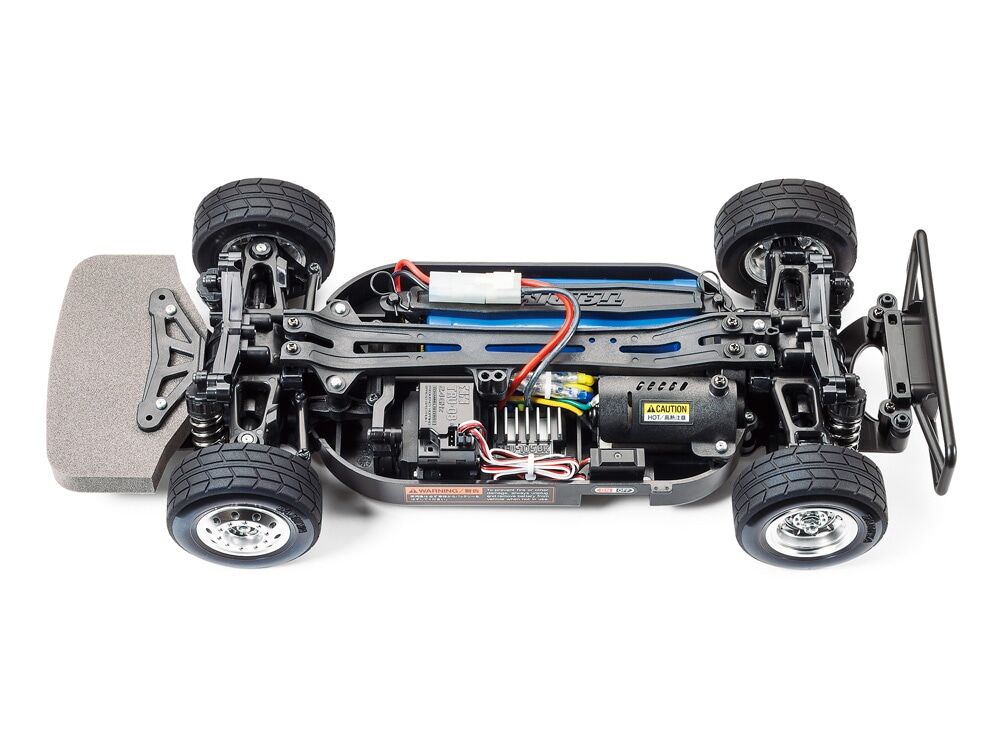

The TT-01 Type-E chassis is a tried and tested unit that offers controllable shaft-driven 4WD. Plenty of Hop-Up option parts are available!
