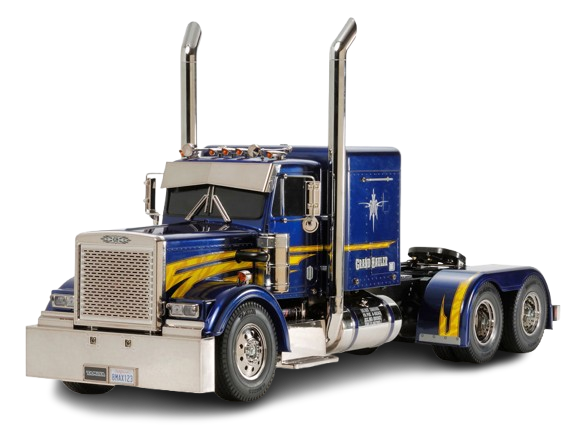

The Tamiya Grand Hauler is more than just a model; it's a statement piece that commands attention. This 1/14 scale semi-truck kit is a masterpiece of engineering and design, capturing the spirit of classic American big rigs.

Customise your Grand Hauler with optional chrome parts, trailers, and the Multi-Function Unit (MFU) to create a truly unique and eye-catching rig. The MFU brings your truck to life with realistic lights, sounds, and vibrations, adding a whole new dimension to your RC experience. Whether you're a seasoned truck enthusiast or new to the hobby, the Grand Hauler is guaranteed to impress.

In The Box

  • 1x Tamiya Grand Hauler RC Truck Electric Brushed 4WD 1/14 Scale Kit
  • 1x Brushed Motor

Features

  • Front and rear suspension equipped with metal leaf springs and metal dampers
  • Propeller shaft driven rear axles
  • Detailed cab interior with dashboard and seats
  • Plated front bumper, radiator grille, and sun visor
  • Etched mesh air cleaner
  • Metal exhaust pipe
  • Adjustable side mirrors with circular under-mirrors
  • Coupler for connecting semi-trailers with sound effects
  • Variety of lights can be added, including headlights, roof lamps, stop lamps, turn signals, and hazard lights
  • Genuine Tamiya Product
Semi-trailers separately available
Various types of trailer including semi-trailer, tank-trailer, and pole-trailer, are available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.

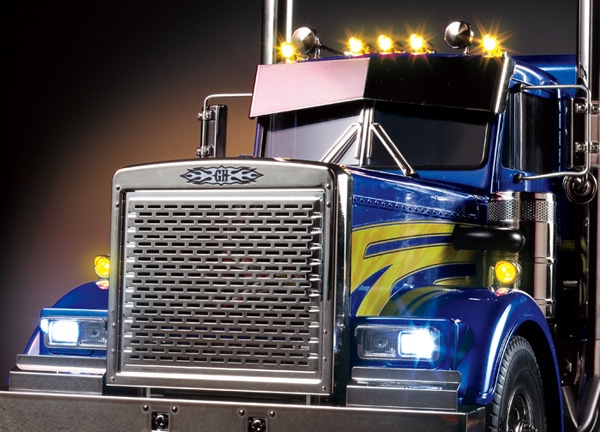

Realistic lights, sounds, and vibration

Realistic lights, sounds, and vibration



Multi-Function Control Unit (MFC) (included for Japanese market only) offers light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from the actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

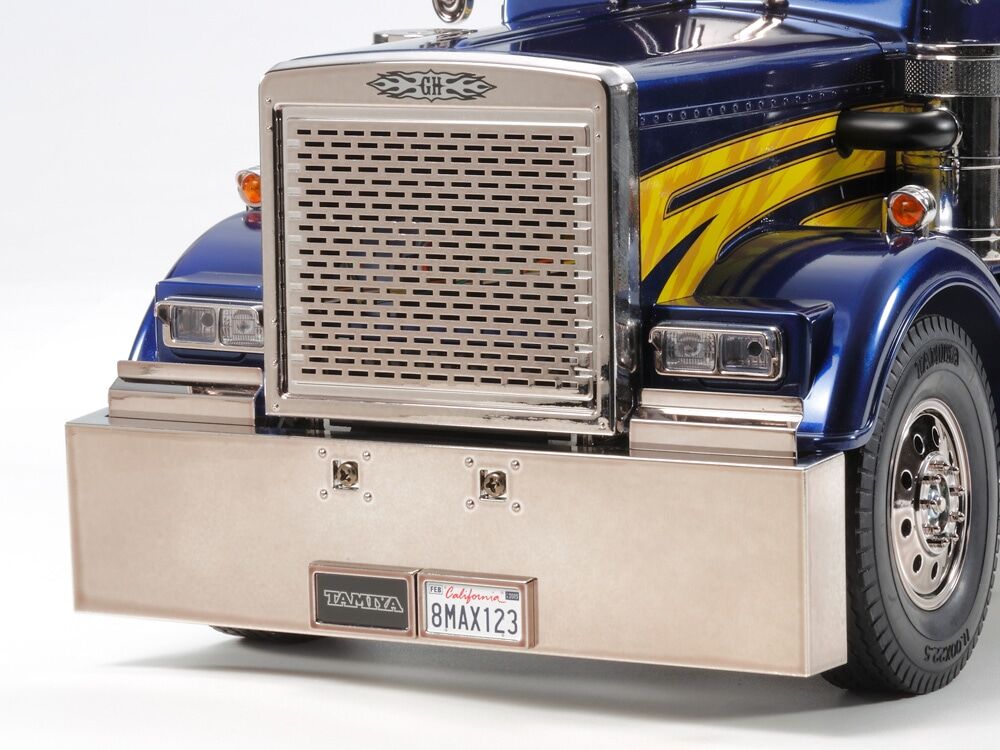

 Enjoy that customized mood

Enjoy that customized mood, enhanced by metal plated parts such as the front bumper and radiator grille.

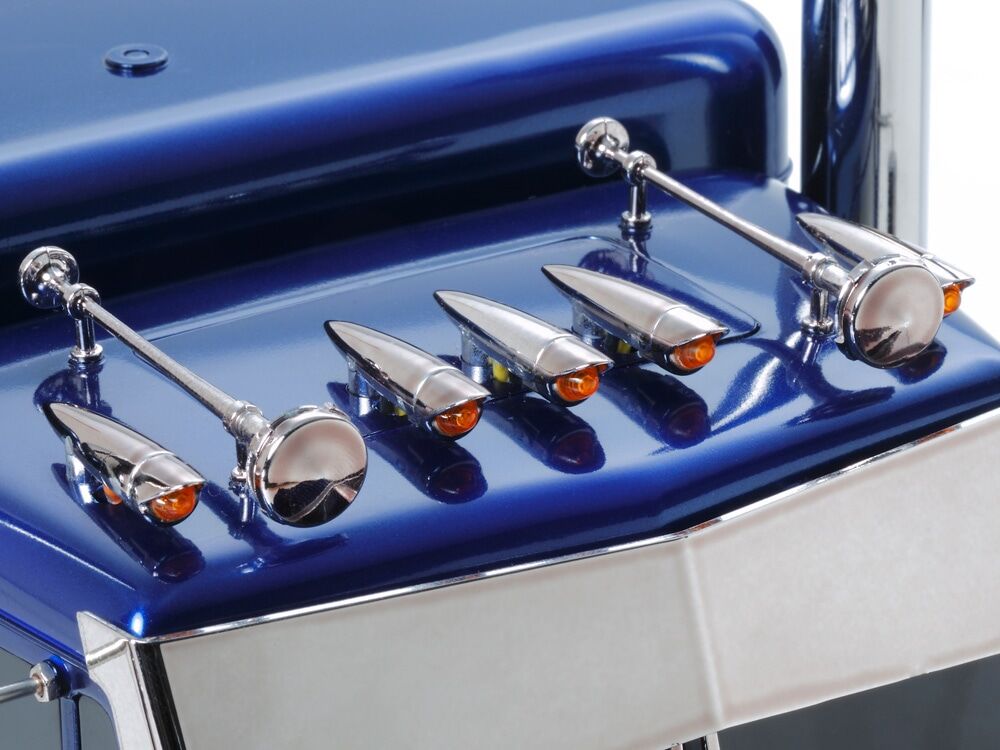

The roof also features plated horn

The roof also features plated horn and light bezel parts. LEDs can be inserted to light up your model!

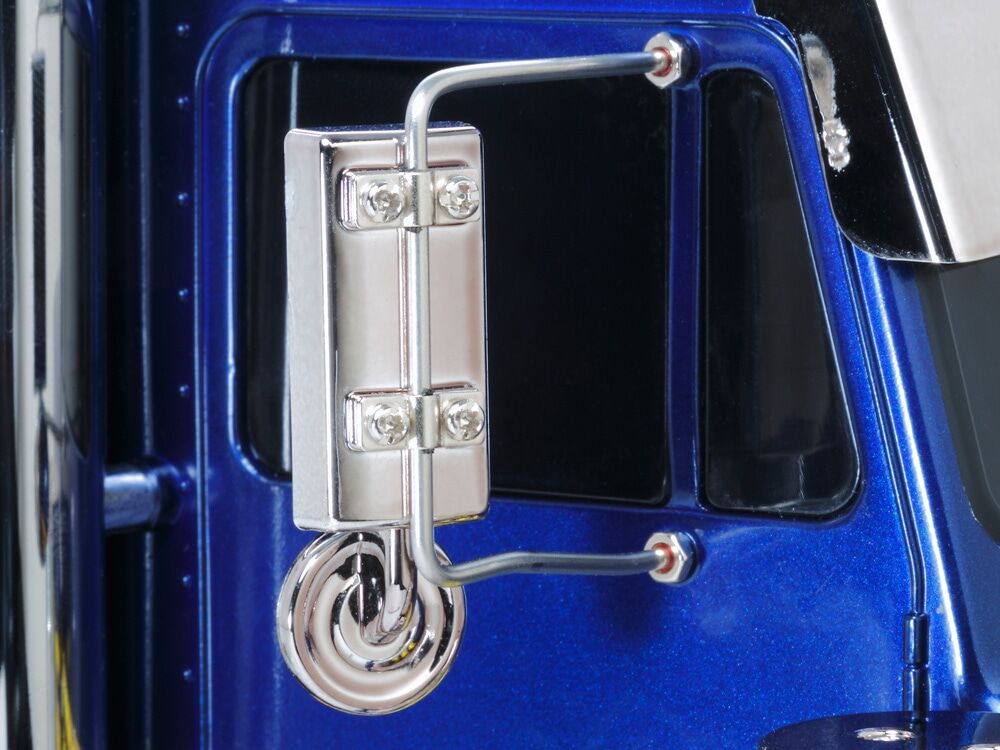

Plated side mirror

Plated side mirror parts also include kerb mirrors. Moving metal stays allow adjustment of mirror position.

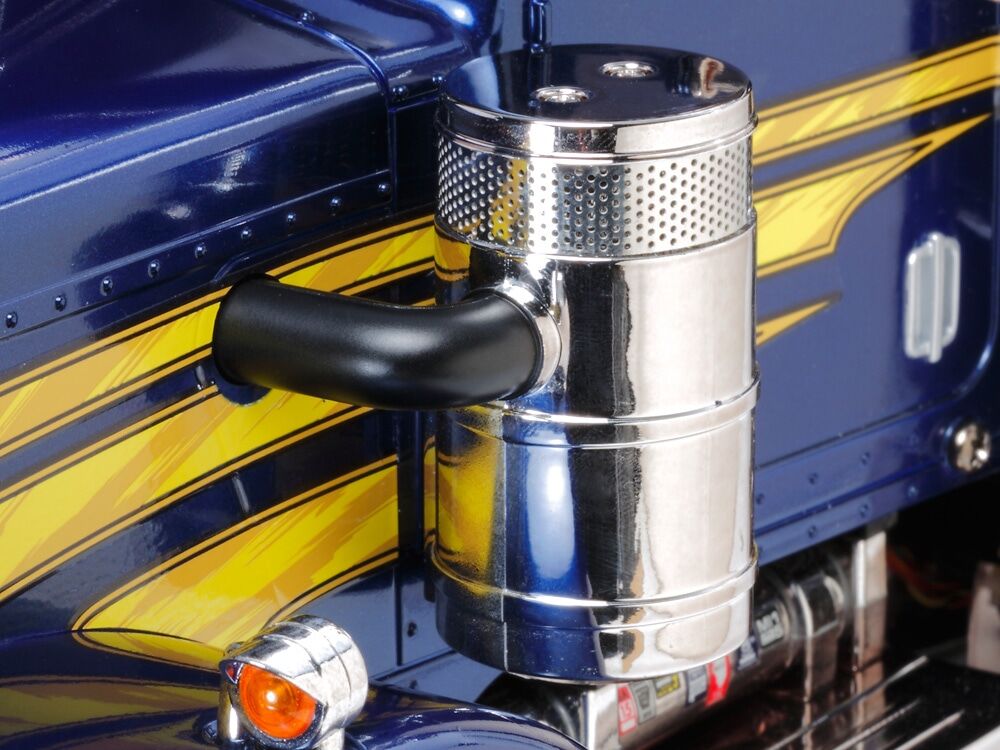

Further detail is added

Further detail is added to the oversized air cleaners, with photo-etched parts depicting air intakes.

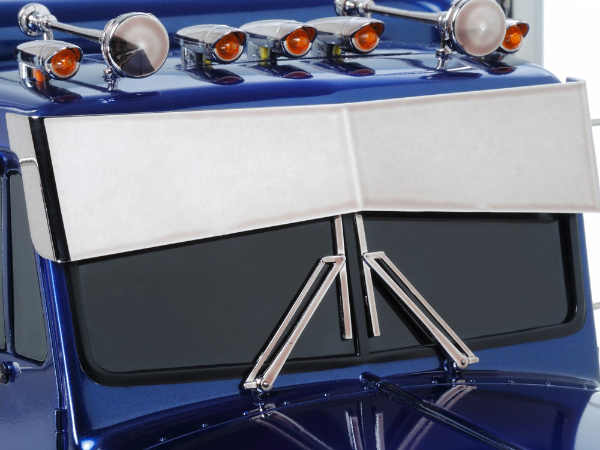

metal plated sun visor

The cab oozes a custom mood, enhanced by parts such as the bulky metal plated sun visor.

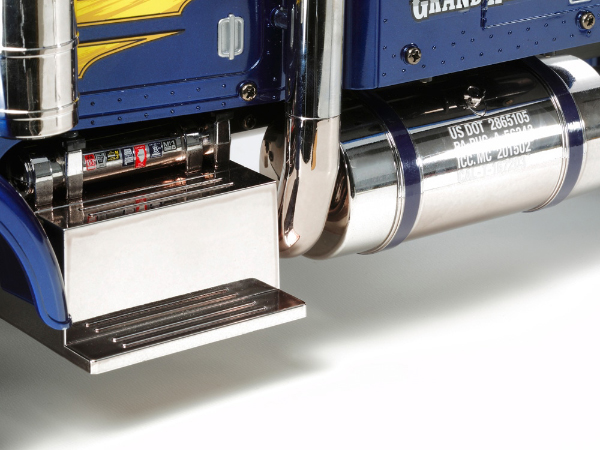

Lowered step

Lowered step provides storage location for MFC unit. Fuel tanks are also mounted low under the body.

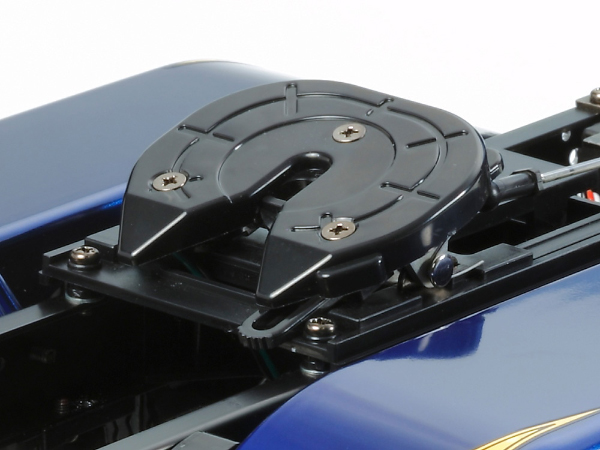

Use the coupler to attach

Use the coupler to attach any of Tamiya's 1/14 scale trailers, and listen out for the different engine sound.

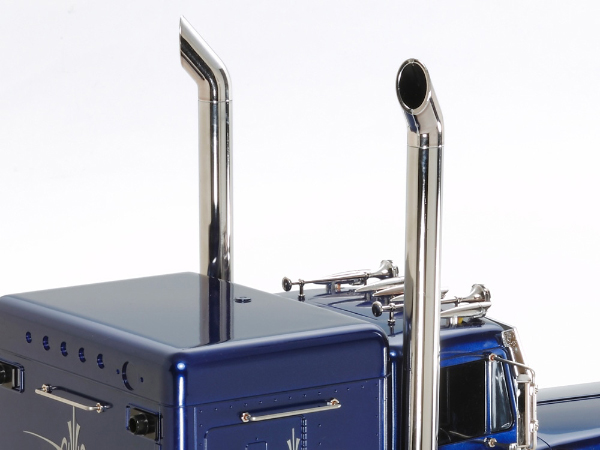

metal pipes to depict mufflers

Model utilizes metal pipes to depict mufflers, while their optional covers are gleaming metal-plated resin.

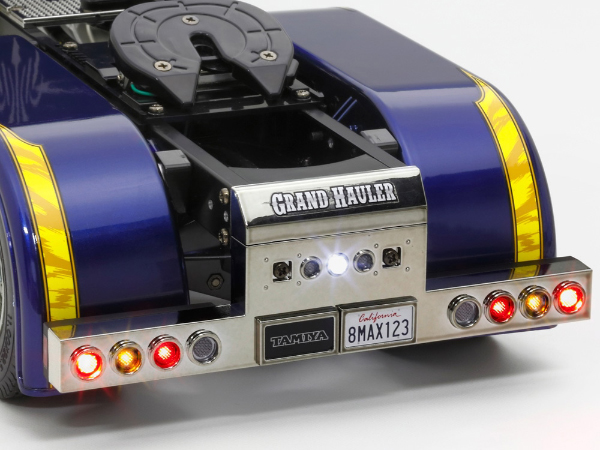

Low-down rear bumper

Low-down rear bumper offers multiple lamp positions, compatible with LEDs. Fender parts are included.



Required Items

1x Compatible Steering servo
1x Compatible Shift servo (for changing gears)
1x Compatible Stick Transmitter
1x Compatible 7.4V LiPo Battery
1x Compatible Charger
1x Polycarbonate Safe Paint
1x ABS Safe Paint
1x Compatible ESC (or the optional multi function unit)



Product Specifications

Length 692mm,
Width 192mm
Height 330mm
Weight Approx 3.9kg (*with all equipment attached)
Wheelbase 433mm+103mm
Tread 156mm (Front), 138mm (Rear, Double Tire)
Chassis Aluminum & Polycarbonate Resin Ladder Frame
Suspension Front/Rear Leaf Springs
Caster Angle(Front/Rear): 0°/0°
Camber Angle (Front/Rear): 0°/0°
Toe Angle (Front/Rear): 0°/0°
Dampers Front/Rear Aluminum Friction Dampers
Drivetrain Rear 2-Axle Drive
Transmission 3-Gear Transmission (gear shifting operated from transmitter)
Gear Ratio (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff Gear  3-Bevel Diff.
Motor Type 540
Tire Width 22mm (Front/Rear)
Tire Diameter 83mm (Front/Rear)
Required Items 4-channel transmitter & receiver, MFC-01, 2 servos, 7.2V battery  & Charger
SKU 56344-600
Barcode # 4950344563449
Brand Tamiya
Shipping Weight 6.0000kg
Shipping Width 0.440m
Shipping Height 0.200m
Shipping Length 0.720m
Shipping Cubic 0.063360000m3
