Product Details

Learn to fly Collective Pitch (CP) helicopters and advance into scale, sport, and 3D flying with the Revolution 235 CP – an updated and upgraded version of the best-selling Blade 230 S that’s easier to fly, more durable, and more capable for first-time to experienced heli pilots!
Revolution 235 RC HelicopterKey Features
  • An updated and upgraded version of the proven Blade 230 S that’s easier to fly, more durable, and more capable for first-time to experienced heli pilots
  • The perfect model to learn to fly Collective Pitch (CP) helicopters with before advancing into scale, sport, and/or 3D flying
  • Fully factory-assembled, flight-tested, and ready to fly right out of the box—no assembly or setup required
  • Equipped with improved SAFE technology that helps prevent crashes and makes it easy to learn how to fly
  • Spektrum DXS controller/transmitter with industry-leading DSMX 2.4GHz technology for reliable control without interference
In The Box
(1) Blade Revolution 235 CP with:
(1) Brushless Outrunner Tail Motor (installed)
(1) Brushless Outrunner Main Motor (installed)
(3) Spektrum Digital, Metal-Geared Servos (installed)
(1) Spektrum AR6250MHXD Flybarless Flight Controller and (1) Receiver with AS3X and SAFE
(1) Spektrum Dual 15A Main and 8A Tail Brushless Smart Lite ESC (installed)
(1) Main Blade Holder
(1) Spektrum DXS 2.4GHz DSMX Controller/Transmitter
(4) AA Alkaline Batteries (for the transmitter)
(1) Product Manual

Needed to Complete

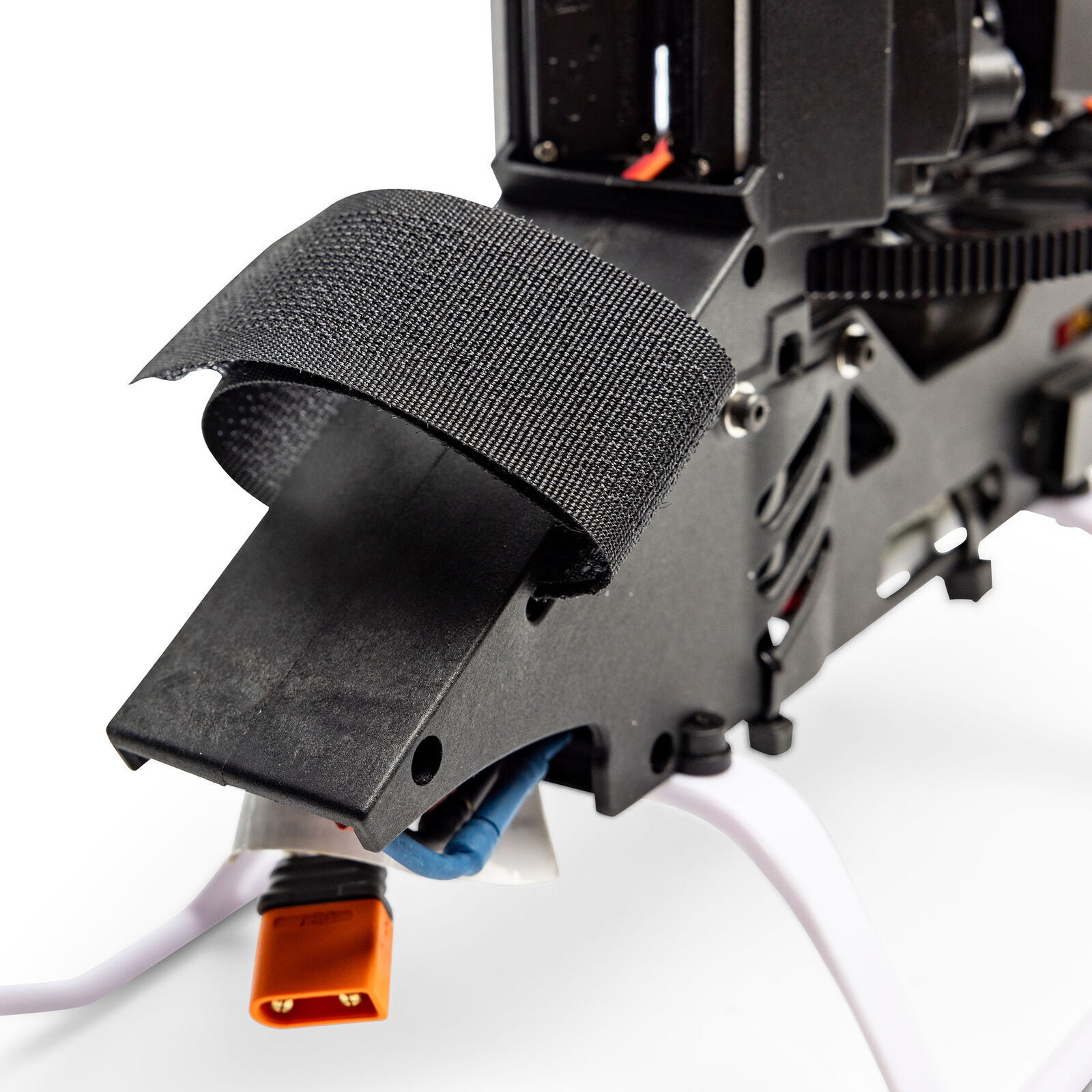

(1) 3S 11.1V 850mAh LiPo battery with IC2 connector (or use a suitable IC2 adapter, sold separately)
(1) Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA320, sold separately)


Blade Revolution 235 CP Video

Blade Revolution 235 CP RC Helicopter Overview

For almost a decade, more people learned to fly CP (Collective Pitch) helicopters with multiple versions of the Blade 230 S than any other model. The Revolution 235 CP is an updated and upgraded version of the proven 230 equipped with new features to make it even easier to fly, plus more capable and more durable than ever before. It features exclusive and innovative SAFE (Sensor Assisted Flight Envelope) technology that offers angle limits and improved self-leveling to help prevent crashes in Normal mode, and no limits in all other flight modes – plus Panic Recovery to “bail out” at the push of a button if you ever need it!

Updates and upgrades compared to the 230 include:

  • Improved flight controller tuning for better self-leveling performance when switching back to Normal (SAFE) mode
  • Updated frame design with optimized servo geometry and center of gravity for improved flight performance
  • Upgraded servos and improved rotor head geometry for increased precision and capabilities
  • Aluminum swashplate and rotor head block for added durability and precision

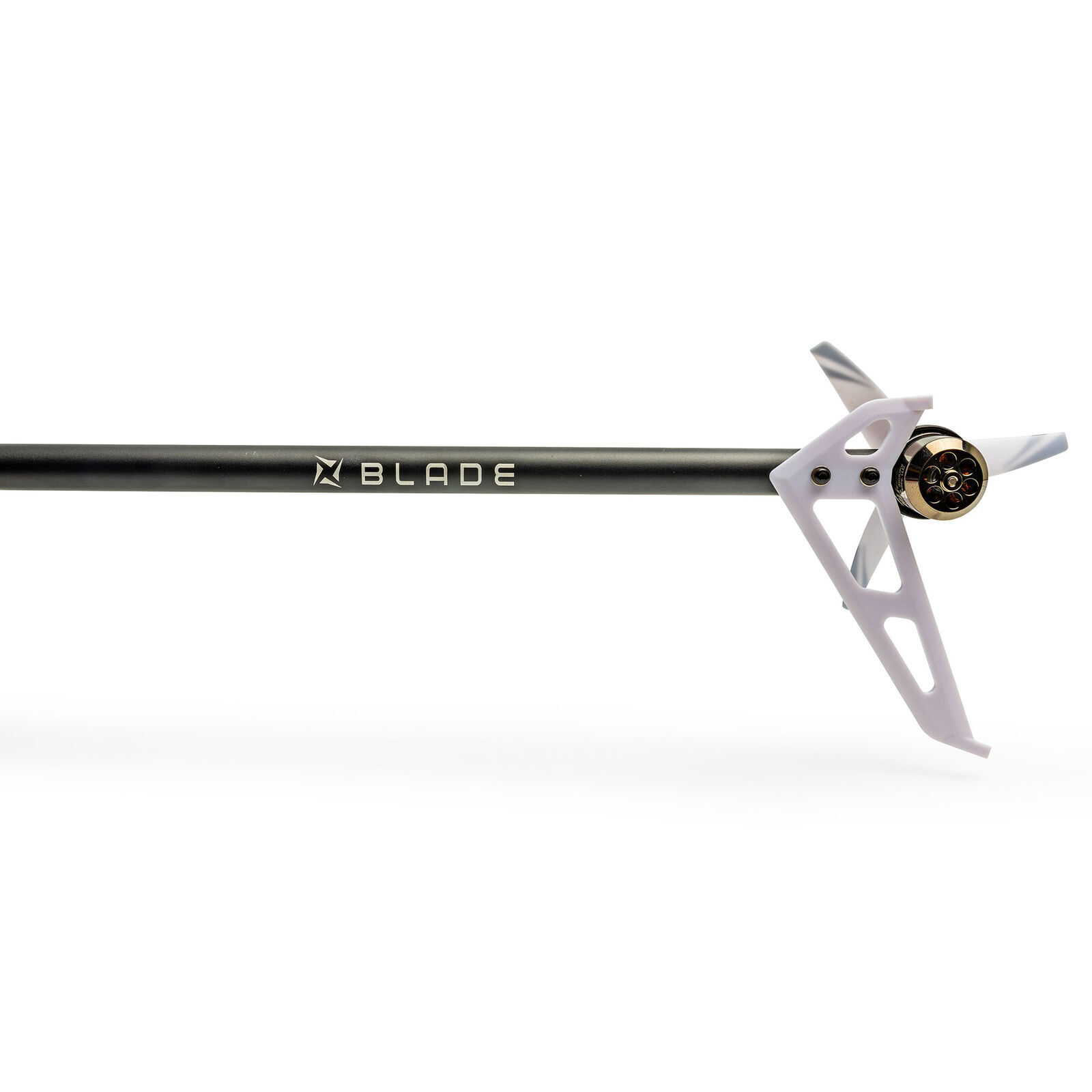

  • Larger diameter tail boom for increased rigidity and durability
  • More powerful and efficient main motor
  • New color scheme and option parts

Best of all the Revolution 235 CP arrives 100% factory-assembled, flight-tested, and ready to fly right out of the box—no assembly or setup required. The Ready-To-Fly (RTF) Basic version includes everything needed to fly in one box except for a battery and charger so it's a perfect choice for first-time to experienced pilots looking for maximum convenience and value. It allows you to choose a convenient and money-saving Spektrum Powerstage bundle or the separate battery and charger you prefer. Plus the included Spektrum DXS 2.4GHz transmitter can be used with other Bind-N-Fly (BNF) and BNF Basic aircraft after you learn to fly the Revolution 235 successfully! A Bind-N-Fly (BNF) Basic version is also available for pilots who want to use their current Spektrum transmitter along with Smart or non-Smart batteries and chargers they may already own. And both versions include a Spektrum flybarless flight controller and receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process to make it easier and faster to get flying with your favorite or upgraded transmitter.

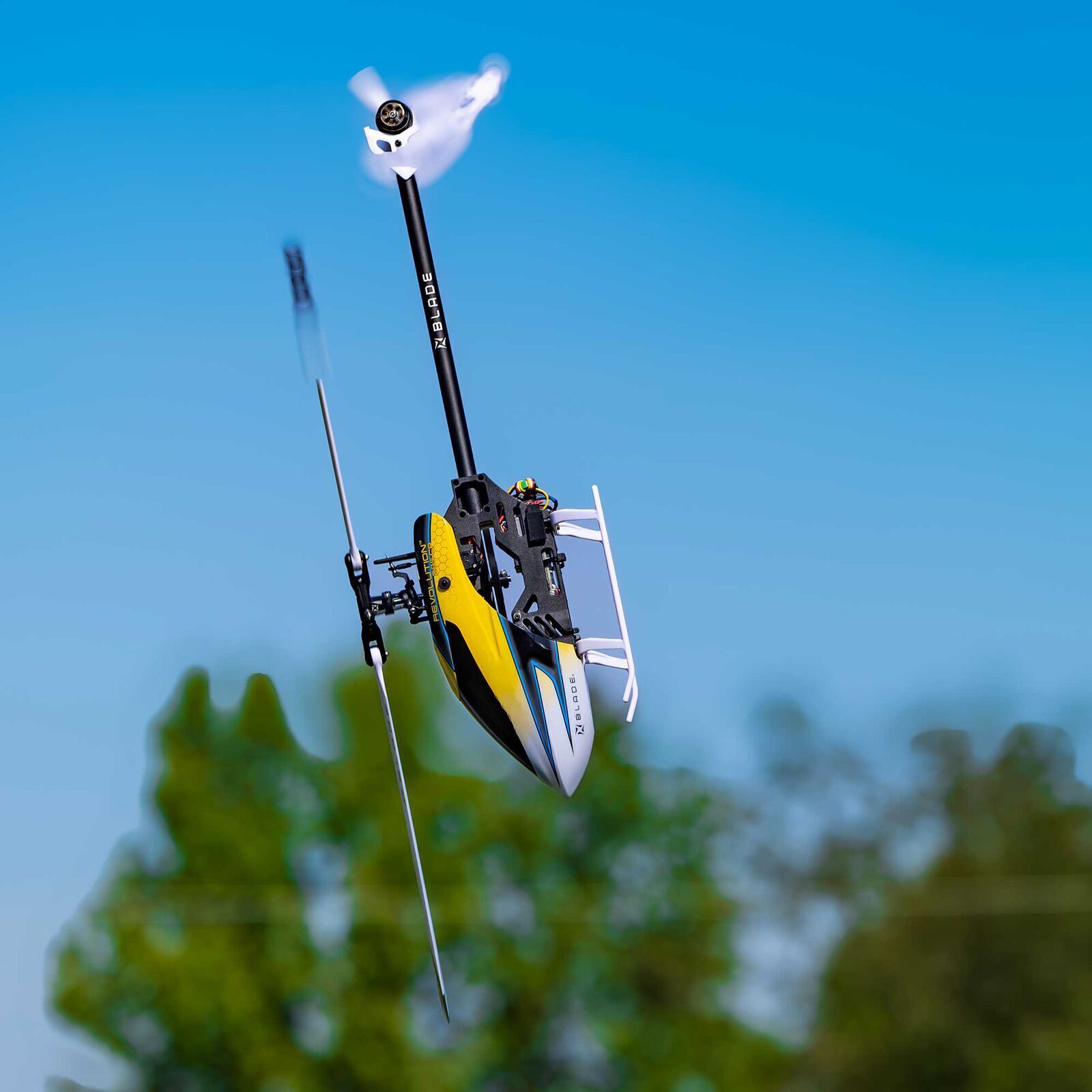

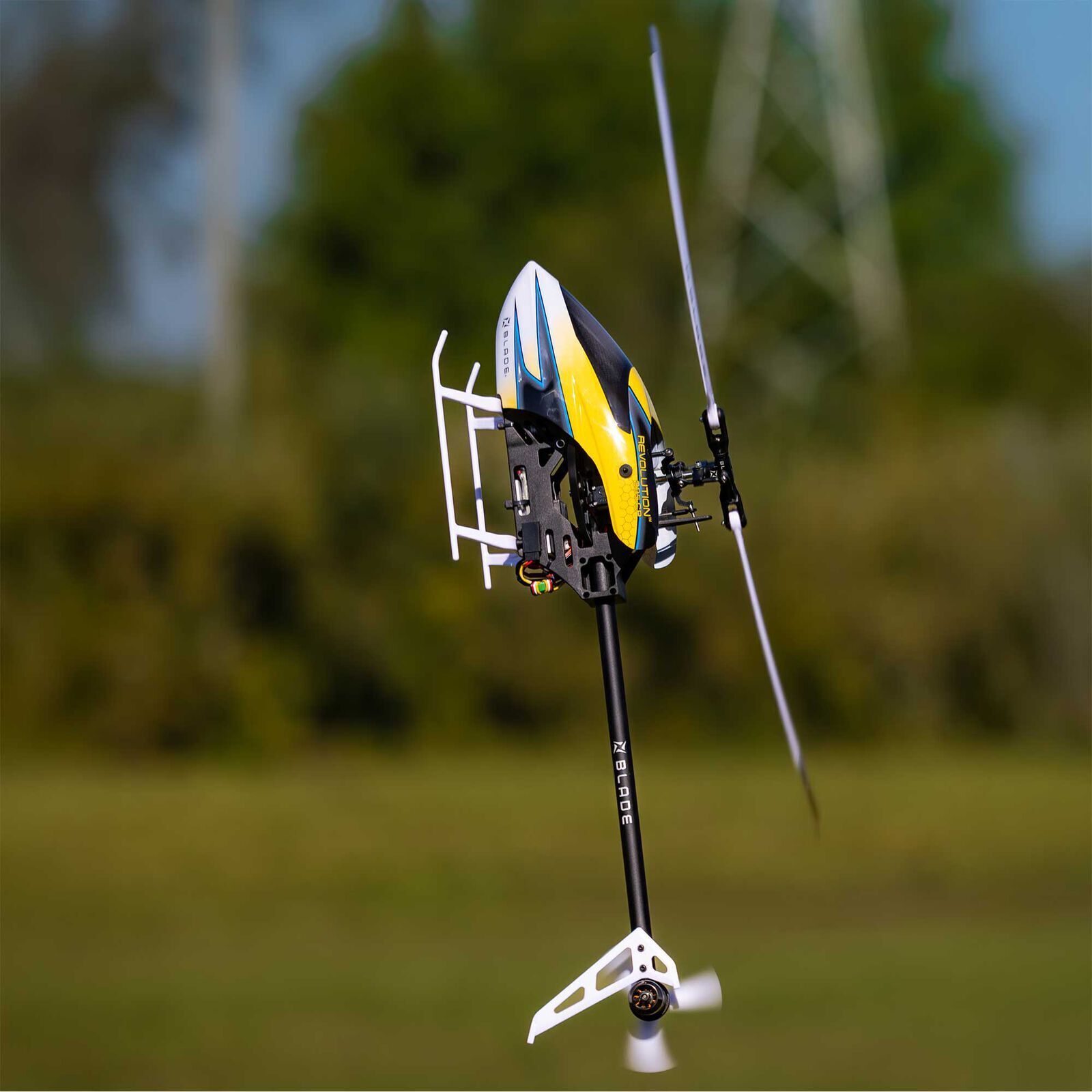

And the fun doesn't stop after you learn how to fly! In the Stunt/Idle Up flight modes the Revolution 235 CP is capable of performing basic aerobatic maneuvers including loops, rolls, inverted (upside down) flight, and more. It's even capable of 3D aerobatics whether you're an experienced pilot or are just learning to perform them. Plus you can customize and personalize more than ever before with different colors of main rotor blades, tail rotors, canopies, and even landing gear. There are also optional carbon fiber main rotor blades, aluminum blade grips, main motor and tail motor mounts, and updated light kits for flying at night.

You can purchase the RealFlight Trainer Edition RC Flight Simulator and a Spektrum WS2000 Wireless Simulator Dongle (together in the money-saving RFL-1212) to fly this and other models using the transmitter included with the RTF Basic version! The simulator features many of the most popular Horizon Hobby trainer aircraft and built-in Virtual Flight Instructor lessons. This helps new pilots learn to fly successfully by practicing on a PC at home or on a laptop just about anywhere else!

Blade Revolution 235 CP RC Helicopter Features

  • Mid-sized for improved visibility and stability when flying outdoors in yards, parks, sports fields, and beyond in light winds
  • Equipped with improved SAFE technology that helps prevent crashes and makes it easy to learn how to fly
  • Normal (SAFE) plus Stunt 1 and 2 (AS3X) flight modes you can easily change between at the flip of a switch
  • Panic Recovery mode at the push and hold of a button to prevent loss of control and crashes
  • Includes almost everything needed to fly except for a compatible LiPo battery and charger (sold separately)
  • Spektrum DXS controller/transmitter with industry-leading DSMX 2.4GHz technology for reliable control without interference
  • Receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process
  • Compatible with popular and affordable 3S 850mAh Smart and similar non-Smart LiPo batteries with IC2 connectors (or use a compatible IC2 adapter)
  • Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters (with Smart and non-Smart batteries)
  • Factory-installed Spektrum AR6250MHXD flybarless flight controller featuring exclusive AS3X and updated SAFE technologies
  • Improved flight controller tuning for better self-leveling performance when switching back to Normal (SAFE) mode
  • Factory-installed digital, metal-geared cyclic servos with precise ball-link equipped linkages
  • Updated frame design with optimized servo geometry and center of gravity for improved flight performance
  • Upgraded servos and improved rotor head geometry for increased precision and capabilities
  • Aluminum swashplate and rotor head block for added durability and precision
  • Larger diameter tail boom for increased rigidity and durability
  • More powerful and efficient main motor
  • Full line of replacement/spare parts available
  • Practice flying this aircraft in the RealFlight simulator (sold separately)
  • Customize and personalize with different colors of main rotor blades, tail rotors, canopies, and landing gear (sold separately)
  • Optional carbon fiber main rotor blades, aluminum blade grips, main motor, and tail motor mounts (sold separately)
  • Updated Night Light Kit directly compatible with IC2 connectors (sold separately)
Skill Level 1 – No Experience Required

Skill Level 1 aircraft, like this one, are perfect for beginners and first-time RC (Radio Controlled) helicopter pilots because no prior experience is required to fly them!

Ready to Fly

Ready-To-Fly Basic Flexibility

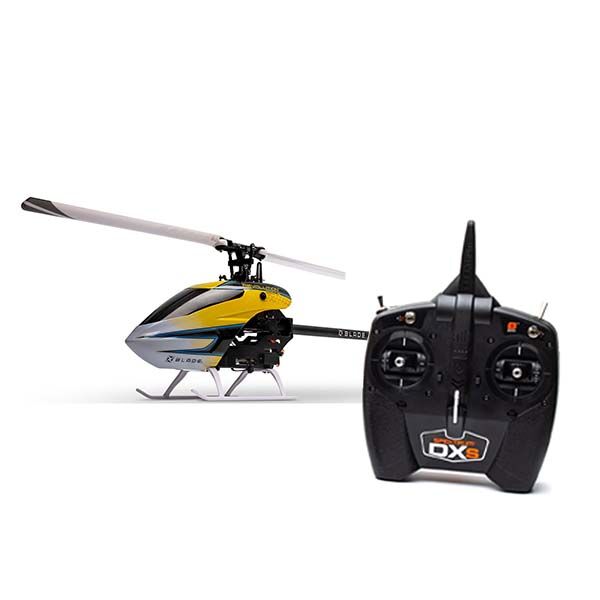

This Ready-To-Fly (RTF) Basic version includes a Spektrum DXS controller/transmitter equipped with industry-leading DSMX 2.4GHz technology and everything else you need to fly except for a rechargeable lithium polymer (LiPo) battery and charger for the helicopter. The convenient and money-saving Spektrum Powerstage 1 bundle (SPMXPSA100) includes a compatible 3S 850mAh Smart G2 LiPo battery, an IC2 to IC3 adapter, and an S120 Smart charger that can be used with a variety of USB power sources. Or you can choose the separate 3S 850mAh (or similar) battery and compatible charger you prefer!

AR6250MHXD flybarless flight controller

Exclusive Technologies

The factory-installed and expertly-tuned AR6250MHXD flybarless flight controller features exclusive Spektrum AS3X and SAFE technologies. The updated SAFE technology features angle limits and improved self-leveling to help prevent crashes in Normal mode. AS3X smooths out the effects of wind and turbulence with no limits or self-leveling in all other flight modes so you can fly inverted and perform aerobatics too. Plus, you can use Panic Recovery to “bail out” at the push and hold of a button if you ever need it!

Telemetry Capable

Telemetry Capable

The Revolution 235 is equipped with a Spektrum Smart ESC, flight controller, and a receiver that provides – with Smart and non-Smart batteries – real-time overall flight battery voltage, motor RPM, and other telemetry information to compatible Spektrum AirWare equipped transmitters (including the DXS, DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6 to 20, the iX12 to 20, and others) while you fly.

Fly Successfully with SAFE

Learn to Fly Successfully with SAFE® Technology

If this is your first RC helicopter, Horizon Hobby-exclusive SAFE (Sensor Assisted Flight Envelope) technology prevents over-control and crashes while also offering multiple flight modes to deliver more control and capabilities as your skills progress:

Normal (SAFE) Mode

Normal (SAFE) Mode

In this flight mode, the helicopter has pitch and bank angle limits to prevent over-control that can result in a loss of orientation and crashes. When the control sticks are released, the helicopter automatically returns to level flight on its own allowing you to relax and enjoy just 'steering' the helicopter through the sky rather than focusing on keeping it level. This flight mode also makes it much easier to take off and land!

Stunt/Idle Up 1 (AS3X) Mode

Stunt/Idle Up 1 (AS3X) Mode

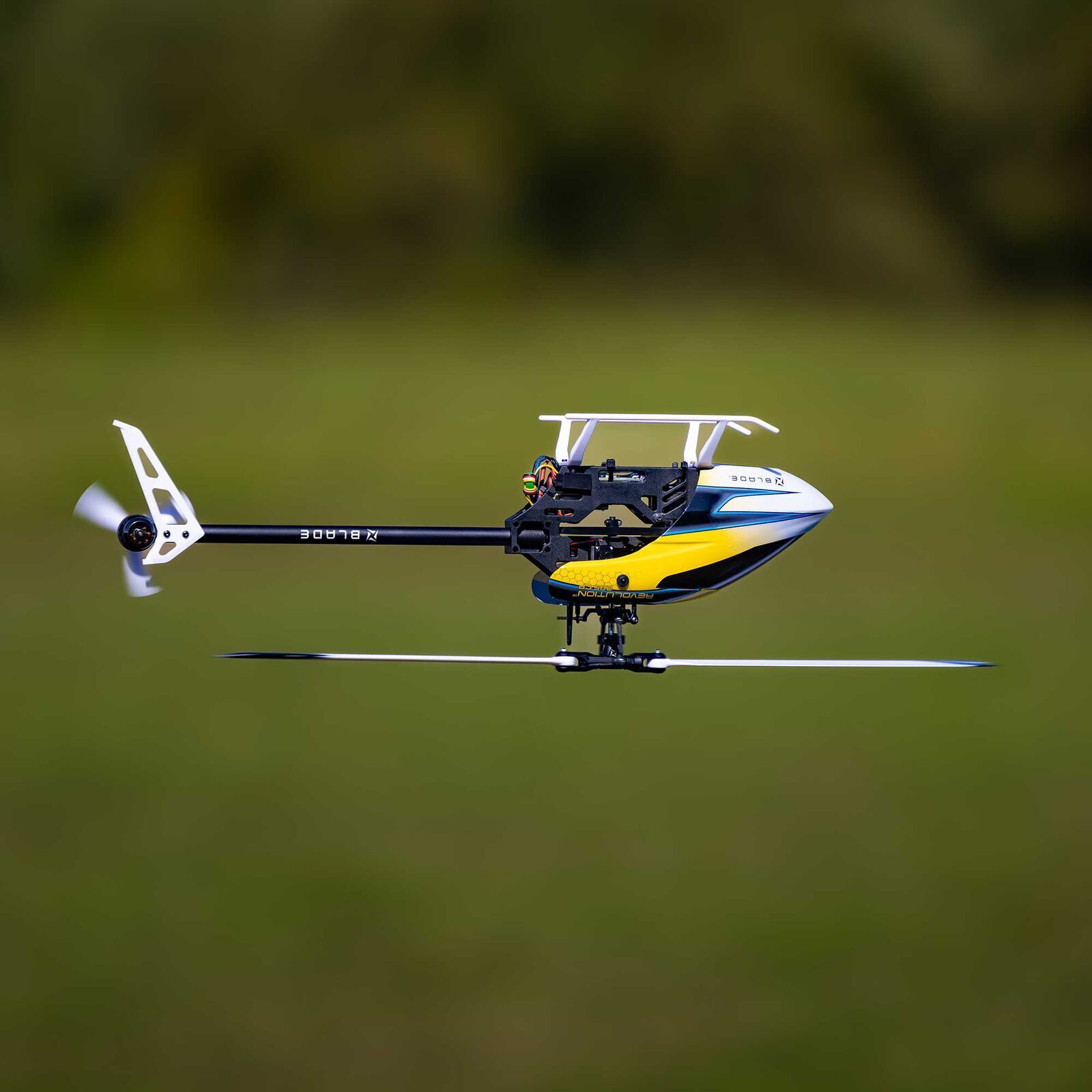

There are no pitch or bank angle limits in this flight mode so you have complete control! The head speed is higher and more constant than in the Normal mode which allows you to fly inverted (upside down) and perform basic aerobatic maneuvers including loops, rolls and more.
Stunt/Idle Up 2 (AS3X) Mode
Stunt/Idle Up 2 (AS3X) Mode

In this flight mode there are no limits and the head speed is even higher so you can perform more aggressive and 3D aerobatic maneuvers.
Panic Recovery

If you lose control of the helicopter in the Stunt/Idle Up flight modes, simply press and hold the Panic Recovery button or switch to Normal mode and release the right-hand control stick. SAFE technology will automatically return the helicopter to upright and level flight!
Durable Precision

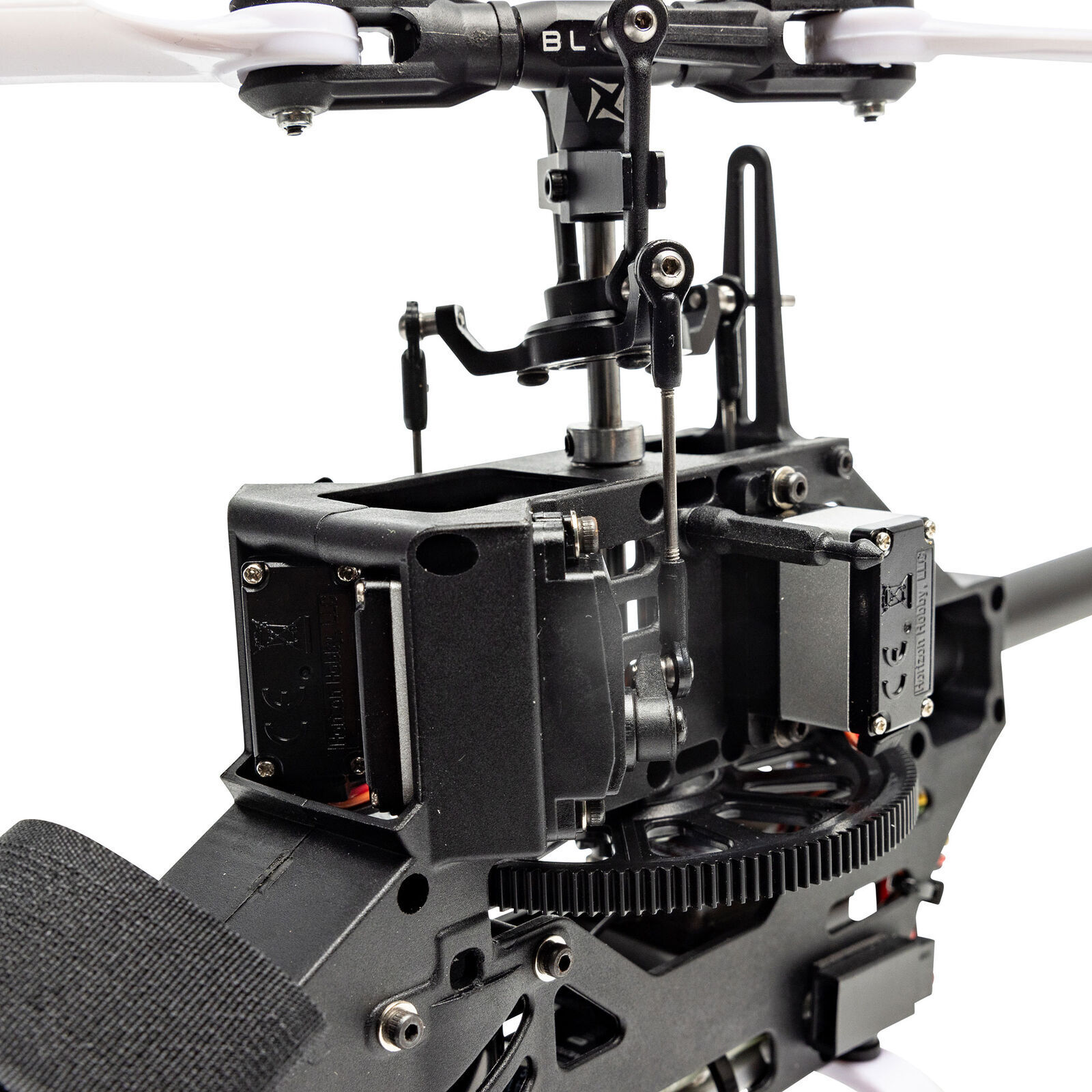

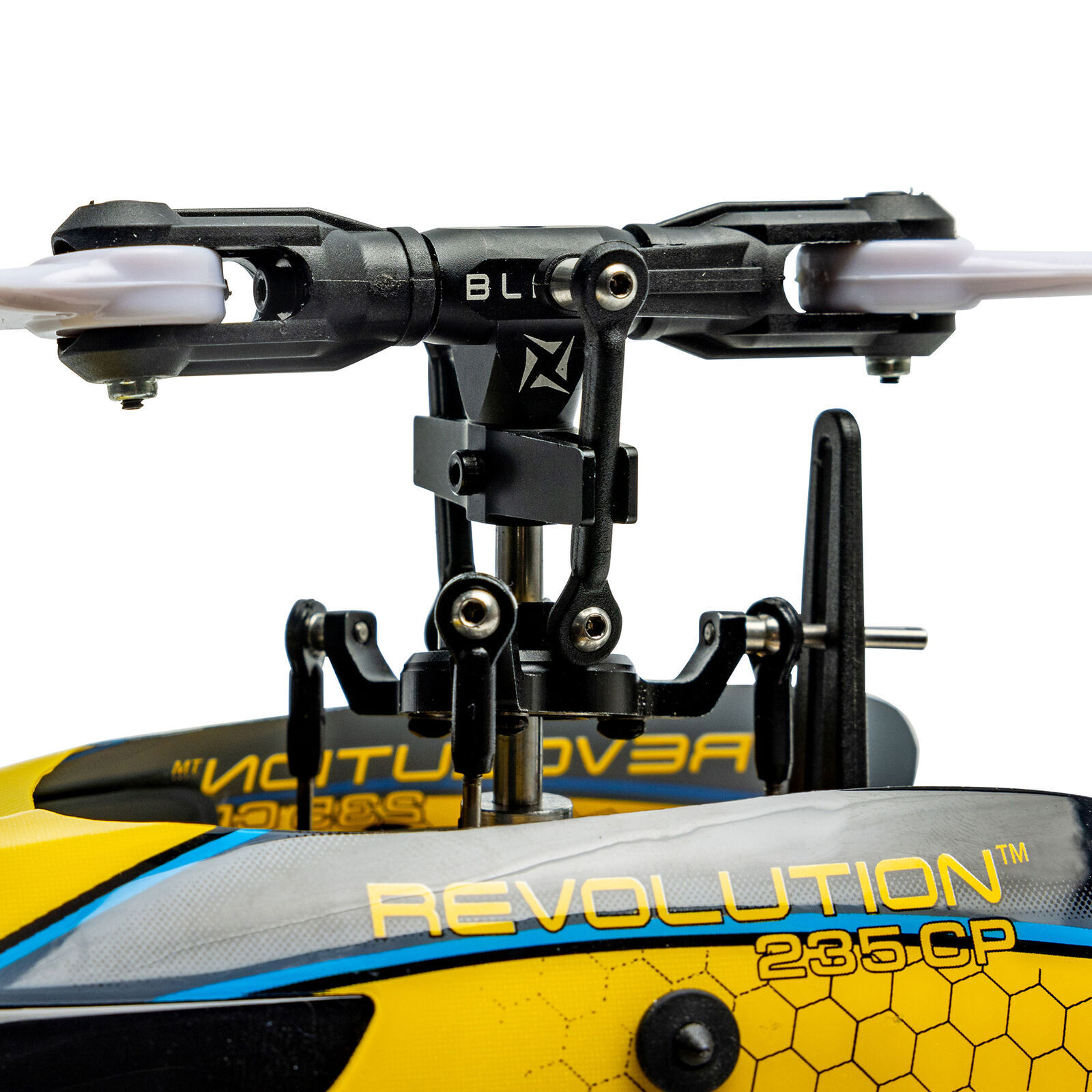

The upgraded digital, metal-geared cyclic servos along with an updated frame design featuring optimized servo and improved rotor head geometry, an aluminum swashplate and rotor head block deliver added durability, precision and capabilities.
Collective Pitch

The CP (Collective Pitch) main rotor mechanics offer smooth control to deliver a unique blend of hovering, sport, and aerobatic flying capabilities you can't get with FP (Fixed Pitch) mechanics.

Fully Assembled

Fully Assembled

The Revolution 235 arrives 100% factory-assembled, flight-tested, and ready to fly right out of the box! It's equipped with industry-leading Spektrum 2.4GHz technology that's already bound to the DXS controller/transmitter included with the RTF Basic version, and both versions bind to most 6+ channel DSMX/DSM2 equipped transmitters.

High Power

High Power

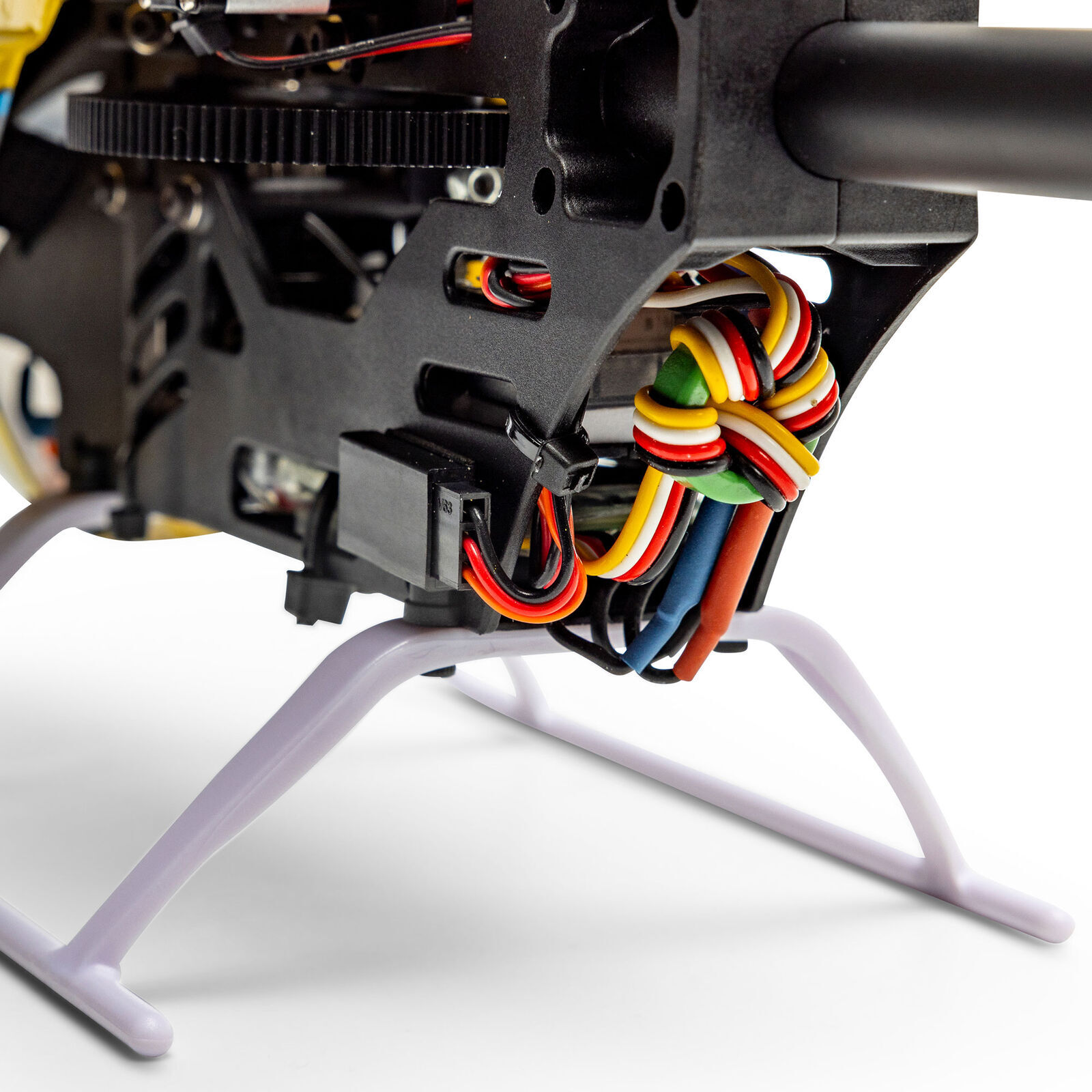

The more powerful and efficient brushless main motor plus the tail motor are connected to a factory-installed Spektrum Dual Smart ESC and are compatible with popular and affordable 3S 850mAh Smart and similar non-Smart LiPo batteries with IC2 connectors (or use a compatible IC2 adapter).

Option Parts

Option Parts

You can customize and personalize the Revolution 235 CP with different colors of main rotor blades, tail rotors, canopies, and landing gear. There are also optional carbon fiber main rotor blades, aluminum blade grips, main motor and tail motor mounts, plus updated light kits for flying at night (option parts are sold separately).

Replacement Parts

If you damage any airframe parts or components and can't repair them a full line of replacement/spare parts is readily available.

Product Specifications

Approximate Assembly Time No Assembly Required
Battery Sold Separately
Canopy/Body Material Plastic
Charger Sold Separately
Completion Level Ready-To-Fly Basic
Gear Ratio 10.77:1
Main Blade Material Plastic
Main Frame Material Plastic
Main Motor Type Brushless
Main Rotor Blade Length 9.25" (235 mm)
Main Rotor Diameter 21.93" (557 mm)
Main Rotor Head Type Collective Pitch Flybarless
Motor Size 3400Kv
Pinion 13T
Power Type Electric
Product Height 6.6" (168 mm)
Product Length 18.5" (470 mm)
Product Weight Without Battery: 11.82 oz (335g) / With Recommended 3S 850mAh Flight Battery: 14.29 oz (405g)
Product Width 3.5" (89 mm)
Radio Included
Receiver Included
Recommended Motor Battery 3S 11.1V 850mAh LiPo battery with an IC2 connector
Servos Included
Skill Level Level 1
Speed Control Included
Tail Blade Material Plastic
Tail Motor Type Brushless Outrunner, 3600Kv
Tail Rotor Diameter 1.65" (42 mm)
Technology SAFE, AS3X, Smart
SKU BLH014001
Brand Blade
Shipping Weight 4.0000kg
Shipping Width 0.230m
Shipping Height 0.180m
Shipping Length 0.540m
Shipping Cubic 0.022356000m3
