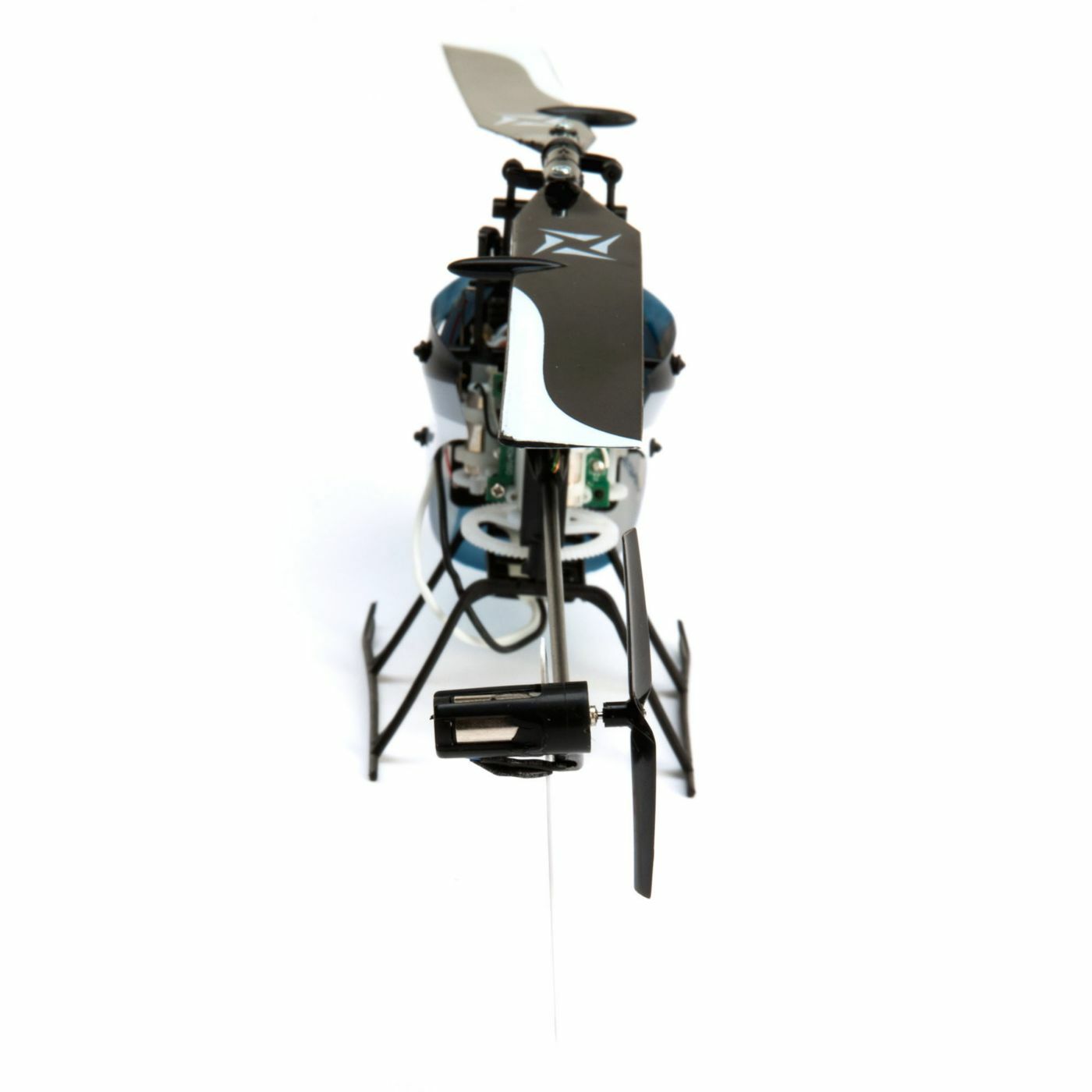

Product DetailsBlade Nano S3 RC Helicopter

The best micro RC collective pitch helicopter gets even better! The Blade® Nano S3 heli offers built-in telemetry and an improved stabilizing system to handle difficult maneuvers.



In The Box

  • Fully Assembled Nano S3 micro helicopter x 1
  • Factory-installed Spektrum™ 2.4GHz DSMX® receiver x 1
  • Tools and Extras
  • Nano S3 BNF Basic Manual x 1



Needed to Complete

  • 6+ channel Spektrum™ 2.4GHz DSM2®/DSMX® Transmitter x 1
  • 150mAh 1S 3.7V 45C LiPo Battery x 1
  • Compatible LiPo Charger x 1



Instruction Manual Blade Nano S3 RC Helicopter BNF - Download

Nano S3 BNF Basic with AS3X and SAFE Overview

The best micro RC collective pitch helicopter gets even better! The Blade® Nano S3 heli builds on the widely popular Nano S2 and offers key technology improvements including built-in voltage telemetry right to your compatible Spektrum™ transmitter. 3D aerobatic expertise is at your fingertips with new features that make mastering difficult maneuvers such as flips and inverted flight easier to learn for all skill levels.

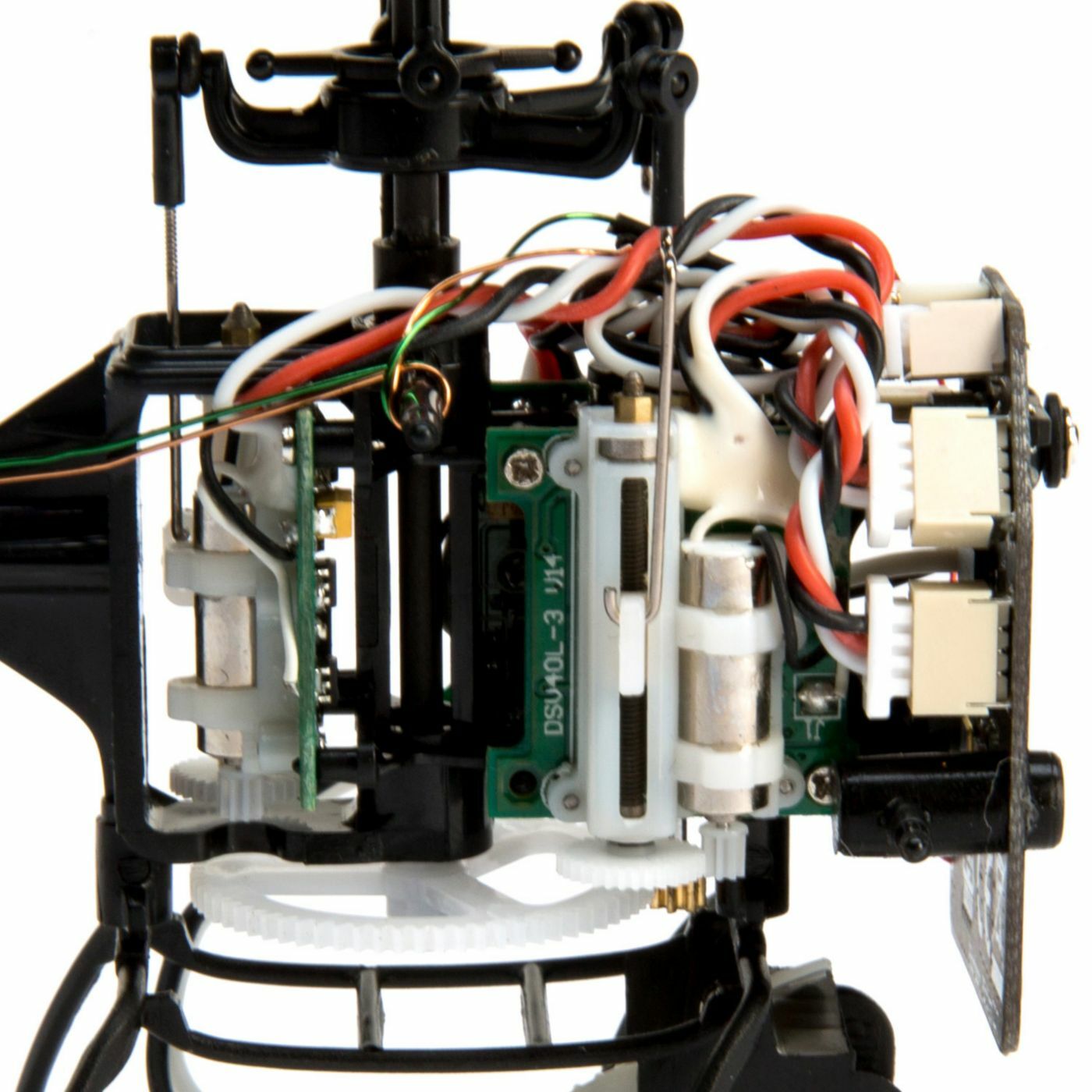

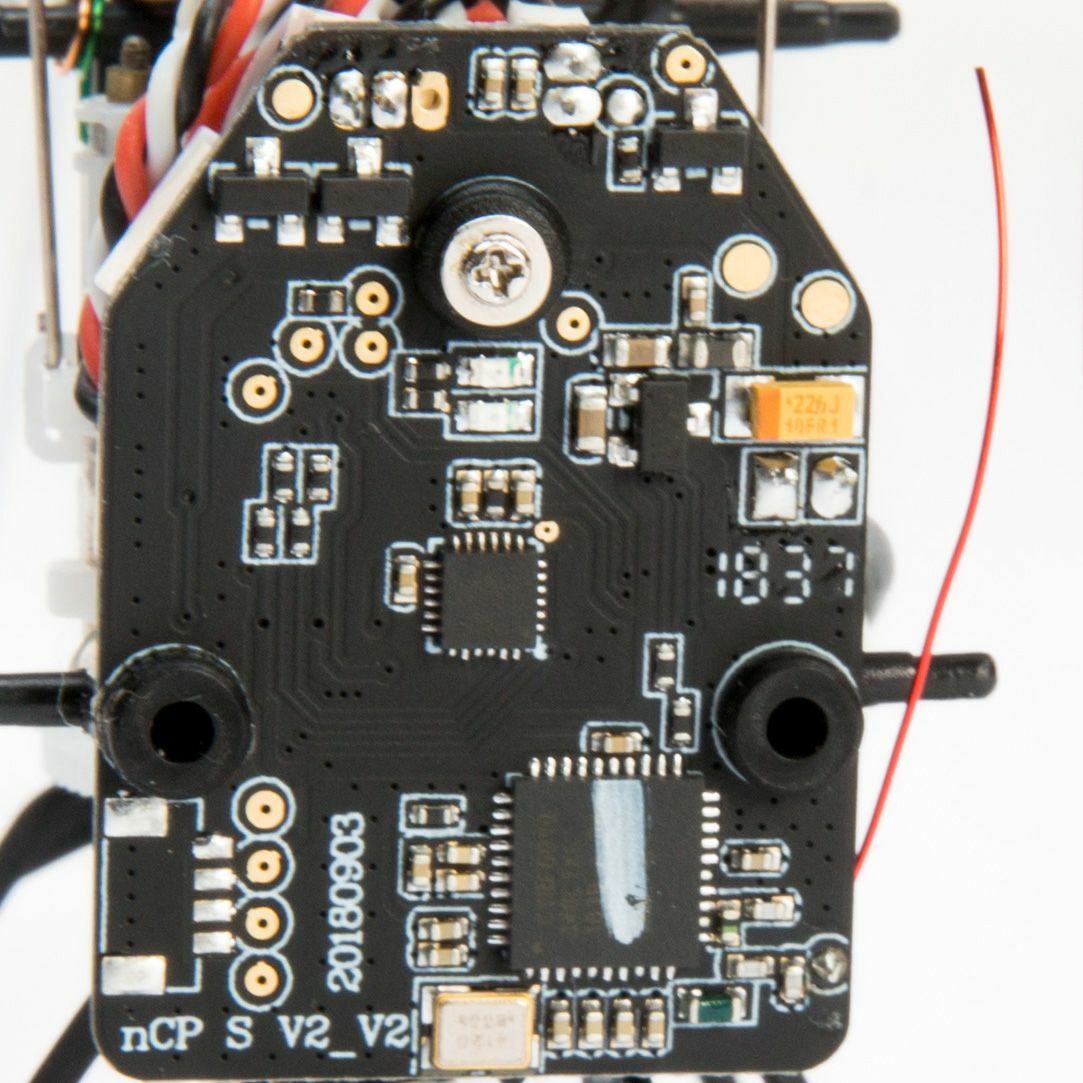

A new flight controller comes totally re-tuned from the ground up improving AS3X® stability, an improved SAFE® mode with angle demand, and an improved panic recovery. On top of that, the SAFE Z altitude control utilizes the on-board accelerometer to keep the heli at a consistent altitude. With its vertically mounted flight controller, it significantly improves damping and removes vibration to the gyro. What you get is a heli with incredible control and performance and the ability to execute dazzling 3D maneuvers. Linear servos deliver the muscle for impressive control authority while the 45C LiPo flight battery produces efficient power for 3D flight.

Construction with super-resilient polymers along with a carbon-fiber main shaft and tail boom give the model's lightweight airframe amazing durability. Most impacts that occur while practicing 3D maneuvers cause no harm. If you do happen to need a repair, nearly all the parts from the Nano S2 are compatible with the new Nano S. With the Nano S, hone your indoor 3D skills like never before.

Integrated Telemetry

Integrated Telemetry

Pilots can also take advantage of telemetry with compatible Spektrum transmitters. Count on the industry-leading reliability of Spektrum technology to deliver precision control that's ideal for any flying site environment.

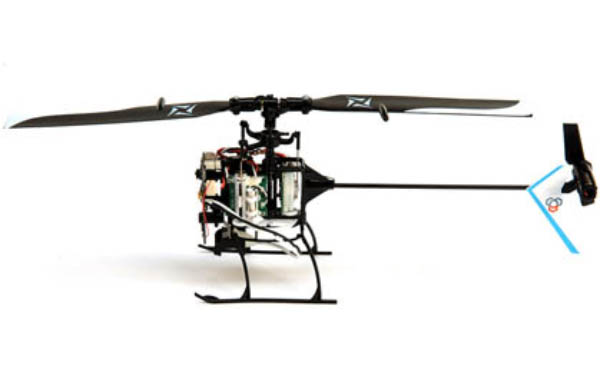

Durable

Durable

The lightweight airframe features durable polymers and carbon-fiber components that deliver mechanical precision and the tolerance to absorb typical mishaps.

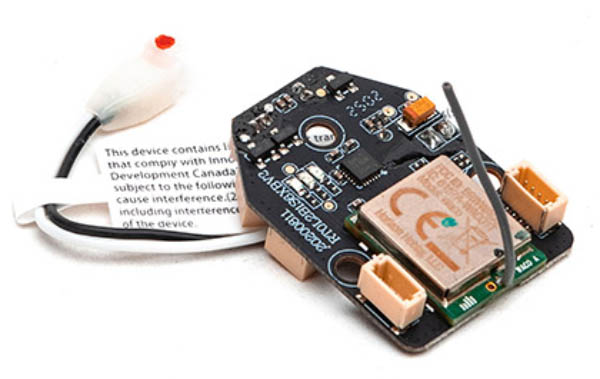

SAFE-Z Altitude Control

SAFE-Z Altitude Control

SAFE-Z Altitude Control helps keep the heli at a consistent altitude via accelerometer programming.

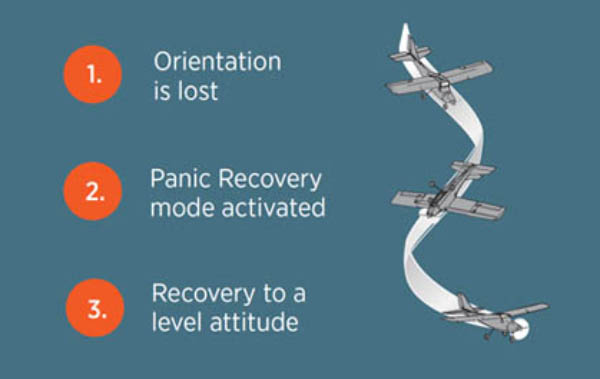

Panic Recovery Mode

Panic Recovery Mode

Instantly recovers the heli to a level altitude to prevent crashes. If you lose orientation, just press the Panic Recovery button and you'll recover to a level attitude.

SAFE Technology

SAFE Technology

The Blade® Nano S3 heli features exclusive SAFE (Sensor Assisted Flight Envelope) technology, the revolutionary electronic flight protection system that enables anyone to fly with confidence. With SAFE technology's versatile flight mode system, you can choose the right amount of assistance with the flip of a switch.

Flight Modes

Three Flight Modes



Nano S3 BNF Basic with AS3X and SAFE Product Specs

Approximate Assembly Time No Assembly Required
Approximate Flight Time 4-5 minutes
Battery Sold Separately
Canopy/Body Material Plastic
Charger Sold Separately
Completion Level Bind-N-Fly Basic
Main Blade Material Plastic
Main Frame Material Plastic
Main Motor Type Brushed
Main Rotor Blade Length 3.3" (84 mm)
Main Rotor Diameter 7.71" (196 mm)
Main Rotor Head Type Collective Pitch Flybarless
Minimum Required Radio DSM2®/DSMX® Compatible Transmitter
Power Type Electric
Product Height 3.11" (79 mm)
Product Length 7.87" (200 mm)
Product Weight Without Battery: 28g / With Recommended 1S 150mAh Flight Battery: 32g
Radio Sold Separately
Receiver Included
Recommended Motor Battery 150mAh 1S 3.7V 45C Li-Po Battery
Skill Level Level 2
Speed Control Included
Tail Blade Material Plastic
Tail Drive Direct Drive
Tail Motor Type Coreless
Tail Rotor Diameter 1.57" (40 mm)
Technology AS3X and SAFE
SKU BLH013050
Barcode # 0605482727478
Brand Blade
Shipping Weight 0.7000kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.260m
Shipping Cubic 0.003094000m3
