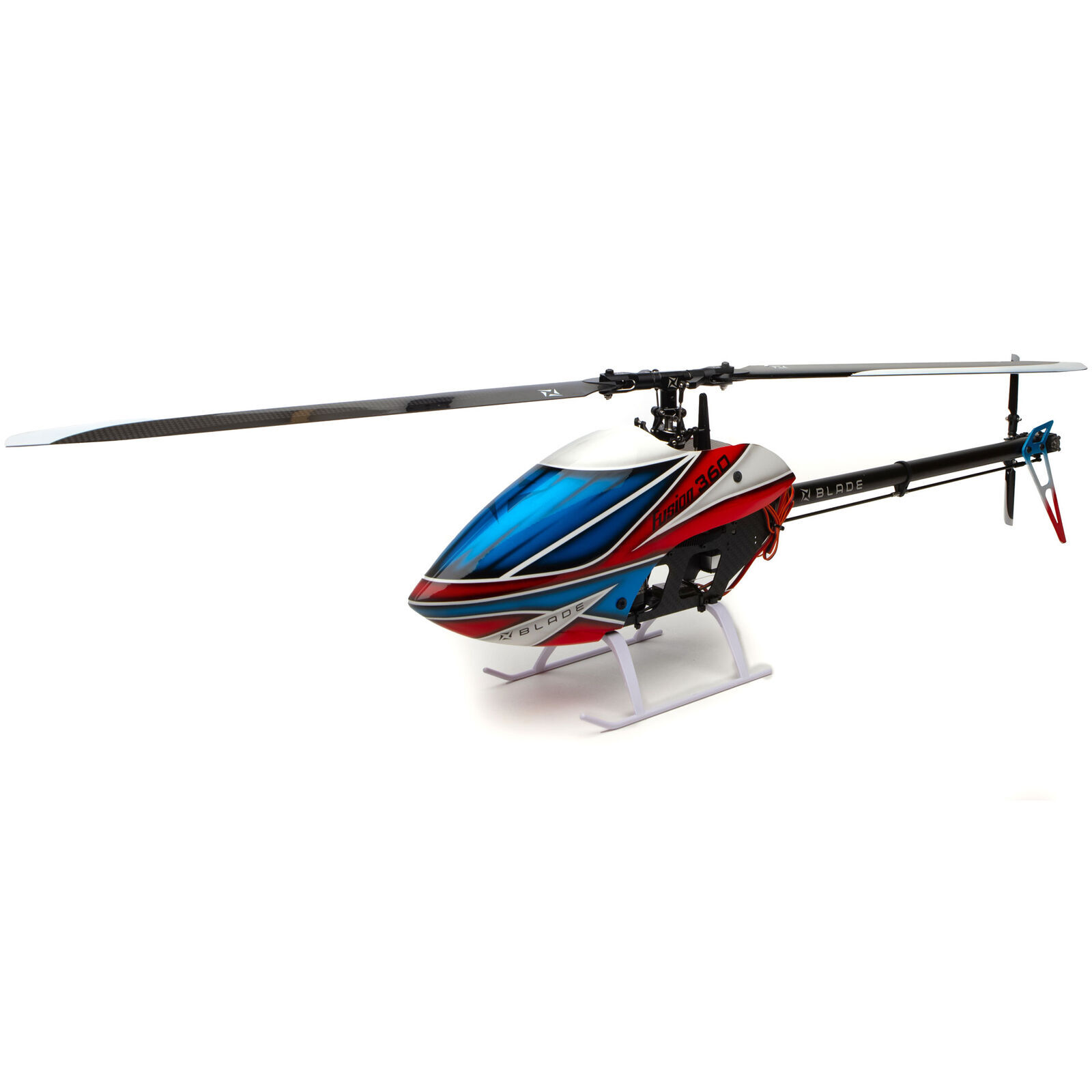

Fusion 360 Smart BNF Basic with SAFE BLH6150 From RCMA Model & Hobby Shop

Product Details

In The Box

(1) Factory Assembled Blade Fusion 360 Smart helicopter
(1) 350mm Carbon Fiber Main Rotor Blade
(2) 65mm Composite Plastic Tail Rotor Blades
(1) Spektrum 6250HX Flybarless Flight Controller
(1) Spektrum 4651T 2.4GHz DSMX® Receiver with Telemetry
(1) Spektrum™ Avian™ Smart 45 amp ESC
(3) Sub-Micro Digital Metal Geared Heli Cyclic Servos
(1) Sub-Micro Digital Metal Geared Heli MG Servo
(1) Product Manual
(1) Brushless Outrunner Motor 3400Kv

Needed to Complete

(1) Full-range 6+ channel Spektrum™ 2.4GHz DSM2®/DSMX® Transmitter

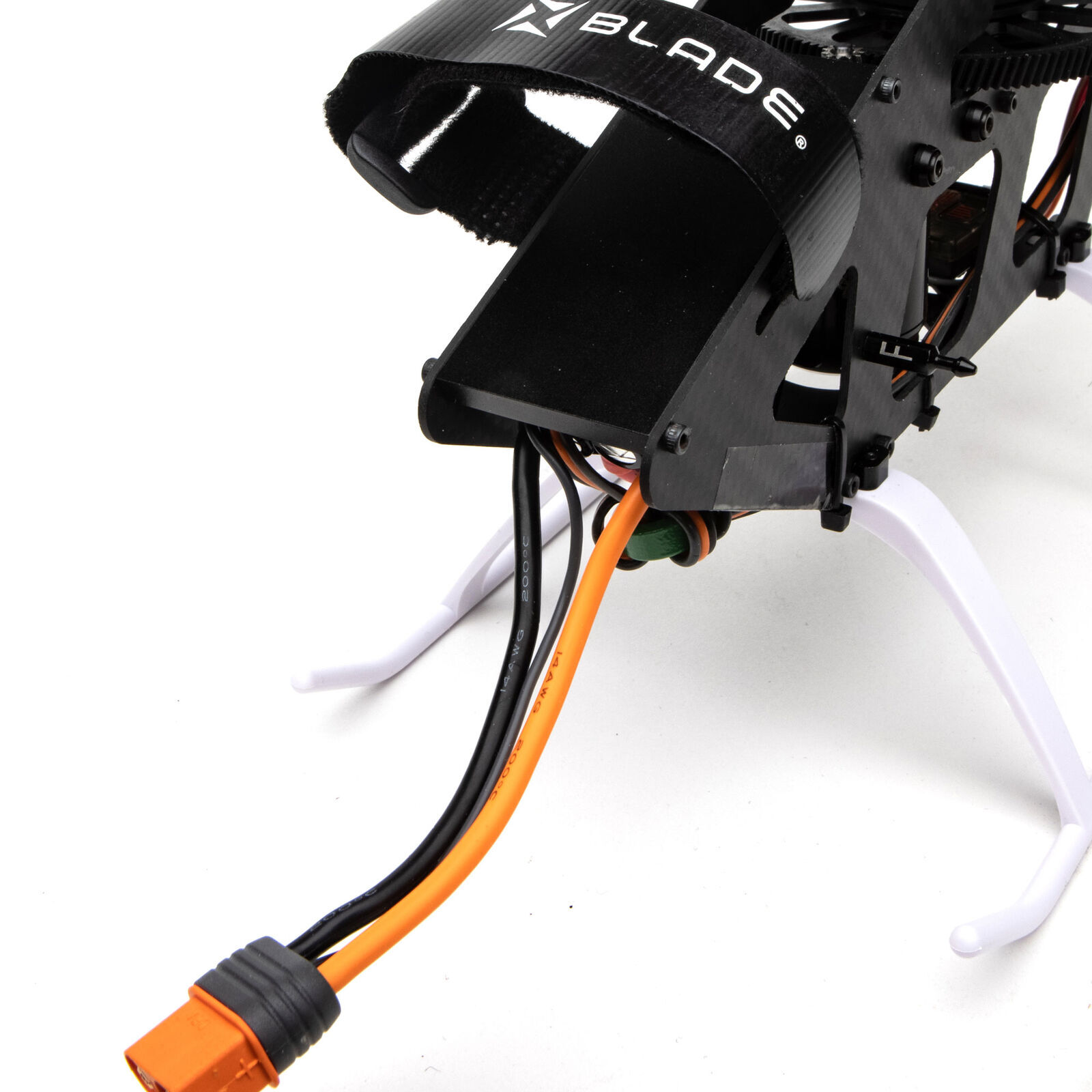

(1) 2200 3S 11.1v 50C+ LiPo Battery with EC3™ or IC3™ connector
(1) Compatible LiPo Charger

Download Instruction Manual For Blade Fusion 360

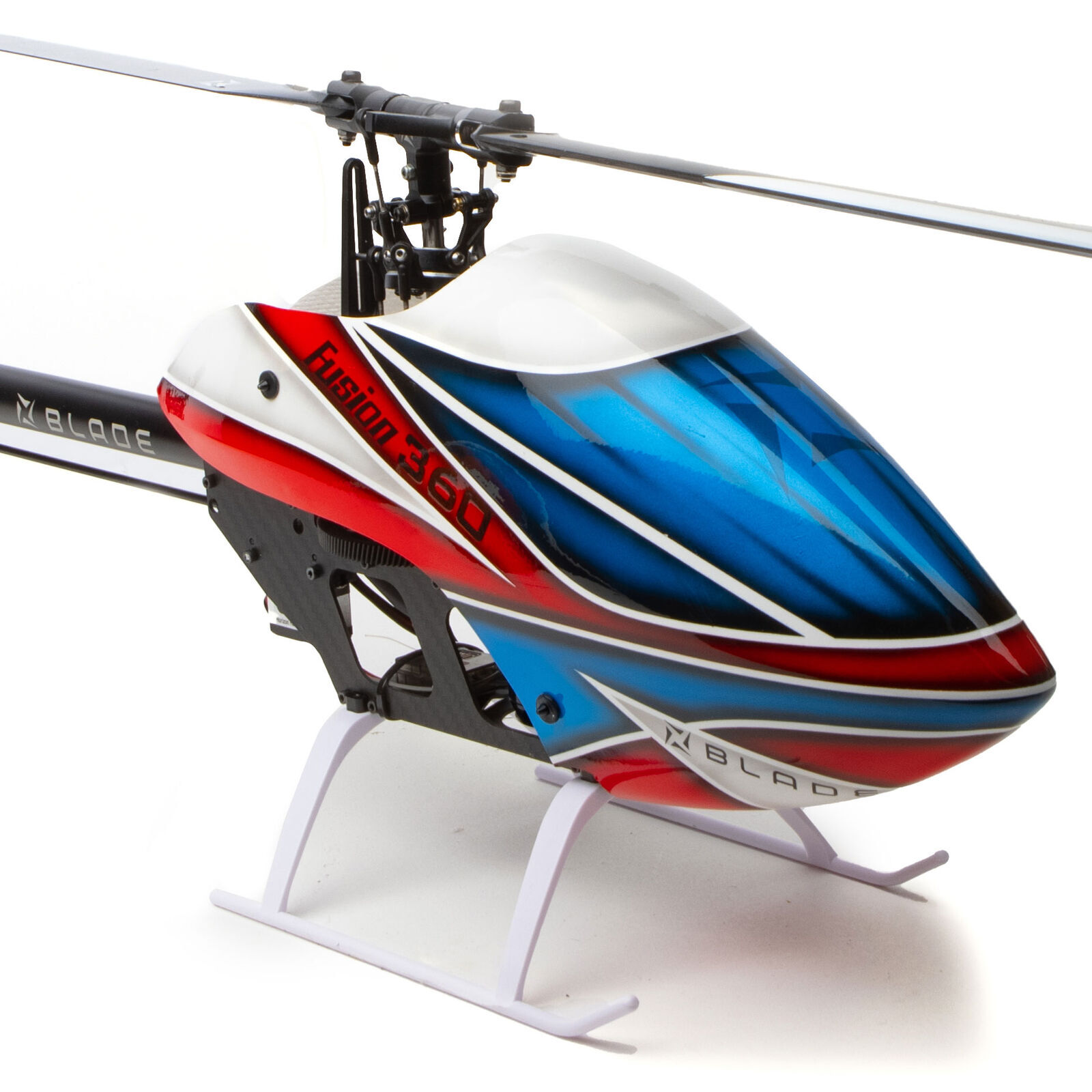

Overview

Featuring the latest advancements in Spektrum™ technology, the Blade® Fusion™ 360 Smart helicopter continues the legacy of the Blade Fusion line and is the perfect first high-performance collective pitch helicopter for intermediate heli pilots. With the popular 360 size, Blade has taken a fresh approach in redeveloping the Fusion 360 by adding integrated SAFE® and Smart technology, all carbon fiber and aluminum construction, improved power system package, and more. Easy to fly and easy to see in the air, it is designed to help pilots progress from simple maneuvers to advanced 3D stunts with confidence. This powerhouse features lightweight carbon fiber and anodized aluminum construction presenting exceptional rigidity and durability. Plus, with the inclusion of Smart Technology, battery charging and power system management is now easier than ever and virtually worry free. The expertly tuned Spektrum 6250HX flight controller is ready for a non-computer transmitter such as a DXS and expands its capability with a more advanced Spektrum aircraft transmitter. Pilots get kit level quality in a Bind-N-Fly package. For intermediate-level pilots, the Fusion 360 delivers one of the best flying Blade models to date!

SAFE® Technology

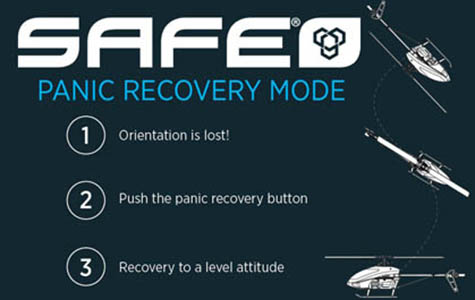

The Blade® Fusion™ 360 Smart helicopter features exclusive SAFE® (Sensor Assisted Flight Envelope®) technology, a revolutionary electronic flight envelope protection system that makes it easy for anyone to fly helicopters with confidence by providing flight mode versatility and Panic Recovery mode that automatically returns the heli to a level attitude.

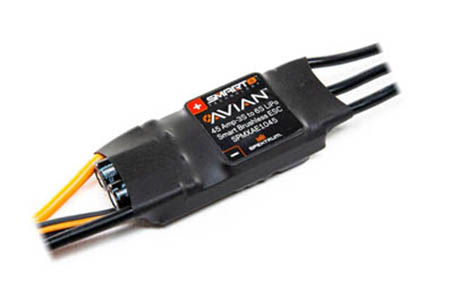

Spektrum™ Avian™ Smart 45 Amp ESC included

The Spektrum™ Avian™Smart 45 amp ESC transmits Smart Battery and ESC data straight to your Spektrum Transmitter all over one wire. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM. The Avian ESC 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked in and active throttle response.

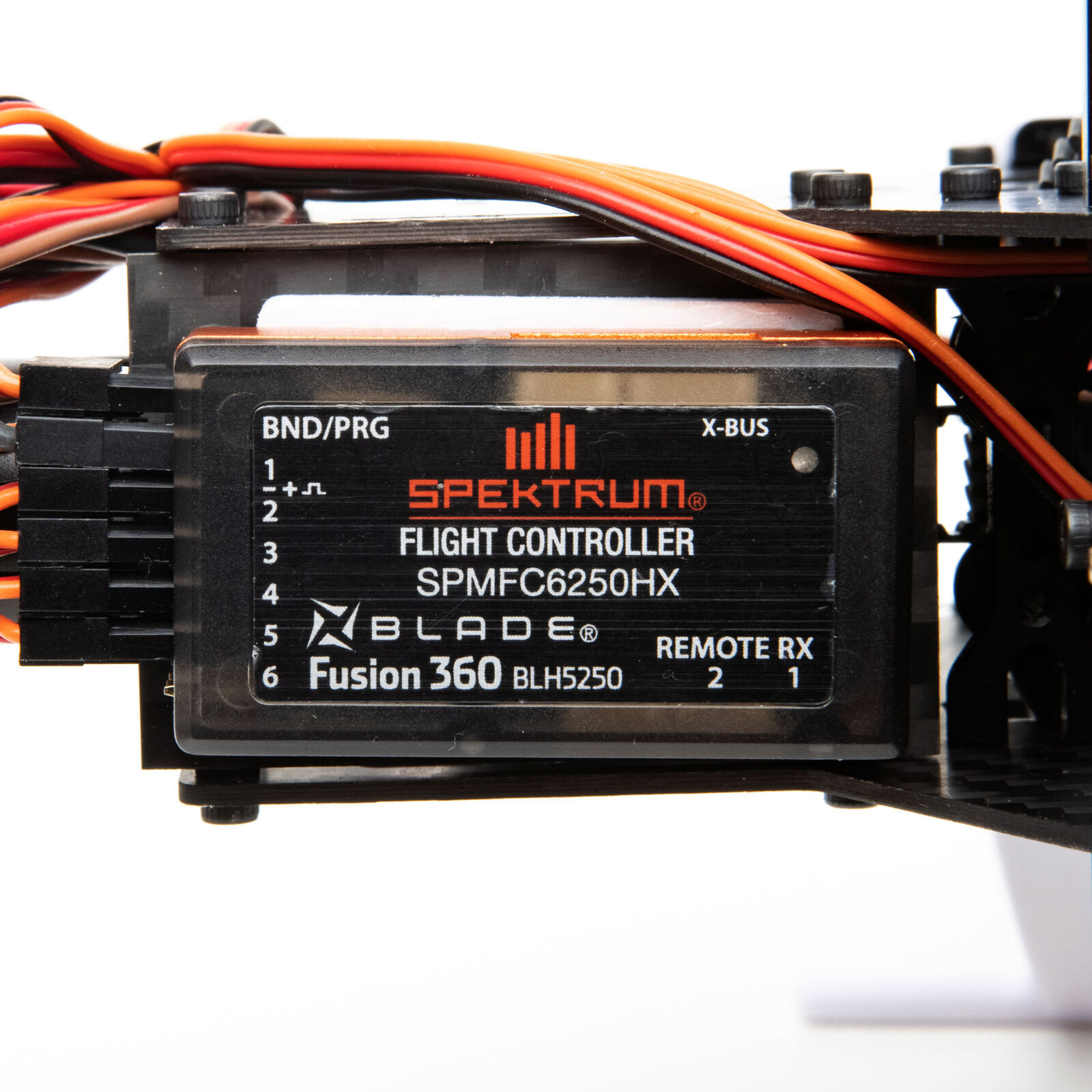

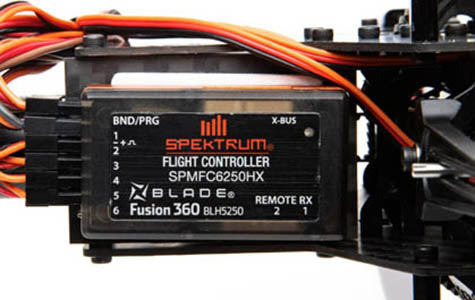

Spektrum 6250HX Flybarless Controller

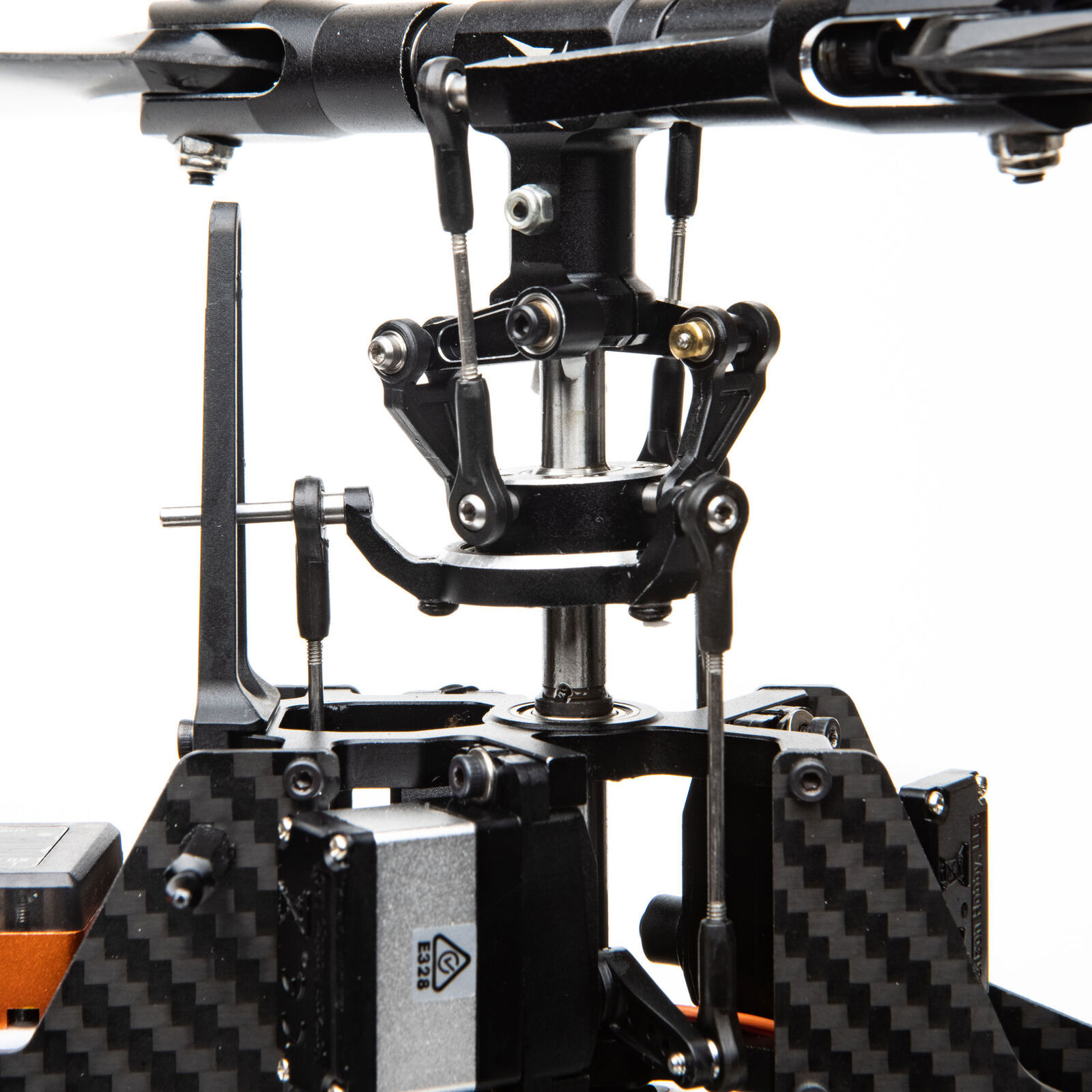

Cutting-edge Spektrum technology is featured throughout this beast from Spektrum 3055 & 3065 servos with Optimized Servo Geometry to the new ground-breaking Spektrum 6250 HX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, 6-axis M.E.M.S. inertial sensor, low-latency high-speed operation, two remote receiver ports for diversity, and a vibration rejecting aluminum lower case.

Optimized Fusion Design

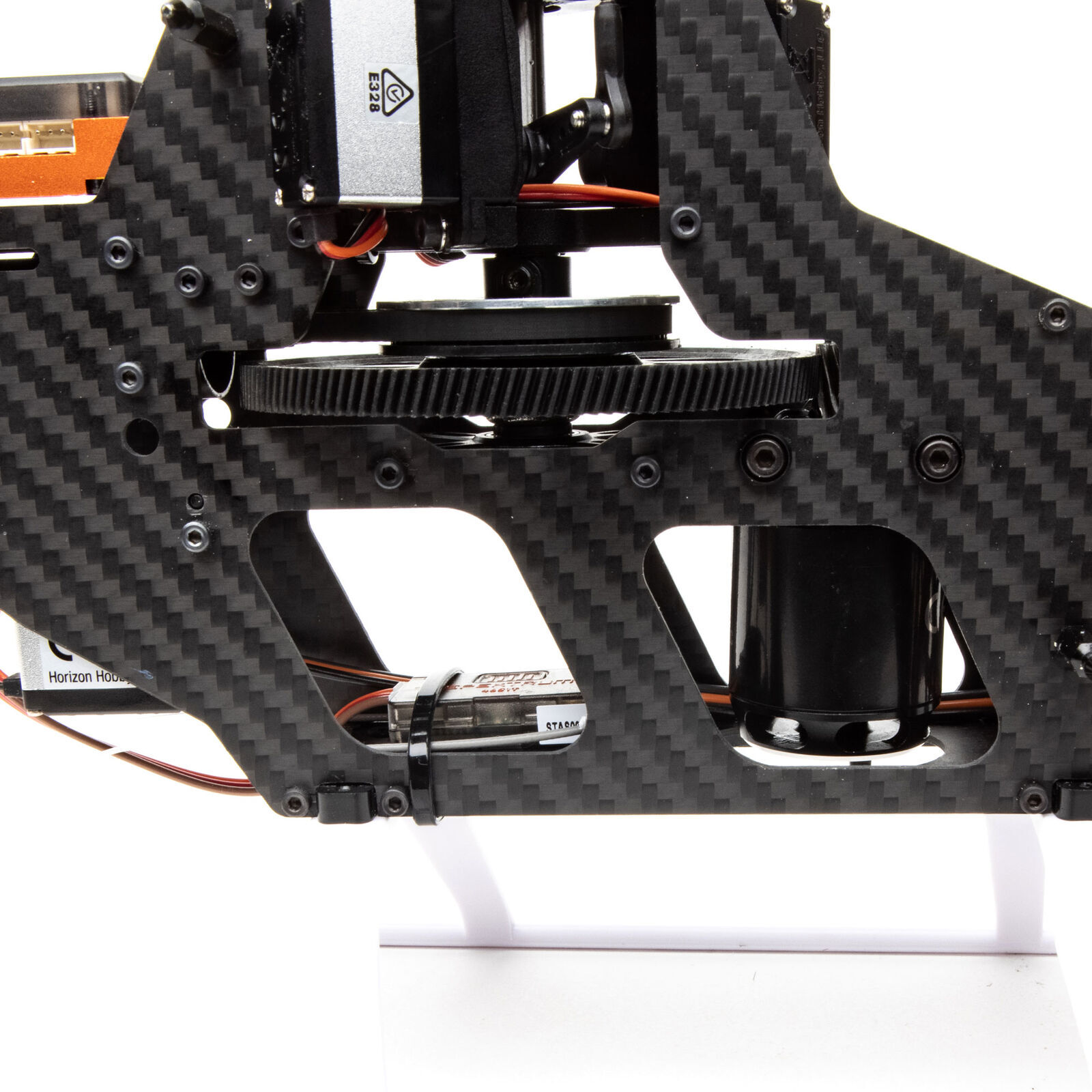

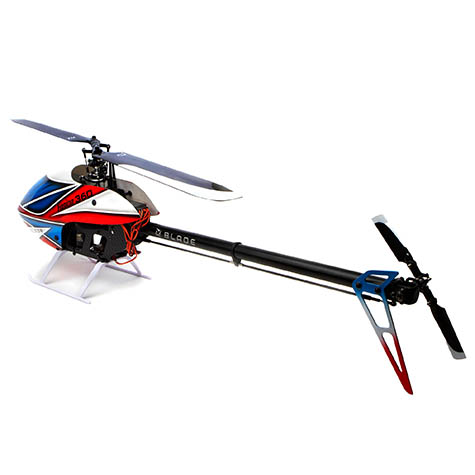

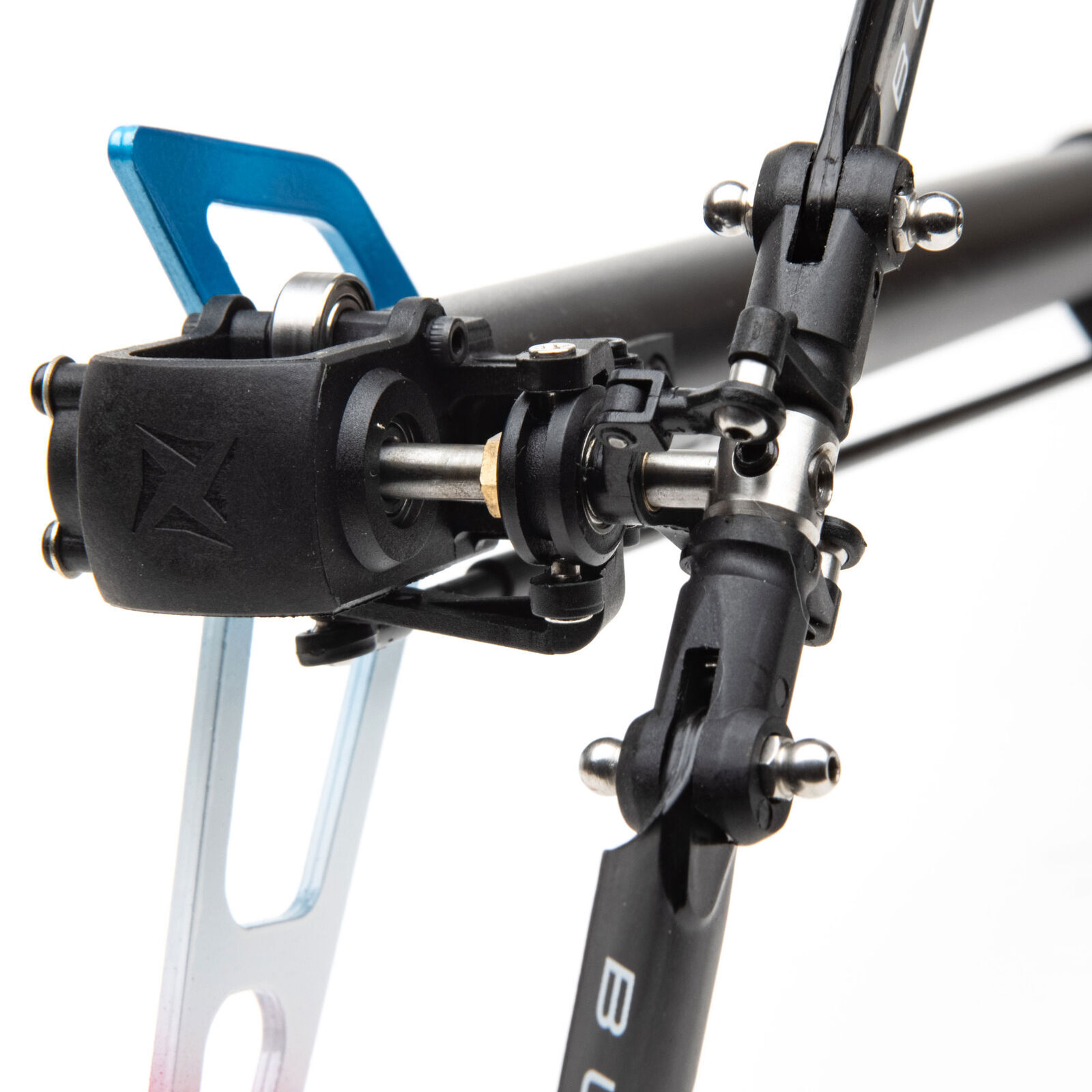

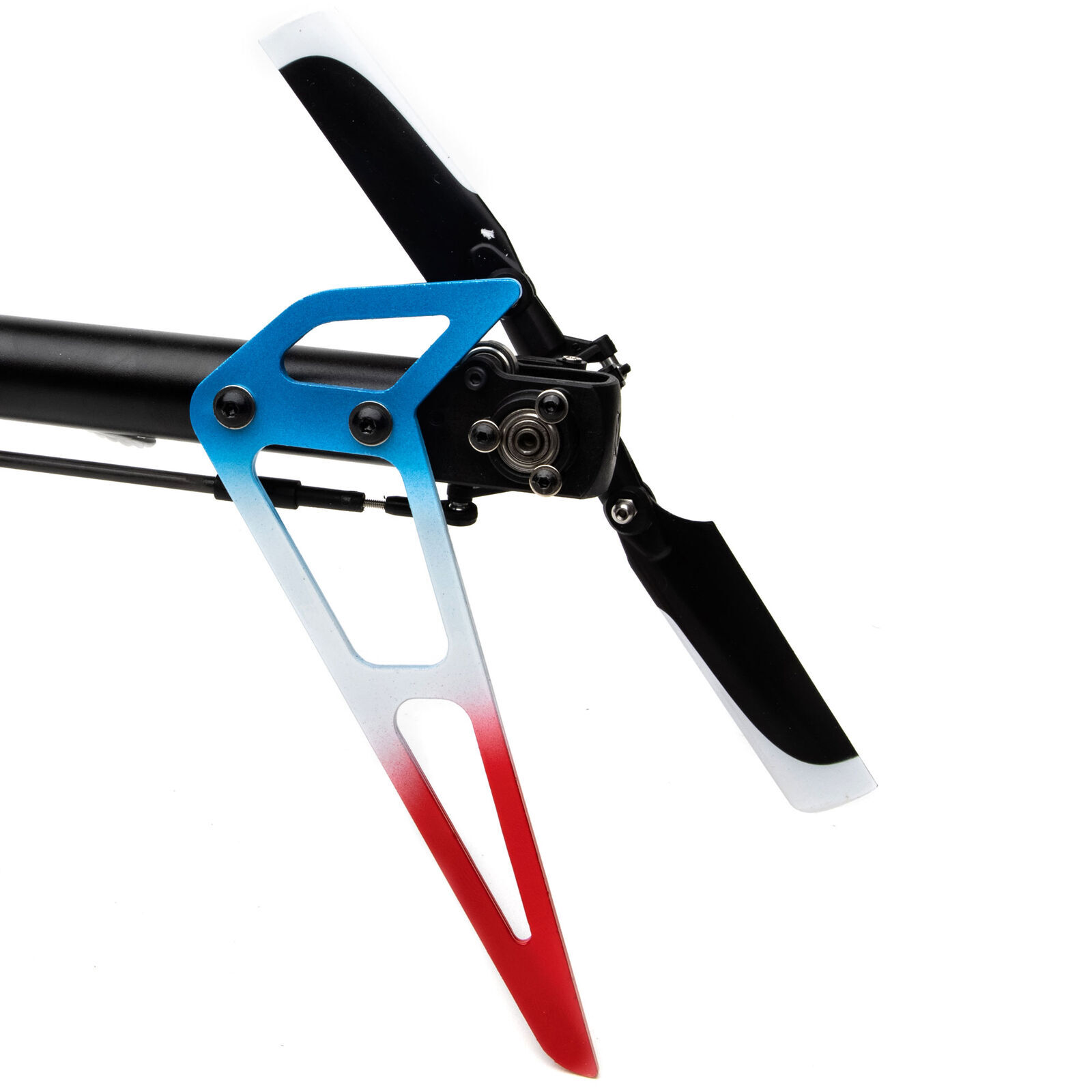

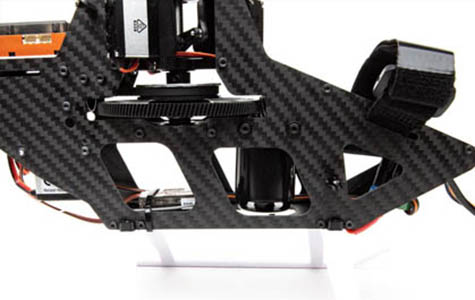

The all-carbon fiber and aluminum main frame takes rigidity to another level for a rock-solid flight experience. The carbon fiber main rotor blades feature an improved aerodynamic design with increases to efficiency and power. An oversized tail boom eliminates the need for boom supports and is crowned by an ABS plastic tail case improving vibration damping and performance.

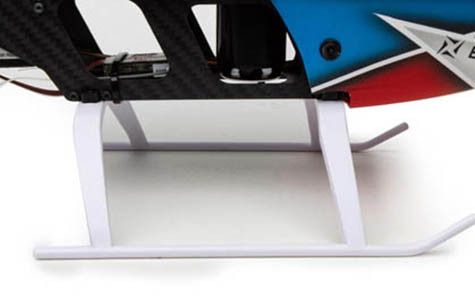

Wide and Impact Resistant Landing Gear

The Fusion 360 Smart features an updated landing gear offering a better stance for take off and landing. It’s one piece, ABS plastic design is more resistant to hard landings and crash damage.

Aggressive and Attractive Trim Scheme

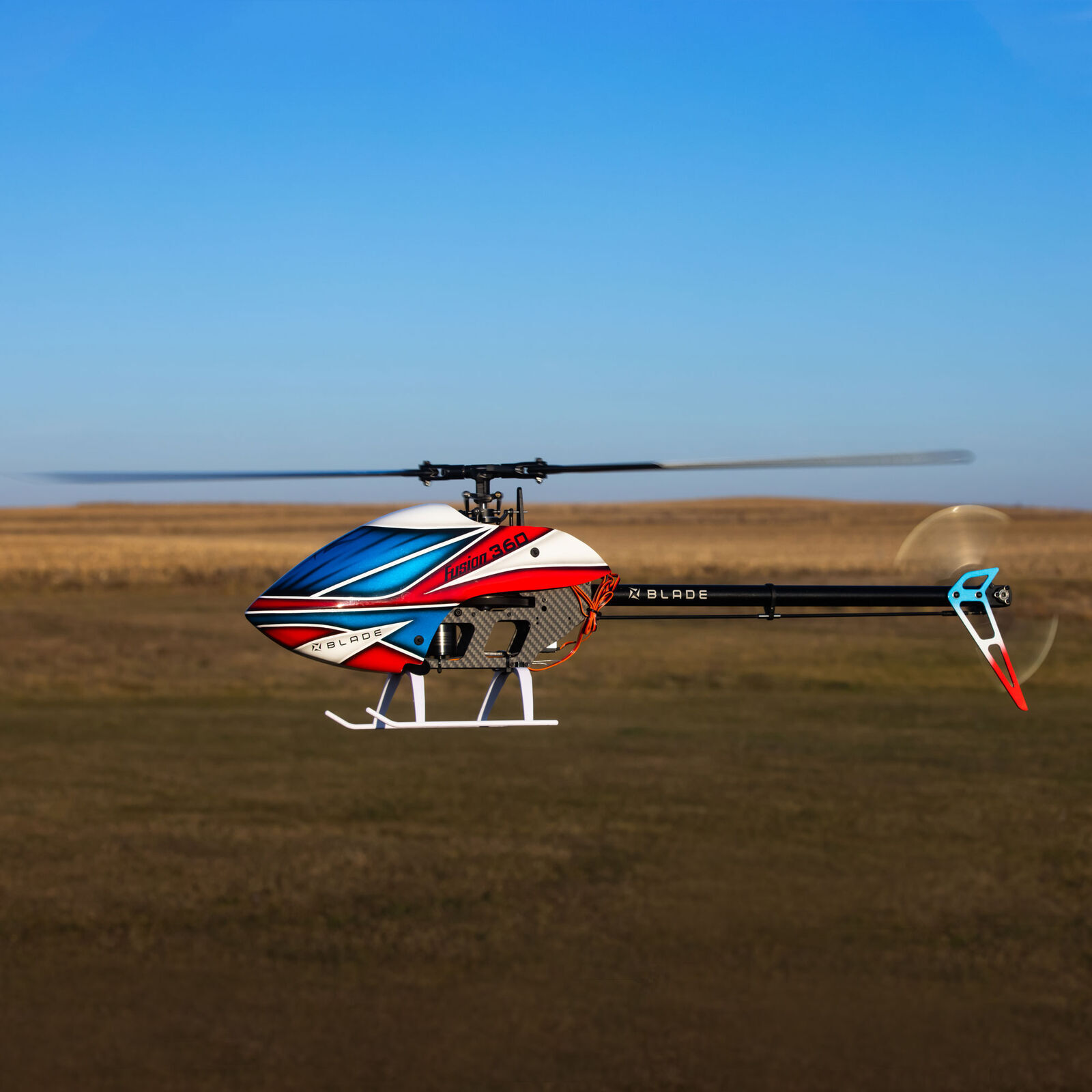

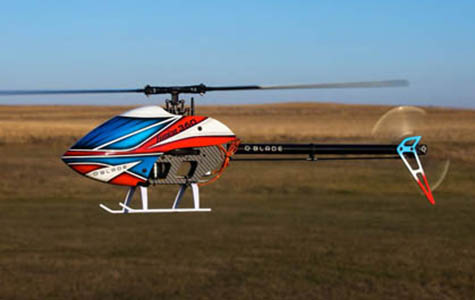

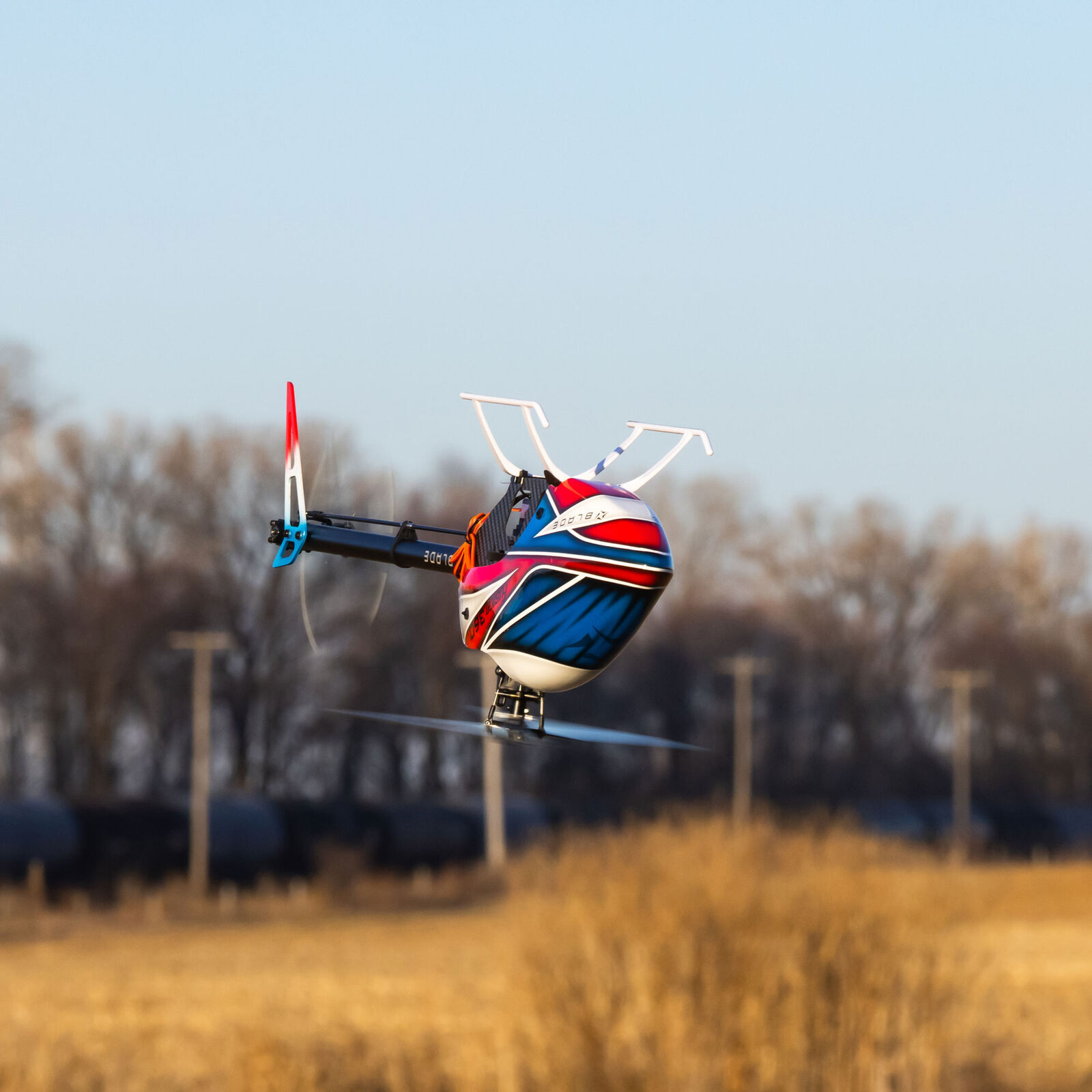

The Fusion 360 features an expertly painted fiberglass canopy and matching tail fin that is both attractive and purposeful. The bright color scheme is easy to see when tearing up the sky and is sure to catch the eye of everyone at the flight line.

Product Specifications

Canopy/Body Material	Fiberglass
Product Weight	32.27oz (915g)
Completion Level	Bind-N-Fly Basic
Main Blade Material	Carbon Fiber
Main Rotor Diameter	31.33" (796 mm)
Product Height	7.48" (190 mm)
Tail Blade Material	Plastic
Tail Rotor Blade Length	2.55" (65 mm)
Channels	6
Main Rotor Blade Length	13.77" (350 mm)
Speed Control	Included
Main Motor Type	Brushless
Main Rotor Head Type	Collective Pitch Flybarless
Product Width	3.55" (90 mm)
Tail Rotor Diameter	6.8" (173 mm)
Technology	Smart
Servos	Included
Skill Level	Level 3
Swashplate Type	120 Degree CCPM
Charger	Sold Separately
Receiver	Included
Approximate Assembly Time	No assembly required
Approximate Flight Time	4 minutes
Tail Drive	Belt Drive
Power Type	Electric
Battery	Sold Separately
Gear Ratio	13.5
Main Frame Material	Carbon Fiber
Motor Size	2221-3400Kv, 6 Pole
Product Length	26.96" (685 mm)

SKU	BLH6150
Barcode #	0605482764671
Brand	Blade
Shipping Weight	2.0000kg
Shipping Width	0.200m
Shipping Height	0.180m
Shipping Length	0.770m
Shipping Cubic	0.027720000m3
