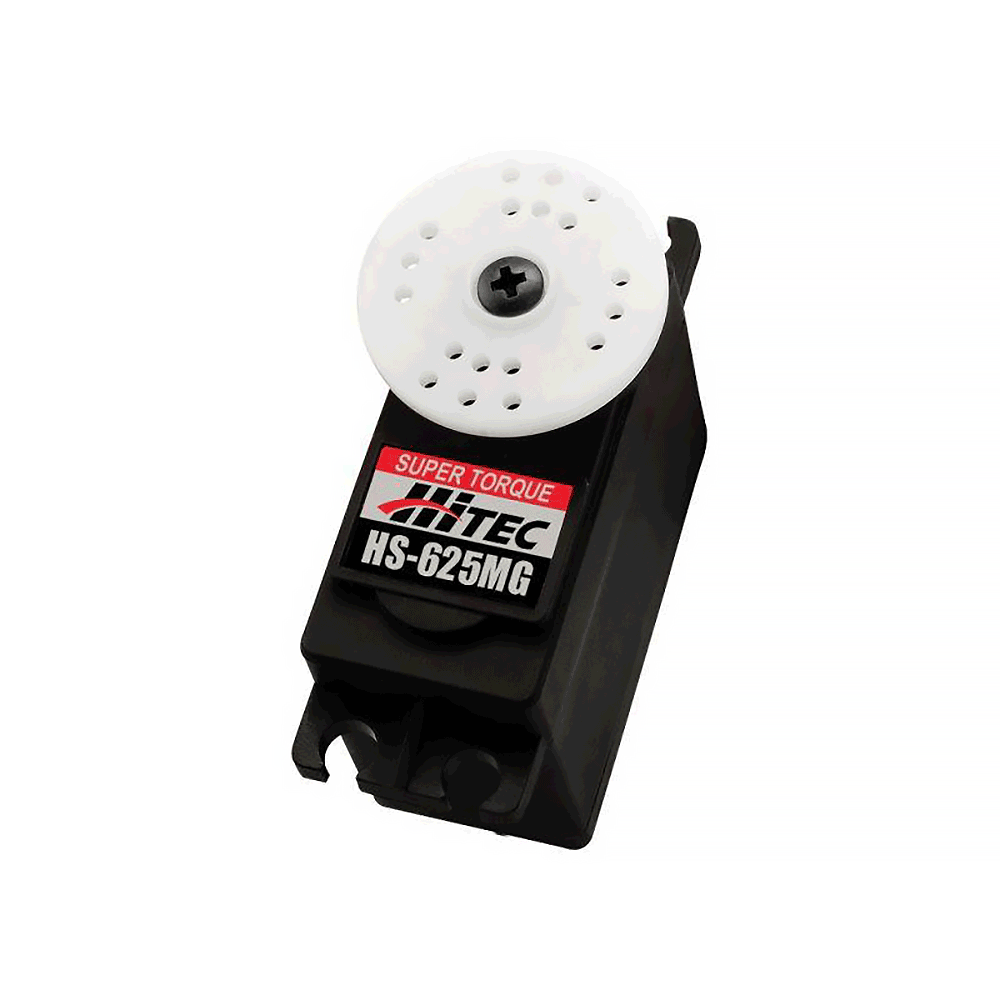

The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.

Features

• Affordable High Speed Metal Gear Servo
• Strong Three-Pole Ferrite Motor
• Heavy Duty Metal Gear Train
• Revolutionary Metal/Plastic First Gear (MP Gear)
• Dual Ball Bearing-Supported Output Shaft

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.18 ~ 0.15
Maximum Torque Range oz. / in.: 76 ~ 94
Maximum Torque Range kg. / cm.: 5.5 ~ 6.8
Current Draw at Idle: 9.1 mA
No Load Operating Current Draw: 500 mA
Stall Current Draw: 2,500 mA
Dead Band Width: 8 µs

Physical Specifications

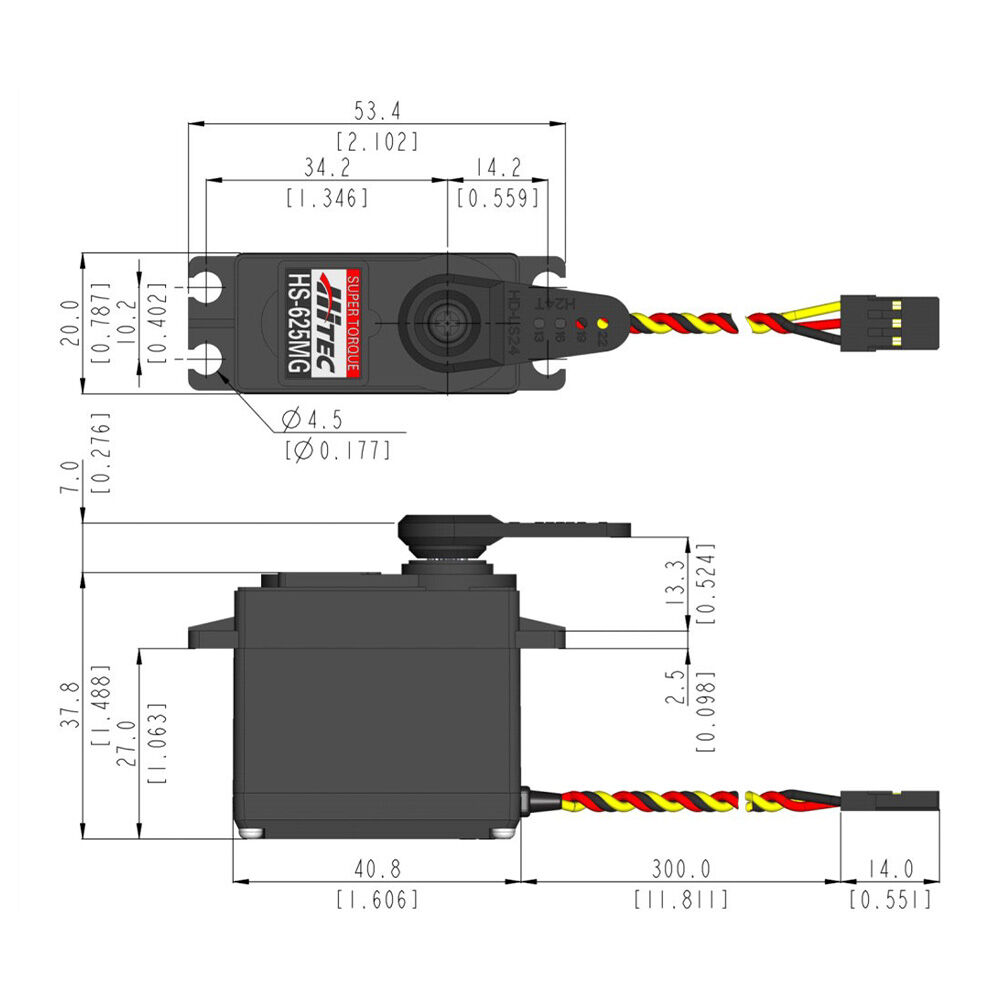

Dimensions (Inches): 1.59 x 0.77 x 1.48
Dimensions (Metric): 40.6 x 19.8 x 37.8
Weight (Ounces): 1.94
Weight (Gram): 55.2
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 22 / 60
