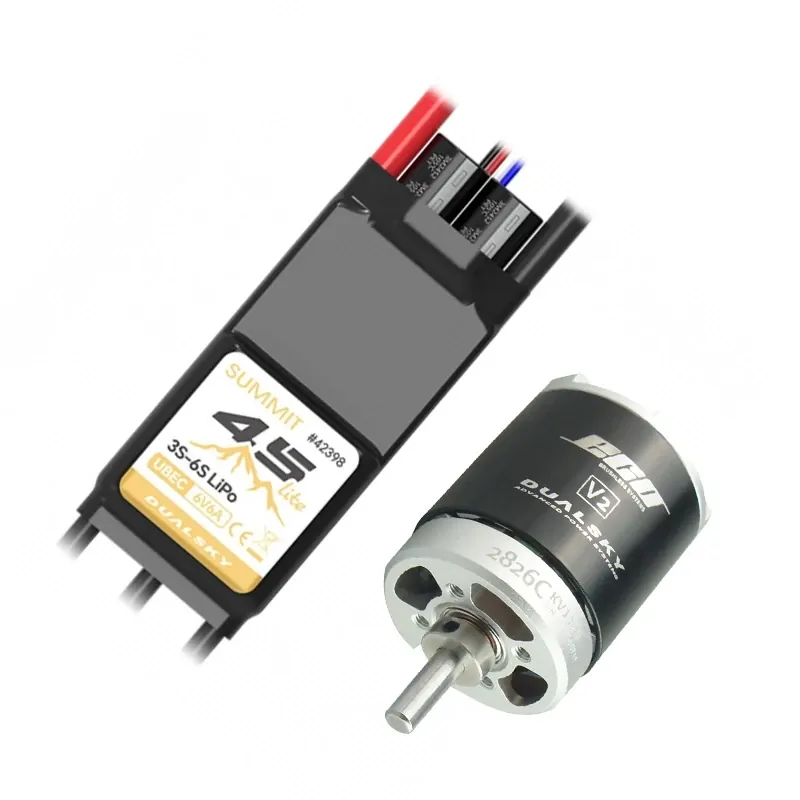

This Dualsky 30E Tuning Combo with 2826C V2 850kv Motor and Summit Lite 45A ESC is compatible with 3S-4S LiPo batteries and is designed for .25-.32 (30E) Class RC Plane

Features

• 2826C V2 850kv Motor
• Includes new generation Summit Lite ESC
• Selectable rotation direction
• Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
• Integrated high-current UBEC with excellent peak performance
• Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

• KV: 850
• Weight: 167g
• Turns: 4.5
• Dimensions: 3.52 x 46.2
• Slots & poles: 12N14P
• Ri(mOhm): 26.9
• Io @10V (A): 1.7
• No. of cells (LiPo): 3S-4S
• Max Efficiency Current (A): 30
• Max. Burst Current (15S) [A]: 45
• Max. Power (15S) [W]: 720
• Max Torque [N*M]: 0.61
• Shaft Diameter (mm): 5
• Mounting Holes pitch: 19/19
• Input Connectors: GC3.5
• Recommended ESC: Summit 45-LITE
• Propeller: 3S: 15 x 8E, 14 x 7E, 4S: 13 x 6.5E, 12 x 7E
• Class: .25-.32 (30E) Class e.g. Extreme Flight 48inch airplanes

ESC Specs

• Dimensions (LxWxH): 66 x 25 x 10.7mm (w/o wire)
• Weight (w/ wire): 44g
• Number of Cells: 3S-6S LiPo, 11.1V-22.2V
• Continuous Current: 45A
• Burst Current: 70A
• Resistance (Ri) (mOhm): ~3.0 milliohms
• Battery eliminate circuit BEC: 6.0V, Switching mode, 6A const./10A peaks
• Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
• Timing System: Programmable (Default=16°)
• Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
• Programming: USBLINK MP (BLHeli32_Suite)
• Start Power: 100% (Programmable)
• Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
• Telemetry: ON (Auto telemetry enabled, protocol=KISS)
• Energy Recovery: YES (Default-Disable, freewheel)
• Brake On Stop: Default=OFF (Adjustable)
• Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
• Low Voltage Protection: Programmable (Default=3.00V/cell)
• Acceleration: Default =125ms (Programmable)
• Overheat Protection: YES(Default=140 C)
• Water & Dust Proof: IP43
• Beacon Beeps: YES, 20 Mins
• Input Wires: 14AWG, 150mm
• Wires to Motor: 16AWG, 80mm w/ DB3F
• Signal Wires: JR, 350mm + 1pin telemetry
• Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
• Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
