Features
  • Designed for 3D airplanes or UAV systems
  • Can serve as an alternative for 35-40cc class gas engine
  • Brushless
  • Weighs only 700g

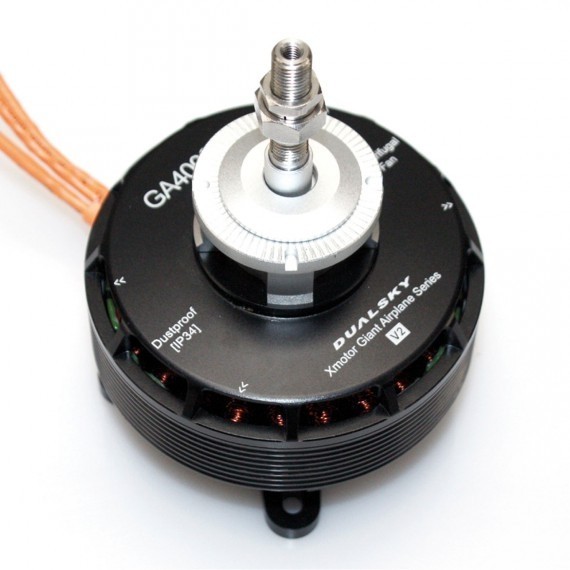

DUALSKY BL motors are precision mechanical masterpieces, are precisely manufactured and have an excellent efficiency. A wide range of motor types offers a drive for almost every application. Series "GA" is specifically designed for large-scale models and offers outstanding performance, a robust stainless steel motor shaft, and in some types a pre-flanged motor bracket. Corresponding small material is included in the delivery.


Specifications


RPM/KV   180 RPM/V @7T
Weight w/o accessories   700g
Outer diameter   89mm
Length w/ mounts   80.2mm
Length (Overall)   123mm
Length (Overall)    123mm
Diameter of shaft   12mm (internal) 8mm (output)
Mounting holes pitch   71 - 75mm
Idle current @ 10V   1.3A
Nominal Voltage   30 - 51V, 10 - 12S LiPo
Peak Power   (15s) 4300W (5.8HP) @ 8000RPM
Bursts current   (15s) 100A
Recommended ESC   2100 W(2.8HP)
Propeller    20x10, 20x12, 21x12, 22x10 XOAR 22x10 Wooden, 87A@44.4V
APC 21x12WE, 13kg 95A @44.4V
Weight of sports airplane   Up to 10.5kg
Weight of 3D airplane    Up to 6.8kg
Slots, Poles    24, 28
Brand   Dualsky



SKU DSXM51553
Barcode # 6941047115538
Brand Dualsky
Shipping Weight 0.6000kg
Shipping Width 0.150m
Shipping Height 0.120m
Shipping Length 0.200m
Shipping Cubic 0.003600000m3
