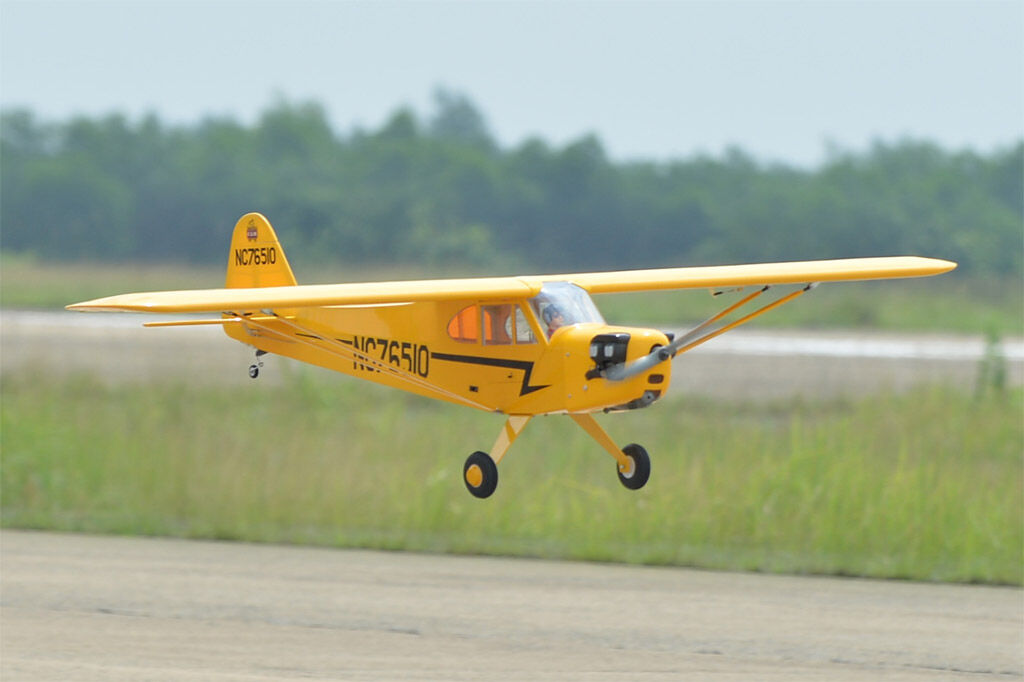

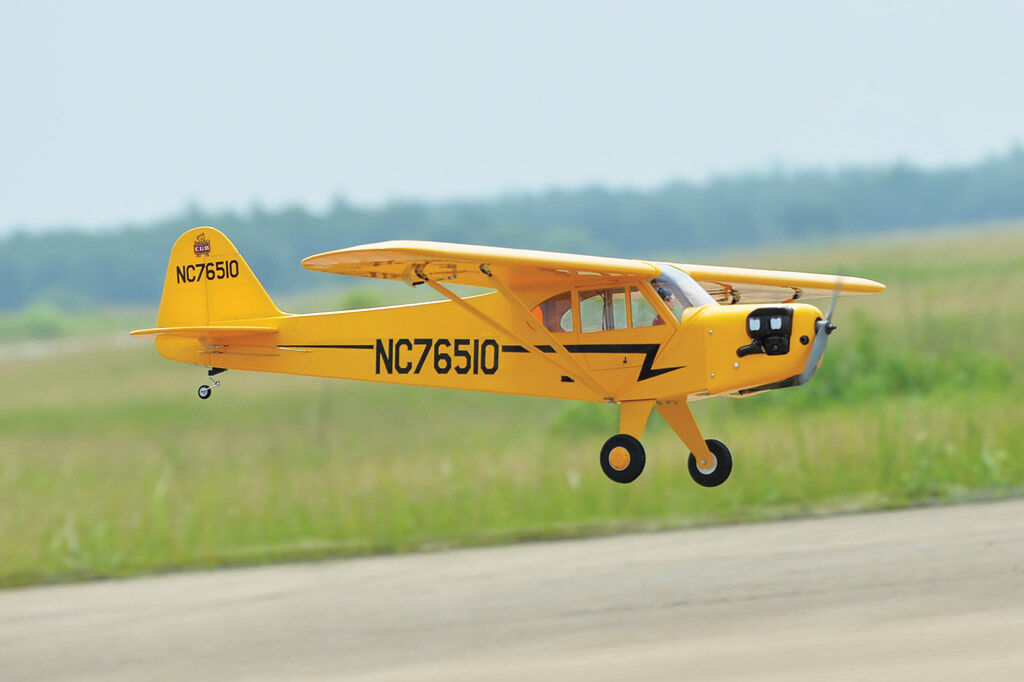

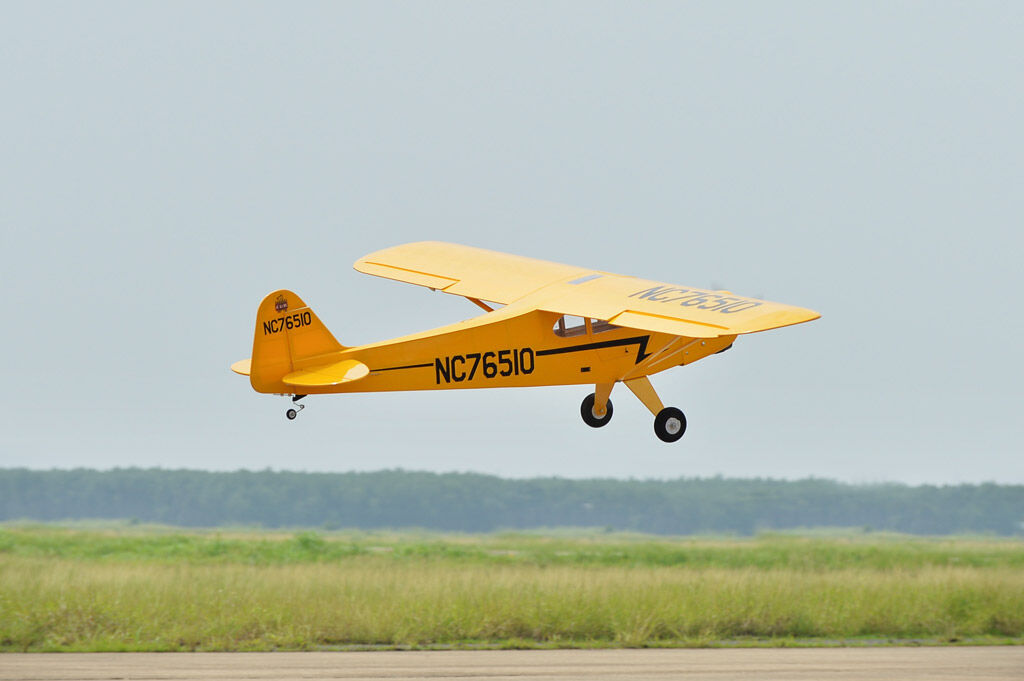

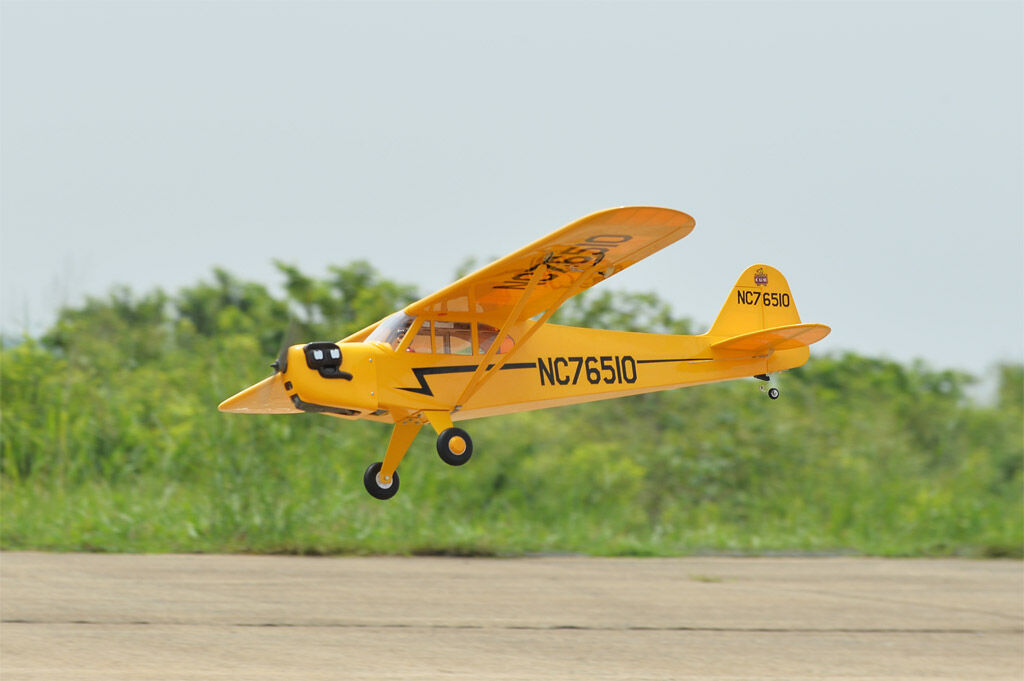

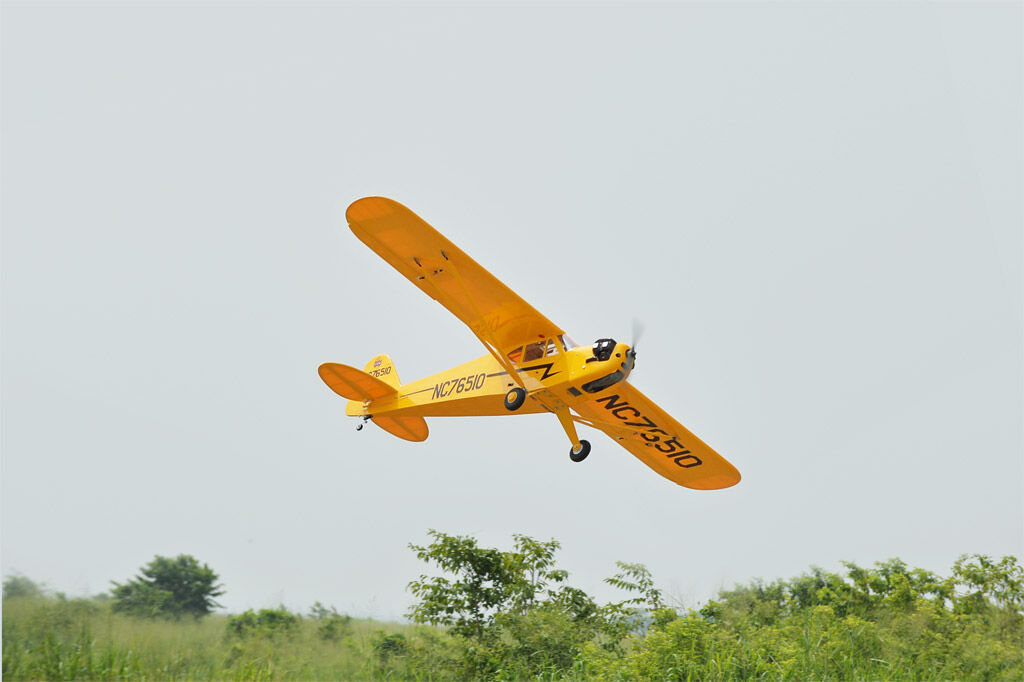

The Black Horse Piper Cub 1.95m ARF RC Plane is a classic high-wing aircraft designed for smooth, stable, and relaxing flights. With its large 77" wingspan and forgiving flight characteristics, it’s ideal for sport and scale pilots alike.

This ARF model features a lightweight, durable airframe and comes factory-covered for quick assembly. Designed for .45–.55 size engines, it delivers reliable performance with gentle take-offs and confident landings.

Black Horse Piper Cub 1.95m (77'') .45-.55 ARF RC Plane BH04 Manual

Features

• 1.95m (77") wingspan for excellent stability
• ARF construction for fast setup
• Suits .45–.55 size engines
• Classic Piper Cub scale design

A perfect choice for pilots seeking timeless style and easy-going flight performance.

Specifications

Wingspan: 1,950 mm (76.77in).
Length: 1,297 mm (51.06 in).
Weight: 3.2 – 3.5 kg (7.04 – 7.7 lbs).
Wing area: 53.8 dm2.
Wing loading: 59.5 g/dm2.
Wing type: USA – 35B.
Servo mount: 42mm x 21mm.
Spinner: scale style (not included).
Gear type: Aluminium Hi-grade for main gear and spring wire for tail gear (included).
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.

Parts listing required (not included)

Radio: 04 channels minimum.
Servo: 04 – 05 standard servos.
Engine: 46 – 55   2 stroke.
Motor: Brushless outrunner 1000-1800W, 800KV.
Propeller: Suit with your engine.

Recommended Motor and Battery set up (not included)

Motor:  RIMFIRE.46.
Lipo cell: 6 cells 4,000-5,000mAh.
Receiver battery: 6V/ 1200-2200mAh Lipo.
ESC: 60A.
