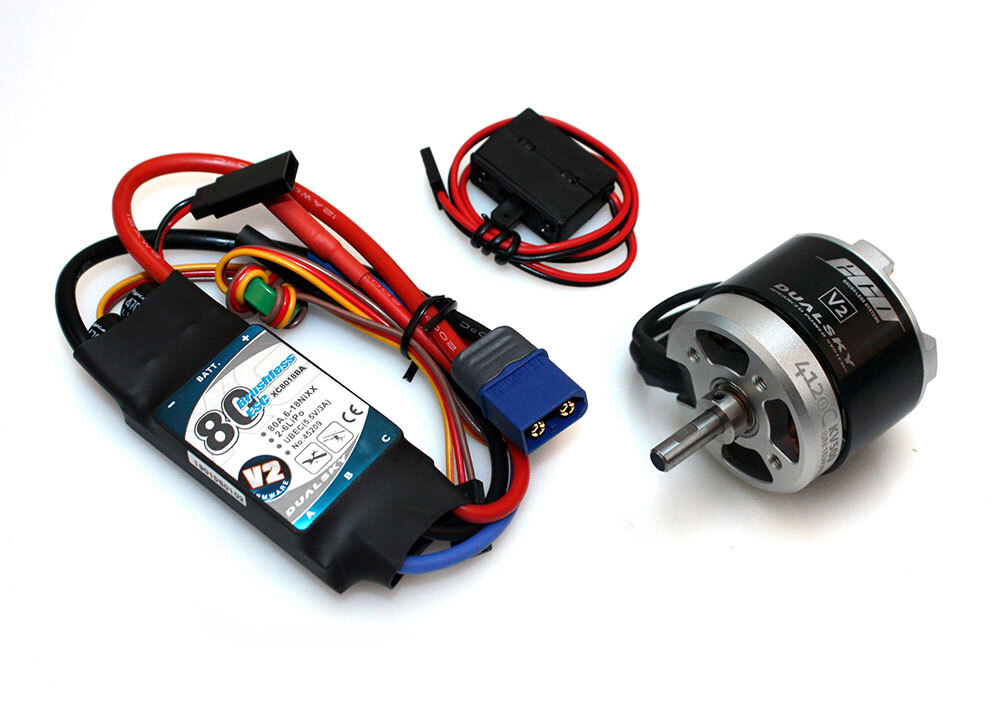

Dualsky Tuning Combo 50E, 560kv Motor & 80A ESC

Includes:

1 x ECO 4120C-560 V2 (1400W) Motor
1 x XC8018BA (80A) XController ESC

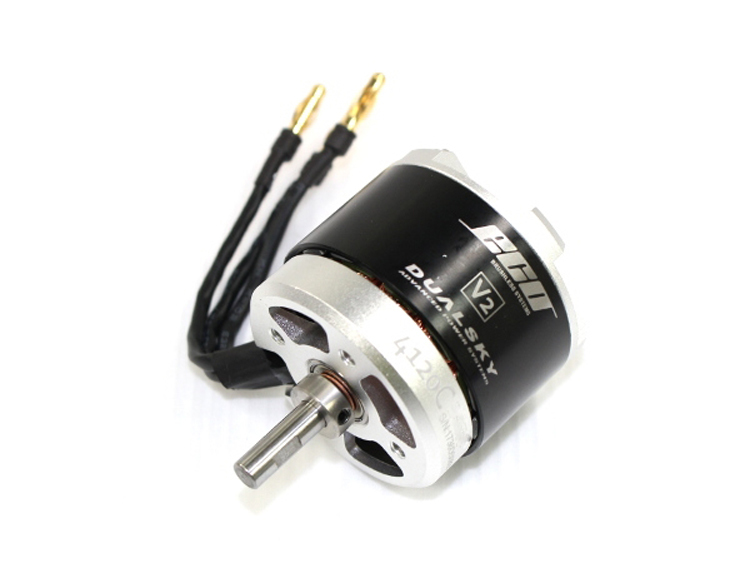

ECO Motor

ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This is new ECO V2.

• Classic Dualsky five-spokes back cover with simple lines. The nuances are quite different.
• Traditional Dualsky color matching (silver-black-sliver), anodized and matte finishing
• Multi-surface rotating laser marking, Logos, model and traceable serial number
• Motor structure strength increased by 25%
• Optimised stress distribution and strength increased but it did not increase the weight.
• High strength and high toughness main shaft (HRC48)
• The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks
• High temperature resistant, high toughness epoxy glue
• Due to the above optimizations. The impact resistance increased about 10G, and the survival ability is greatly improved.
• High precision double sides dynamic balancing
• Adopt NMB ball bearing, durable and low noise. ECO 41 and bigger, equipped with 3 ball bearings
• Optimised heat dissipation ways
• Motor working life significantly increased by 50% (same load and working environment)
• Modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming EA series. Besides, the design of propeller mount is completely implanted from GA series.
• Up to 500V insulation level. The stator is coated with insulated-coating and completely insulated after winding.
• Waterproof splash. Rust-proof main shaft, coil soak insulation, electrophoresis components and coated magnets make ECO V2 waterproof, and no problem working in wet or rain environment.

(Please note: ball bearing not waterproof)

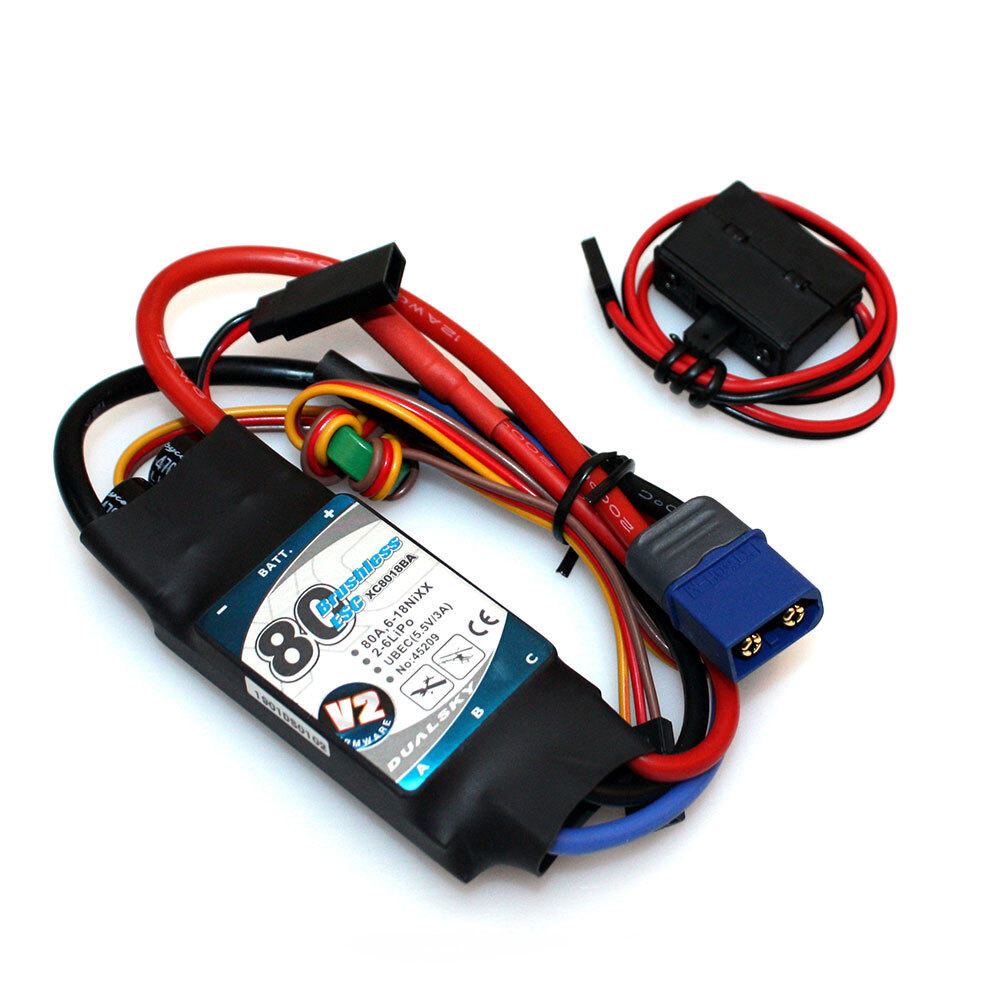

XC8018BA (80A) XController ESC

Features

• Supports all motor types up to 210,000 rpm(2 Poles motors).
• Extremely low resistance, factory high quality MosFETs, for high current usage.
• Dualsky Governor Mode(DGM) ready.(40-90A)
• Adjustable cut-off, either motor stop or reduction in power.
• DLBM on/off - Dualsky Linear Brake Mode. Brake strength can be adjusted by transmitter when switch on.
• Full protection features including: Low voltage cut-off, Over heating protection, signal loss auto cut-off.
• Normal, Soft or Super-Soft start up modes available, for both fixed wing and helicopter setups.
• Smooth and accurate throttle control throughout the range.
• Throttle digital signal sampling, compatible with the signal frequency of 14 msNormalmode and 7 ms high-speed mode (HS Mode).
• Throttle range can be re-calibrated, so suitable for all brands of transmitter.
• Fully PC programmable when used with Dualsky USB link(#45525).
• Compatible with programming card(#45200) for easy re-programming at the field!
• 6A-30A: Stable linear BEC power supply, support up to 3S Lipo.
• 40A-80A: UBEC switching power supply, support up to 6S Lipo,3A, easily support 4-5pcs of standard Digital Servos.
• 100-130A: Control signal applied OPTO technology, eliminate the interference from high voltage to the control system.

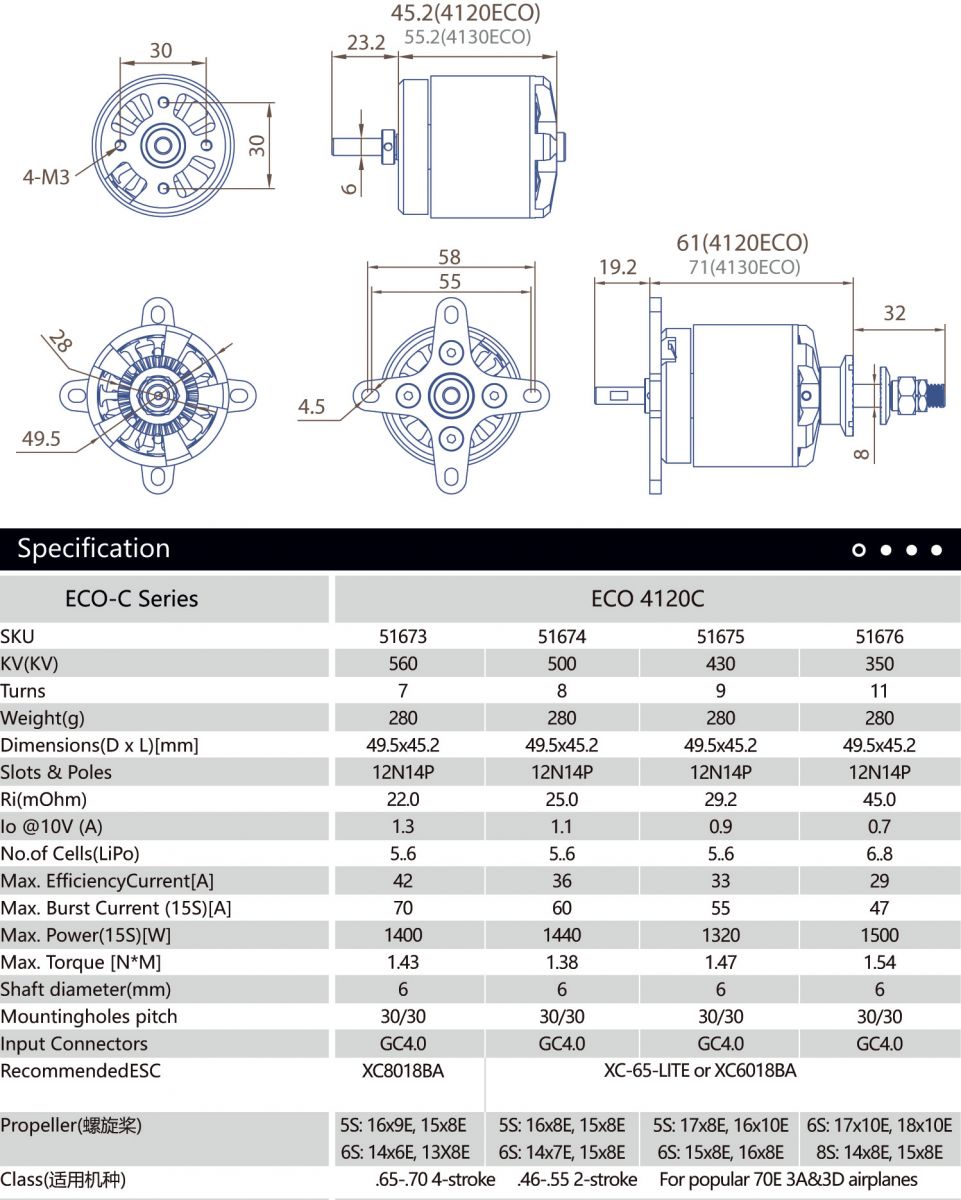

Specifications
