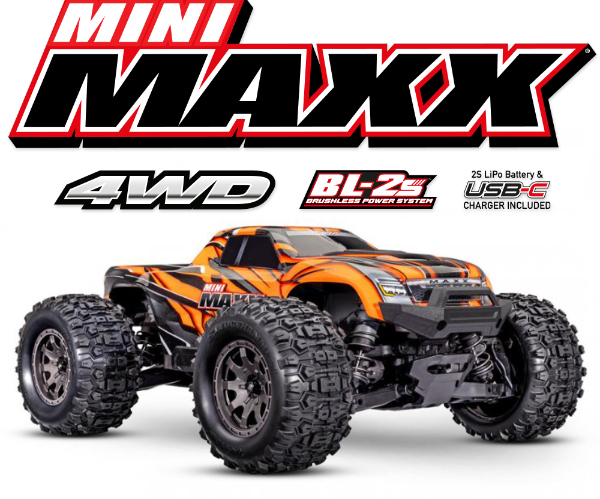

TRAXXAS Mini MAXX RTR TQ BL-2s OrangeProduct Details

A New Way to Experience Maxx Fun
Overbuilt and over-the-top the all-new Mini Maxx® captures the engineering unmatched power and extreme durability that defines Traxxas Maxx® performance. Mini Maxx is the perfect take-anywhere size delivering 48+ kph brushless speed and legendary Maxx toughness that slides easily into a backpack.

In the Box

  • Mini Maxx Ready-To-Race monster truck
  • BL-2s Brushless Power System
  • 3500 mAh 2-cell LiPo battery
  • 2-amp USB-C charger
  • Quick Start Guide
  • TQ 2.4 GHz radio system
  • High quality maintenance tools



Needed to Complete

  • AA Alkaline Batteries: Four AA alkaline batteries for the transmitter



Traxxas MINI MAXX 107154-1 Manual

Get ready for MAXXimum fun in a small package with the Traxxas Mini Maxx. This 1/16 scale 4WD brushless monster truck is packed with huge power and performance, ready to conquer any bashing adventure. With an adrenaline inducing top speed of 48+ KM/H, aggressive wheelie capability, and high-flying jumps, The Mini Maxx is going to give even 1/10 scale bashers a run for their money!

The Mini Maxx is built Traxxas Tough™ to withstand the punishment of extreme bashing. Its rugged chassis and waterproof electronics have been supplemented with 1/10 scale drivetrain parts to ensure it can handle anything you throw at it, from massive jumps to muddy puddles. The potent BL-2s brushless power system delivers unmatched acceleration and torque, while the long-travel suspension soaks up landings with ease. This mini monster truck is ready to unleash MAXXimum mayhem, right out of the box!

Video Overview

Maxx Performance

Maxx Performance

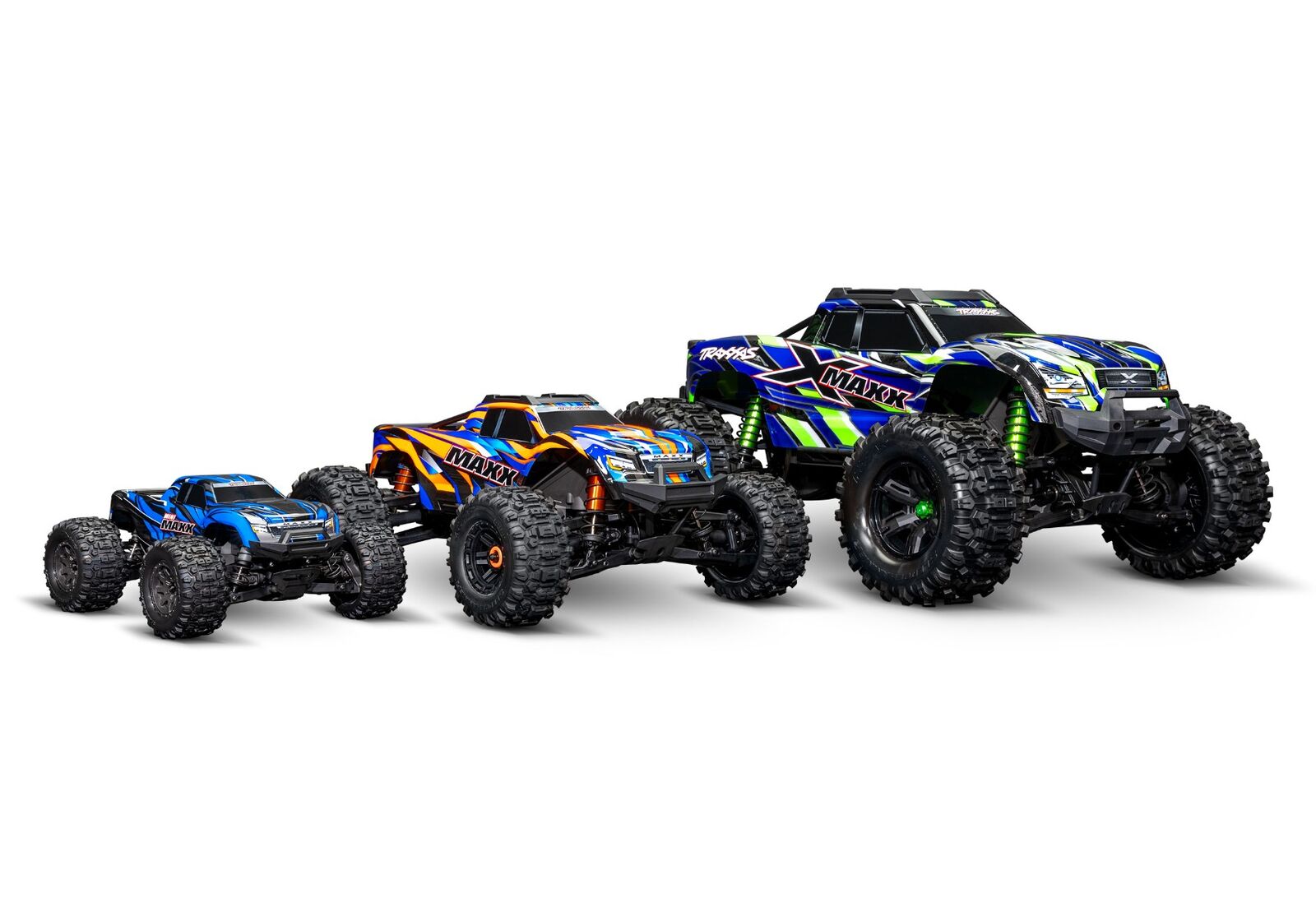

Mini Maxx does what the others can’t in a fast fun and compact form that’s instantly recognizable and engineered to a zero-compromise standard for performance and durability. It’s a whole new way to experience Maxx-level fun in a powerful machine that continues the Maxx legacy for speed and absolute toughness.

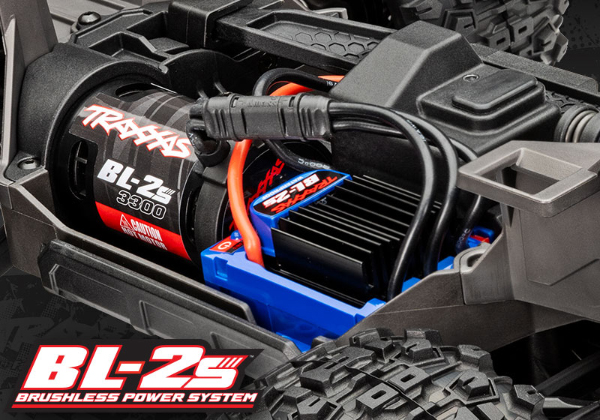

1/10 Scale Power System

1/10 Scale Power System


The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Maxx BL-2s power punches well above its weight for lightning-quick acceleration and 48+ kph top speed.

1/10 Scale 4X4 Driveline

1/10 Scale 4X4 Driveline


Mini Maxx is engineered to a higher standard with 1/10 scale 4X4 driveline components. Large steel- gear differentials beefy 32-pitch gears and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.

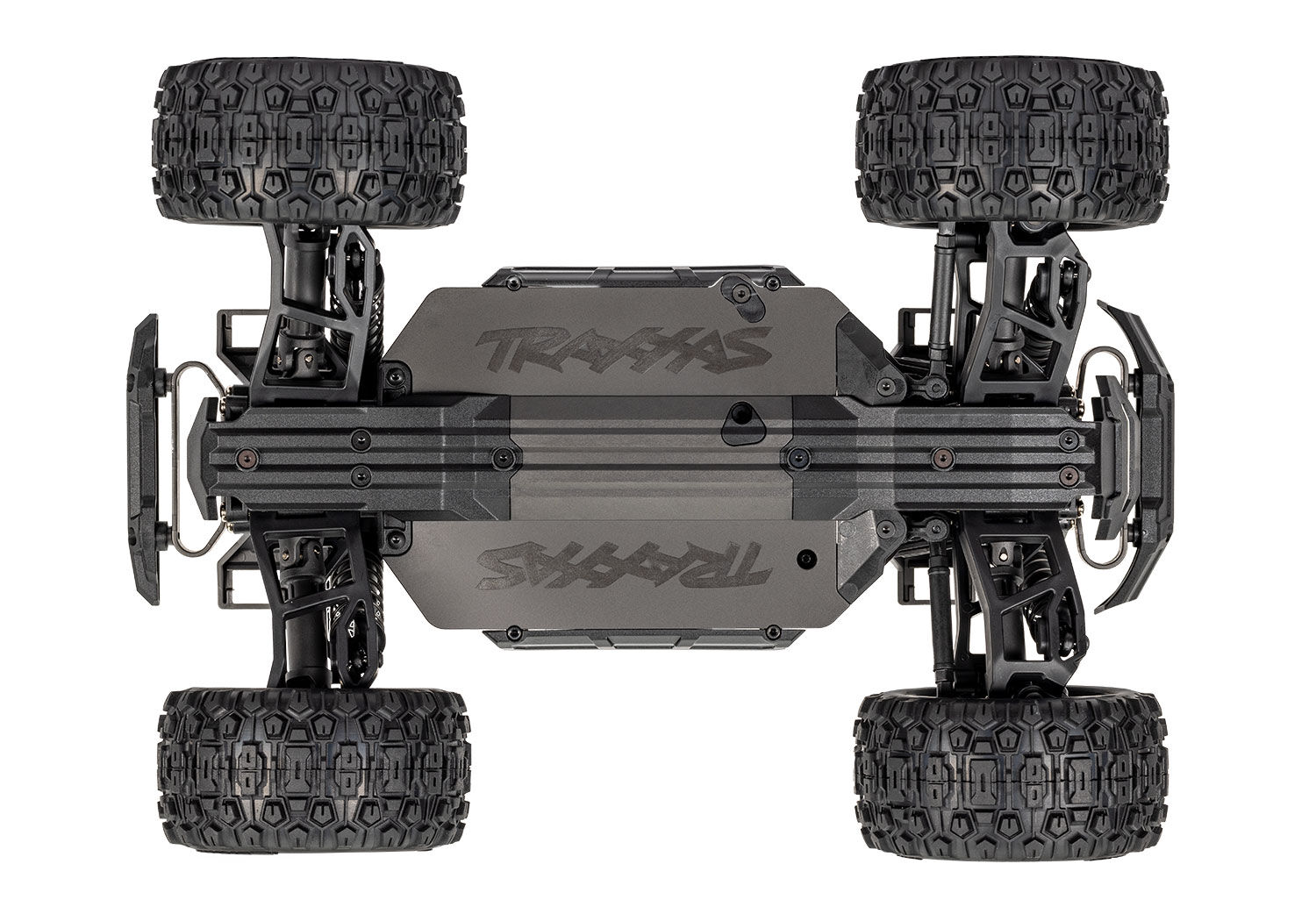

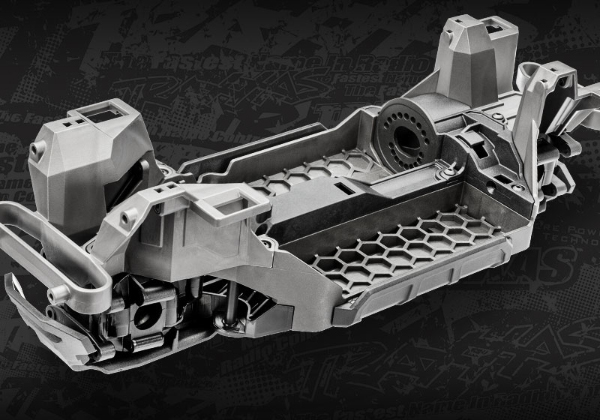

Maxx Chassis Technology

Maxx Chassis Technology

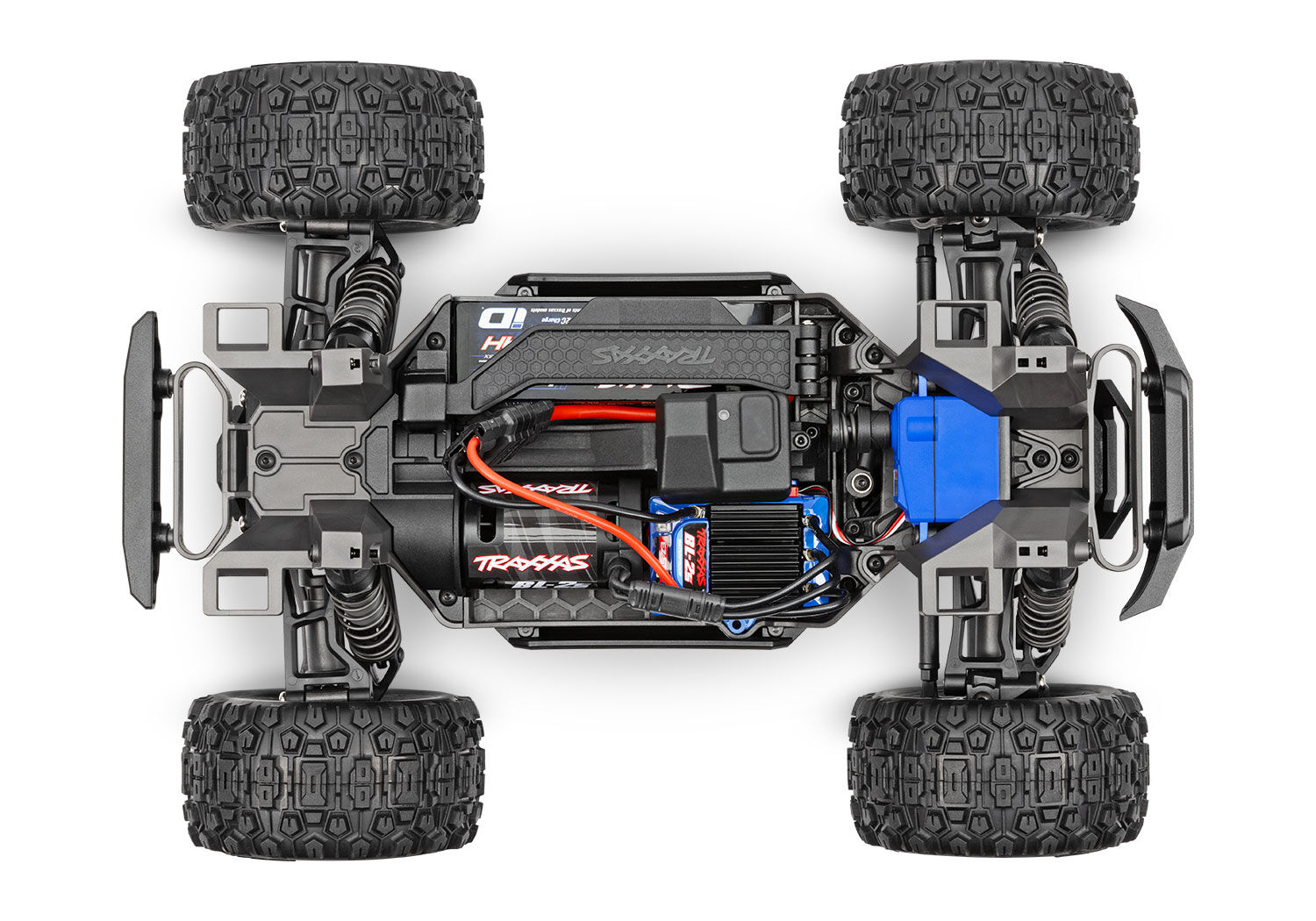

Mini Maxx fits in a backpack but it’s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid unified structure and you know it’s a Maxx. A Maxx chassis is always engineered for ultimate strength and Mini Maxx packs it all up in a supremely compact design.

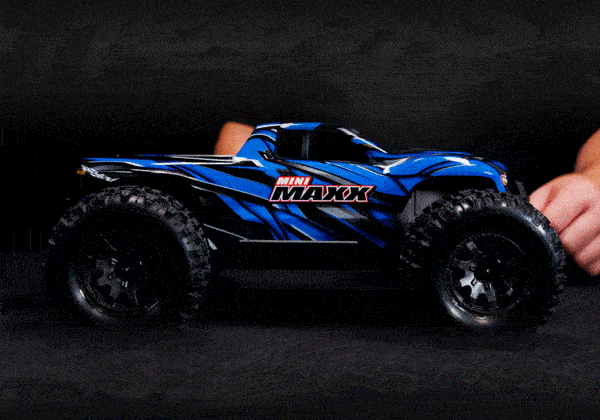

Clipless Body

Clipless Body


Mini Maxx’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.

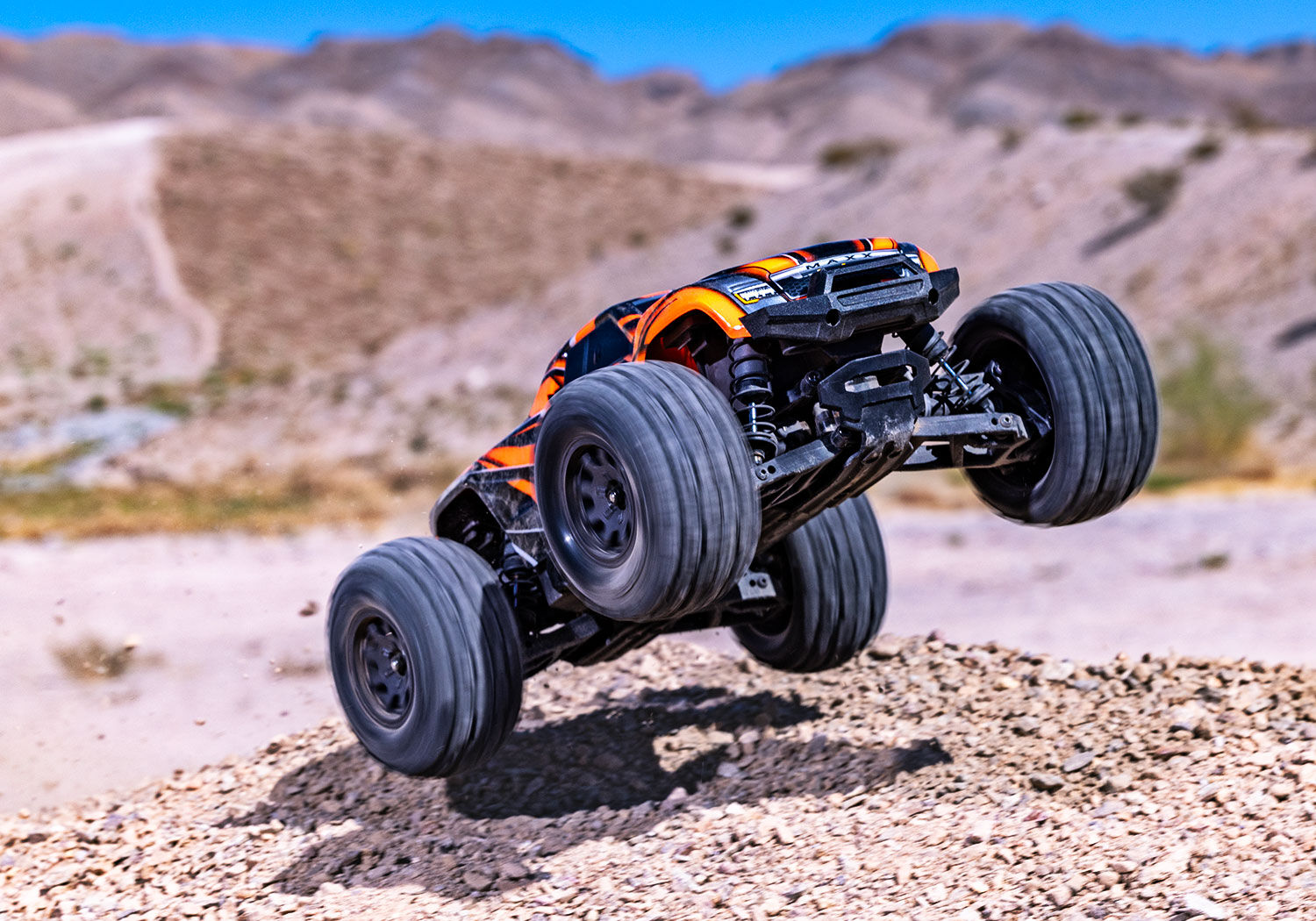

Long-Travel Suspension

Long-Travel Suspension


1/10 scale Ultra Shocks™ and a long-travel independent suspension deliver WideMaxx® handling and performance in a compact package. Mini Maxx’s beefy long travel suspension delivers superior strength and refined damping control to maintain composure over the roughest terrain.

Product Specifications

Length: 345mm
Width: 253mm
Ground Clearance: 27mm
Weight: 1.64kg
Height: 137mm
Wheelbase: 220mm
Shock Length: 88mm
Tire Diameter: 100mm
Wheel Diameter: 66mm (2.6")
Speed Control: BL-2s brushless ESC
Motor (electric): BL-2s sensorless brushless (3300 Kv)
Transmission: Direct-drive
Overall Drive Ratio: 9.20:1
Differential Type: Planetary steel gear
Gear Pitch: 32
Chassis Structure/Material: Composite modular tub
Brake Type: Electronic
Drive System:Shaft-driven 4WD
Steering: Double-shear bellcrank
Wheels & Tires: 2.6" wheels with pre-glued Sledgehammer® tires
Radio System: TQ™ 2.4 GHz (2-channel)
Servo: Waterproof high-torque 2056
Top Speed: 48+ kph
Skill Level: 1
Battery Tray: L113xW41xH22mm
Required Batteries: 4 “AA” (transmitter)
SKU 107154-1ORNG
Barcode # 0020334007193
Brand Traxxas
Shipping Weight 3.3000kg
Shipping Width 0.290m
Shipping Height 0.210m
Shipping Length 0.470m
Shipping Cubic 0.028623000m3
