The Savox SW-1212SG Plus is a waterproof high voltage coreless digital servo from Savox's Blue Line — the range built for boats, trail crawlers and RC builds that encounter mud, water and extreme terrain. Producing up to 52kg-cm of stump-pulling torque at 8.4V and sealed to IP67 standards, this servo is made for monster trucks, high-torque crawlers, scalers and marine use — anywhere conditions get wet and the loads get serious.

Built with a coreless motor and specialized steel gears, the SW-1212SG Plus uses a hybrid aluminium/composite case for strength and heat dissipation, runs on twin ball bearings with a super high 12-bit PCB for precision, and carries a long 450mm lead for larger chassis. The common 25T output spline gives broad servo horn compatibility. One fitment note: at 46.15mm the case stands taller than a typical standard servo — worth a quick check against your servo bay.

As part of the updated Plus range, this servo includes Soft Start and Sanwa SSR compatibility. With a full 6.0–8.4V operating range, it runs directly from 2S LiPo and delivers its maximum 52kg of torque in HV installations, no external BEC required.

Features

• Waterproof digital high voltage coreless servo — IP67 rated
• Savox Blue Line — built for water, mud and extreme terrain
• Up to 52kg-cm torque at 8.4V
• 46kg-cm torque at 7.4V, 36kg-cm at 6.0V
• Specialized steel gear train
• Coreless motor
• Hybrid aluminium/composite case
• Super high 12-bit resolution
• Long 450mm lead
• 25T output spline
• Soft Start function
• Sanwa SSR compatible
• Suitable for monster trucks, crawlers, scalers and boats

Specifications

Model: SW-1212SG Plus
Servo Type: Waterproof digital HV coreless servo
Line: Blue Line (Car / Boat)
Motor Type: Coreless
Operating Voltage: 6.0V–8.4V
Torque @ 6.0V: 36kg-cm
Torque @ 7.4V: 46kg-cm
Torque @ 8.4V: 52kg-cm
Speed @ 6.0V: 0.17 sec/60°
Speed @ 7.4V: 0.14 sec/60°
Speed @ 8.4V: 0.13 sec/60°

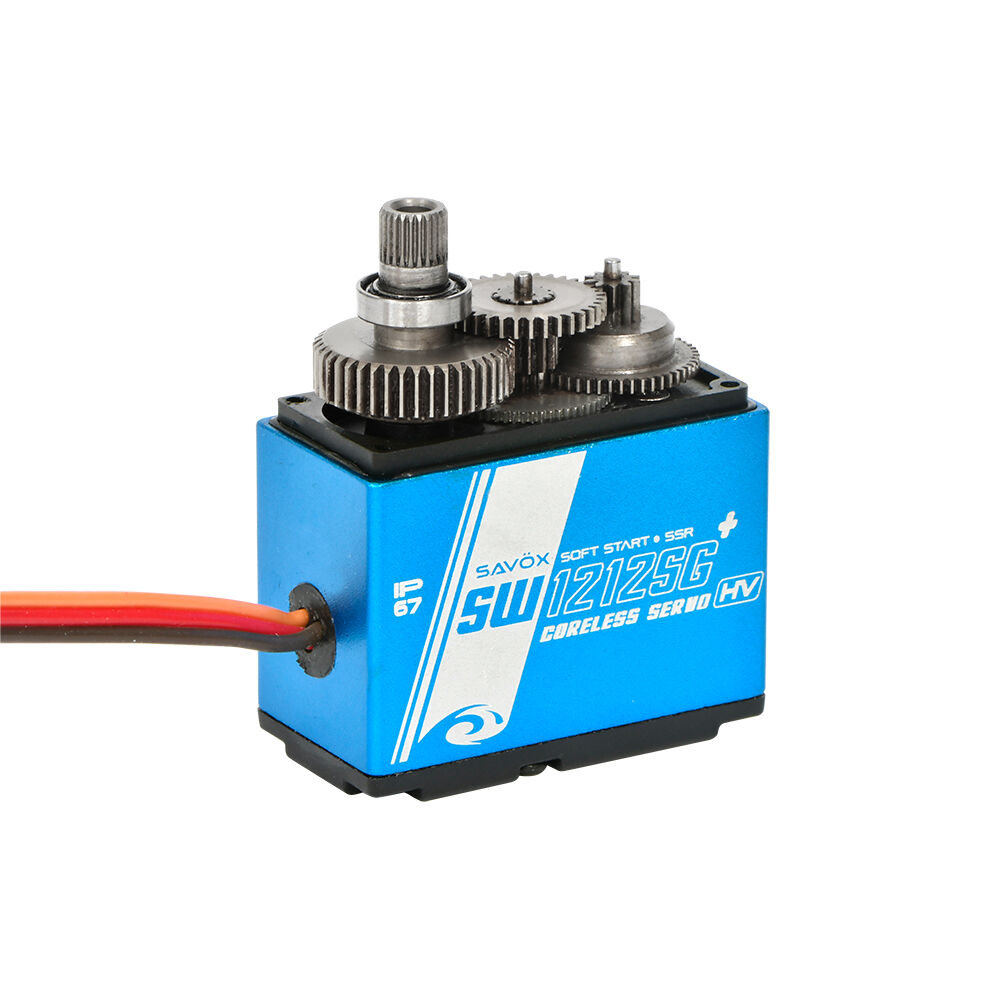

Gear Type: Specialized steel gears
Output Spline: 25T
Bearings: 2x ball bearings
Case: Hybrid aluminium/composite
Protection: Waterproof — IP67
Cable Length: 450mm

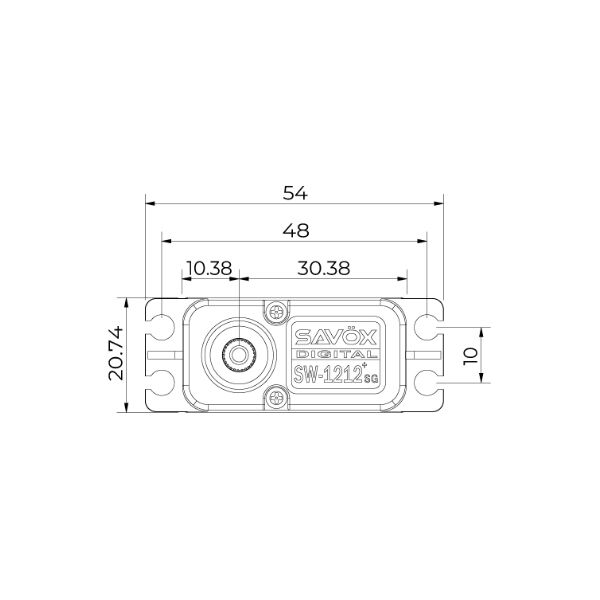

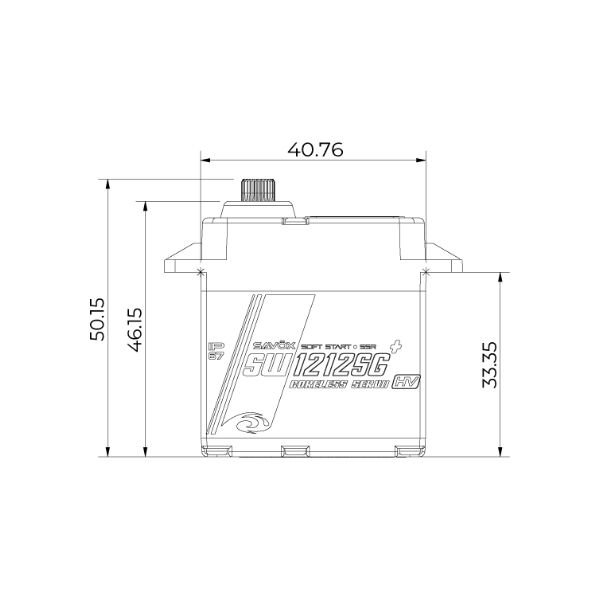

Dimensions: 40.76 x 20.74 x 46.15mm
Weight: 83g
Plus Features: Soft Start, Sanwa SSR compatibility
