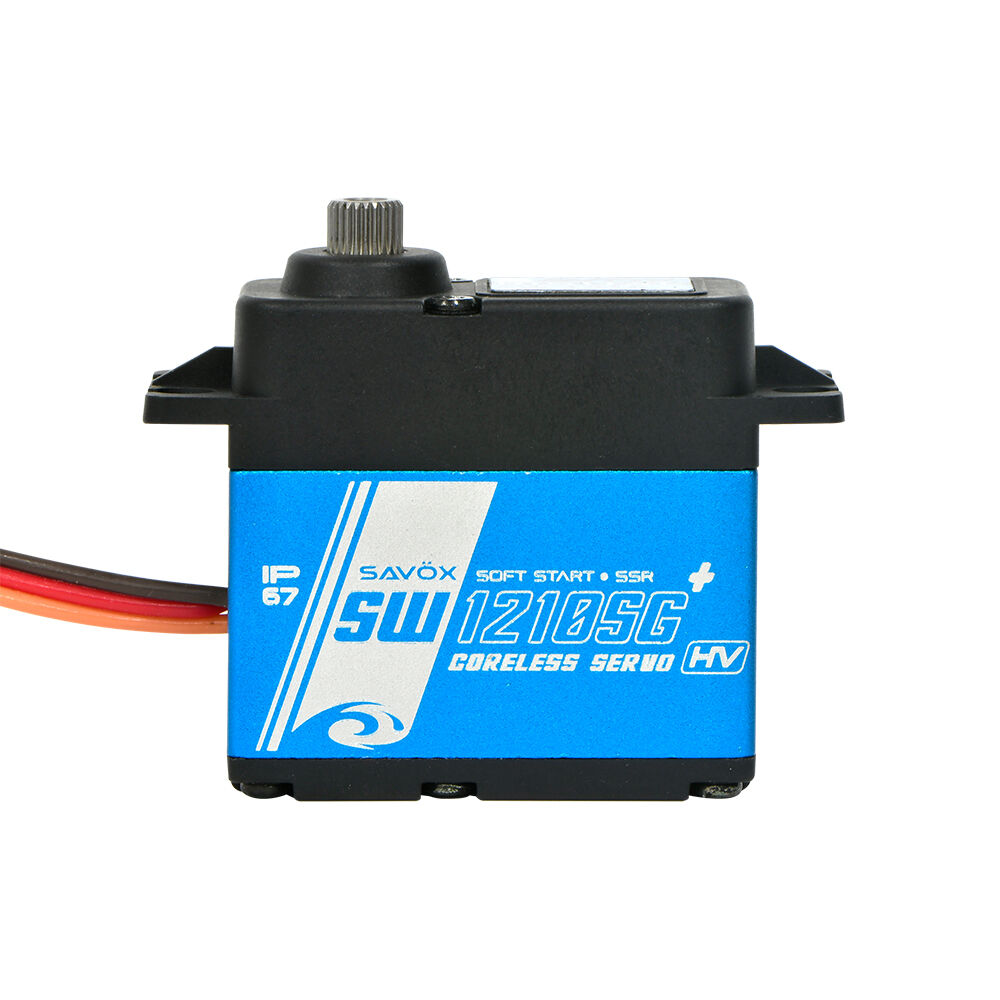

The Savox SW-1210SG Plus is a standard-size digital high voltage waterproof servo designed for demanding RC applications that need strong torque, precise control and reliable protection in wet or dirty conditions. Producing up to 37.0kg-cm of torque at 8.4V, it is a strong choice for crawlers, monster trucks, large RC cars, boats and other high-load models that require a powerful waterproof servo.

Built with a coreless motor, specialised steel gears, dual ball bearings and a hybrid aluminium/composite case, the SW-1210SG Plus delivers smooth response, strong holding power and excellent durability under load. Its high voltage capability allows increased torque and speed from compatible 6.0V–8.4V receiver power systems, while the IP67 waterproof protection makes it suitable for outdoor RC use where moisture, mud or splashes may be present.

This Plus version also features Soft Start, helping reduce sudden servo movement when the model is powered on. With Sanwa SSR compatibility, a 12-bit PCB board, 25T output spline, waterproof case design and a long 450mm JR lead, the SW-1210SG Plus is a premium waterproof servo upgrade for serious RC setups.

Features

• Standard-size digital high voltage waterproof servo
• Up to 37.0kg-cm torque at 8.4V
• 0.12 sec/60° speed at 8.4V
• Soft Start function
• Coreless motor for smooth and responsive performance
• Specialised steel gears for strength and durability
• Hybrid aluminium/composite case
• Dual ball bearing design
• 25T output spline
• 12-bit PCB board
• Sanwa SSR compatible
• Waterproof IP67 protection
• Long 450mm JR lead
• Suitable for crawlers, monster trucks, large RC cars, boats and high-load waterproof servo applications

Specifications

Model: SW-1210SG Plus
Servo Type: Standard digital high voltage waterproof servo
Application: Car / Boat
Motor Type: Coreless
Torque @ 6.0V: 20.0kg-cm
Torque @ 7.4V: 32.0kg-cm
Torque @ 8.4V: 37.0kg-cm
Speed @ 6.0V: 0.15 sec/60°
Speed @ 7.4V: 0.13 sec/60°
Speed @ 8.4V: 0.12 sec/60°
Gear Type: Specialised steel gears
Bearings: 2x ball bearings
Output Spline: 25T / 6mm
Case Type: Hybrid aluminium/composite

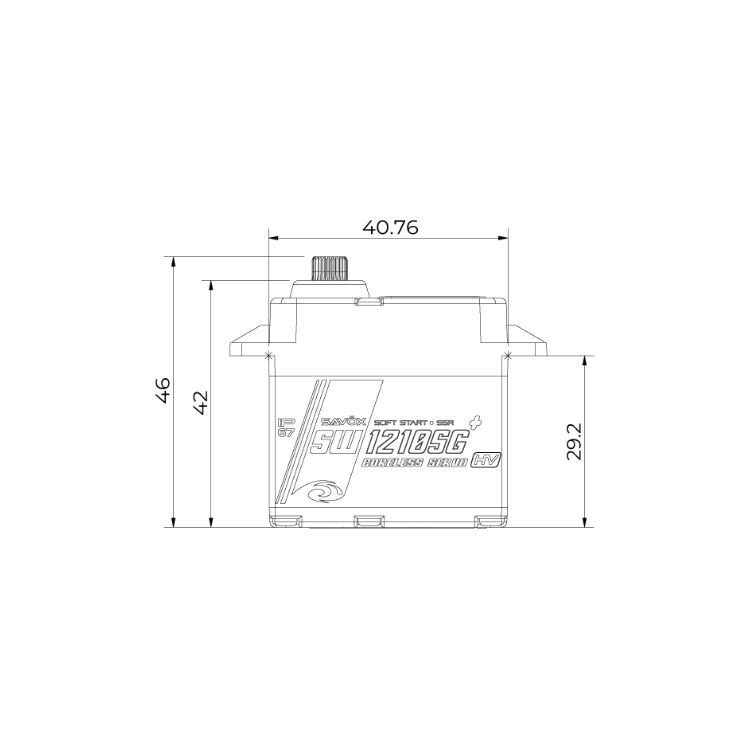

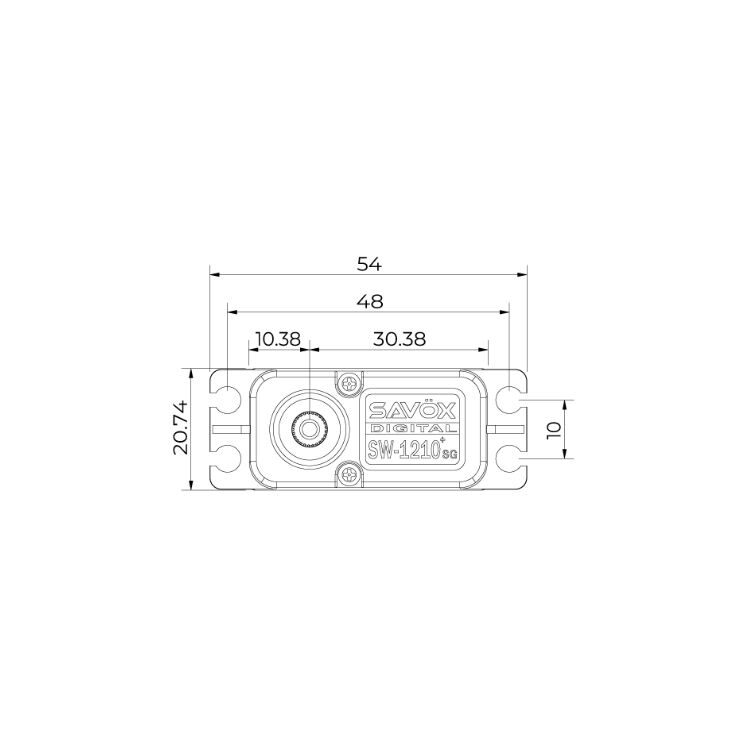

Dimensions: 40.76 x 20.74 x 42mm
Weight: 71g
Operating Voltage: 6.0V–8.4V
Protection: Waterproof IP67
Compatibility: Sanwa SSR
PCB Board: 12-bit
Connector: JR connector
Cable Length: 450 ±5mm
