EXTRA 260 GP/EP 30/35cc Scale 1:3 ¾   ARF

Feature

  • Construction: Laser cut balsa and plywood
  • Wing: Bolt-on two-piece design, with side force generators on the wing tips for extra lift in high-alpha maneuvers, aluminum wing joiner tube
  • Covering: Hangar 9 UltraCote
  • Hatch: Removable for access to radio equipment
  • Cowl: Fiberglass with white, gray and red painted color scheme to match covering
  • Canopy: Clear molded plastic
  • Landing Gear: Two-piece prebent aluminum with 3.3" (85mm) diameter main wheels, 1" (25.4mm) tailwheel
  • Wheel Pants: Two-piece molded plastic, red in color
  • Spinner: 3.5" (89mm) diameter, plastic construction, red in color
  • Fuel Tank: Approximately 24oz (720cc)

Download Phoenix Models EXTRA 260 GP/EP 30/35cc PH179 Manual



In The Box

  • Extra 260 30-35cc EP ARF
  • Prebuilt Wing
  • Tail and Fuselage sections
  • Landing Gear
  • Wheels
  • Spinner
  • Decals
  • Hardware
  • Product Manual


Needed to Complete

  • Radio: At least 8-channel
  • Servos: Five high torque (2-aileron, 2-elevator, 1-rudder) One standard servo for throttle if using gasoline engine
  • Receiver Battery: 6.0V at least 2200mAh
  • Electric Power: Brushless Motor: recommended Electronic Speed Control: 80amp or higher 12s compatible recommended  LiPo Batteries: Two 6S at least 4500mAh Battery Charger: Compatible with selected batteries Propeller: to suit the motor 20x10
  • Gasoline Power: Engine: 30-35cc two stroke Ignition Battery: 6.0V at least 2200mAh Building and field equipment Propeller: To match selected engine

EXTRA 260 GP/EP Size 30/35cc Scale 1:3 ¾ ARF PH179 Video



Put a little extra in, get a lot extra out!

Designed for high intensity aerobatics in a flash, the EXTRA 260 builds fast, flies fast, it even looks fast when it's sitting still. Fly 3D with the large-surface side-force generators and power to new heights with an incredible over six foot wingspan. All components fit precisely and deliver incredible results. Plus, it's pre-covered in high-quality heat shrink film to make every piece a show stopper. Put in the power system of

Phoenix Models Extra 260 30-35cc GP/EP ARFr Features

  • Capable of precise and extreme 3D aerobatics
  • Compatible with GP and EP setups
  • High quality heat shrink covering
  • Bolt-on two-piece wing for easy transport and field setup
  • Light, laser-cut, all-wood construction
  • Durable factory painted fiberglass cowl
  • All hardware included

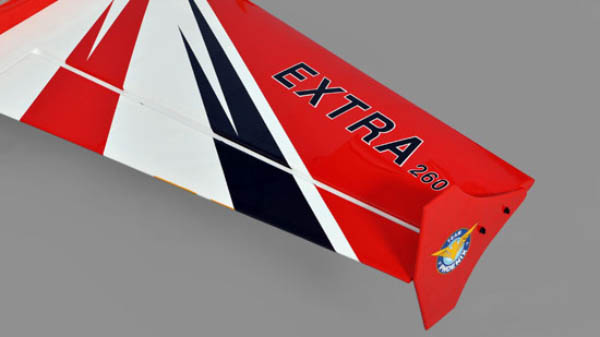

Side force generators

Side force generators on the wing tips provide extra lift in high alpha maneuvers so you can make extreme 3D maneuvers with incredible ease.

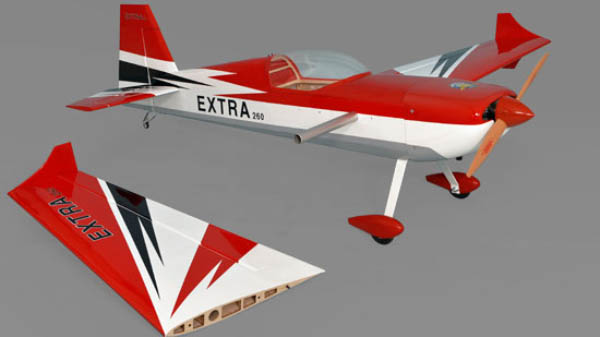

removable wing

The removable wing aligns on an aluminum joiner tube for easier transport and assembly.

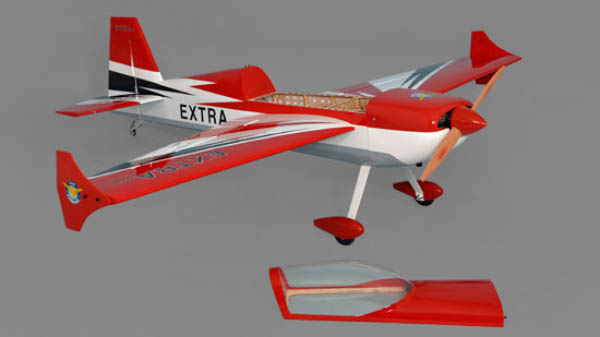

large hatch

A large hatch allows easy access to your choice of onboard components.

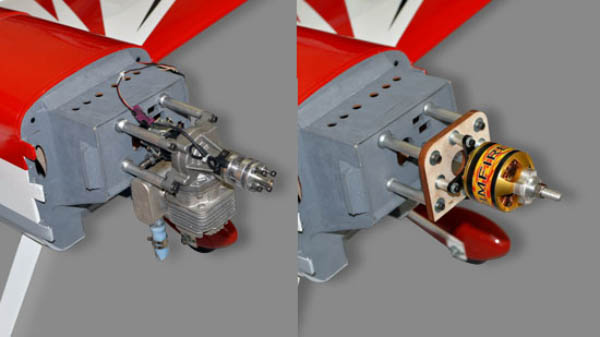

Compatible with GP and EP setups

Compatible with GP and EP setups

Technical data

Wingspan 2000mm (78.7 in)
Length 1848mm (72.7 in)
Flying weight 5700-5800 gr
Wing area 79.7 dm2
Wing loading 71g/dm2
Covering type Genuine ORACOVER®
Gear type Aluminum Hi-grade for main gear (included)
Spinner size Plastic 95mm (included)
Radio 8 channel minimum (not included)
Servo 6 standard hi- torque servo2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
Recommended receiver battery 2200-3000mAh (not included)
Servo mount 21mm x 42 mm
Propeller suit with your engine
Engine 30-35cc gas engine (not included)
Motor brushless outrunner 2500 W, 200 KV (not included)
Experience level Intermediate
Plane type Scale Aerobatic
SKU PHN-PH179
Brand Phoenix Models
Shipping Weight 5.0000kg
Shipping Width 0.590m
Shipping Height 0.290m
Shipping Length 1.420m
Shipping Cubic 0.242962000m3
