Name: Phoenix Models F4U-Corsair 1.48m 58.5'' w/Electric Retract ARF .46 -.55
Brand: Phoenix Models
Price: 499.00 AUD
Availability: InStock

PH224 - F4U-CORSAIR 1.48m 58,5'' W/Electric Retract ARF .46 -.55

Introducing

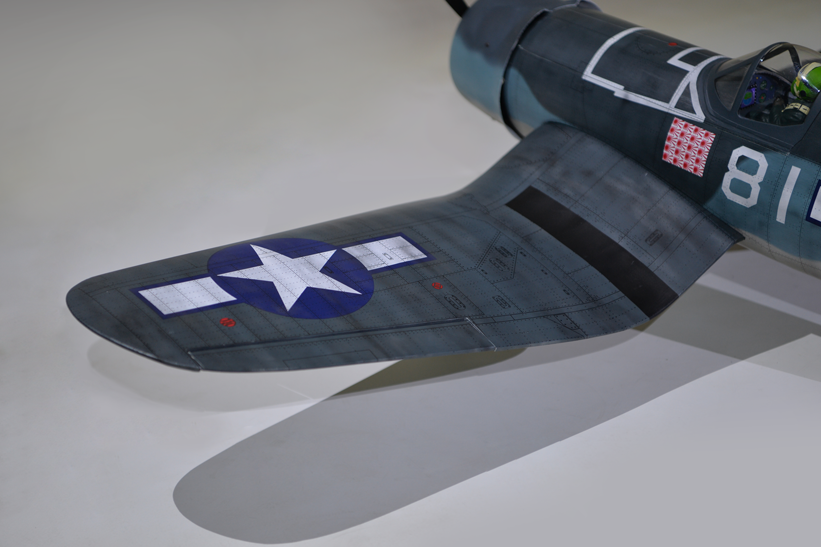

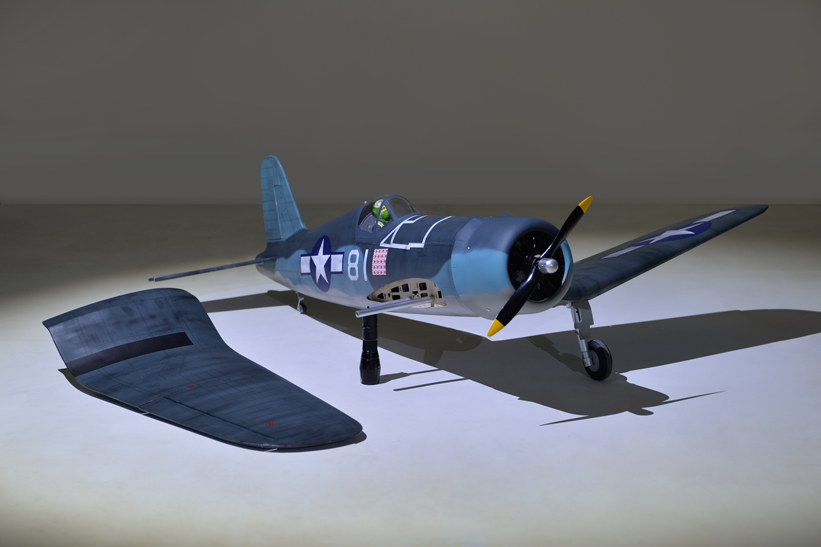

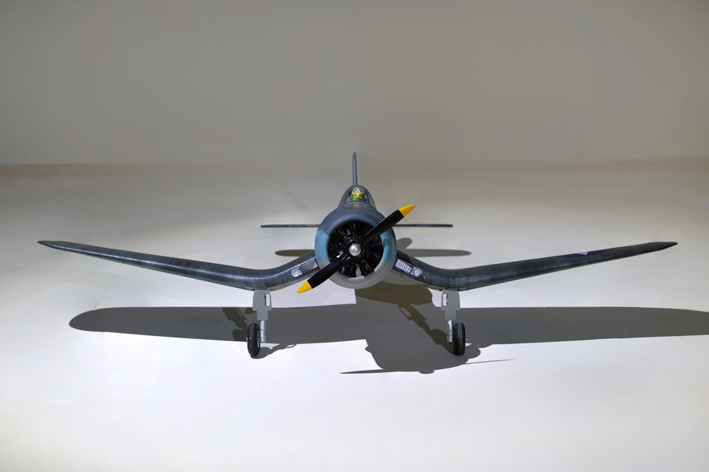

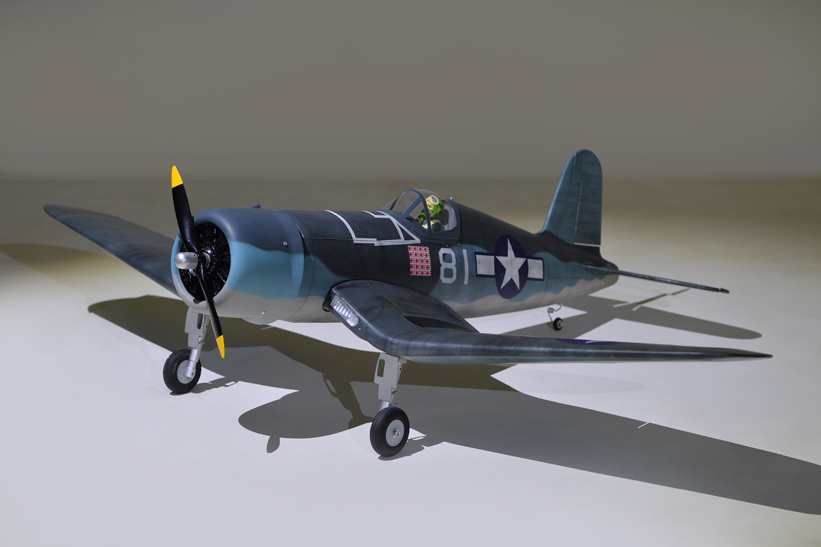

The F4U Corsair was a force to be reckoned with to the Japanese during WWII. With its gull wing design, impressive looks and power, the Corsair was one of the most recognizable WWII aircraft. Phoenix Model has recreated this outstanding Airplane to suit size .46-.55 plug engines. It was designed with the latest laser cut technology .Craftsmanship really shows up on the Corsair’s gull-shaped wing,This super looking F4U from our top quality and has enough scale detail and features to keep any warbird enthusiast happy

User Manual PH224 - F4U-Corsair 1.48m 58,5''

Technical data

Wingspan: 1485mm (58.5 in)
Length: 1127mm (44.5 in)
Flying weight: 3400-3500 g
Wing area: 38 dm2
Wing loading: 89.4 g/dm2
Wing type: Naca airfoils
Gear type: Electric retract rotary 90 degree retract and spring suspension gear (included)
Spinner size: corsair style (not included)
Radio: 4 channel minimum (not included)
Servo: 5 servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
Servo mount: 16mm x 33.5 mm
Propeller: suit with your engine
Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
Motor: brushless outrunner Dualsky Tuning Combo 50E (not included)
Experience level: Intermediate
Plane type: Scale Military

RECOMMENDED MOTOR AND BATTERY SET UP

Motor: Dualsky Tuning Combo 50E (not included)
Lipo cell: 6 cells / 4000 – 5500mAh (not included)
Esc: 50-80A (not included)

Feature

Designed for compatibility with both GP and EP flight

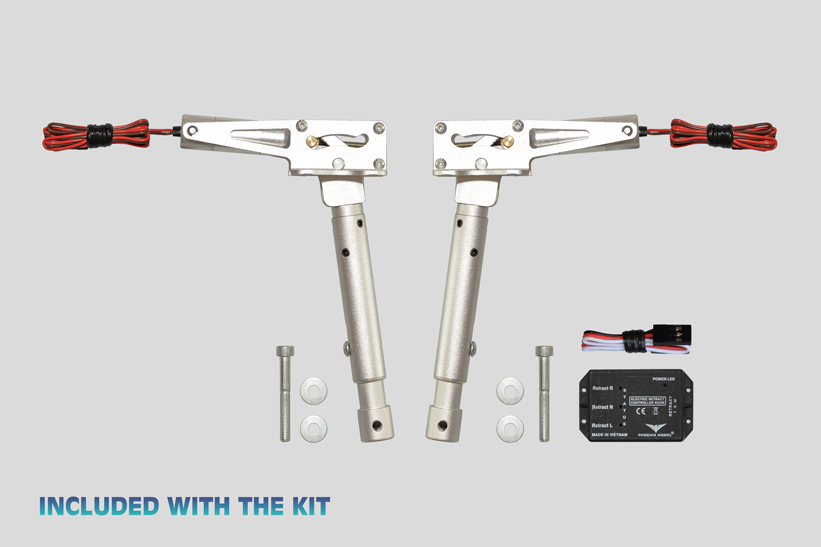

Electric Retract gear With CNC Suspension Metal Struts included

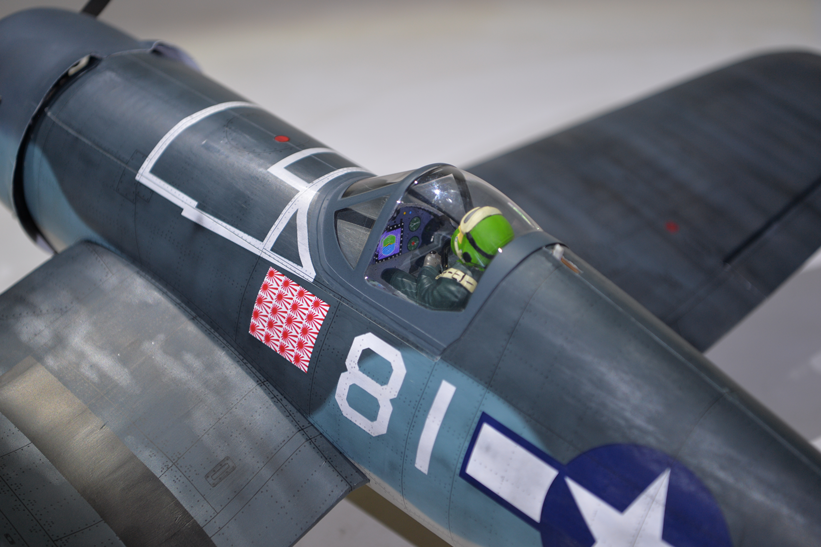

Full-depth cockpit and instrument panel and pilot included
Top quality balsa/light plywood construction

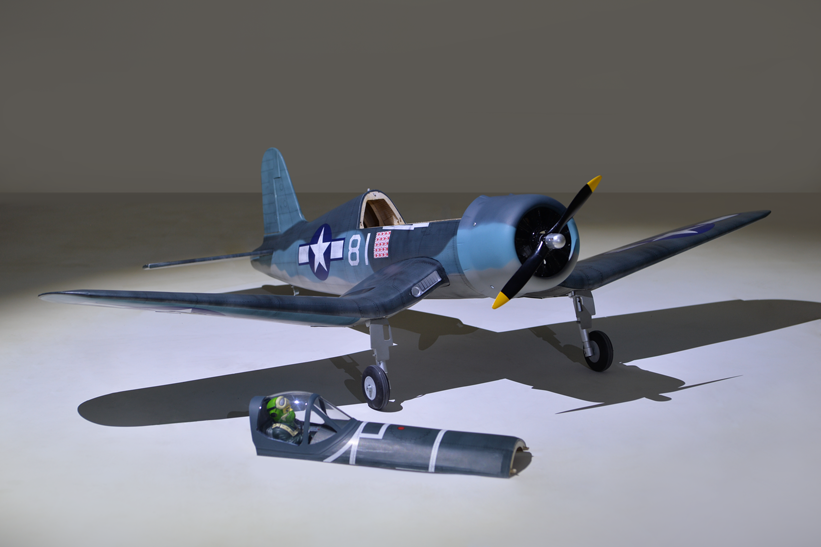

Removable top hatch for easy change lipo battery and set up radio

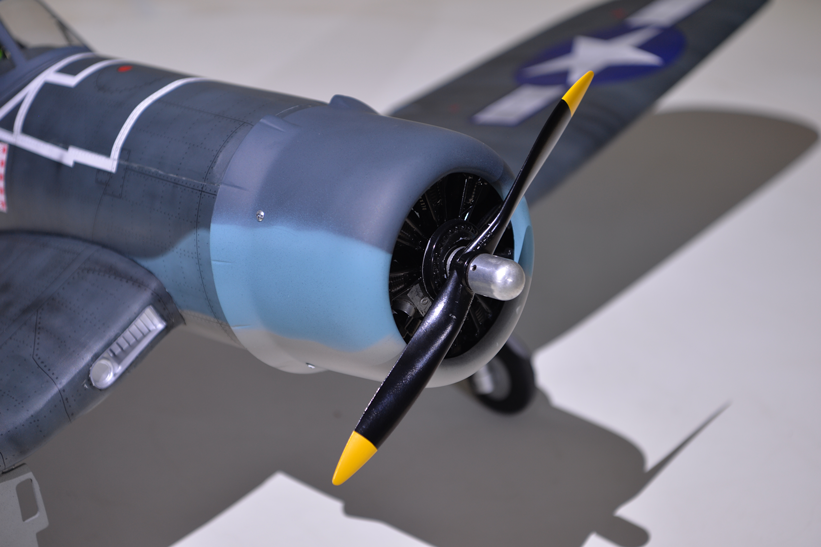

Scale outline is enhanced by the lightweight fiberglass cowl

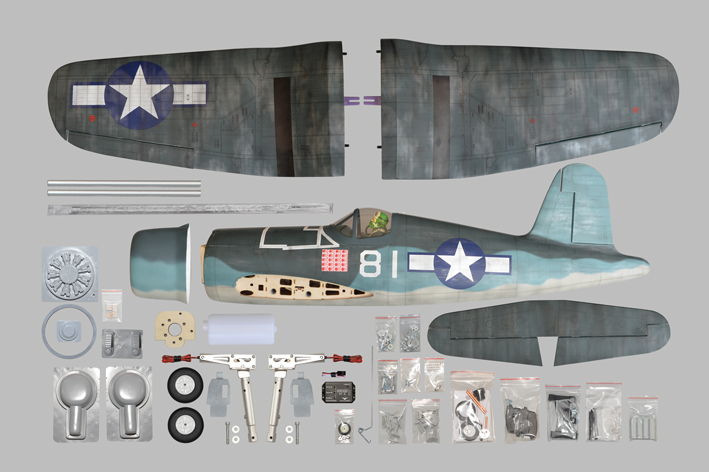

High-quality hardware package included

SKU	PHN-PH224
Brand	Phoenix Models
Shipping Weight	5.0000kg
Shipping Width	0.400m
Shipping Height	0.220m
Shipping Length	1.050m
Shipping Cubic	0.092400000m3
