Introducing

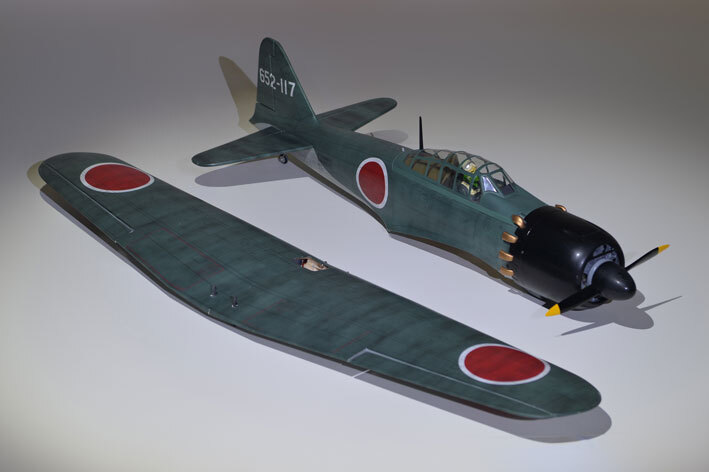

ZERO A6M 1,4m 55'' W/Electric Retract ARF .46 -.55

Download Manual for the Phoenix PH223 HERE

Technical data

• Wingspan: 1400mm (55 in)
• Length: 1200mm (47.3 in)
• Flying weight: 3200-3300 g
• Wing area: 36 dm2
• Wing loading: 88.8 g/dm2
• Wing type: Naca airfoils
• Gear type: Electric Retract Gear With CNC Suspension Metal Struts, Electric Controller Box and Spring tail gear (included)
• Spinner size: 65mm  scale type (included)
• Radio: 4 channel minimum (not included)
• Servo: 5 servo : 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
• Servo mount: 16mm x 33.5 mm
• Propeller: suit with your engine (not included)
• Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
• Motor: brushless outrunner 850 W, 800 KV (not included)
• Experience level: Intermediate
• Plane type: Scale Warbird II

RECOMMENDED MOTOR AND BATTERY SET UP

• Motor: RIMFIRE .46-.55 (not included)
• Lipo cell: 6 cells / 4000 – 5500mAh (not included)
• Esc: 50-80A (not included)

Feature

• Designed for compatibility with both GP and EP flight

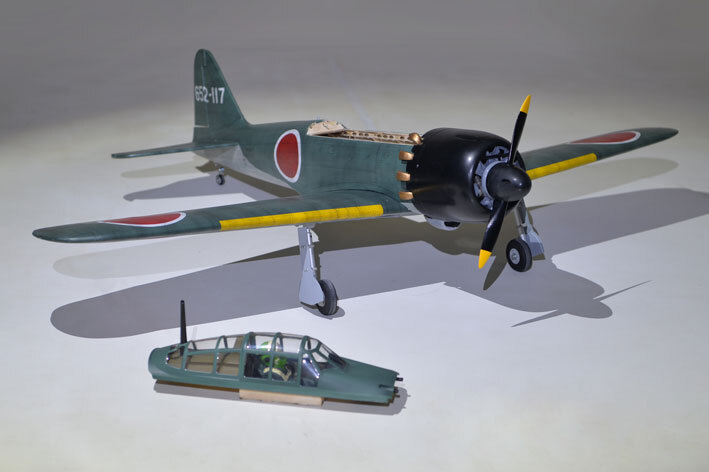

• Removable top-hatch for easy change lipo battery and set up radio

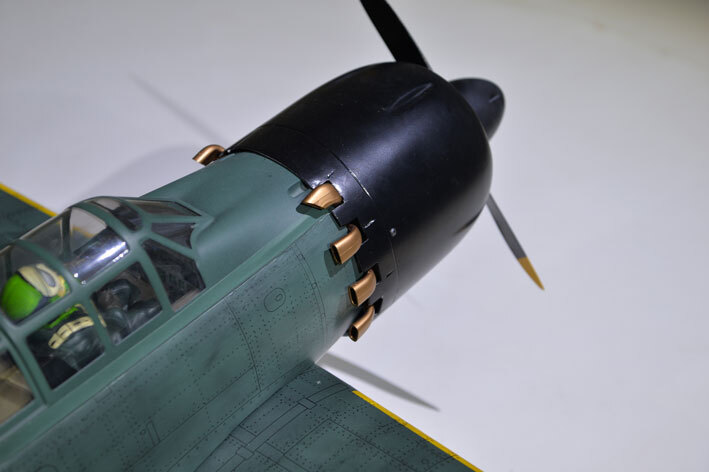

• Scale outline is enhanced by the lightweight fiberglass cowl

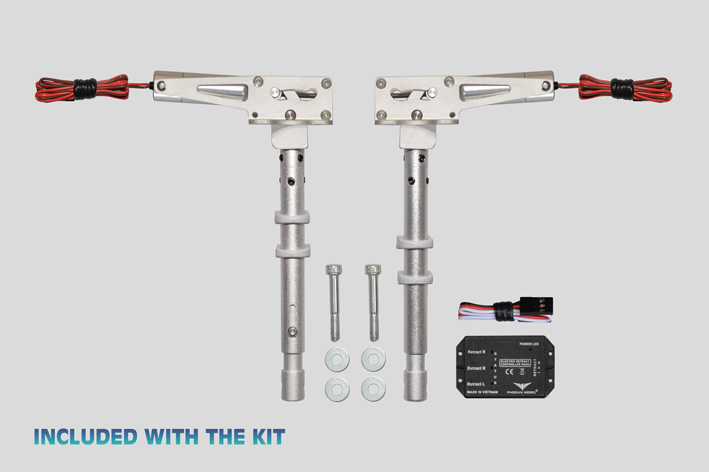

• Electric Retract gear With  Suspension Struts included

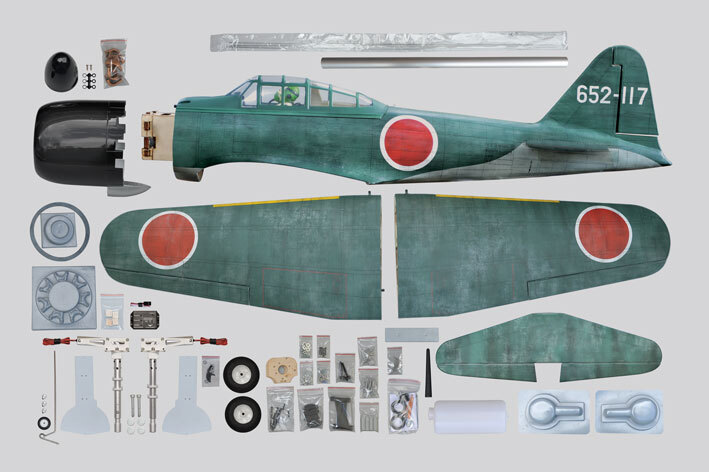

• High-quality hardware package included
