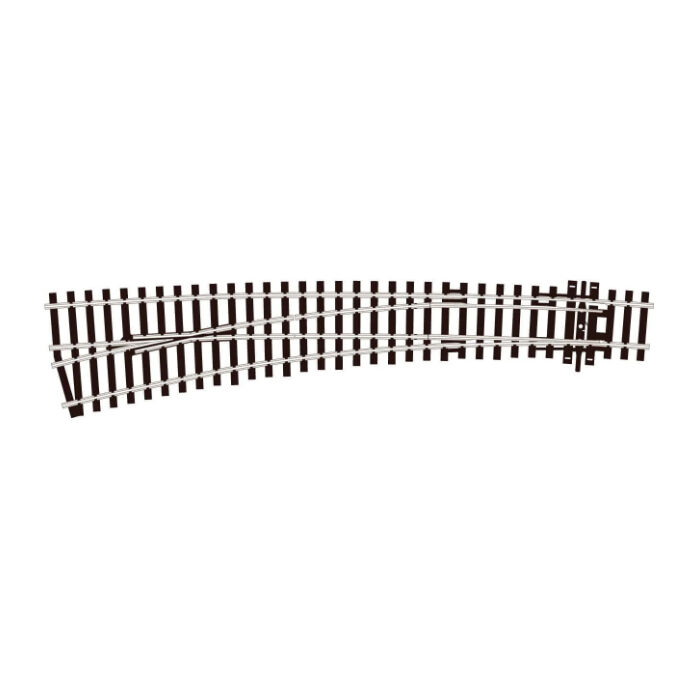

The curved turnout is the trackplan-saver. Real railways put junctions on curves constantly; model layouts struggle to, because ordinary straight turnouts force flat tangents into flowing curves — unless the turnout itself curves. The SL-E87 diverges left with both roads curving: 1524mm (60in) nominal radius on the outside road, 762mm (30in) inside, in 256mm of length. Sweeping junctions, return loops off curves, yard throats in corners — the geometry that makes a layout flow.

Electrofrog: The Live Frog Advantage

This is the Electrofrog version — the frog (the crossing vee) is powered metal rather than dead plastic, so there's no electrical gap for short-wheelbase locos to stall on. Shunters, small steam and slow running through the junction all benefit; it's the frog type serious layouts choose. The honest half of the bargain is a little wiring care: fit insulated joiners (SL-11) on the two frog rails, and for the cleanest running switch the frog's polarity with the point motor — the PL-13 accessory switch on a PL-10 motor does exactly this job. Peco's "Wiring the Layout" guides cover it step by step. Prefer plug-and-play over wiring? The SL-87 Insulfrog is this same geometry with a self-isolating dead frog.

Hand Operation Built In, Motors Ready

Peco's over-centre spring snaps the blades positively into position — flick with a finger and it holds, no lever required. For remote operation, the base takes the PL-10 point motor family directly (with the PL-13 switch stacking beneath for the frog wiring above).

Fits the Code 100 System

Right-hand mirror: SL-E86. Joins the Code 100 range with SL-10 joiners or PL-80 power feed joiners; meets Code 75 finescale via SL-112 dual-standard joiners or the SL-113 transition track. Compatible with Setrack Code 100 throughout.

Specifications

Brand: Peco
Part Number: SL-E87
Type: Curved double-radius turnout, left hand
Frog: Electrofrog (live) — SL-87 for Insulfrog
Gauge / Code: OO/HO, Code 100 Streamline
Radii: Outside 1524mm (60in) · Inside 762mm (30in) nominal
Length: 256mm (10 1/16in)
Operation: Over-centre spring; accepts PL-10 point motor + PL-13 switch
Mirror: SL-E86 (right hand)
