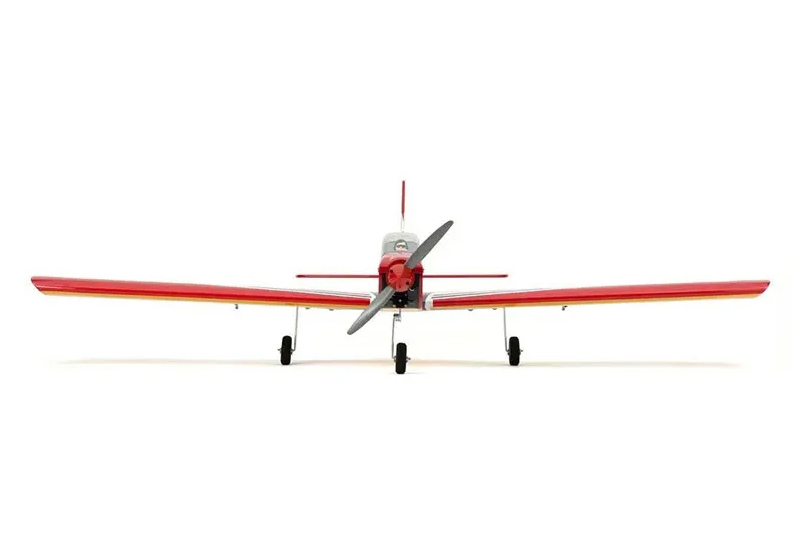

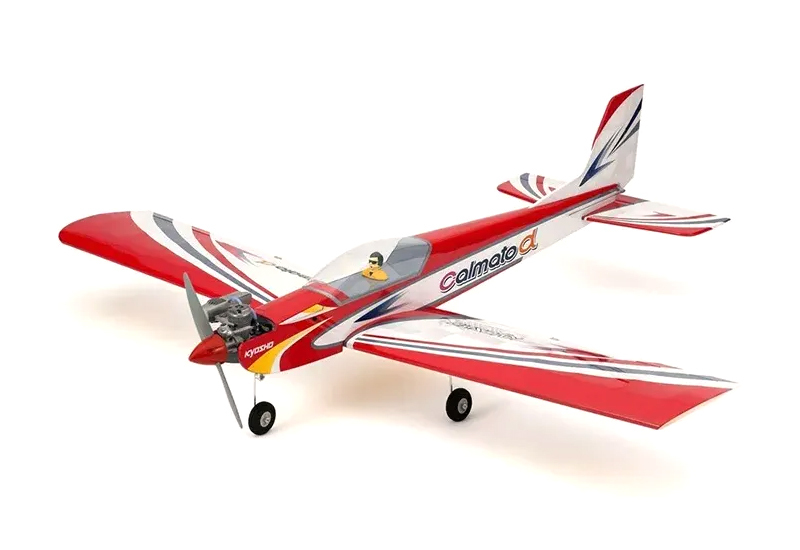

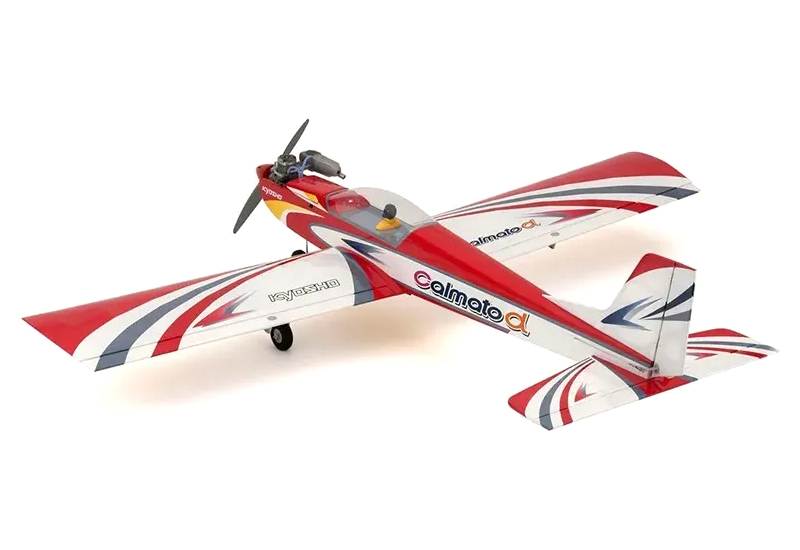

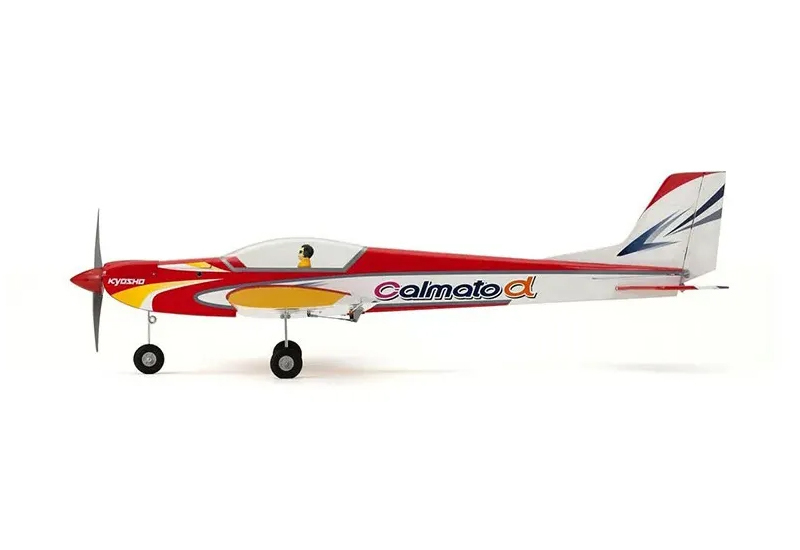

Enjoy the perfect introduction to low-wing flight with optimal maneuverability for loops, rolls and other stunts with this new addition to the Kyosho Calmato α 40 Sports lineup.

Calmato series DNA runs thick in this model to deliver unrivalled stability. Film covering is upgraded from PVC to superior quality reverse-side printed Toughlon which both improved durability and lighter weight. Urethane clear coating can also be applied to prevent wrinkling over long time periods and unlike PVC films, dry-type cover film can also be applied for damage repairs. The fuselage features the Calmato’s unique EP/GP convertible design that requires no gluing to reduce assembly time dramatically. The popular red colouring pattern allows colouring on upper and lower surfaces to be changed to improve flying visibility. The exquisite finish replicates competition model standards and provides an ideal step up for beginners to the sporty performance of low-wing flight.

Features

  • Designed for easy maneuverability for an ideal introduction to low-wing airplane flight
  • Covered in lightweight printed Toughlon film that is more resistant to wrinkling and sagging than PVC film
  • Convertible design allows the choice of preferred power source, electric motor (EP) or gas engine (GP)
  • Glueless design requires no adhesives to complete
  • Aluminium pins join main wing halves and can be separated for easy transportation
  • Vertical stabilizer, servo bed, aileron and rudder are all pre-installed
  • Use of a 4-cell 14.8V Li-Po battery enables powerful flight
  • Lightweight structure of the balsa fuselage provides calm and easy flight characteristics
  • Equipped with rudder-linked movable nose gear
  • Flexible pipe linkage rods for rudder and elevator are pre-installed
  • Includes pre-installed fuel tank
  • Includes spinner, linkage parts set and lightweight sponge tires
  • Includes pre-assembled and pre-painted pilot figure

What's in the box?

  • Pre-assembled fuselage covered in film
  • Linkage parts set
  • Engine mount
  • Fuel tank
  • Silicon tube
  • Motor mount
  • Spinner
  • Main, nose gear set
  • Cowling for EP
  • Decals

What you need?
EP Version

  • 4 channel, 4 servo R/C system for airplanes (standard servo x 4)
  • Batteries for transmitter
  • 100mm Y extension cord x 1 for aileron servo
  • 200mm extension cord x 2 for aileron servo
  • Propeller
  • Out Runner BL motor for 40-50 class
  • ESC
  • Li-Po battery
  • Charger for Li-Po battery

GP Version

  • 4 channel, 5 servo R/C system for airplanes (standard servo x 5)
  • Batteries for transmitter
  • 100mm Y extension cord x 1 for aileron servo
  • 200mm extension cord x 2 for aileron servo
  • Propeller
  • 2 cycle 40-46 engine for airplanes
  • Starting tools (plug heater, starter, starter battery, charger)
  • Glow fuel for airplanes
Specifications
Length   1400mm
Width   1600mm
Weight   EP/2,550g (approx.)
GP/2,450g (approx.)
Motor   600-1000W BL Motor (sold separately)
Engine   2 Cycle 40-46 class engine (sold separately)
Battery (EP)   14.8V-4,000-5,000mAh Li-Po battery (sold separately)
Main Wing Area   44dm2
Wing Loading   55.7-55.9g/dm2
Airfoil   Original semi-symmetrical
Propeller size   D11 x P7-D12 x P8 (sold separately)
Tyre size   Nose 60mm / Main 60mm
Dihedral   2.5°
R/C system (EP)   4ch, 4 servo, 1 ESC (sold separately)
R/C system (GP)   4ch, 5 servo (sold separately)



SKU KYO-11258R
Barcode # 4548565440979
Brand Kyosho
Shipping Weight 4.0000kg
Shipping Width 0.340m
Shipping Height 0.190m
Shipping Length 1.440m
Shipping Cubic 0.093024000m3
