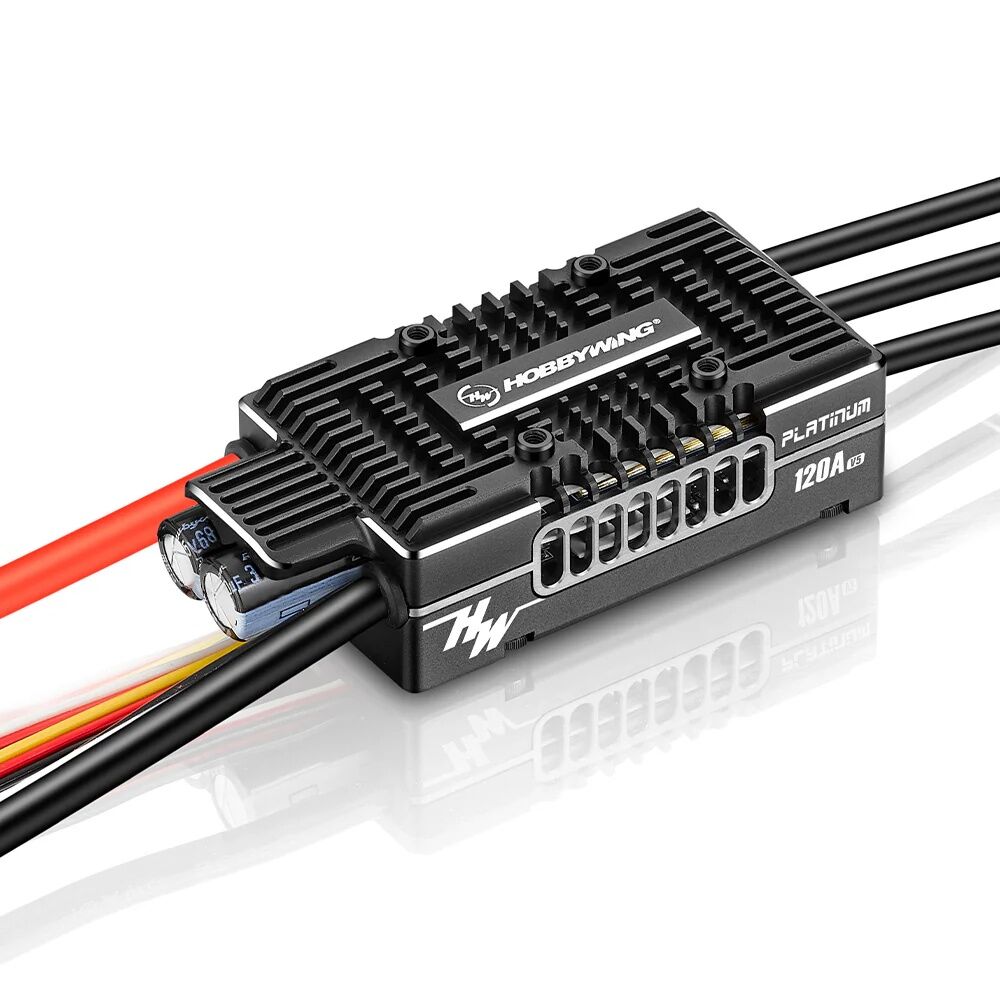

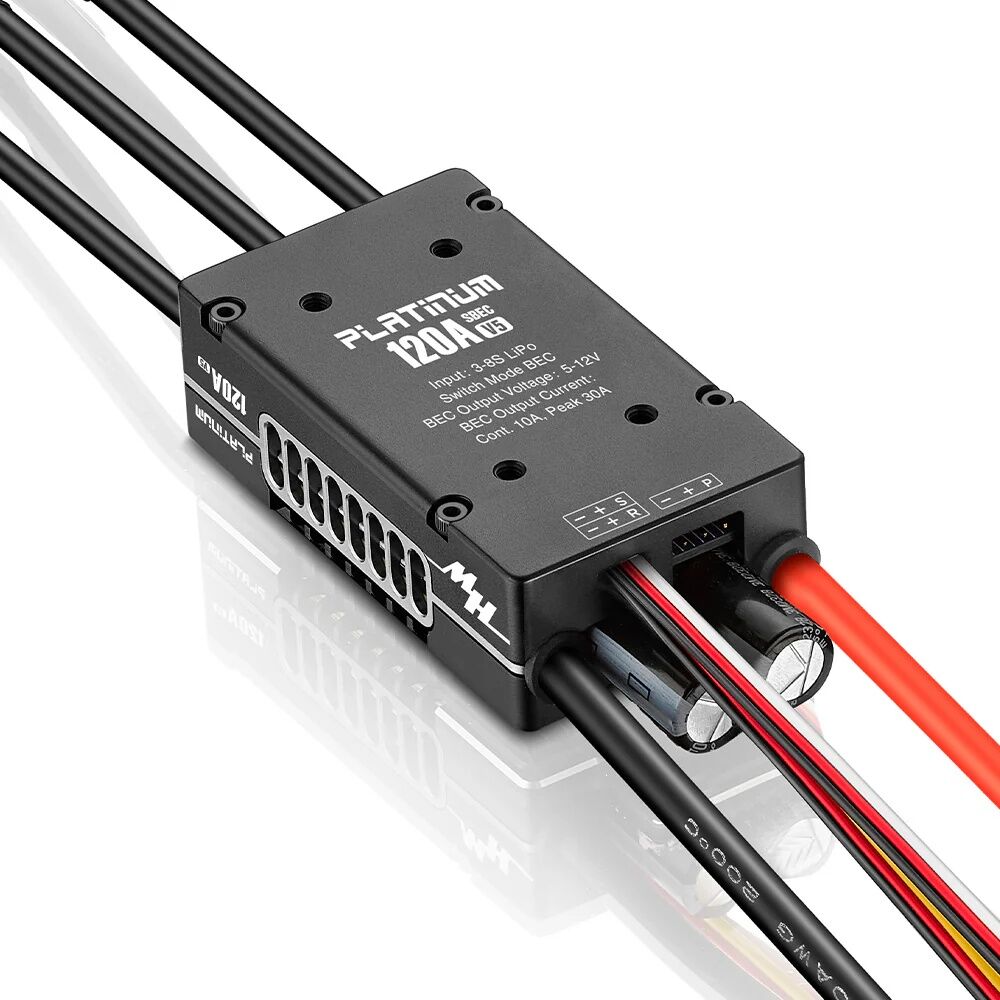

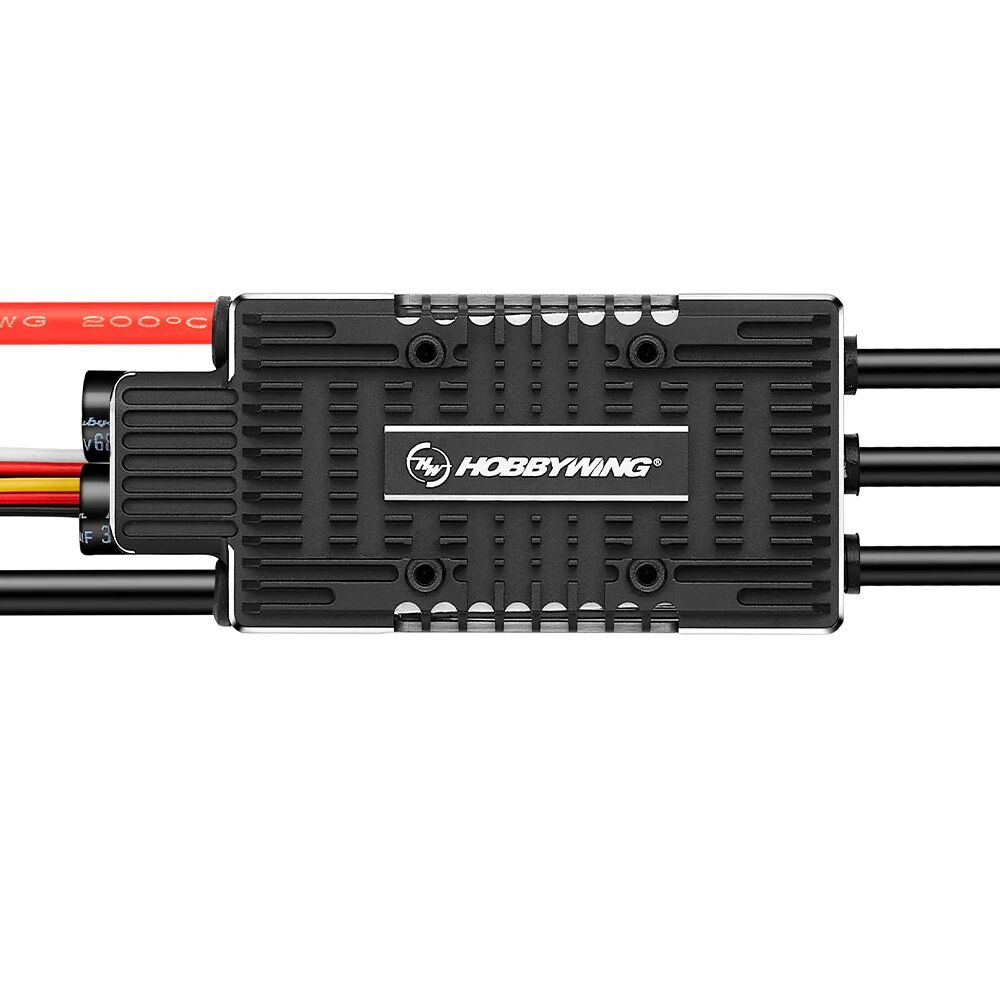

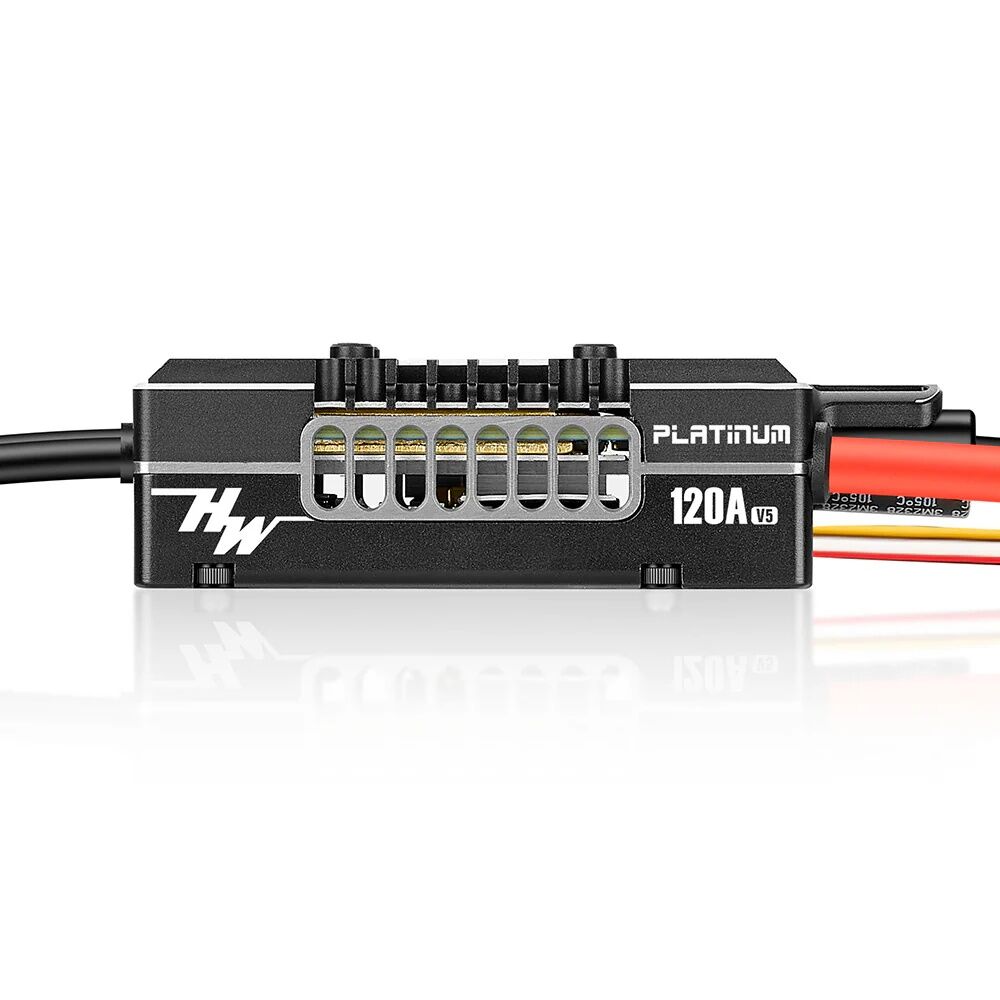

The Hobbywing Platinum 120A V5 3-8S Brushless ESC w/ 5-12V SBEC is a high-performance aircraft speed controller designed for demanding RC helicopter and fixed-wing applications. Built with Hobbywing’s Platinum V5 technology, it delivers strong 120A continuous current handling, smooth throttle response, reliable power delivery, and advanced programmability for serious electric aircraft setups.

This ESC supports 3-8S LiPo power systems and features a built-in switch-mode SBEC with adjustable 5-12V output, making it suitable for high-power servo and receiver setups. Hobbywing lists the BEC output at 10A continuous / 30A peak, with support for a maximum adjustable voltage of 12V.

The Platinum 120A V5 uses a compact double-sided heat dissipation design with an internal air duct structure to help improve cooling efficiency. It also includes Hobbywing’s DEO driving efficiency optimisation technology, designed to improve throttle response, efficiency, flight stability, battery life, and ESC temperature control.

Suitable for 420-520 class electric helicopters or compatible fixed-wing aircraft, this ESC also supports firmware upgrades, LCD Program Box programming, OTA Programmer compatibility, and telemetry protocols including Mikado VBar and Futaba S.Bus2.

Features

• Genuine Hobbywing Platinum 120A V5 ESC
• Suitable for RC helicopters and fixed-wing aircraft
• 120A continuous / 150A peak current rating
• Supports 3-8S LiPo battery setups
• Built-in adjustable 5-12V switch-mode SBEC
• BEC output: 10A continuous / 30A peak
• DEO technology for improved efficiency and throttle response
• Advanced heat dissipation design with air duct cooling structure
• Supports constant speed/governor performance for helicopters
• Compatible with LCD Program Box and OTA Programmer
• Firmware upgrade supported
• Telemetry support for Mikado VBar, Futaba S.Bus2 and compatible systems
• Multiple protection functions including start-up, current, temperature, overload, throttle signal loss and input voltage abnormality protection

Specifications

Product Name: Platinum 120A V5
Product Number: 30203402
Type: Brushless ESC
Input Voltage: 3-8S LiPo
Continuous / Peak Current: 120A / 150A
BEC Type: Switch Mode SBEC
BEC Voltage: 5-12V adjustable
BEC Current: 10A continuous / 30A peak
Input Wires: Red 10AWG 150mm x 1, Black 10AWG 150mm x 1
Output Wires: Black 12AWG 100mm x 3
Input Connector: Not included
Output Connector: 4.0mm gold female connectors
Size: 83.2 x 37.1 x 22.5mm, without fan
Weight: 150.4g, with wires and no fan
Application: 420-520 class electric helicopters or fixed-wing aircraft
