Features

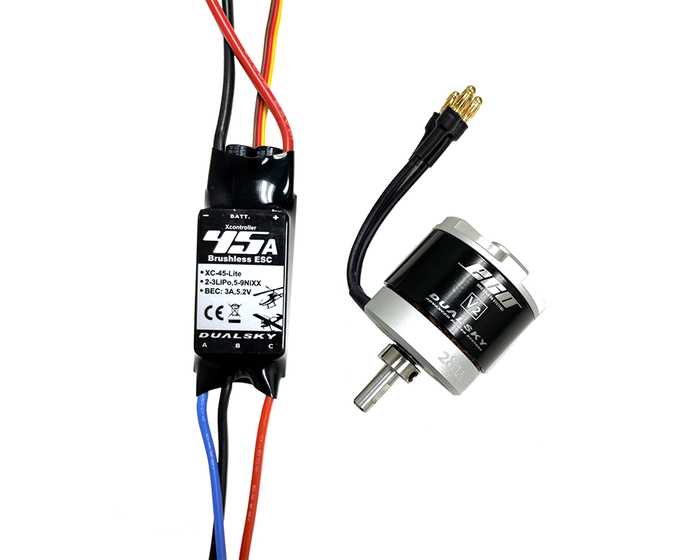

The Dualsky 15E tuning combo consists of a 990Kv motor and a 45A ESC. It will suit .10-.15 class RC planes or helicopters.

XM3536CA-8 Motor Specification:

KV   990RPM/V
Stator Diameter    28
Magnet Length   14
Shaft Diameter   4
Mounting Holes Pitch   19/25
Weight   103g
Resistance (Ri)   46mOhm
Idle Current (Io) @10V   1.27A
No.of Cells (LiPo)   2-3
Max. Efficiency Current   21A
Max. Burst Current (15s)   32A
Max. Power (15s)   350W
Input Connectors   DB3
Recommended ESC   XC3012BA
Prop. Range   10x5, 13x6
Brand   Dualsky

XC-45-Lite ESC Specification:

Dimensions   67x 25x 7mm (L x W x D)
Weight   38g (with wires)
Number of Cell   NiXX 5-9 cell, 6-10.8V LiPo 2-3s, 7.4-11.1V
Resistance(Ri)(Ohm)   0.0026
Max Cont. Current & Max Cont.Output   45A, 500W
Max Burst Current & Max Burst Output   60A, 666W
BEC / Dissipative Power   5.2V/3A (Linear)
Programmable   Throttle + ProgCARD V2
Signal Wire   300MM JR
Brand   Dualsky



SKU DSTC.3A.15E
Barcode # 6941047191082
Brand Dualsky
Shipping Weight 0.6000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.120m
Shipping Cubic 0.000960000m3
